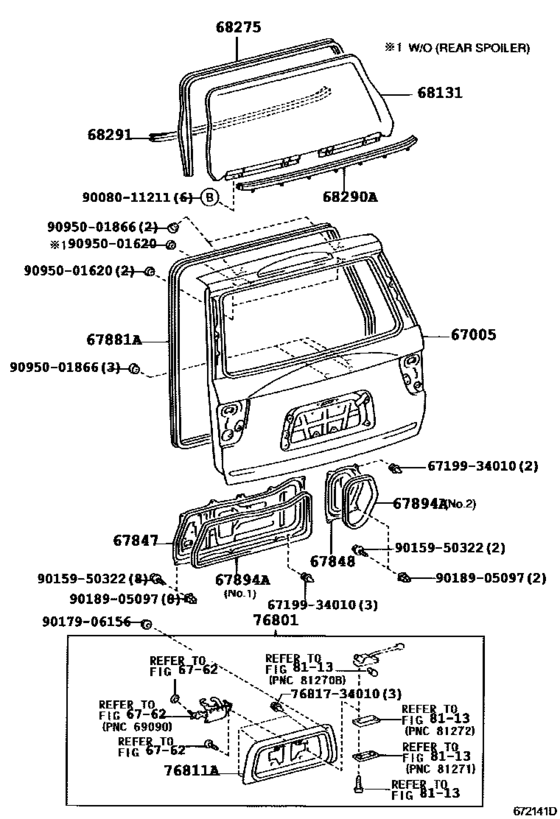

Back Door Panel & Glass ([09.2000 - ] (0009- )) Diagram Toyota SEQUOIA
- Year
- 2004 - 2007
- Sales region
- U.S.A.
- Frame
- UCK45
- grade
- LIMD
- ENGINE
- 2UZFE
- From
- 08.2004
- To
- 11.2007
- Gear Shift Type
- 5HC
- Vehicle Model
- SEQUOIA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67005
|
67005
67005-0C070
Panel Sub-Assy, Back Door
[08.2004 - 01.2006] UCK35,45..LIMD W(REAR SPOILER) |
67005-0C070 |
— | ||
| replacement | |||||
|
67005
|
67005
67005-0C071
Panel Sub-Assy, Back Door
[08.2004 - 01.2006] UCK35,45..LIMD W(REAR SPOILER) |
67005-0C071 |
— | ||
|
67005
|
67005
67005-0C071
Panel Sub-Assy, Back Door
[01.2006 -] UCK35,45..LIMD W(REAR SPOILER) |
67005-0C071 |
— | ||
|
67005
|
67005
67005-0C080
Panel Sub-Assy, Back Door
[08.2004 - 01.2006] UCK35,45 |
67005-0C080 |
— | ||
| replacement | |||||
|
67005
|
67005
67005-0C081
Panel Sub-Assy, Back Door
[08.2004 - 01.2006] UCK35,45 |
67005-0C081 |
— | ||
|
67005
|
67005
67005-0C081
Panel Sub-Assy, Back Door
[01.2006 -] UCK35,45 |
67005-0C081 |
— | ||
|
67847
|
67847
67847-0C010
Cover, Back Door Service Hole, Rh
[08.2004 -] UCK35,45 |
67847-0C010 |
— | ||
|
67848
|
67848
67848-0C010
Cover, Back Door Service Hole, Lh
[08.2004 -] UCK35,45 |
67848-0C010 |
— | ||
|
67881A
|
67881A
67881-0C011
Weatherstrip, Back Door
[08.2004 - 04.2005] UCK35,45 |
67881-0C011 |
— | ||
| replacement | |||||
|
67881A
|
67881A
67881-0C012 Weatherstrip, Back Door[08.2004 - 04.2005] UCK35,45 |
67881-0C012 |
US $203.84 |
||
|
67881A
|
67881A
67881-0C012 Weatherstrip, Back Door[04.2005 -] UCK35,45 |
67881-0C012 |
US $203.84 |
||
|
67894A
|
67894A
67893-0C020
Protector, Back Door Panel, No.1
[08.2004 -] UCK35,45 NO.1:REFER ILLUST. |
67893-0C020 |
— | ||
|
67894A
|
67894A
67894-0C020
Protector, Back Door Panel, No.1
[08.2004 -] UCK35,45 NO.2:REFER ILLUST. |
67894-0C020 |
— | ||
|
68131
|
68131
68150-0C012
Glass, Back Door
[08.2004 -] UCK35,45 *EHTT,T=3.5,GRAY |
68150-0C012 |
— | ||
|
68275
|
68275
68275-0C010 Run, Back Door GlassBACK DOOR GLASS [08.2004 -] UCK35,45 |
68275-0C010 |
US $133.95 |
||
|
68290A
|
68290A
68290-0C010
Weatherstrip Assy, Back Door Glass, Outer
[08.2004 -] UCK35,45 |
68290-0C010 |
— | ||
|
68291
|
68291
68291-0C010 Weatherstrip, Back Door GlassBACK DOOR GLASS [08.2004 -] UCK35,45 |
68291-0C010 |
US $57.51 |
||
|
76801
|
76801
76801-0C010-A0
Garnish Sub-Assy, Back Door, Outside
[08.2004 -] UCK35,45 WHITE,056 |
76801-0C010-A0 |
— | ||
|
76801
|
76801
76801-0C010-A1
Garnish Sub-Assy, Back Door, Outside
[08.2004 -] UCK35,45..LIMD WHITE PEARL CS.,071 |
76801-0C010-A1 |
— | ||
|
76801
|
76801
76801-0C010-A2
Garnish Sub-Assy, Back Door, Outside
[01.2007 -] UCK35,45 SUPER WHITE 2,040 |
76801-0C010-A2 |
— | ||
|
76801
|
76801
76801-0C010-B1
Garnish Sub-Assy, Back Door, Outside
[08.2004 -] UCK35,45 SILVER ME.,1D6 |
76801-0C010-B1 |
— | ||
|
76801
|
76801
76801-0C010-B2
Garnish Sub-Assy, Back Door, Outside
[08.2004 -] UCK35,45 GRAY M.M.,1E3 |
76801-0C010-B2 |
— | ||
|
76801
|
76801
76801-0C010-C0 Garnish Sub-Assy, Back Door, OutsideBACK DOOR, OUTSIDE [08.2004 -] UCK35,45 BLACK,202 |
76801-0C010-C0 |
US $401.86 |
||
|
76801
|
76801
76801-0C010-D1
Garnish Sub-Assy, Back Door, Outside
[08.2004 -] UCK35,45 DK. RED M.M.,3Q3 |
76801-0C010-D1 |
— | ||
|
76801
|
76801
76801-0C010-E0
Garnish Sub-Assy, Back Door, Outside
[08.2004 -] UCK35,45 BEIGE M. M.,4Q2 |
76801-0C010-E0 |
— | ||
|
76801
|
76801
76801-0C010-G1
Garnish Sub-Assy, Back Door, Outside
[08.2004 -] UCK35,45 DK.GREEN M.M.,6T8 |
76801-0C010-G1 |
— | ||
|
76801
|
76801
76801-0C010-J1
Garnish Sub-Assy, Back Door, Outside
[08.2004 -] UCK35,45 DK.BLUE MM,8J7 |
76801-0C010-J1 |
— | ||
|
76811A
|
76811A
76811-0C010-A0
Garnish, Back Door, Outside
[08.2004 -] UCK35,45 WHITE,056 |
76811-0C010-A0 |
— | ||
|
76811A
|
76811A
76811-0C010-A1
Garnish, Back Door, Outside
[08.2004 -] UCK35,45..LIMD WHITE PEARL CS.,071 |
76811-0C010-A1 |
— | ||
|
76811A
|
76811A
76811-0C010-A2
Garnish, Back Door, Outside
[01.2007 -] UCK35,45 SUPER WHITE 2,040 |
76811-0C010-A2 |
— | ||
|
76811A
|
76811A
76811-0C010-B1
Garnish, Back Door, Outside
[08.2004 -] UCK35,45 SILVER ME.,1D6 |
76811-0C010-B1 |
— | ||
|
76811A
|
76811A
76811-0C010-B2
Garnish, Back Door, Outside
[08.2004 -] UCK35,45 GRAY M.M.,1E3 |
76811-0C010-B2 |
— | ||
|
76811A
|
76811A
76811-0C010-C0
Garnish, Back Door, Outside
[08.2004 -] UCK35,45 BLACK,202 |
76811-0C010-C0 |
— | ||
|
76811A
|
76811A
76811-0C010-D1
Garnish, Back Door, Outside
[08.2004 -] UCK35,45 DK. RED M.M.,3Q3 |
76811-0C010-D1 |
— | ||
|
76811A
|
76811A
76811-0C010-E0
Garnish, Back Door, Outside
[08.2004 -] UCK35,45 BEIGE M. M.,4Q2 |
76811-0C010-E0 |
— | ||
|
76811A
|
76811A
76811-0C010-G1
Garnish, Back Door, Outside
[08.2004 -] UCK35,45 DK.GREEN M.M.,6T8 |
76811-0C010-G1 |
— | ||
|
76811A
|
76811A
76811-0C010-J1
Garnish, Back Door, Outside
[08.2004 -] UCK35,45 DK.BLUE MM,8J7 |
76811-0C010-J1 |
— | ||
|
6719934010
|
6719934010
67199-34010 Retainer, Back Door Inner Panel |
67199-34010 |
US $1.14 |
||
|
7681734010
|
7681734010
76817-34010
Clip, Back Door Outside Garnish
|
76817-34010 |
— | ||
|
9008011211
|
9008011211
90080-11211
New Genuine Part
|
90080-11211 |
— | ||
|
9015950322
|
9015950322
90159-50322 SCREW WWASHER |
90159-50322 |
from US $0.74 |
||
|
9017906156
|
9017906156
90179-06156 Nut (For Transmission Control Cable) |
90179-06156 |
from US $0.90 |
||
|
9018905097
|
9018905097
90189-05097 GROMMET SCREW |
90189-05097 |
US $1.28 |
||
|
9095001620
|
9095001620
90950-01620 PLUG HOLE |
90950-01620 |
from US $1.76 |
||
|
9095001866
|
9095001866
90950-01866 Plug, Hole(For Front Door Panel) |
90950-01866 |
from US $1.92 |
||
