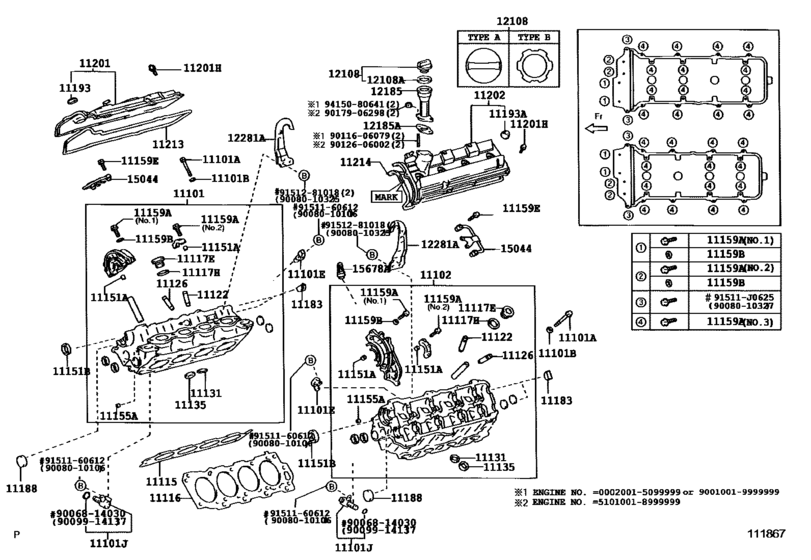

Cylinder Head ([09.2000 - ] (0009- )) Diagram Toyota SEQUOIA
- Year
- 2004 - 2007
- Sales region
- U.S.A.
- Frame
- UCK45
- grade
- LIMD
- ENGINE
- 2UZFE
- From
- 08.2004
- To
- 11.2007
- Gear Shift Type
- 5HC
- Vehicle Model
- SEQUOIA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-09220
Head Sub-Assy, Cylinder
[08.2004 -] 2UZFE..UCK35,45 |
11101-09220 |
— | ||
|
11101A
|
11101A
90910-02132
Bolt(For Cylinder Head Set)
[08.2004 -] 2UZFE..UCK35,45 |
90910-02132 |
— | ||
| replacement | |||||
|
11101A
|
11101A
90910-02181 Bolt(For Cylinder Head Set)[08.2004 -] 2UZFE..UCK35,45 |
90910-02181 |
from US $6.24 |
||
|
11101B
|
11101B
90201-10133 Washer, Plate(For Cylinder Head Set)[08.2004 -] 2UZFE..UCK35,45 |
90201-10133 |
from US $1.50 |
||
|
11101E
|
11101E
90919-05036 Sensor, Cam Position[08.2004 -] 2UZFE..UCK35,45 (J) |
90919-05036 |
from US $58.82 |
||
|
11101E
|
11101E
90919-A5002
Sensor, Cam Position
[08.2004 -] 2UZFE..UCK35,45 (L) |
90919-A5002 |
— | ||
|
11101J
|
11101J
15330-0F010
Valve Assy, Camshaft Timing Oil Control
[08.2004 -] 2UZFE..UCK35,45 (L),RH |
15330-0F010 |
— | ||
|
11101J
|
11101J
15330-50011 Valve Assy, Camshaft Timing Oil Control[08.2004 -] 2UZFE..UCK35,45 (J),RH |
15330-50011 |
from US $98.92 |
||
|
11101J
|
11101J
15340-0F010
Valve Assy, Camshaft Timing Oil Control
[08.2004 -] 2UZFE..UCK35,45 (L),LH |
15340-0F010 |
— | ||
|
11101J
|
11101J
15340-50011 Valve Assy, Camshaft Timing Oil Control[08.2004 -] 2UZFE..UCK35,45 (J),LH |
15340-50011 |
from US $111.33 |
||
|
11102
|
11102
11102-09110
Head, Cylinder, Lh
[08.2004 -] 2UZFE..UCK35,45 |
11102-09110 |
— | ||
|
11115
|
11115
11115-50080 Gasket, Cylinder Head[08.2004 -] 2UZFE..UCK35,45 (J) |
11115-50080 |
from US $87.93 |
||
|
11116
|
11116
11116-50070 Gasket, Cylinder Head, No.2[08.2004 -] 2UZFE..UCK35,45 (J) |
11116-50070 |
from US $88.74 |
||
|
11117E
|
11117E
90341-27006 Plug, W/head Straight Screw, No.1[08.2004 -] 2UZFE..UCK35,45 |
90341-27006 |
from US $5.12 |
||
|
11117H
|
11117H
90430-27005 Gasket(For Cylinder Head Screw Plug)[08.2004 -] 2UZFE..UCK35,45 |
90430-27005 |
from US $1.12 |
||
|
11122
|
11122
11122-20020
Bush, Intake Valve Guide
[08.2004 -] 2UZFE..UCK35,45 STD |
11122-20020 |
— | ||
| replacement | |||||
|
11122
|
11122
11122-22040 Bush, Intake Valve GuideINTAKE VALVE GUIDE [08.2004 -] 2UZFE..UCK35,45 STD |
11122-22040 |
from US $8.46 |
||
|
11122
|
11122
11123-20020 Bush, Intake Valve Guide[08.2004 -] 2UZFE..UCK35,45 O/S 0.05 |
11123-20020 |
US $6.41 |
||
|
11126
|
11126
11126-20020 Bush, Exhaust Valve Guide[08.2004 -] 2UZFE..UCK35,45 STD |
11126-20020 |
from US $6.81 |
||
|
11126
|
11126
11127-20020 Bush, Exhaust Valve Guide[08.2004 -] 2UZFE..UCK35,45 O/S 0.05 |
11127-20020 |
US $7.68 |
||
|
11131
|
11131
11131-0F010
Seat, Intake Valve
[08.2004 -] 2UZFE..UCK35,45 STD,(L) |
11131-0F010 |
— | ||
|
11131
|
11131
11131-50040 Seat, Intake Valve[08.2004 -] 2UZFE..UCK35,45 STD,(J) |
11131-50040 |
US $14.77 |
||
|
11131
|
11131
11132-0F010
Seat, Intake Valve
[08.2004 -] 2UZFE..UCK35,45 O/S 0.03,(L) |
11132-0F010 |
— | ||
|
11131
|
11131
11132-50040 Seat, Intake Valve[08.2004 -] 2UZFE..UCK35,45 O/S 0.03,(J) |
11132-50040 |
US $11.50 |
||
|
11135
|
11135
11135-0F020
Seat, Exhaust Valve
[08.2004 -] 2UZFE..UCK35,45 STD,(L) |
11135-0F020 |
— | ||
|
11135
|
11135
11135-50050 Seat, Exhaust Valve[08.2004 -] 2UZFE..UCK35,45 STD,(J) |
11135-50050 |
US $18.85 |
||
|
11135
|
11135
11136-0F020
Seat, Exhaust Valve
[08.2004 -] 2UZFE..UCK35,45 O/S 0.03,(L) |
11136-0F020 |
— | ||
|
11135
|
11135
11136-50050 Seat, Exhaust Valve[08.2004 -] 2UZFE..UCK35,45 O/S 0.03,(J) |
11136-50050 |
US $14.77 |
||
|
11151A
|
11151A
90253-10006 Pin, Ring(For Camshaft Bearing Cap Setting)[08.2004 -] 2UZFE..UCK35,45 L=7,OD=10,(J) |
90253-10006 |
US $0.79 |
||
|
11151A
|
11151A
90253-A0005
Pin, Ring(For Camshaft Bearing Cap Setting)
[10.2006 -] 2UZFE..UCK35,45 L=7,OD=10,(L) |
90253-A0005 |
— | ||
|
11151B
|
11151B
90311-71002 Seal, Oil(For Camshaft Setting)[08.2004 -] 2UZFE..UCK35,45 (J) |
90311-71002 |
from US $15.36 |
||
|
11151B
|
11151B
90311-A0004 Seal, Oil(For Camshaft Setting)OIL(FOR CAMSHAFT SETTING) [08.2004 -] 2UZFE..UCK35,45 (L) |
90311-A0004 |
US $13.21 |
||
|
11155A
|
11155A
90253-09001 Pin, Ring W/head[08.2004 -] 2UZFE..UCK35,45 (J) |
90253-09001 |
US $2.40 |
||
|
11155A
|
11155A
90253-A0003
Pin, Ring W/head
[10.2006 -] 2UZFE..UCK35,45 (L) |
90253-A0003 |
— | ||
| replacement | |||||
|
11155A
|
11155A
90253-09001 Pin, Ring W/head[10.2006 -] 2UZFE..UCK35,45 (L) |
90253-09001 |
US $2.40 |
||
|
11159A
|
11159A
90080-10305
Bolt(For Head To Camshaft Bearing Cap)
[08.2004 -] 2UZFE..UCK35,45 NO.2,(L) |
90080-10305 |
— | ||
|
11159A
|
11159A
90080-10306
Bolt(For Head To Camshaft Bearing Cap)
[08.2004 -] 2UZFE..UCK35,45 NO.1,(L) |
90080-10306 |
— | ||
|
11159A
|
11159A
90105-07004 Bolt(For Head To Camshaft Bearing Cap)[08.2004 -] 2UZFE..UCK35,45 NO.2,(J) |
90105-07004 |
US $1.31 |
||
|
11159A
|
11159A
90105-07005 Bolt(For Head To Camshaft Bearing Cap)[08.2004 -] 2UZFE..UCK35,45 NO.1,(J) |
90105-07005 |
US $2.80 |
||
|
11159A
|
11159A
90119-07009 Bolt(For Camshaft Housing Set)[08.2004 -] 2UZFE..UCK35,45 NO.3 |
90119-07009 |
from US $0.86 |
||
|
11159B
|
11159B
90210-07003 Washer, Seal(For Head To Camshaft Bearing Cap)[08.2004 -] 2UZFE..UCK35,45 |
90210-07003 |
from US $3.84 |
||
|
11159E
|
11159E
90080-11581
Bolt(For Camshaft Oil Feed Pipe)
[08.2004 -] 2UZFE..UCK35,45 (L) |
90080-11581 |
— | ||
|
11159E
|
11159E
90119-07012 Bolt(For Camshaft Oil Feed Pipe)[08.2004 -] 2UZFE..UCK35,45 (J) |
90119-07012 |
from US $1.07 |
||
|
11183
|
11183
11183-50020 Plug, Semicircular[08.2004 -] 2UZFE..UCK35,45 |
11183-50020 |
US $9.44 |
||
|
11188
|
11188
11188-50010 Plug, Camshaft Housing[08.2004 -] 2UZFE..UCK35,45 |
11188-50010 |
US $17.48 |
||
|
11193
|
11193
11193-50010 Gasket, Spark Plug Tube[08.2004 -] 2UZFE..UCK35,45 |
11193-50010 |
from US $2.77 |
||
|
11193A
|
11193A
11193-50010 Gasket, Spark Plug Tube[08.2004 -] 2UZFE..UCK35,45 |
11193-50010 |
from US $2.77 |
||
|
11201
|
11201
11201-0F010
Cover Sub-Assy, Cylinder Head
[08.2004 - 02.2006] 2UZFE..UCK35,45 *147 |
11201-0F010 |
— | ||
| replacements | |||||
|
11201
|
11201
11201-0F020
Cover Sub-Assy, Cylinder Head
[08.2004 - 02.2006] 2UZFE..UCK35,45 *147 |
11201-0F020 |
— | ||
|
11201
|
11201
90105-A0103
Bolt(For Camshaft Housing Set)
[08.2004 - 02.2006] 2UZFE..UCK35,45 *147 |
90105-A0103 |
— | ||
|
11201
|
11201
11201-0F020
Cover Sub-Assy, Cylinder Head
[02.2006 -] 2UZFE..UCK35,45 *147 |
11201-0F020 |
— | ||
|
11201
|
11201
11201-50031 Cover Sub-Assy, Cylinder Head[08.2004 - 01.2006] 2UZFE..UCK35,45 *146 |
11201-50031 |
US $347.98 |
||
| replacement | |||||
|
11201
|
11201
11201-50041 Cover Sub-Assy, Cylinder Head[08.2004 - 01.2006] 2UZFE..UCK35,45 *146 |
11201-50041 |
US $359.80 |
||
|
11201
|
11201
11201-50041 Cover Sub-Assy, Cylinder Head[01.2006 -] 2UZFE..UCK35,45 *146 |
11201-50041 |
US $359.80 |
||
|
11201H
|
11201H
90080-10330
Bolt(For Cylinder Head Cover)
[08.2004 - 02.2006] 2UZFE..UCK35,45 *147 |
90080-10330 |
— | ||
|
11201H
|
11201H
90105-A0103
Bolt(For Camshaft Housing Set)
[02.2006 -] 2UZFE..UCK35,45 *147 |
90105-A0103 |
— | ||
|
11201H
|
11201H
90109-06163 Bolt(For Cylinder Head Cover)[08.2004 -] 2UZFE..UCK35,45 *146 |
90109-06163 |
from US $1.40 |
||
|
11202
|
11202
11202-0F010
Cover Sub-Assy, Cylinder Head, Lh
[08.2004 - 02.2006] 2UZFE..UCK35,45 *147 |
11202-0F010 |
— | ||
| replacements | |||||
|
11202
|
11202
11202-0F020
Cover Sub-Assy, Cylinder Head, Lh
[08.2004 - 02.2006] 2UZFE..UCK35,45 *147 |
11202-0F020 |
— | ||
|
11202
|
11202
90105-A0103
Bolt(For Camshaft Housing Set)
[08.2004 - 02.2006] 2UZFE..UCK35,45 *147 |
90105-A0103 |
— | ||
|
11202
|
11202
11202-0F020
Cover Sub-Assy, Cylinder Head, Lh
[02.2006 -] 2UZFE..UCK35,45 *147 |
11202-0F020 |
— | ||
|
11202
|
11202
11202-50041 Cover Sub-Assy, Cylinder Head, Lh[08.2004 - 01.2006] 2UZFE..UCK35,45 *146 |
11202-50041 |
US $347.98 |
||
| replacement | |||||
|
11202
|
11202
11202-50080 Cover Sub-Assy, Cylinder Head, Lh[08.2004 - 01.2006] 2UZFE..UCK35,45 *146 |
11202-50080 |
from US $240.24 |
||
|
11202
|
11202
11202-50051 Cover Sub-Assy, Cylinder Head, Lh[01.2006 - 02.2007] 2UZFE..UCK35,45 *146 |
11202-50051 |
US $288.29 |
||
| replacement | |||||
|
11202
|
11202
11202-50080 Cover Sub-Assy, Cylinder Head, Lh[01.2006 - 02.2007] 2UZFE..UCK35,45 *146 |
11202-50080 |
from US $240.24 |
||
|
11202
|
11202
11202-50080 Cover Sub-Assy, Cylinder Head, Lh[02.2007 -] 2UZFE..UCK35,45 *146,MARK UZVL |
11202-50080 |
from US $240.24 |
||
|
11213
|
11213
11213-0F010 Gasket, Cylinder Head Cover[08.2004 -] 2UZFE..UCK35,45 (L) |
11213-0F010 |
from US $22.04 |
||
|
11213
|
11213
11213-50031 Gasket, Cylinder Head Cover[08.2004 -] 2UZFE..UCK35,45 (J) |
11213-50031 |
from US $18.12 |
||
|
11214
|
11214
11214-0F010 Gasket, Cylinder Head Cover, No.2[08.2004 -] 2UZFE..UCK35,45 (L) |
11214-0F010 |
from US $17.26 |
||
|
11214
|
11214
11214-50011 Gasket, Cylinder Head Cover, No.2[08.2004 -] 2UZFE..UCK35,45 (J) |
11214-50011 |
from US $16.34 |
||
|
12108
|
12108
12180-0D011
Cap Sub-Assy, Oil Filler
[08.2004 -] 2UZFE..UCK35,45 TYPE B:REFER ILLUST. |
12180-0D011 |
— | ||
| replacement | |||||
|
12108
|
12108
12180-22011 Cap Sub-Assy, Oil FillerOIL FILLER [08.2004 -] 2UZFE..UCK35,45 TYPE B:REFER ILLUST. |
12180-22011 |
from US $15.66 |
||
|
12108
|
12108
12180-50031 Cap Sub-Assy, Oil FillerOIL FILLER [08.2004 -] 2UZFE..UCK35,45 TYPE A:REFER TO ILLUSTRATION |
12180-50031 |
from US $15.50 |
||
|
12108A
|
12108A
12195-50010 Gasket(For Oil Filler Cap)[08.2004 -] 2UZFE..UCK35,45 TYPE A:REFER TO ILLUSTRATION |
12195-50010 |
US $14.72 |
||
|
12108A
|
12108A
90080-43032
Gasket(For Oil Filler Cap)
[08.2004 -] 2UZFE..UCK35,45 TYPE B:REFER TO ILLUSTRATION |
90080-43032 |
— | ||
| replacement | |||||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[08.2004 -] 2UZFE..UCK35,45 TYPE B:REFER TO ILLUSTRATION |
90430-37140 |
from US $1.25 |
||
|
12185
|
12185
12185-0F010
Housing, Oil Filler Cap
[08.2004 -] 2UZFE..UCK35,45 (L) |
12185-0F010 |
— | ||
|
12185
|
12185
12185-50020 Housing, Oil Filler Cap[08.2004 -] 2UZFE..UCK35,45 (J) |
12185-50020 |
from US $26.19 |
||
|
12185A
|
12185A
12196-0F010
Gasket, Oil Filler Cap Housing
[08.2004 -] 2UZFE..UCK35,45 (L) |
12196-0F010 |
— | ||
|
12185A
|
12185A
12196-50010 Gasket, Oil Filler Cap Housing[08.2004 -] 2UZFE..UCK35,45 (J) |
12196-50010 |
from US $5.30 |
||
|
12281A
|
12281A
12281-0F010
Hanger, Engine, No.1
[08.2004 -] 2UZFE..UCK35,45 (L) |
12281-0F010 |
— | ||
| replacement | |||||
|
12281A
|
12281A
12281-0F011
Hanger, Engine, No.1
[08.2004 -] 2UZFE..UCK35,45 (L) |
12281-0F011 |
— | ||
|
12281A
|
12281A
12281-50050 Hanger, Engine, No.1[08.2004 -] 2UZFE..UCK35,45 (J) |
12281-50050 |
US $23.15 |
||
|
15044
|
15044
15044-50020 Pipe Sub-Assy, Camshaft Oil Feed[08.2004 -] 2UZFE..UCK35,45 |
15044-50020 |
US $10.77 |
||
|
15678A
|
15678A
15678-46020 Filter, Oil Control Valve[08.2004 -] 2UZFE..UCK35,45 |
15678-46020 |
from US $3.76 |
||
|
91511J0625
|
91511J0625
91511-J0625 Bolt(For Cylinder Head Cover) |
91511-J0625 |
from US $0.92 |
||
|
9006814030
|
9006814030
90068-14030
Ring, O(For Cam Timing Oil Control Valve)
|
90068-14030 |
— | ||
| replacement | |||||
|
9006814030
|
9006814030
90099-14137 Ring, O(For Cam Timing Oil Control Valve) |
90099-14137 |
from US $2.30 |
||
|
9008010106
|
9008010106
90080-10106
New Genuine Part
|
90080-10106 |
— | ||
|
9008010325
|
9008010325
90080-10325
New Genuine Part
|
90080-10325 |
— | ||
|
9008010327
|
9008010327
90080-10327
New Genuine Part
|
90080-10327 |
— | ||
|
9009914137
|
9009914137
90099-14137 Ring, O(For Cam Timing Oil Control Valve) |
90099-14137 |
from US $2.30 |
||
|
9011606079
|
9011606079
90116-06079 BOLT STUD |
90116-06079 |
US $2.08 |
||
|
9012606002
|
9012606002
90126-06002 New Genuine Part |
90126-06002 |
US $2.40 |
||
|
9017906298
|
9017906298
90179-06298 NUT |
90179-06298 |
US $1.44 |
||
|
9151160612
|
9151160612
91511-60612 BOLT |
91511-60612 |
US $1.76 |
||
|
9151281018
|
9151281018
91512-81018 New Genuine Part |
91512-81018 |
US $1.10 |
||
|
9415080641
|
9415080641
94150-80641 New Genuine Part |
94150-80641 |
US $0.87 |
||
| replacement | |||||
|
9415080641
|
9415080641
94151-80641 NUT FLANGE |
94151-80641 |
US $0.96 |
||
