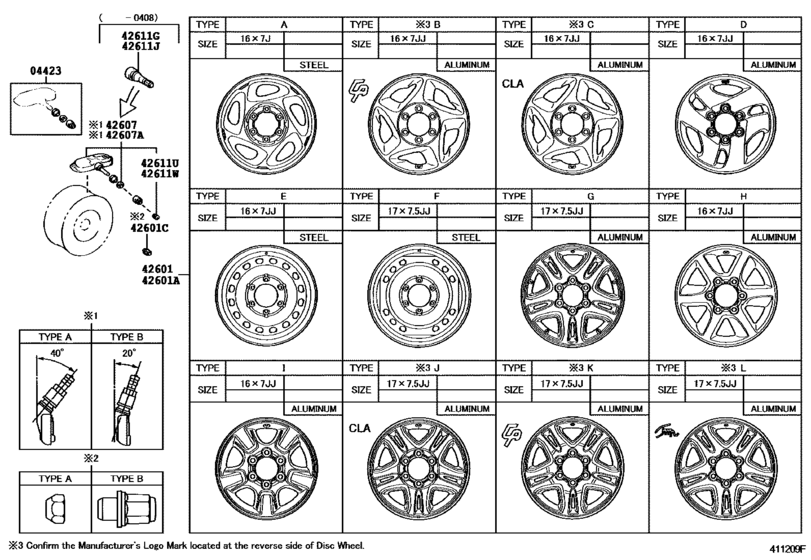

Disc Wheel & Wheel Cap ([09.2000 - ] (0009- )) Diagram Toyota SEQUOIA
- Year
- 2004 - 2007
- Sales region
- U.S.A.
- Frame
- UCK45
- grade
- LIMD
- ENGINE
- 2UZFE
- From
- 08.2004
- To
- 11.2007
- Gear Shift Type
- 5HC
- Vehicle Model
- SEQUOIA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04423
|
04423
04423-0C070
Fitting Kit, Tire Pressure Monitor Or Balancer Valve
[08.2004 -] UCK35,45 |
04423-0C070 |
— | ||
| replacement | |||||
|
04423
|
04423
04423-0E010 Fitting Kit, Tire Pressure Monitor Or Balancer Valve[08.2004 -] UCK35,45 |
04423-0E010 |
from US $4.48 |
||
|
42601
|
42601
42611-AF120
Wheel, Disc
[08.2004 -] UCK35,45 17X7.5JJ,TYPE J:REFER TO ILLUSTRATION |
42611-AF120 |
— | ||
|
42601
|
42601
42611-AF160
Wheel, Disc
[08.2004 -] UCK35,45 17X7.5JJ,TYPE K:REFER TO ILLUSTRATION |
42611-AF160 |
— | ||
|
42601
|
42601
42611-AF170 Wheel, DiscDISC [08.2004 -] UCK35,45 17X7.5JJ,TYPE L:REFER TO ILLUSTRATION |
42611-AF170 |
US $628.99 |
||
|
42601A
|
42601A
42611-AF120
Wheel, Disc
[08.2004 -] UCK45 17X7.5JJ,TYPE J:REFER TO ILLUSTRATION |
42611-AF120 |
— | ||
|
42601A
|
42601A
42611-AF160
Wheel, Disc
[08.2004 -] UCK45 17X7.5JJ,TYPE K:REFER TO ILLUSTRATION |
42611-AF160 |
— | ||
|
42601A
|
42601A
42611-AF170 Wheel, DiscDISC [08.2004 -] UCK45 17X7.5JJ,TYPE L:REFER TO ILLUSTRATION |
42611-AF170 |
US $628.99 |
||
|
42601C
|
42601C
90942-01095 Nut, Hub (For Axle)[08.2004 -] UCK35,45 TYPE B:REFER TO ILLUSTRATION |
90942-01095 |
US $11.84 |
||
|
42607
|
42607
42607-0C020
Valve Sub-Assy, Tire Pressure Monitor
[08.2004 -] UCK45 TYPE B:REFER ILLUST.; UCK35..LIMD TYPE B:REFER ILLUST.; UCK35..SR5 STEEL WHEEL,TYPE B:REFER ILLUST. |
42607-0C020 |
— | ||
| replacement | |||||
|
42607
|
42607
42607-06011
Valve Sub-Assy, Tire Pressure Monitor
[08.2004 -] UCK45 TYPE B:REFER ILLUST.; UCK35..LIMD TYPE B:REFER ILLUST.; UCK35..SR5 STEEL WHEEL,TYPE B:REFER ILLUST. |
42607-06011 |
— | ||
|
42607A
|
42607A
42607-0C020
Valve Sub-Assy, Tire Pressure Monitor
[08.2004 -] UCK35,45 TYPE B:REFER ILLUST. |
42607-0C020 |
— | ||
| replacement | |||||
|
42607A
|
42607A
42607-06011
Valve Sub-Assy, Tire Pressure Monitor
[08.2004 -] UCK35,45 TYPE B:REFER ILLUST. |
42607-06011 |
— | ||
|
42611U
|
42611U
90942-A5001
Cap, Tire Valve
[08.2004 - 04.2006] UCK35,45 |
90942-A5001 |
— | ||
| replacement | |||||
|
42611U
|
42611U
90942-A5002 Cap, Tire Valve[08.2004 - 04.2006] UCK35,45 |
90942-A5002 |
US $1.44 |
||
|
42611U
|
42611U
90942-A5002 Cap, Tire Valve[05.2006 -] UCK35,45 |
90942-A5002 |
US $1.44 |
||
|
42611W
|
42611W
90942-A5001
Cap, Tire Valve
[08.2004 - 04.2006] UCK35,45 |
90942-A5001 |
— | ||
| replacement | |||||
|
42611W
|
42611W
90942-A5002 Cap, Tire Valve[08.2004 - 04.2006] UCK35,45 |
90942-A5002 |
US $1.44 |
||
|
42611W
|
42611W
90942-A5002 Cap, Tire Valve[05.2006 -] UCK35,45 |
90942-A5002 |
US $1.44 |
||
