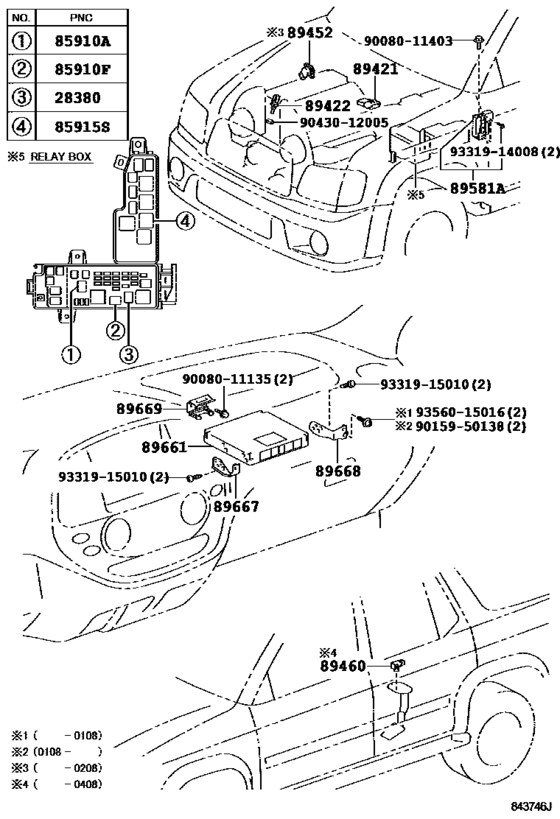

Electronic Fuel Injection System ([09.2000 - ] (0009- )) Diagram Toyota SEQUOIA
- Year
- 2004 - 2007
- Sales region
- U.S.A.
- Frame
- UCK45
- grade
- LIMD
- ENGINE
- 2UZFE
- From
- 08.2004
- To
- 11.2007
- Gear Shift Type
- 5HC
- Vehicle Model
- SEQUOIA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28380
|
28380
90084-98032 Relay, Cooling Fan, No.2[08.2004 -] 2UZFE..UCK35,45 PART NUMBER LABEL=90084-98032 |
90084-98032 |
US $81.54 |
||
|
85910A
|
85910A
90080-87026
Relay, Water Pump
[08.2004 -] UCK35,45 PART NUMBER LABEL=90080-87026 |
90080-87026 |
— | ||
| replacement | |||||
|
85910A
|
85910A
90987-02027 Relay[08.2004 -] UCK35,45 PART NUMBER LABEL=90080-87026 |
90987-02027 |
from US $31.43 |
||
|
85910F
|
85910F
90080-87026
Relay, Water Pump
[08.2004 -] UCK35,45 PART NUMBER LABEL=90080-87026 |
90080-87026 |
— | ||
| replacement | |||||
|
85910F
|
85910F
90987-02027 Relay[08.2004 -] UCK35,45 PART NUMBER LABEL=90080-87026 |
90987-02027 |
from US $31.43 |
||
|
85915S
|
85915S
90080-87026
Relay, Water Pump
[08.2004 -] UCK35,45 PART NUMBER LABEL=90080-87026 |
90080-87026 |
— | ||
| replacement | |||||
|
85915S
|
85915S
90987-02027 Relay[08.2004 -] UCK35,45 PART NUMBER LABEL=90080-87026 |
90987-02027 |
from US $31.43 |
||
|
89421
|
89421
89421-71010 Sensor Assy, Air Pressure[08.2004 -] UCK35,45 |
89421-71010 |
US $87.32 |
||
|
89422
|
89422
89422-06010 Sensor, Water Temperature (For E.f.i.)[08.2004 -] UCK35,45 (L) |
89422-06010 |
US $54.51 |
||
|
89422
|
89422
89422-33030 Sensor, Water Temperature (For E.f.i.)[08.2004 -] UCK35,45 (J) |
89422-33030 |
from US $36.63 |
||
|
89581A
|
89581A
89580-34010
Driver, Air Injection Control
[08.2004 - 10.2006] UCK35,45 |
89580-34010 |
— | ||
| replacement | |||||
|
89581A
|
89581A
89580-34012 Driver, Air Injection Control[08.2004 - 10.2006] UCK35,45 |
89580-34012 |
US $237.60 |
||
|
89581A
|
89581A
89580-34011
Driver, Air Injection Control
[11.2006 - 07.2007] UCK35,45 |
89580-34011 |
— | ||
| replacement | |||||
|
89581A
|
89581A
89580-34012 Driver, Air Injection Control[11.2006 - 07.2007] UCK35,45 |
89580-34012 |
US $237.60 |
||
|
89581A
|
89581A
89580-34012 Driver, Air Injection Control[08.2007 -] UCK35,45 |
89580-34012 |
US $237.60 |
||
|
89661
|
89661
89661-0C590
Computer, Engine Control
[08.2004 - 02.2005] UCK45 |
89661-0C590 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-0C592
Computer, Engine Control
[08.2004 - 02.2005] UCK45 |
89661-0C592 |
— | ||
|
89661
|
89661
89661-0C591
Computer, Engine Control
[02.2005 - 03.2005] UCK45 |
89661-0C591 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-0C592
Computer, Engine Control
[02.2005 - 03.2005] UCK45 |
89661-0C592 |
— | ||
|
89661
|
89661
89661-0C592
Computer, Engine Control
[03.2005 - 08.2005] UCK45 |
89661-0C592 |
— | ||
|
89661
|
89661
89661-0C750
Computer, Engine Control
[08.2005 - 11.2005] UCK45 |
89661-0C750 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-0C751
Computer, Engine Control
[08.2005 - 11.2005] UCK45 |
89661-0C751 |
— | ||
|
89661
|
89661
89661-0C751
Computer, Engine Control
[11.2005 - 06.2006] UCK45 |
89661-0C751 |
— | ||
|
89661
|
89661
89661-0CA10
Computer, Engine Control
[06.2006 - 03.2007] UCK45 |
89661-0CA10 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-0CA11
Computer, Engine Control
[06.2006 - 03.2007] UCK45 |
89661-0CA11 |
— | ||
|
89661
|
89661
89661-0CA11
Computer, Engine Control
[04.2007 -] UCK45 |
89661-0CA11 |
— | ||
|
89667
|
89667
89667-0C010
Bracket, Engine Control Computer
[08.2004 - 01.2005] UCK35,45 |
89667-0C010 |
— | ||
|
89668
|
89668
89668-0C020
Bracket, Engine Control Computer, No.2
[08.2004 - 01.2005] UCK35,45 |
89668-0C020 |
— | ||
|
89669
|
89669
89669-34041
Bracket, Engine Control Computer, No.3
[08.2004 -] UCK35,45 |
89669-34041 |
— | ||
|
9008011135
|
9008011135
90080-11135
New Genuine Part
|
90080-11135 |
— | ||
|
9008011403
|
9008011403
90080-11403
New Genuine Part
|
90080-11403 |
— | ||
|
9015950138
|
9015950138
90159-50138 SCREW |
90159-50138 |
US $1.12 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.76 |
||
|
9331914008
|
9331914008
93319-14008 SCREW |
93319-14008 |
from US $1.28 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
||
|
9356015016
|
9356015016
93560-15016 New Genuine Part |
93560-15016 |
US $1.12 |
||
