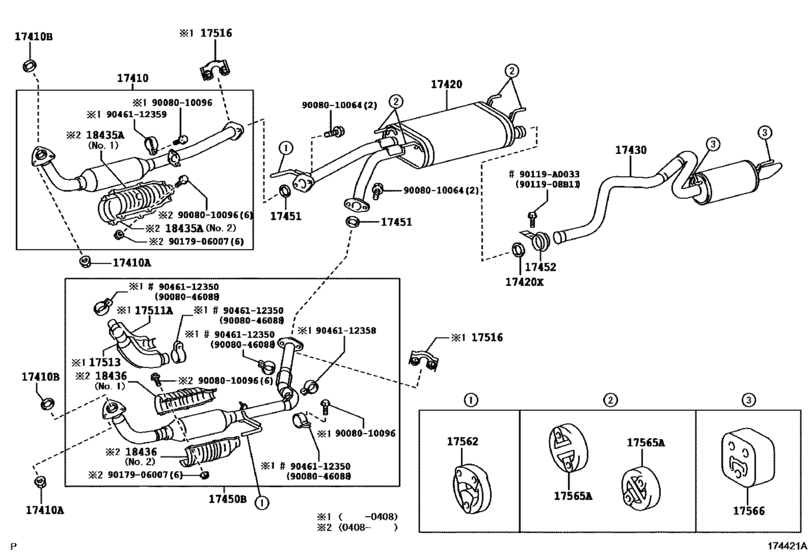

Exhaust Pipe ([09.2000 - ] (0009- )) Diagram Toyota SEQUOIA
- Year
- 2004 - 2007
- Sales region
- U.S.A.
- Frame
- UCK45
- grade
- LIMD
- ENGINE
- 2UZFE
- From
- 08.2004
- To
- 11.2007
- Gear Shift Type
- 5HC
- Vehicle Model
- SEQUOIA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-0F040
Pipe Assy, Exhaust, Front
[08.2004 -] 2UZFE..UCK35,45 |
17410-0F040 |
— | ||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[08.2004 -] 2UZFE..UCK35,45 |
90179-10070 |
from US $1.54 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[08.2004 -] 2UZFE..UCK35,45 |
90080-17187 |
US $33.80 |
||
|
17410B
|
17410B
90080-43036
Gasket, Exhaust Pipe
[08.2004 -] 2UZFE..UCK35,45 |
90080-43036 |
— | ||
|
17420
|
17420
17403-0F030 Pipe Assy, Exhaust, CenterEXHAUST, CENTER [08.2004 -] 2UZFE..UCK35,45 |
17403-0F030 |
US $732.37 |
||
|
17420X
|
17420X
90917-06085 Gasket, Exhaust Pipe, Center[08.2004 -] 2UZFE..UCK35,45 |
90917-06085 |
from US $5.23 |
||
|
17430
|
17430
17405-0F030 Pipe Assy, Exhaust, TailEXHAUST, TAIL [08.2004 -] 2UZFE..UCK35,45 |
17405-0F030 |
US $436.80 |
||
|
17450B
|
17450B
17450-0F060
Pipe Assy, Exhaust, Front No.2
[08.2004 -] 2UZFE..UCK35,45 |
17450-0F060 |
— | ||
|
17451
|
17451
90917-06083 Gasket, Exhaust Pipe[08.2004 -] 2UZFE..UCK35,45 |
90917-06083 |
from US $5.60 |
||
|
17452
|
17452
90080-46263 Clamp No.1, Exhaust Tail Pipe (For Rear)[08.2004 -] 2UZFE..UCK35,45 |
90080-46263 |
from US $5.58 |
||
|
17562
|
17562
17565-0A100
Support, Exhaust Pipe, No.2
[08.2004 -] 2UZFE..UCK35,45 |
17565-0A100 |
— | ||
|
17565A
|
17565A
17565-55050 Support, Exhaust Pipe, No.1[08.2004 -] 2UZFE..UCK35,45 |
17565-55050 |
US $12.48 |
||
|
17566
|
17566
17566-50040 Support, Exhaust Pipe, No.5EXHAUST PIPE, NO.5 [08.2004 -] 2UZFE..UCK35,45 |
17566-50040 |
US $17.76 |
||
|
18435A
|
18435A
18435-0F040
Protector, Monolithic Converter
[08.2004 -] 2UZFE..UCK35,45 NO.1 |
18435-0F040 |
— | ||
|
18435A
|
18435A
18445-0F020
Protector, Monolithic Converter
[08.2004 -] 2UZFE..UCK35,45 NO.2 |
18445-0F020 |
— | ||
|
18436
|
18436
18435-0F040
Protector, Monolithic Converter
[08.2004 -] 2UZFE..UCK35,45 NO.1 |
18435-0F040 |
— | ||
|
18436
|
18436
18446-0F010
Protector, Monolithic Converter, No.1
[08.2004 -] 2UZFE..UCK35,45 NO.2 |
18446-0F010 |
— | ||
|
90119A0033
|
90119A0033
90119-A0033
New Genuine Part
|
90119-A0033 |
— | ||
|
9011908B11
|
9011908B11
90119-08B11 BOLT WWASHER |
90119-08B11 |
US $1.60 |
||
|
9008010064
|
9008010064
90080-10064
New Genuine Part
|
90080-10064 |
— | ||
|
9008010096
|
9008010096
90080-10096
New Genuine Part
|
90080-10096 |
— | ||
| replacement | |||||
|
9008010096
|
9008010096
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.74 |
||
|
9008046088
|
9008046088
90080-46088 Clamp No.1, Exhaust Pipe Front (For Center) |
90080-46088 |
US $9.46 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.86 |
||
|
9046112350
|
9046112350
90461-12350 Clamp, Exhaust Pipe |
90461-12350 |
US $7.36 |
||
|
9046112358
|
9046112358
90461-12358
New Genuine Part
|
90461-12358 |
— | ||
|
9046112359
|
9046112359
90461-12359 Clamp, Exhaust Pipe |
90461-12359 |
US $9.77 |
||
