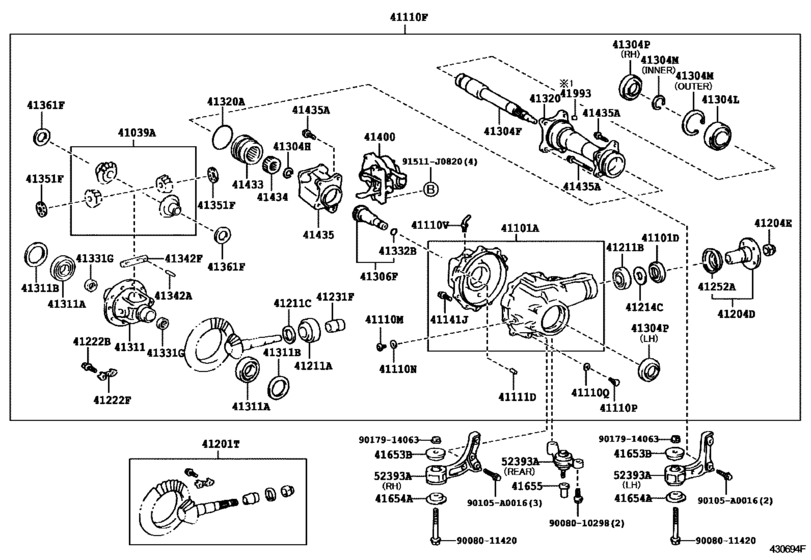

Front Axle Housing & Differential ([09.2000 - ] (0009- )UCK45) Diagram Toyota SEQUOIA
- Year
- 2004 - 2007
- Sales region
- U.S.A.
- Frame
- UCK45
- grade
- LIMD
- ENGINE
- 2UZFE
- From
- 08.2004
- To
- 11.2007
- Gear Shift Type
- 5HC
- Vehicle Model
- SEQUOIA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41039A
|
41039A
41039-34050 Gear Kit, Differential[08.2004 -] UCK45 |
41039-34050 |
from US $191.24 |
||
|
41101A
|
41101A
41101-35131 Carrier Sub-Assy, Differential, Front[08.2004 -] UCK45 |
41101-35131 |
US $592.59 |
||
|
41101D
|
41101D
90311-38049
Seal, Oil (For Front Differential Carrier)
[08.2004 - 11.2007] UCK45 |
90311-38049 |
— | ||
| replacement | |||||
|
41101D
|
41101D
90311-38066 Seal, Oil (For Front Differential Carrier)[08.2004 - 11.2007] UCK45 |
90311-38066 |
from US $6.72 |
||
|
41110F
|
41110F
41110-34280
Carrier Assy, Differential, Front
[08.2004 -] UCK45 *FGR=41:10=4.100 |
41110-34280 |
— | ||
|
41110M
|
41110M
90341-18032 Plug Sub-Assy, Drain(Mtm)No magnet [08.2004 -] UCK45 |
90341-18032 |
from US $3.36 |
||
|
41110N
|
41110N
12157-10010 Gasket (For Drain Plug)[08.2004 -] UCK45 |
12157-10010 |
from US $1.09 |
||
|
41110P
|
41110P
90341-24014 Plug, Front Differential Drain[08.2004 -] UCK45 |
90341-24014 |
from US $4.96 |
||
|
41110Q
|
41110Q
90430-24003
Gasket(For Oil Filter Bracket Union)
[08.2004 -] UCK45 |
90430-24003 |
— | ||
| replacement | |||||
|
41110Q
|
41110Q
90430-24017 Gasket[08.2004 -] UCK45 |
90430-24017 |
from US $0.94 |
||
|
41110V
|
41110V
90404-08004 Union (For Front Differential)[08.2004 -] UCK45 |
90404-08004 |
US $2.62 |
||
|
41111D
|
41111D
90250-10017 Pin, Straight(For Clutch Housing Set)[08.2004 -] UCK45 |
90250-10017 |
from US $2.08 |
||
|
41141J
|
41141J
90105-10391 Bolt(For Front Differential Side Bearing Retainer)[08.2004 -] UCK45 *10-1.25PX24.5-18 |
90105-10391 |
US $1.49 |
||
|
41201T
|
41201T
41201-80502 Final Gear Kit, Differential, Front[08.2004 -] UCK45 *FGR=41:10=4.100 |
41201-80502 |
US $532.90 |
||
|
41204D
|
41204D
41204-35060 Flange Sub-Assy, Front Drive Pinion Companion, Front[08.2004 -] UCK45 |
41204-35060 |
US $78.62 |
||
|
41204E
|
41204E
90179-18020 Nut (For Transfer Gear)[08.2004 -] UCK45 |
90179-18020 |
US $3.04 |
||
|
41211A
|
41211A
90366-35023 Bearing (For Rear Drive Pinion Rear)[08.2004 -] UCK45 |
90366-35023 |
from US $38.76 |
||
|
41211B
|
41211B
90366-30078 Bearing (For Rear Drive Pinion Front)[08.2004 -] UCK45 |
90366-30078 |
from US $33.44 |
||
|
41211C
|
41211C
90201-35497 Washer, Plate (For Rear Differential Drive Pinion)[08.2004 -] UCK45 T=1.70 |
90201-35497 |
from US $2.85 |
||
|
41211C
|
41211C
90201-35498 Washer, Plate (For Rear Differential Drive Pinion)[08.2004 -] UCK45 T=1.73 |
90201-35498 |
US $2.88 |
||
|
41211C
|
41211C
90201-35499 Washer, Plate (For Rear Differential Drive Pinion)[08.2004 -] UCK45 T=1.76 |
90201-35499 |
US $2.88 |
||
|
41211C
|
41211C
90201-35500 Washer, Plate (For Rear Differential Drive Pinion)[08.2004 -] UCK45 T=1.79 |
90201-35500 |
from US $2.85 |
||
|
41211C
|
41211C
90201-35501 Washer, Plate (For Rear Differential Drive Pinion)[08.2004 -] UCK45 T=1.82 |
90201-35501 |
US $2.88 |
||
|
41211C
|
41211C
90201-35502 Washer, Plate (For Rear Differential Drive Pinion)[08.2004 -] UCK45 T=1.85 |
90201-35502 |
US $2.88 |
||
|
41211C
|
41211C
90201-35503 Washer, Plate (For Rear Differential Drive Pinion)[08.2004 -] UCK45 T=1.88 |
90201-35503 |
US $2.88 |
||
|
41211C
|
41211C
90201-35504 Washer, Plate (For Rear Differential Drive Pinion)[08.2004 -] UCK45 T=1.91 |
90201-35504 |
US $2.88 |
||
|
41211C
|
41211C
90201-35505 Washer, Plate (For Rear Differential Drive Pinion)[08.2004 -] UCK45 T=1.94 |
90201-35505 |
US $2.88 |
||
|
41211C
|
41211C
90201-35506 Washer, Plate (For Rear Differential Drive Pinion)[08.2004 -] UCK45 T=1.97 |
90201-35506 |
US $2.88 |
||
|
41211C
|
41211C
90201-35507 Washer, Plate (For Rear Differential Drive Pinion)[08.2004 -] UCK45 T=2.00 |
90201-35507 |
from US $2.88 |
||
|
41211C
|
41211C
90201-35508 Washer, Plate (For Rear Differential Drive Pinion)[08.2004 -] UCK45 T=2.03 |
90201-35508 |
from US $2.88 |
||
|
41211C
|
41211C
90201-35509 Washer, Plate (For Rear Differential Drive Pinion)[08.2004 -] UCK45 T=2.06 |
90201-35509 |
from US $2.88 |
||
|
41211C
|
41211C
90201-35510 Washer, Plate (For Rear Differential Drive Pinion)[08.2004 -] UCK45 T=2.09 |
90201-35510 |
from US $2.88 |
||
|
41211C
|
41211C
90201-35511 Washer, Plate (For Rear Differential Drive Pinion)[08.2004 -] UCK45 T=2.12 |
90201-35511 |
from US $2.88 |
||
|
41211C
|
41211C
90201-35512 Washer, Plate (For Rear Differential Drive Pinion)[08.2004 -] UCK45 T=2.15 |
90201-35512 |
from US $2.88 |
||
|
41211C
|
41211C
90201-35513 Washer, Plate (For Rear Differential Drive Pinion)[08.2004 -] UCK45 T=2.18 |
90201-35513 |
from US $2.87 |
||
|
41211C
|
41211C
90201-35514 Washer, Plate (For Rear Differential Drive Pinion)[08.2004 -] UCK45 T=2.21 |
90201-35514 |
US $2.88 |
||
|
41211C
|
41211C
90201-35515 Washer, Plate (For Rear Differential Drive Pinion)[08.2004 -] UCK45 T=2.24,MARK 01 |
90201-35515 |
US $1.92 |
||
|
41211C
|
41211C
90201-35516 Washer, Plate (For Rear Differential Drive Pinion)[08.2004 -] UCK45 T=2.27,MARK 02 |
90201-35516 |
US $1.92 |
||
|
41211C
|
41211C
90201-35517 Washer, Plate (For Rear Differential Drive Pinion)[08.2004 -] UCK45 T=2.30,MARK 03 |
90201-35517 |
from US $1.92 |
||
|
41211C
|
41211C
90201-35518 Washer, Plate (For Rear Differential Drive Pinion)[08.2004 -] UCK45 T=2.33,MARK 04 |
90201-35518 |
from US $1.92 |
||
|
41214C
|
41214C
41214-35020 Slinger, Rear Differential Drive Pinion Oil[08.2004 -] UCK45 |
41214-35020 |
US $6.56 |
||
|
41222B
|
41222B
90101-11353 Bolt (For Rear Differential Ring Gear Set)[08.2004 -] UCK45 |
90101-11353 |
from US $0.90 |
||
|
41222F
|
41222F
41222-35030 Plate, Rear Differential Ring Gear Set Bolt Lock[08.2004 -] UCK45 |
41222-35030 |
US $1.92 |
||
|
41231F
|
41231F
41231-22010 Spacer, Rear Differential Drive Pinion Bearing[08.2004 -] UCK45 |
41231-22010 |
from US $9.28 |
||
|
41252A
|
41252A
41252-35030 Deflector, Dust (For Front Differential)[08.2004 -] UCK45 |
41252-35030 |
US $6.99 |
||
|
41304F
|
41304F
41337-35020 Shaft Sub-Assy, Differential Side Gear, Rh[08.2004 -] UCK45 |
41337-35020 |
US $132.79 |
||
|
41304H
|
41304H
96152-00300 Ring, Hole Snap (For Differential Side Gear Shaft)[08.2004 -] UCK45 |
96152-00300 |
US $0.70 |
||
|
41304L
|
41304L
90903-63008 Bearing (For Front Differntial Side Gear Shaft Rh)[08.2004 -] UCK45 |
90903-63008 |
from US $42.41 |
||
|
41304M
|
41304M
90520-39023 Ring, Shaft Snap (For Differential Side Gear Shaft Rh)[08.2004 -] UCK45 INNER |
90520-39023 |
US $3.32 |
||
|
41304M
|
41304M
90520-75002 Ring, Shaft Snap (For Differential Side Gear Shaft Rh)[08.2004 -] UCK45 OUTER |
90520-75002 |
US $3.32 |
||
|
41304P
|
41304P
90311-47010
Oil Seal, Front Drive Shaft, Rh
[08.2004 - 11.2007] UCK45 RH |
90311-47010 |
— | ||
| replacements | |||||
|
41304P
|
41304P
30311-47013
Oil Seal, Front Drive Shaft, Rh
[08.2004 - 11.2007] UCK45 RH |
30311-47013 |
— | ||
|
41304P
|
41304P
90311-47013 Oil Seal, Front Drive Shaft, Rh[08.2004 - 11.2007] UCK45 RH |
90311-47013 |
from US $9.28 |
||
|
41304P
|
41304P
90311-47011
Oil Seal, Front Drive Shaft, Lh
[08.2004 - 11.2007] UCK45 LH |
90311-47011 |
— | ||
| replacement | |||||
|
41304P
|
41304P
90311-47027 Oil Seal, Front Drive Shaft, Lh[08.2004 - 11.2007] UCK45 LH |
90311-47027 |
from US $8.64 |
||
|
41306F
|
41306F
41306-35030 Shaft Sub-Assy, Differential Side Gear Inter[08.2004 -] UCK45 |
41306-35030 |
US $136.86 |
||
|
41311
|
41311
41311-34020
Case, Front Differential
[08.2004 -] UCK45 |
41311-34020 |
— | ||
|
41311A
|
41311A
90368-50006 Bearing(For Rear Differential Case)[08.2004 -] UCK45 |
90368-50006 |
from US $42 |
||
|
41311B
|
41311B
90564-50092 Washer, Plate (For Front Differential Case)[08.2004 -] UCK45 T=2.01 |
90564-50092 |
US $5.77 |
||
|
41311B
|
41311B
90564-50093 Washer, Plate (For Front Differential Case)[08.2004 -] UCK45 T=2.04 |
90564-50093 |
US $5.97 |
||
|
41311B
|
41311B
90564-50094 Washer, Plate (For Front Differential Case)[08.2004 -] UCK45 T=2.07 |
90564-50094 |
US $6.12 |
||
|
41311B
|
41311B
90564-50095 Washer, Plate (For Front Differential Case)[08.2004 -] UCK45 T=2.10 |
90564-50095 |
US $6.12 |
||
|
41311B
|
41311B
90564-50096 Washer, Plate (For Front Differential Case)[08.2004 -] UCK45 T=2.13 |
90564-50096 |
US $6.12 |
||
|
41311B
|
41311B
90564-50097 Washer, Plate (For Front Differential Case)[08.2004 -] UCK45 T=2.16 |
90564-50097 |
US $6.41 |
||
|
41311B
|
41311B
90564-50098 Washer, Plate (For Front Differential Case)[08.2004 -] UCK45 T=2.19 |
90564-50098 |
US $6.03 |
||
|
41311B
|
41311B
90564-50099 Washer, Plate (For Front Differential Case)[08.2004 -] UCK45 T=2.22 |
90564-50099 |
from US $6.16 |
||
|
41311B
|
41311B
90564-50100 Washer, Plate (For Front Differential Case)[08.2004 -] UCK45 T=2.25 |
90564-50100 |
US $6.70 |
||
|
41311B
|
41311B
90564-50101 Washer, Plate (For Front Differential Case)[08.2004 -] UCK45 T=2.28 |
90564-50101 |
US $6.46 |
||
|
41311B
|
41311B
90564-50102 Washer, Plate (For Front Differential Case)[08.2004 -] UCK45 T=2.31 |
90564-50102 |
US $6.64 |
||
|
41311B
|
41311B
90564-50103 Washer, Plate (For Front Differential Case)[08.2004 -] UCK45 T=2.34 |
90564-50103 |
US $6.84 |
||
|
41311B
|
41311B
90564-50104 Washer, Plate (For Front Differential Case)[08.2004 -] UCK45 T=2.37 |
90564-50104 |
US $6.64 |
||
|
41311B
|
41311B
90564-50105 Washer, Plate (For Front Differential Case)[08.2004 -] UCK45 T=2.40 |
90564-50105 |
US $6.64 |
||
|
41311B
|
41311B
90564-50106 Washer, Plate (For Front Differential Case)[08.2004 -] UCK45 T=2.43 |
90564-50106 |
US $6.84 |
||
|
41311B
|
41311B
90564-50107 Washer, Plate (For Front Differential Case)[08.2004 -] UCK45 T=2.46 |
90564-50107 |
US $6.64 |
||
|
41311B
|
41311B
90564-50108 Washer, Plate (For Front Differential Case)[08.2004 -] UCK45 T=2.49 |
90564-50108 |
US $6.84 |
||
|
41311B
|
41311B
90564-50109 Washer, Plate (For Front Differential Case)[08.2004 -] UCK45 T=2.52 |
90564-50109 |
US $6.36 |
||
|
41311B
|
41311B
90564-50110 Washer, Plate (For Front Differential Case)[08.2004 -] UCK45 T=2.55 |
90564-50110 |
from US $5.59 |
||
|
41311B
|
41311B
90564-50111 Washer, Plate (For Front Differential Case)[08.2004 -] UCK45 T=2.58 |
90564-50111 |
US $6.84 |
||
|
41311B
|
41311B
90564-50112 Washer, Plate (For Front Differential Case)[08.2004 -] UCK45 T=2.61 |
90564-50112 |
US $6.84 |
||
|
41311B
|
41311B
90564-50113 Washer, Plate (For Front Differential Case)[08.2004 -] UCK45 T=2.64 |
90564-50113 |
US $6.84 |
||
|
41311B
|
41311B
90564-50114 Washer, Plate (For Front Differential Case)[08.2004 -] UCK45 T=2.67 |
90564-50114 |
US $6.84 |
||
|
41311B
|
41311B
90564-50115 Washer, Plate (For Front Differential Case)[08.2004 -] UCK45 T=2.70 |
90564-50115 |
US $6.84 |
||
|
41311B
|
41311B
90564-50116 Washer, Plate (For Front Differential Case)[08.2004 -] UCK45 T=2.73 |
90564-50116 |
US $6.84 |
||
|
41311B
|
41311B
90564-50117 Washer, Plate (For Front Differential Case)[08.2004 -] UCK45 T=2.76 |
90564-50117 |
US $6.84 |
||
|
41311B
|
41311B
90564-50118 Washer, Plate (For Front Differential Case)[08.2004 -] UCK45 T=2.79 |
90564-50118 |
US $6.84 |
||
|
41320
|
41320
41320-35040 Tube Assy, Front Differential[08.2004 -] UCK45 |
41320-35040 |
US $188.70 |
||
|
41320A
|
41320A
90301-68003 Ring, O (For Front Differential Tube)[08.2004 -] UCK45 |
90301-68003 |
US $4.89 |
||
|
41331G
|
41331G
90364-33009 Bearing, Needle Roller(For Front Differential Side Gear)[08.2004 -] UCK45 |
90364-33009 |
from US $25.08 |
||
|
41332B
|
41332B
90521-29002 Ring, Hole Snap (For Differential Side Gear Shaft)[08.2004 -] UCK45 |
90521-29002 |
US $1.28 |
||
|
41342A
|
41342A
90250-06058 Pin, Straight(For Timing Gear Case)[08.2004 -] UCK45 |
90250-06058 |
US $2.56 |
||
|
41342F
|
41342F
41342-22021 Shaft, Rear Differential Pinion[08.2004 -] UCK45 |
41342-22021 |
from US $12.96 |
||
|
41351F
|
41351F
41351-30060 Washer, Rear Differential Pinion Thrust[08.2004 -] UCK45 |
41351-30060 |
from US $2.09 |
||
|
41361F
|
41361F
41361-30040 Washer, Rear Differential Side Gear Thrust, No.1[08.2004 -] UCK45 T=1.0 |
41361-30040 |
US $3.84 |
||
|
41361F
|
41361F
41361-30050 Washer, Rear Differential Side Gear Thrust, No.1[08.2004 -] UCK45 T=1.1 |
41361-30050 |
US $3.84 |
||
|
41361F
|
41361F
41361-30060 Washer, Rear Differential Side Gear Thrust, No.1[08.2004 -] UCK45 T=1.2 |
41361-30060 |
US $3.84 |
||
|
41361F
|
41361F
41361-30070 Washer, Rear Differential Side Gear Thrust, No.1[08.2004 -] UCK45 T=1.3 |
41361-30070 |
US $3.84 |
||
|
41400
|
41400
41400-34013 Actuator Assy, Differential Vacuum[08.2004 -] UCK45 |
41400-34013 |
from US $295.99 |
||
|
41433
|
41433
41433-35010 Sleeve, Differential Clutch[08.2004 -] UCK45 |
41433-35010 |
from US $64.82 |
||
|
41434
|
41434
41434-35020
Hub, Differential Clutch
[08.2004 - 11.2004] UCK45 |
41434-35020 |
— | ||
| replacement | |||||
|
41434
|
41434
41434-35021
Hub, Differential Clutch
[08.2004 - 11.2004] UCK45 |
41434-35021 |
— | ||
|
41434
|
41434
41434-35021
Hub, Differential Clutch
[11.2004 -] UCK45 |
41434-35021 |
— | ||
|
41435
|
41435
41035-35010 Case, Differential Clutch[05.2006 -] UCK45 |
41035-35010 |
US $75.71 |
||
|
41435
|
41435
41435-35010 Case, Differential Clutch[08.2004 - 05.2006] UCK45 |
41435-35010 |
US $72.51 |
||
| replacement | |||||
|
41435
|
41435
41035-35010 Case, Differential Clutch[08.2004 - 05.2006] UCK45 |
41035-35010 |
US $75.71 |
||
|
41435A
|
41435A
90107-12001 Bolt (For Differential Clutch Case Setting)[08.2004 -] UCK45 *12-1.25PX85-30 |
90107-12001 |
US $7.16 |
||
|
41435A
|
41435A
90109-12029 Bolt (For Differential Clutch Case Setting)[08.2004 -] UCK45 *12-1.25PX20-14.5 |
90109-12029 |
US $2.62 |
||
|
41653B
|
41653B
41653-0C010
Stopper, Differential Mount, Upper
[08.2004 -] UCK45 |
41653-0C010 |
— | ||
|
41654A
|
41654A
41654-0C010
Stopper, Differential Mount, Lower
[08.2004 -] UCK45 |
41654-0C010 |
— | ||
|
41655
|
41655
41655-34010 Nut, Front Differential Mount, No.1FRONT DIFFERENTIAL MOUNT, NO.1 [08.2004 -] UCK45 |
41655-34010 |
US $9.46 |
||
|
41993
|
41993
41993-35010
Label, Differential Oil Information
[08.2004 -] UCK45 |
41993-35010 |
— | ||
|
52393A
|
52393A
52380-04010
Support, Front Differential, No.2
[08.2004 -] UCK45 RH |
52380-04010 |
— | ||
|
52393A
|
52393A
52380-04020
Support, Front Differential, No.2
[08.2004 -] UCK45 LH |
52380-04020 |
— | ||
|
52393A
|
52393A
52380-35010 Support Assy, Front Differential[08.2004 -] UCK45 REAR |
52380-35010 |
from US $65.06 |
||
|
90105A0016
|
90105A0016
90105-A0016
New Genuine Part
|
90105-A0016 |
— | ||
|
91511J0820
|
91511J0820
91511-J0820 Bolt, Washer Based Head Hexagon (For Transfer Case Cover) |
91511-J0820 |
from US $1.05 |
||
|
9008010298
|
9008010298
90080-10298
Bolt (For Transfer & Transaxle Setting)
|
90080-10298 |
— | ||
|
9008011420
|
9008011420
90080-11420 New Genuine Part |
90080-11420 |
US $10.48 |
||
|
9017914063
|
9017914063
90179-14063 NUT |
90179-14063 |
US $2.88 |
||
