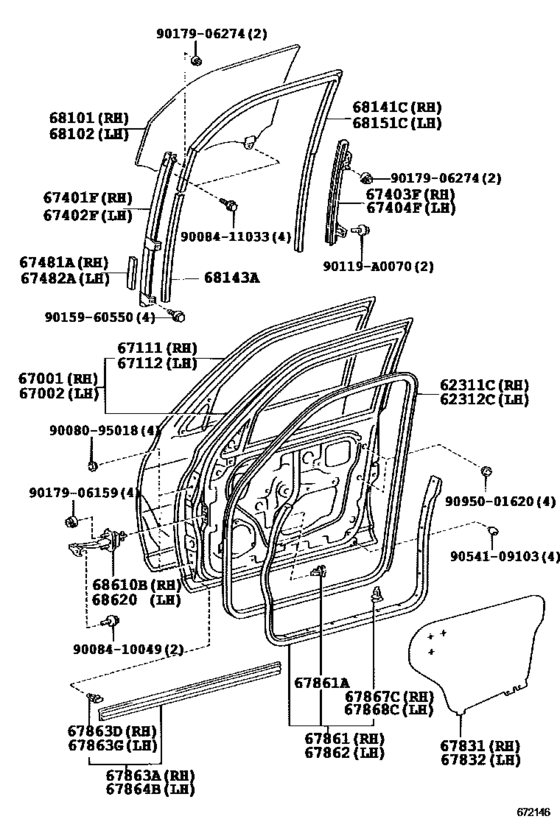

Front Door Panel & Glass ([09.2000 - ] (0009- )) Diagram Toyota SEQUOIA
- Year
- 2004 - 2007
- Sales region
- U.S.A.
- Frame
- UCK45
- grade
- LIMD
- ENGINE
- 2UZFE
- From
- 08.2004
- To
- 11.2007
- Gear Shift Type
- 5HC
- Vehicle Model
- SEQUOIA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62311C
|
62311C
62311-0C030-B0
Weatherstrip, Front Door Opening Trim, Rh
[08.2004 -] UCK35,45 MD.CHARCOAL,TRIM1# |
62311-0C030-B0 |
— | ||
|
62311C
|
62311C
62311-0C030-E1
Weatherstrip, Front Door Opening Trim, Rh
[08.2004 -] UCK35,45 FAWN,TRIM42,43 |
62311-0C030-E1 |
— | ||
|
62312C
|
62312C
62312-0C030-B0
Weatherstrip, Front Door Opening Trim, Lh
[08.2004 -] UCK35,45 MD.CHARCOAL,TRIM1# |
62312-0C030-B0 |
— | ||
|
62312C
|
62312C
62312-0C030-E1
Weatherstrip, Front Door Opening Trim, Lh
[08.2004 -] UCK35,45 FAWN,TRIM42,43 |
62312-0C030-E1 |
— | ||
|
67001
|
67001
67001-0C061 Panel Sub-Assy, Front Door, Rh[08.2004 -] UCK35,45 |
67001-0C061 |
US $1,209.82 |
||
|
67002
|
67002
67002-0C061
Panel Sub-Assy, Front Door, Lh
[08.2004 -] UCK35,45 |
67002-0C061 |
— | ||
|
67111
|
67111
67111-0C030
Panel, Front Door, Outer Rh
[08.2004 -] UCK35,45 |
67111-0C030 |
— | ||
|
67112
|
67112
67112-0C030
Panel, Front Door, Outer Lh
[08.2004 -] UCK35,45 |
67112-0C030 |
— | ||
|
67401F
|
67401F
67401-0C020
Frame Sub-Assy, Front Door, Front Lower Rh
[08.2004 -] UCK35,45 |
67401-0C020 |
— | ||
|
67402F
|
67402F
67402-0C020
Frame Sub-Assy, Front Door, Front Lower Lh
[08.2004 -] UCK35,45 |
67402-0C020 |
— | ||
|
67403F
|
67403F
67403-0C020
Frame Sub-Assy, Front Door, Rear Lower Rh
[08.2004 -] UCK35,45 |
67403-0C020 |
— | ||
|
67404F
|
67404F
67404-0C020
Frame Sub-Assy, Front Door, Rear Lower Lh
[08.2004 -] UCK35,45 |
67404-0C020 |
— | ||
|
67481A
|
67481A
67481-0C010 Seal, Front Door Front Lower Frame, RhFRONT DOOR FRONT LOWER FRAME, RH [08.2004 -] UCK35,45 |
67481-0C010 |
US $3.79 |
||
|
67482A
|
67482A
67481-0C010 Seal, Front Door Front Lower Frame, RhFRONT DOOR FRONT LOWER FRAME, RH [08.2004 -] UCK35,45 |
67481-0C010 |
US $3.79 |
||
|
67831
|
67831
67801-0C010
Cover, Front Door Service Hole, Rh
[08.2004 -] UCK35,45 |
67801-0C010 |
— | ||
|
67832
|
67832
67802-0C010
Cover, Front Door Service Hole, Lh
[08.2004 -] UCK35,45 |
67802-0C010 |
— | ||
|
67861
|
67861
67861-0C020
Weatherstrip, Front Door, Rh
[08.2004 -] UCK35,45 |
67861-0C020 |
— | ||
|
67861A
|
67861A
67867-0C010 Retainer, Roof Side Rail WeatherstripDOOR WEATHERSTRIP(FOR FRONT DOOR) [08.2004 -] UCK35,45 |
67867-0C010 |
US $3.20 |
||
|
67862
|
67862
67862-0C020
Weatherstrip, Front Door, Lh
[08.2004 -] UCK35,45 |
67862-0C020 |
— | ||
|
67863A
|
67863A
67863-0C020
Weatherstrip, Front Door, Upper Rh
[08.2004 -] UCK35,45 |
67863-0C020 |
— | ||
|
67863D
|
67863D
67867-0C010 Retainer, Roof Side Rail WeatherstripDOOR WEATHERSTRIP(FOR FRONT DOOR) [08.2004 -] UCK35,45 |
67867-0C010 |
US $3.20 |
||
|
67863G
|
67863G
67867-0C010 Retainer, Roof Side Rail WeatherstripDOOR WEATHERSTRIP(FOR FRONT DOOR) [08.2004 -] UCK35,45 |
67867-0C010 |
US $3.20 |
||
|
67864B
|
67864B
67863-0C020
Weatherstrip, Front Door, Upper Rh
[08.2004 -] UCK35,45 |
67863-0C020 |
— | ||
|
67867C
|
67867C
67867-12150 Clip(For Hood Air Intake Duct Seal)[08.2004 -] UCK35,45 |
67867-12150 |
from US $1.60 |
||
|
67868C
|
67868C
67867-12150 Clip(For Hood Air Intake Duct Seal)[08.2004 -] UCK35,45 |
67867-12150 |
from US $1.60 |
||
|
68101
|
68101
68101-0C020
Glass Sub-Assy, Front Door, Rh
[08.2004 -] UCK35,45 *TT,T=5.0,GREEN |
68101-0C020 |
— | ||
|
68102
|
68102
68102-0C020
Glass Sub-Assy, Front Door, Lh
[08.2004 -] UCK35,45 *TT,T=5.0,GREEN |
68102-0C020 |
— | ||
|
68141C
|
68141C
68141-0C020
Run, Front Door Glass, Rh
[08.2004 -] UCK35,45 |
68141-0C020 |
— | ||
|
68143A
|
68143A
68143-0C020
Run, Front Door Glass, No.2
[08.2004 -] UCK35,45 |
68143-0C020 |
— | ||
|
68151C
|
68151C
68151-0C020
Run, Front Door Glass, Lh
[08.2004 -] UCK35,45 |
68151-0C020 |
— | ||
|
68610B
|
68610B
68610-0C011
Check Assy, Front Door, Rh
[08.2004 -] UCK35,45 |
68610-0C011 |
— | ||
|
68620
|
68620
68620-0C011
Check Assy, Front Door, Lh
[08.2004 -] UCK35,45 |
68620-0C011 |
— | ||
|
90119A0070
|
90119A0070
90119-A0070 New Genuine Part |
90119-A0070 |
US $1.46 |
||
|
9008095018
|
9008095018
90080-95018 New Genuine Part |
90080-95018 |
US $1.31 |
||
|
9008410049
|
9008410049
90084-10049
New Genuine Part
|
90084-10049 |
— | ||
|
9008411033
|
9008411033
90084-11033 New Genuine Part |
90084-11033 |
US $0.73 |
||
|
9015960550
|
9015960550
90159-60550 New Genuine Part |
90159-60550 |
US $1.44 |
||
|
9017906159
|
9017906159
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
| replacement | |||||
|
9017906159
|
9017906159
90080-17210
Nut, Rear Wiper Link Pivot, No.1
|
90080-17210 |
— | ||
|
9017906274
|
9017906274
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9054109103
|
9054109103
90541-09103 Cushion, Front Door PanelFRONT DOOR PANEL |
90541-09103 |
US $2.48 |
||
|
9095001620
|
9095001620
90950-01620 PLUG HOLE |
90950-01620 |
from US $1.76 |
||
