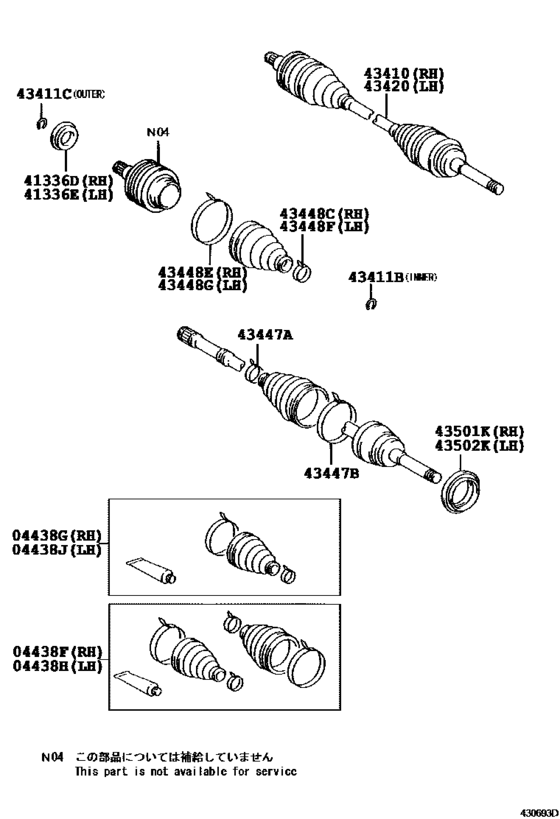

Front Drive Shaft ([09.2000 - ] (0009- )) Diagram Toyota SEQUOIA
- Year
- 2004 - 2007
- Sales region
- U.S.A.
- Frame
- UCK45
- grade
- LIMD
- ENGINE
- 2UZFE
- From
- 08.2004
- To
- 11.2007
- Gear Shift Type
- 5HC
- Vehicle Model
- SEQUOIA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04438F
|
04438F
04438-0C020
Boot Kit, Front Drive Shaft
[08.2004 - 11.2007] UCK45 |
04438-0C020 |
— | ||
|
04438G
|
04438G
04437-0C010
Boot Kit, Front Drive Shaft Inboard Joint, Rh
[08.2004 - 11.2007] UCK45 |
04437-0C010 |
— | ||
|
04438H
|
04438H
04438-0C020
Boot Kit, Front Drive Shaft
[08.2004 - 11.2007] UCK45 |
04438-0C020 |
— | ||
|
04438J
|
04438J
04438-0C010
Boot Kit, Front Drive Shaft Inboard Joint
[08.2004 - 11.2007] UCK45 |
04438-0C010 |
— | ||
|
41336D
|
41336D
41336-04010
Cover, Dust(For Front Drive Shaft)
[08.2004 -] UCK45 |
41336-04010 |
— | ||
|
41336E
|
41336E
41336-04010
Cover, Dust(For Front Drive Shaft)
[08.2004 -] UCK45 |
41336-04010 |
— | ||
|
43410
|
43410
43430-0C010
Shaft Assy, Front Drive, Rh
[08.2004 -] UCK45 |
43430-0C010 |
— | ||
|
43411B
|
43411B
43425-04010 Ring, Shaft Snap (For Front Drive Inner Shaft Inner)SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER) [08.2004 -] UCK45 |
43425-04010 |
US $2.04 |
||
|
43411C
|
43411C
43425-04020
Ring, Shaft Snap (For Front Drive Inner Shaft Outer)
[08.2004 -] UCK45 |
43425-04020 |
— | ||
|
43420
|
43420
43430-0C010
Shaft Assy, Front Drive, Rh
[08.2004 -] UCK45 |
43430-0C010 |
— | ||
|
43447A
|
43447A
42345-04030 Clamp (For Front Axle Outboard Joint Boot Rh)[08.2004 -] UCK45 |
42345-04030 |
US $2.48 |
||
|
43447B
|
43447B
42345-04040 Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)[08.2004 -] UCK45 |
42345-04040 |
US $4.80 |
||
|
43448C
|
43448C
42345-0C020 Clamp (For Front Axle Inboard Joint Boot Rh)[08.2004 -] UCK45 |
42345-0C020 |
US $4.08 |
||
|
43448E
|
43448E
42345-0C010 Clamp, No.2 (For Front Axle Inboard Joint Boot Rh)NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) [08.2004 -] UCK45 |
42345-0C010 |
US $5.82 |
||
|
43448F
|
43448F
42345-0C020 Clamp (For Front Axle Inboard Joint Boot Rh)[08.2004 -] UCK45 |
42345-0C020 |
US $4.08 |
||
|
43448G
|
43448G
42345-0C010 Clamp, No.2 (For Front Axle Inboard Joint Boot Rh)NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) [08.2004 -] UCK45 |
42345-0C010 |
US $5.82 |
||
|
43501K
|
43501K
90080-30028
Seal, Dust (For Front Axle Hub Rh)
[08.2004 -] UCK45 |
90080-30028 |
— | ||
|
43502K
|
43502K
90080-30028
Seal, Dust (For Front Axle Hub Rh)
[08.2004 -] UCK45 |
90080-30028 |
— |
