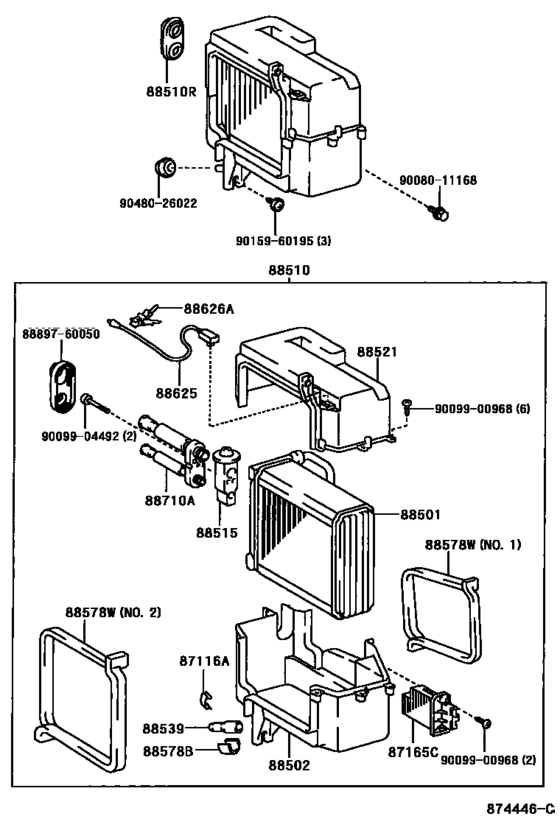

Heating & Air Conditioning - Cooler Unit ([09.2000 - ] FRONT (0009- )) Diagram Toyota SEQUOIA
- Year
- 2004 - 2007
- Sales region
- U.S.A.
- Frame
- UCK45
- grade
- LIMD
- ENGINE
- 2UZFE
- From
- 08.2004
- To
- 11.2007
- Gear Shift Type
- 5HC
- Vehicle Model
- SEQUOIA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87116A
|
87116A
87116-08020
Spring, Holding (For Cooler Unit Case)
[08.2004 - 11.2007] UCK35,45 |
87116-08020 |
— | ||
|
87165C
|
87165C
87165-32010
Resistor, Blower
[08.2004 -] UCK35,45 |
87165-32010 |
— | ||
|
88501
|
88501
88501-0C020
Evaporator Sub-Assy, Cooler, No.1
[08.2004 -] UCK35,45 |
88501-0C020 |
— | ||
|
88502
|
88502
88502-0C010
Case Sub-Assy, Cooling Unit
[08.2004 - 11.2007] UCK35,45 |
88502-0C010 |
— | ||
|
88510
|
88510
88510-0C030
Unit Assy, Cooler
[08.2004 -] UCK35,45 |
88510-0C030 |
— | ||
|
88510R
|
88510R
90080-48069
Grommet (For Cooler Unit)
[08.2004 -] UCK35,45 |
90080-48069 |
— | ||
|
88515
|
88515
88515-0C070
Valve, Cooler Expansion
[08.2004 -] UCK35,45 |
88515-0C070 |
— | ||
|
88521
|
88521
88521-0C030
Case, Cooler Unit
[08.2004 -] UCK35,45 |
88521-0C030 |
— | ||
|
88539
|
88539
88539-0C030
Hose, Cooler Unit Drain, No.1
[08.2004 -] UCK35,45 |
88539-0C030 |
— | ||
|
88578B
|
88578B
88578-0C010
Paking, Cooler Air Duct
[08.2004 -] UCK35,45 |
88578-0C010 |
— | ||
|
88578W
|
88578W
88578-0C060
Packing, Cooling Unit, No.2
[08.2004 -] UCK35,45 NO.2 |
88578-0C060 |
— | ||
|
88578W
|
88578W
88578-0C070
Packing, Cooling Unit, No.1
[08.2004 -] UCK35,45 NO.1 |
88578-0C070 |
— | ||
|
88625
|
88625
88625-0C010 Thermistor, Cooler, No.1[08.2004 -] UCK35,45 |
88625-0C010 |
US $15.38 |
||
|
88626A
|
88626A
88626-28010
Holder, Thermistor
[08.2004 -] UCK35,45 |
88626-28010 |
— | ||
|
88710A
|
88710A
88710-0C040
Tube Assy, Air Conditioner
[08.2004 -] UCK35,45 |
88710-0C040 |
— | ||
|
8889760050
|
8889760050
88897-60050
Pipe, Aspirator
|
88897-60050 |
— | ||
|
9008011168
|
9008011168
90080-11168
New Genuine Part
|
90080-11168 |
— | ||
|
9009900968
|
9009900968
90099-00968 Screw(For Air Conditioner Unit) |
90099-00968 |
US $0.88 |
||
|
9009904492
|
9009904492
90099-04492 BOLT |
90099-04492 |
US $2.06 |
||
|
9015960195
|
9015960195
90159-60195 New Genuine Part |
90159-60195 |
US $0.52 |
||
|
9048026022
|
9048026022
90480-26022 Grommet (For Cooler Unit) |
90480-26022 |
US $2.45 |
