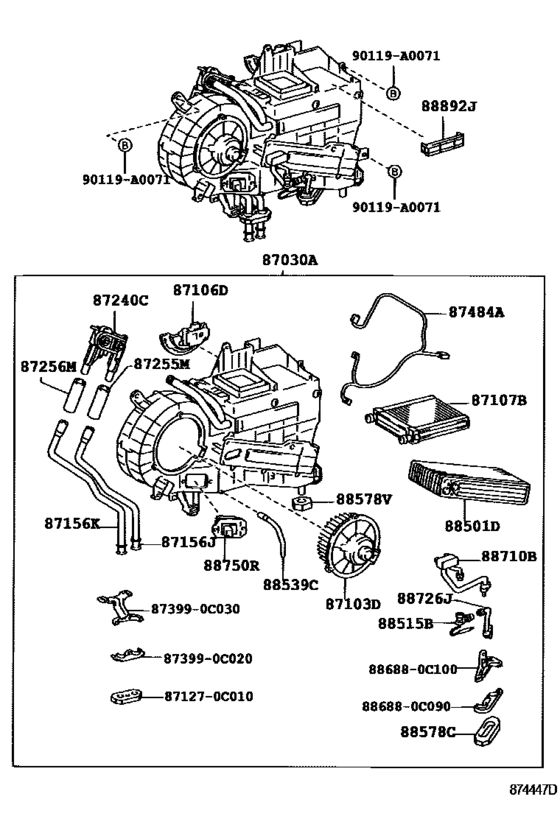

Heating & Air Conditioning - Cooler Unit ([09.2000 - ] REAR (0009- )) Diagram Toyota SEQUOIA
- Year
- 2004 - 2007
- Sales region
- U.S.A.
- Frame
- UCK45
- grade
- LIMD
- ENGINE
- 2UZFE
- From
- 08.2004
- To
- 11.2007
- Gear Shift Type
- 5HC
- Vehicle Model
- SEQUOIA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87030A
|
87030A
87030-0C020
Unit Assy, Cooling, Rear
[08.2004 -] UCK35,45 |
87030-0C020 |
— | ||
|
87103D
|
87103D
87103-0C030
Motor Sub-Assy, Blower W/fan(For Rear)
[08.2004 -] UCK35,45 |
87103-0C030 |
— | ||
|
87106D
|
87106D
87106-0C050
Servo Sub-Assy, Damper, No.1
[08.2004 -] UCK35,45 |
87106-0C050 |
— | ||
|
87107B
|
87107B
87107-0C030
Unit Sub-Assy, Heater Radiator
[08.2004 -] UCK35,45 |
87107-0C030 |
— | ||
|
87156J
|
87156J
87156-0C050
Pipe, Heater Water Inlet
[08.2004 -] UCK35,45 |
87156-0C050 |
— | ||
|
87156K
|
87156K
87156-0C060
Pipe, Heater Water Outlet
[08.2004 -] UCK35,45 |
87156-0C060 |
— | ||
|
87240C
|
87240C
87240-28100 Valve Assy, Heater Water[08.2004 -] UCK35,45 |
87240-28100 |
US $156.96 |
||
|
87255M
|
87255M
99556-30100 Hose, Water Inlet[08.2004 -] UCK35,45 |
99556-30100 |
from US $3.20 |
||
|
87256M
|
87256M
99556-30100 Hose, Water Inlet[08.2004 -] UCK35,45 |
99556-30100 |
from US $3.20 |
||
|
87484A
|
87484A
87484-0C030
Wire, Heater
[08.2004 -] UCK35,45 |
87484-0C030 |
— | ||
|
88501D
|
88501D
88501-0C030
Evaporator Sub-Assy, Cooler, No.2
[08.2004 -] UCK35,45 |
88501-0C030 |
— | ||
|
88515B
|
88515B
88515-08080
Valve, Cooler Expansion
[08.2004 -] UCK35,45 |
88515-08080 |
— | ||
|
88539C
|
88539C
88539-0C020
Hose, Cooler Unit Drain, No.2
[08.2004 -] UCK35,45 |
88539-0C020 |
— | ||
|
88578C
|
88578C
88578-0C020
Packing, Cooling Unit, No.2
[08.2004 -] UCK35,45 |
88578-0C020 |
— | ||
|
88578V
|
88578V
88578-0C030
Packing, Cooling Unit, No.3
[08.2004 -] UCK35,45 |
88578-0C030 |
— | ||
|
88710B
|
88710B
88710-0C050
Tube Assy, Air Conditioner
[08.2004 -] UCK35,45 |
88710-0C050 |
— | ||
|
88726J
|
88726J
88716-0C050
Pipe, Cooler Refrigerant Liquid, J
[08.2004 -] UCK35,45 |
88716-0C050 |
— | ||
|
88750R
|
88750R
88750-52010
Transistor Assy, Blower Resistor
[08.2004 -] UCK35,45 |
88750-52010 |
— | ||
|
88892J
|
88892J
88892-0C010
Cover Sub-Assy
[08.2004 -] UCK35,45 |
88892-0C010 |
— | ||
|
90119A0071
|
90119A0071
90119-A0071
New Genuine Part
|
90119-A0071 |
— | ||
|
871270C010
|
871270C010
87127-0C010
Packing, Heater Air Damper
|
87127-0C010 |
— | ||
|
873990C020
|
873990C020
87399-0C020
Band Assy (for Combustion Heater)
|
87399-0C020 |
— | ||
|
873990C030
|
873990C030
87399-0C030
Band Assy (for Combustion Heater)
|
87399-0C030 |
— | ||
|
886880C090
|
886880C090
88688-0C090
Bracket, Cooler Diaphragm
|
88688-0C090 |
— | ||
|
886880C100
|
886880C100
88688-0C100
Bracket, Cooler Diaphragm
|
88688-0C100 |
— |
