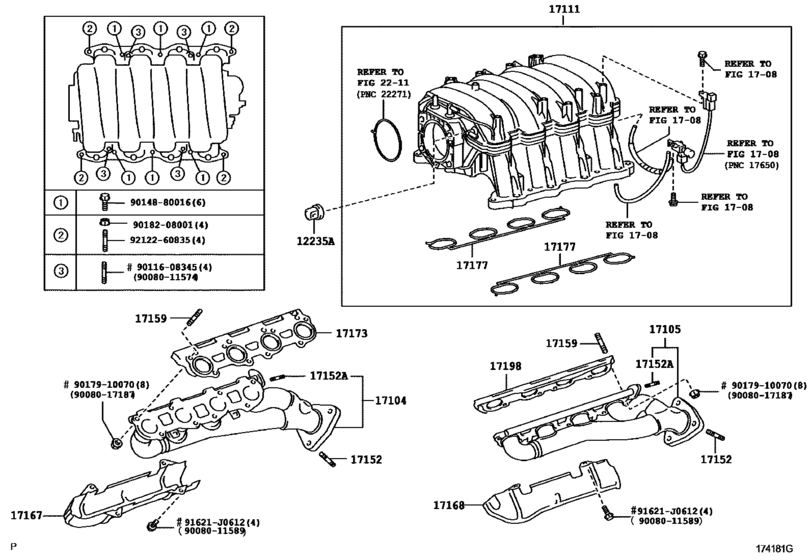

Manifold ([08.2004 - ] (0408- )) Diagram Toyota SEQUOIA
- Year
- 2004 - 2007
- Sales region
- U.S.A.
- Frame
- UCK45
- grade
- LIMD
- ENGINE
- 2UZFE
- From
- 08.2004
- To
- 11.2007
- Gear Shift Type
- 5HC
- Vehicle Model
- SEQUOIA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12235A
|
12235A
12235-50020
Cap, Ventilation
[08.2004 -] 2UZFE..UCK35,45 |
12235-50020 |
— | ||
|
17104
|
17104
17104-50200 Manifold Sub-Assy, Exhaust, RhEXHAUST, RH [08.2004 -] 2UZFE..UCK35,45 |
17104-50200 |
US $541.20 |
||
|
17105
|
17105
17105-50190 Manifold Sub-Assy, Exhaust, LhEXHAUST, LH [08.2004 -] 2UZFE..UCK35,45 |
17105-50190 |
US $512.24 |
||
|
17111
|
17111
17120-50010
Manifold, Intake
[08.2004 - 12.2004] 2UZFE..UCK35,45 |
17120-50010 |
— | ||
| replacements | |||||
|
17111
|
17111
17120-50020 Manifold, Intake[08.2004 - 12.2004] 2UZFE..UCK35,45 |
17120-50020 |
US $869.40 |
||
|
17111
|
17111
90447-08174 New Genuine Part[08.2004 - 12.2004] 2UZFE..UCK35,45 |
90447-08174 |
US $17.06 |
||
|
17111
|
17111
17120-50011
Manifold, Intake
[12.2004 - 07.2006] 2UZFE..UCK35,45 |
17120-50011 |
— | ||
| replacements | |||||
|
17111
|
17111
17120-50020 Manifold, Intake[12.2004 - 07.2006] 2UZFE..UCK35,45 |
17120-50020 |
US $869.40 |
||
|
17111
|
17111
90447-08174 New Genuine Part[12.2004 - 07.2006] 2UZFE..UCK35,45 |
90447-08174 |
US $17.06 |
||
|
17111
|
17111
17120-50020 Manifold, Intake[07.2006 -] 2UZFE..UCK35,45 |
17120-50020 |
US $869.40 |
||
|
17152
|
17152
90080-12007
Bolt, Stud(For Manifold To Exhaust Pipe)
[08.2004 -] 2UZFE..UCK35,45 |
90080-12007 |
— | ||
|
17152A
|
17152A
90126-06029 Bolt, Stud(For Vacuum Transmitting Pipe)[08.2004 -] 2UZFE..UCK35,45 |
90126-06029 |
from US $0.68 |
||
| replacement | |||||
|
17152A
|
17152A
90126-A0014 Bolt, Stud(For Oil Strainer)[08.2004 -] 2UZFE..UCK35,45 |
90126-A0014 |
US $1.77 |
||
|
17159
|
17159
90080-12008
Bolt, Stud(For Manifold To Cylinder Head)
[08.2004 -] 2UZFE..UCK35,45 (L) |
90080-12008 |
— | ||
|
17159
|
17159
90126-10015 Bolt, Stud(For Exhaust Manifold To Cylinder Head)[08.2004 -] 2UZFE..UCK35,45 (J) |
90126-10015 |
from US $2.87 |
||
|
17167
|
17167
17167-50170
Insulator, Exhaust Manifold Heat, No.1
[08.2004 -] 2UZFE..UCK35,45 |
17167-50170 |
— | ||
|
17168
|
17168
17168-50160
Insulator, Exhaust Manifold Heat, No.2
[08.2004 -] 2UZFE..UCK35,45 |
17168-50160 |
— | ||
|
17173
|
17173
17173-50030 Gasket, Exhaust Manifold To Head[08.2004 -] 2UZFE..UCK35,45 |
17173-50030 |
from US $56.53 |
||
|
17177
|
17177
17171-50030 Gasket, Intake Manifold To Head, No.1[08.2004 -] 2UZFE..UCK35,45 |
17171-50030 |
from US $17.26 |
||
|
17198
|
17198
17198-50010 Gasket, Exhaust Manifold To Head, Lh[08.2004 -] 2UZFE..UCK35,45 |
17198-50010 |
from US $57.56 |
||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
|
9008011574
|
9008011574
90080-11574
New Genuine Part
|
90080-11574 |
— | ||
|
9008011589
|
9008011589
90080-11589 New Genuine Part |
90080-11589 |
US $2.63 |
||
|
9008017187
|
9008017187
90080-17187 Nut, Exhaust Pipe Set Stud Bolt |
90080-17187 |
US $33.80 |
||
| replacement | |||||
|
9008017187
|
9008017187
90179-10070 Nut, Exhaust Pipe Set Stud Bolt |
90179-10070 |
from US $1.54 |
||
|
9011608345
|
9011608345
90116-08345 New Genuine Part |
90116-08345 |
US $2.72 |
||
|
9014880016
|
9014880016
90148-80016 New Genuine Part |
90148-80016 |
US $9.17 |
||
|
9017910070
|
9017910070
90179-10070 Nut, Exhaust Pipe Set Stud Bolt |
90179-10070 |
from US $1.54 |
||
|
9018208001
|
9018208001
90182-08001 New Genuine Part |
90182-08001 |
US $1.16 |
||
|
9212260835
|
9212260835
92122-60835 New Genuine Part |
92122-60835 |
US $1.22 |
||
