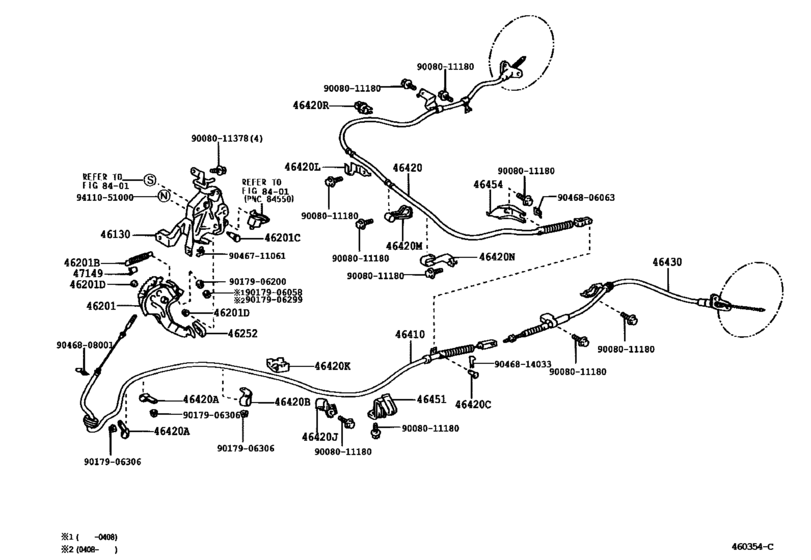

Parking Brake & Cable ([09.2000 - ] (0009- )) Diagram Toyota SEQUOIA
- Year
- 2004 - 2007
- Sales region
- U.S.A.
- Frame
- UCK45
- grade
- LIMD
- ENGINE
- 2UZFE
- From
- 08.2004
- To
- 11.2007
- Gear Shift Type
- 5HC
- Vehicle Model
- SEQUOIA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
46130
|
46130
46130-34020 Bracket Assy, Parking Brake PedalPARKING BRAKE PEDAL [08.2004 -] UCK35,45 |
46130-34020 |
US $125.22 |
||
|
46201
|
46201
46210-34010 Pedal Sub-Assy, Parking BrakePARKING BRAKE [08.2004 -] UCK35,45 |
46210-34010 |
US $94.64 |
||
|
46201B
|
46201B
90506-19005 Spring, Tension[08.2004 -] UCK35,45 |
90506-19005 |
US $4.22 |
||
|
46201C
|
46201C
90109-10033 Shaft, Pedal[08.2004 -] UCK35,45 |
90109-10033 |
US $4.95 |
||
|
46201D
|
46201D
90386-16022 Bush, Control Link[08.2004 -] UCK35,45 |
90386-16022 |
US $2.08 |
||
|
46252
|
46252
46252-33010 Pad, Parking Pedal[08.2004 -] UCK35,45 |
46252-33010 |
US $8.21 |
||
|
46410
|
46410
46410-34150 Cable Assy, Parking Brake, No.1PARKING BRAKE, NO.1 [08.2004 -] UCK35,45 |
46410-34150 |
US $80.72 |
||
|
46420
|
46420
46420-34080 Cable Assy, Parking Brake, No.2PARKING BRAKE, NO.2 [08.2004 -] UCK35,45 |
46420-34080 |
US $92.60 |
||
|
46420A
|
46420A
46411-34020 Clamp, No.1(For Parking Brake Cable)NO.1(FOR PARKING BRAKE CABLE) [08.2004 -] UCK35,45 |
46411-34020 |
US $5.53 |
||
|
46420B
|
46420B
46411-34030 Clamp, No.2(For Parking Brake Cable)NO.2(FOR PARKING BRAKE CABLE) [08.2004 -] UCK35,45 |
46411-34030 |
US $4.22 |
||
|
46420C
|
46420C
90240-08059 Pin, W/hole(For Intermediate Lever)[08.2004 -] UCK35,45 |
90240-08059 |
from US $2.15 |
||
|
46420J
|
46420J
46411-34040 Clamp, No.3(For Parking Brake Cable)NO.3(FOR PARKING BRAKE CABLE) [08.2004 -] UCK35,45 |
46411-34040 |
US $7.72 |
||
|
46420K
|
46420K
46411-0C010
Clamp, No.4(For Parking Brake Cable)
[08.2004 -] UCK35,45 |
46411-0C010 |
— | ||
|
46420L
|
46420L
46421-34030 Clamp, No.5(For Parking Brake Cable)NO.5(FOR PARKING BRAKE CABLE) [08.2004 -] UCK35,45 |
46421-34030 |
US $6.99 |
||
|
46420M
|
46420M
46421-34040 Clamp, No.6(For Parking Brake Cable)NO.6(FOR PARKING BRAKE CABLE) [08.2004 -] UCK35,45 |
46421-34040 |
US $9.17 |
||
|
46420N
|
46420N
46421-34050
Clamp, No.7(For Parking Brake Cable)
[08.2004 -] UCK35,45 |
46421-34050 |
— | ||
|
46420R
|
46420R
46421-34060 Clamp, No.8(For Parking Brake Cable)[08.2004 -] UCK35,45 |
46421-34060 |
US $2.04 |
||
|
46430
|
46430
46430-34060 Cable Assy, Parking Brake, No.3PARKING BRAKE, NO.3 [08.2004 -] UCK35,45 |
46430-34060 |
US $60.80 |
||
|
46451
|
46451
46451-34030
Bracket, Cable Support
[08.2004 -] UCK35,45 |
46451-34030 |
— | ||
|
46454
|
46454
46454-34040
Bracket, Cable Retainer, Front
[08.2004 -] UCK35,45 |
46454-34040 |
— | ||
|
47149
|
47149
47149-22010 Damper, Return Spring[08.2004 -] UCK35,45 |
47149-22010 |
US $2.18 |
||
|
9008011180
|
9008011180
90080-11180 BOLT WWASHER |
90080-11180 |
US $0.79 |
||
|
9008011378
|
9008011378
90080-11378
New Genuine Part
|
90080-11378 |
— | ||
|
9017906058
|
9017906058
90179-06058
Nut, Wire Adjusting, No.1
|
90179-06058 |
— | ||
| replacement | |||||
|
9017906058
|
9017906058
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.72 |
||
|
9017906200
|
9017906200
90179-06200 New Genuine Part |
90179-06200 |
from US $1.16 |
||
|
9017906299
|
9017906299
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.72 |
||
|
9017906306
|
9017906306
90179-06306 NUT |
90179-06306 |
US $1.92 |
||
|
9046711061
|
9046711061
90467-11061 CLIP |
90467-11061 |
US $1.28 |
||
|
9046806063
|
9046806063
90468-06063 CLIP |
90468-06063 |
US $1.44 |
||
|
9046808001
|
9046808001
90468-08001 CLIP |
90468-08001 |
US $3.36 |
||
|
9046814033
|
9046814033
90468-14033 CLIP |
90468-14033 |
from US $0.96 |
||
|
9411051000
|
9411051000
94110-51000 Nut(For Steering Center Arm) |
94110-51000 |
from US $2.08 |
||
