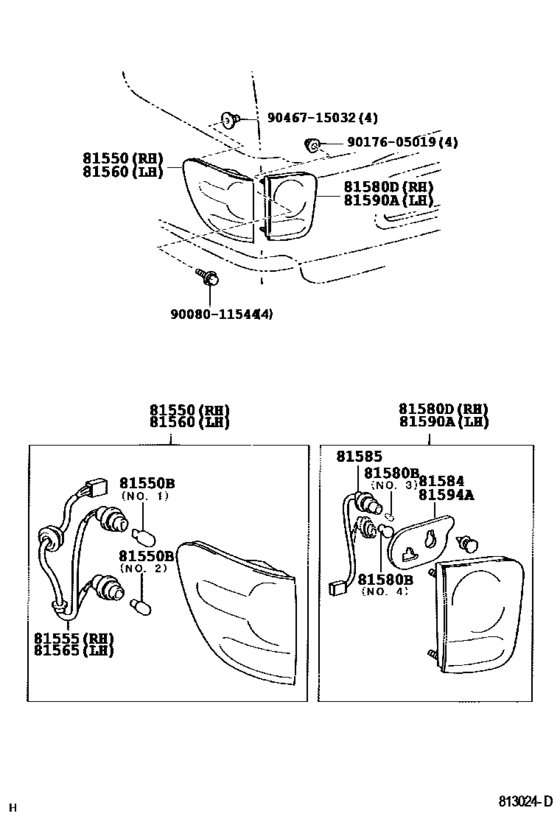

Rear Combination Lamp ([08.2004 - ] (0408- )) Diagram Toyota SEQUOIA
- Year
- 2004 - 2007
- Sales region
- U.S.A.
- Frame
- UCK45
- grade
- LIMD
- ENGINE
- 2UZFE
- From
- 08.2004
- To
- 11.2007
- Gear Shift Type
- 5HC
- Vehicle Model
- SEQUOIA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-0C050 Lamp Assy, Rear Combination, RhREAR COMBINATION, RH [08.2004 -] UCK35,45 |
81550-0C050 |
US $313.04 |
||
|
81550B
|
81550B
90981-13044 Bulb(For Rear Combination Lamp) (12V 21/5W)[08.2004 - 11.2007] UCK35,45 12V 21/5W,NO.1 |
90981-13044 |
from US $3.65 |
||
|
81550B
|
81550B
90981-15011 Bulb (For Turn Signal Lamp) 12V 21W, AMBER[08.2004 - 11.2007] UCK35,45 12V 21W,AMBER,NO.2 |
90981-15011 |
from US $4.60 |
||
|
81555
|
81555
81555-0C050
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[08.2004 -] UCK35,45 |
81555-0C050 |
— | ||
|
81560
|
81560
81560-0C050 Lamp Assy, Rear Combination, LhREAR COMBINATION, LH [08.2004 -] UCK35,45 |
81560-0C050 |
US $313.04 |
||
|
81565
|
81565
81555-0C050
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[08.2004 -] UCK35,45 |
81555-0C050 |
— | ||
|
81580B
|
81580B
90080-81012
Bulb(For Rear Combination Lamp)
[08.2004 -] UCK35,45 12V 5W |
90080-81012 |
— | ||
|
81580B
|
81580B
90081-81006 Bulb (For License Plate Lamp)[08.2004 -] UCK35,45 12V 3.8W |
90081-81006 |
US $4.08 |
||
| replacement | |||||
|
81580B
|
81580B
99132-11038
Bulb(For Rear Combination Lamp)
[08.2004 -] UCK35,45 12V 3.8W |
99132-11038 |
— | ||
|
81580B
|
81580B
90981-11059 Bulb(For Rear Combination Lamp) (12V 16W)[08.2004 -] UCK35,45 12V 16W |
90981-11059 |
from US $3.20 |
||
|
81580D
|
81580D
81580-0C020
Lamp Assy, Rear, Rh
[08.2004 -] UCK35,45 |
81580-0C020 |
— | ||
|
81584
|
81584
81584-0C020
Packing, Rear Lamp Rh
[08.2004 -] UCK35,45 |
81584-0C020 |
— | ||
|
81585
|
81585
81585-0C020
Socket & Wire, Rear Lamp
[08.2004 -] UCK35,45 RH |
81585-0C020 |
— | ||
|
81585
|
81585
81595-0C020
Socket & Wire, Rear Lamp
[08.2004 -] UCK35,45 LH |
81595-0C020 |
— | ||
|
81590A
|
81590A
81590-0C020 Lamp Assy, Rear, LhREAR, LH [08.2004 -] UCK35,45 |
81590-0C020 |
from US $184.20 |
||
|
81594A
|
81594A
81594-0C020
Gasket, Rear Lamp Lh
[08.2004 -] UCK35,45 |
81594-0C020 |
— | ||
|
9008011544
|
9008011544
90080-11544
New Genuine Part
|
90080-11544 |
— | ||
|
9017605019
|
9017605019
90176-05019 NUT CAP |
90176-05019 |
US $1.60 |
||
|
9046715032
|
9046715032
90467-15032 CLIP |
90467-15032 |
US $1.31 |
||
