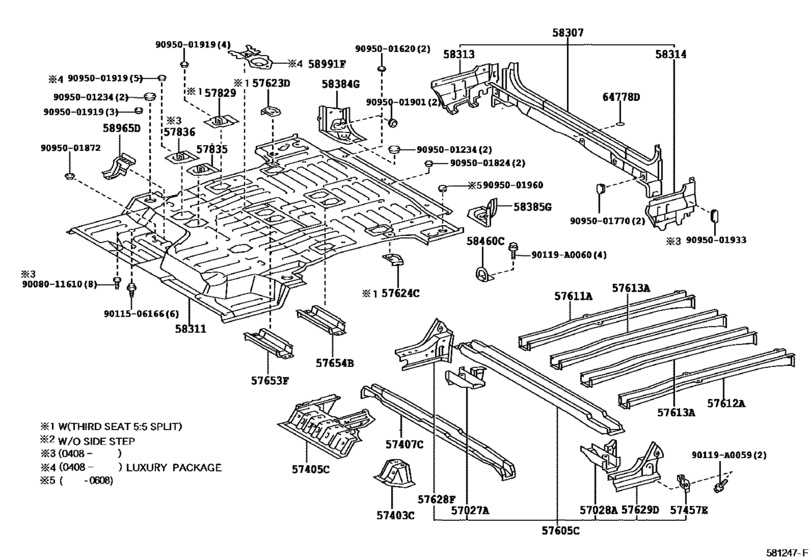

Rear Floor Panel & Rear Floor Member ([09.2000 - ] (0009- )) Diagram Toyota SEQUOIA
- Year
- 2004 - 2007
- Sales region
- U.S.A.
- Frame
- UCK45
- grade
- LIMD
- ENGINE
- 2UZFE
- From
- 08.2004
- To
- 11.2007
- Gear Shift Type
- 5HC
- Vehicle Model
- SEQUOIA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57027A
|
57027A
57027-0C010
Bracket Sub-Assy, Body Mounting, No.4 Rh
[08.2004 -] UCK35,45 |
57027-0C010 |
— | ||
|
57028A
|
57028A
57028-0C010
Bracket Sub-Assy, Body Mounting, No.4 Lh
[08.2004 -] UCK35,45 |
57028-0C010 |
— | ||
|
57403C
|
57403C
57403-0C030
Reinforce Sub-Assy, Floor Side, Inner Rh
[08.2004 -] UCK35,45 |
57403-0C030 |
— | ||
|
57405C
|
57405C
57405-0C010
Member Sub-Assy, Center Floor Cross, Rear
[08.2004 -] UCK35,45 |
57405-0C010 |
— | ||
|
57407C
|
57407C
57407-0C010
Member Sub-Assy, Center Floor Cross, No.1
[08.2004 -] UCK35,45 |
57407-0C010 |
— | ||
|
57457E
|
57457E
57457-0C010
Patch, Floor Side Member, Rear Rh
[08.2004 -] UCK35,45 |
57457-0C010 |
— | ||
|
57605C
|
57605C
57605-0C041
Member Sub-Assy, Rear Floor Cross
[08.2004 -] UCK35,45 |
57605-0C041 |
— | ||
|
57611A
|
57611A
57611-0C010
Member, Rear Floor Side, Rh
[08.2004 -] UCK35,45 |
57611-0C010 |
— | ||
|
57612A
|
57612A
57612-0C020
Member, Rear Floor Side, Lh
[08.2004 -] UCK35,45 |
57612-0C020 |
— | ||
|
57613A
|
57613A
57613-0C010
Member, Rear Floor Side Center
[08.2004 -] UCK35,45 |
57613-0C010 |
— | ||
|
57623D
|
57623D
57623-0C010
Plate, Rear Floor Side Member, Rr Rh
[08.2004 -] UCK35,45 |
57623-0C010 |
— | ||
|
57624C
|
57624C
57624-0C010
Plate, Rear Floor Side Member, Rr Lh
[08.2004 -] UCK35,45 |
57624-0C010 |
— | ||
|
57628F
|
57628F
57628-0C030
Plate, Rear Floor Side Member, Rh
[08.2004 -] UCK35,45 |
57628-0C030 |
— | ||
|
57629D
|
57629D
57629-0C030
Plate, Rear Floor Side Member, Lh
[08.2004 -] UCK35,45 |
57629-0C030 |
— | ||
|
57653F
|
57653F
57653-0C020
Member, Rear Floor Cross, No.2
[08.2004 -] UCK35,45 |
57653-0C020 |
— | ||
|
57654B
|
57654B
57654-0C010
Member, Rear Floor Cross, No.3
[08.2004 -] UCK35,45 |
57654-0C010 |
— | ||
|
57829
|
57829
57829-0C010
Reinforcement, Seat Leg
[08.2004 -] UCK35,45 |
57829-0C010 |
— | ||
|
57835
|
57835
57835-0C010
Reinforcement, Rear No.1 Seat Leg, Rear No.1
[08.2004 -] UCK35,45..LIMD LUXURY PACKAGE |
57835-0C010 |
— | ||
|
57836
|
57836
57836-34030 Reinforcement, Rear No.1 Seat Leg, Rear No.2REAR NO.1 SEAT LEG, REAR NO.2 [08.2004 -] UCK35,45..LIMD LUXURY PACKAGE |
57836-34030 |
US $30.14 |
||
|
57836
|
57836
57836-34040 Reinforcement, Rear No.1 Seat Leg, Rear No.2[08.2004 -] UCK35,45 |
57836-34040 |
US $28.54 |
||
|
58307
|
58307
58302-0C011
Panel Sub-Assy, Body Lower Back
[08.2004 -] UCK35,45 |
58302-0C011 |
— | ||
|
58311
|
58311
58311-0C060
Pan, Rear Floor
[08.2004 -] UCK35,45..LIMD LUXURY PACKAGE |
58311-0C060 |
— | ||
|
58311
|
58311
58311-0C080
Pan, Rear Floor
[08.2004 -] UCK35,45 W(DUAL AIR CONDITIONER) |
58311-0C080 |
— | ||
|
58313
|
58313
58313-0C010
Panel, Rear Floor Side, Rh
[08.2004 -] UCK35,45 |
58313-0C010 |
— | ||
|
58314
|
58314
58314-0C011
Panel, Rear Floor Side, Lh
[08.2004 -] UCK35,45 |
58314-0C011 |
— | ||
|
58384G
|
58384G
58384-34010 Gusset, Lower Back, Upper RhLOWER BACK, UPPER RH [08.2004 -] UCK35,45 |
58384-34010 |
US $63.63 |
||
|
58385G
|
58385G
58385-34010 Gusset, Lower Back, Upper LhLOWER BACK, UPPER LH [08.2004 -] UCK35,45 |
58385-34010 |
US $63.63 |
||
|
58460C
|
58460C
58460-35012 Striker Assy, Luggage Hold Belt[08.2004 -] UCK35,45 |
58460-35012 |
from US $10.88 |
||
|
58965D
|
58965D
58965-0C030
Bracket, Jack Support
[08.2004 -] UCK35,45 |
58965-0C030 |
— | ||
|
58991F
|
58991F
58991-0C010
Bracket, Console Box Mounting, Front
[08.2004 -] UCK35,45..LIMD LUXURY PACKAGE |
58991-0C010 |
— | ||
|
64778D
|
64778D
64778-35010 Protector, Spare Wheel[08.2004 -] UCK35,45 |
64778-35010 |
US $2.04 |
||
|
90119A0059
|
90119A0059
90119-A0059
BOLT WWASHER
|
90119-A0059 |
— | ||
| replacement | |||||
|
90119A0059
|
90119A0059
90119-08516 BOLT |
90119-08516 |
from US $0.84 |
||
|
90119A0060
|
90119A0060
90119-A0060
New Genuine Part
|
90119-A0060 |
— | ||
|
9008011610
|
9008011610
90080-11610
Bolt, Weld(For Front Floor Pan)
|
90080-11610 |
— | ||
|
9011506166
|
9011506166
90115-06166 Bolt, Weld(For Front Floor Pan) |
90115-06166 |
from US $0.98 |
||
|
9095001234
|
9095001234
90950-01234 Cover, Rear Floor Hole |
90950-01234 |
US $3.20 |
||
|
9095001620
|
9095001620
90950-01620 PLUG HOLE |
90950-01620 |
from US $1.76 |
||
|
9095001770
|
9095001770
90950-01770 New Genuine Part |
90950-01770 |
US $3.84 |
||
|
9095001824
|
9095001824
90950-01824 PLUG HOLE |
90950-01824 |
from US $1.76 |
||
|
9095001872
|
9095001872
90950-01872 Plug, Hole, No.3(For Dash Panel) |
90950-01872 |
from US $2.29 |
||
|
9095001901
|
9095001901
90950-01901 Cap, Spare Wheel Carrier Handle |
90950-01901 |
US $1.92 |
||
|
9095001919
|
9095001919
90950-01919 Cushion, Rear Seat |
90950-01919 |
US $1.60 |
||
|
9095001933
|
9095001933
90950-01933 PLUG HOLE |
90950-01933 |
from US $2.24 |
||
|
9095001960
|
9095001960
90950-01960 Plug, Hole(For Floor Panel) |
90950-01960 |
from US $1.92 |
||
