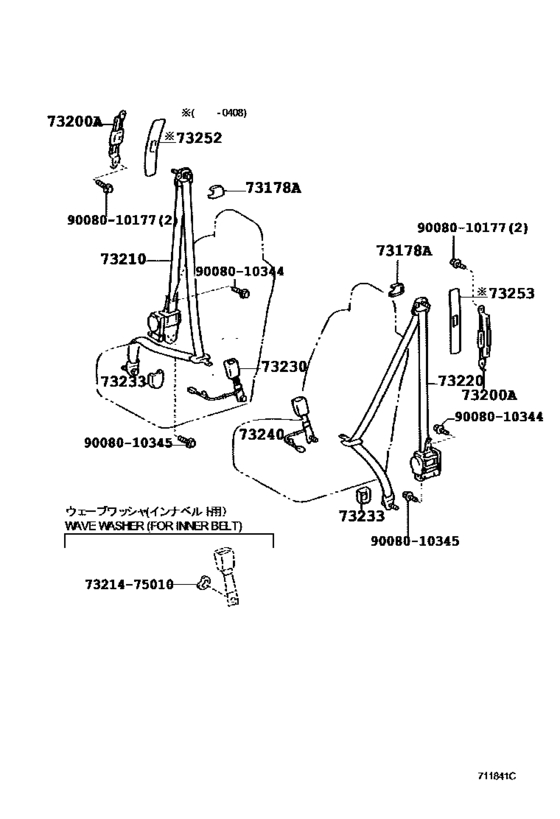

Seat Belt ([09.2000 - ] (0009- )) Diagram Toyota SEQUOIA
- Year
- 2004 - 2007
- Sales region
- U.S.A.
- Frame
- UCK45
- grade
- LIMD
- ENGINE
- 2UZFE
- From
- 08.2004
- To
- 11.2007
- Gear Shift Type
- 5HC
- Vehicle Model
- SEQUOIA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
73178A
|
73178A
73178-0C020-B0
Cap, Seat Belt Anchor Cover
[08.2004 -] UCK35,45 MD.CHARCOAL,TRIM1# |
73178-0C020-B0 |
— | ||
|
73178A
|
73178A
73178-0C020-E0
Cap, Seat Belt Anchor Cover
[08.2004 -] UCK35,45 FAWN,TRIM42,43 |
73178-0C020-E0 |
— | ||
|
73200A
|
73200A
73200-0C010
Adjuster Assy, Front Shoulder Belt Anchor
[08.2004 -] UCK35,45 |
73200-0C010 |
— | ||
|
73210
|
73210
73210-0C040-B1
Belt Assy, Front Seat Outer, Rh
[08.2004 -] UCK35,45 MD.CHARCOAL,TRIM1# |
73210-0C040-B1 |
— | ||
|
73210
|
73210
73210-0C040-E0
Belt Assy, Front Seat Outer, Rh
[08.2004 -] UCK35,45 FAWN,TRIM4# |
73210-0C040-E0 |
— | ||
|
73220
|
73220
73220-0C040-B1
Belt Assy, Front Seat Outer, Lh
[08.2004 -] UCK35,45 MD.CHARCOAL,TRIM1# |
73220-0C040-B1 |
— | ||
|
73220
|
73220
73220-0C040-E0
Belt Assy, Front Seat Outer, Lh
[08.2004 -] UCK35,45 FAWN,TRIM4# |
73220-0C040-E0 |
— | ||
|
73230
|
73230
73230-0C070-B1
Belt Assy, Front Seat Inner, Rh
[08.2004 -] UCK35,45 W(POWER SEAT),MD.CHARCOAL,TRIM1# |
73230-0C070-B1 |
— | ||
|
73230
|
73230
73230-0C070-E1
Belt Assy, Front Seat Inner, Rh
[08.2004 -] UCK35,45 W(POWER SEAT),FAWN,TRIM4# |
73230-0C070-E1 |
— | ||
|
73233
|
73233
73233-AA010-B2
Cover, Lap Belt Outer Anchor
[08.2004 -] UCK35,45 MD.CHARCOAL,TRIM1# |
73233-AA010-B2 |
— | ||
|
73233
|
73233
73233-AA010-E0
Cover, Lap Belt Outer Anchor
[08.2004 -] UCK35,45 FAWN,TRIM4# |
73233-AA010-E0 |
— | ||
|
73240
|
73240
73230-0C070-B0
Belt Assy, Front Seat Inner, Lh
[08.2004 - 11.2007] UCK35,45 DK.CHARCOAL,TRIM11 |
73230-0C070-B0 |
— | ||
|
73240
|
73240
73230-0C070-B1
Belt Assy, Front Seat Inner, Rh
[08.2004 - 11.2007] UCK35,45 MD.CHARCOAL,TRIM11 |
73230-0C070-B1 |
— | ||
|
73240
|
73240
73230-0C070-E0
Belt Assy, Front Seat Inner, Lh
[08.2004 - 11.2007] UCK35,45 SANDAL WOOD,TRIM42 |
73230-0C070-E0 |
— | ||
|
73240
|
73240
73230-0C070-E1
Belt Assy, Front Seat Inner, Rh
[08.2004 - 11.2007] UCK35,45 FAWN,TRIM43 |
73230-0C070-E1 |
— | ||
|
73240
|
73240
73240-0C040-B0
Belt Assy, Front Seat Inner, Lh
[08.2004 - 11.2007] UCK35,45 W(POWER SEAT),MD.CHARCOAL,TRIM1# |
73240-0C040-B0 |
— | ||
|
73240
|
73240
73240-0C040-E0
Belt Assy, Front Seat Inner, Lh
[08.2004 - 11.2007] UCK35,45 W(POWER SEAT),FAWN,TRIM4# |
73240-0C040-E0 |
— | ||
|
7321475010
|
7321475010
73214-75010 Plate, Front Seat Belt Anchor |
73214-75010 |
US $2.72 |
||
|
9008010177
|
9008010177
90080-10177
New Genuine Part
|
90080-10177 |
— | ||
|
9008010344
|
9008010344
90080-10344
New Genuine Part
|
90080-10344 |
— | ||
|
9008010345
|
9008010345
90080-10345
New Genuine Part
|
90080-10345 |
— |
