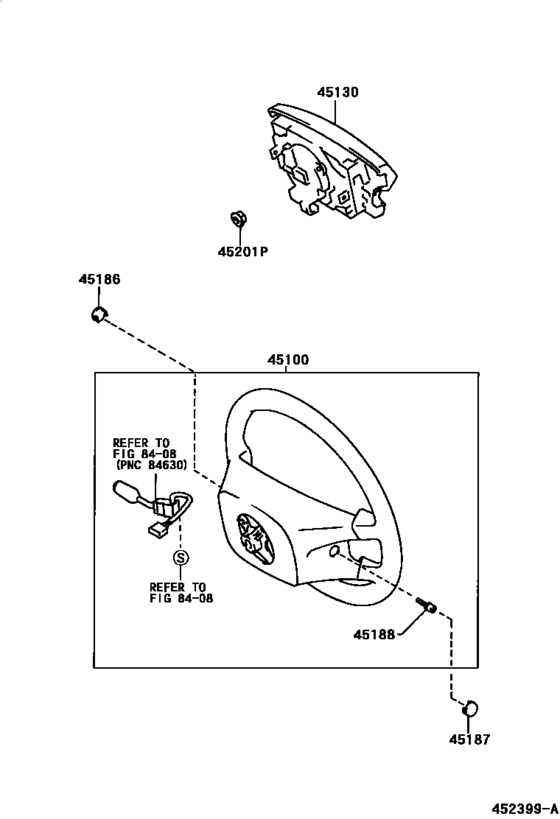

Steering Wheel ([09.2000 - ] 4-SPOKE (0009- )) Diagram Toyota SEQUOIA
- Year
- 2004 - 2007
- Sales region
- U.S.A.
- Frame
- UCK45
- grade
- LIMD
- ENGINE
- 2UZFE
- From
- 08.2004
- To
- 11.2007
- Gear Shift Type
- 5HC
- Vehicle Model
- SEQUOIA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45100
|
45100
45100-0C180-B1
Wheel Assy, Steering
[08.2004 - 09.2004] UCK35,45 4-SPOKE,LEATHER,DK.CHARCOAL,TRIM1# |
45100-0C180-B1 |
— | ||
| replacement | |||||
|
45100
|
45100
45100-0C181-B1
Wheel Assy, Steering
[08.2004 - 09.2004] UCK35,45 4-SPOKE,LEATHER,DK.CHARCOAL,TRIM1# |
45100-0C181-B1 |
— | ||
|
45100
|
45100
45100-0C180-E1
Wheel Assy, Steering
[08.2004 - 09.2004] UCK35,45 4-SPOKE,LEATHER,SANDAL WOOD,TRIM4# |
45100-0C180-E1 |
— | ||
| replacement | |||||
|
45100
|
45100
45100-0C181-E1
Wheel Assy, Steering
[08.2004 - 09.2004] UCK35,45 4-SPOKE,LEATHER,SANDAL WOOD,TRIM4# |
45100-0C181-E1 |
— | ||
|
45100
|
45100
45100-0C181-B1
Wheel Assy, Steering
[10.2004 -] UCK35,45 4-SPOKE,LEATHER,DK.CHARCOAL,TRIM1# |
45100-0C181-B1 |
— | ||
|
45100
|
45100
45100-0C181-E1
Wheel Assy, Steering
[10.2004 -] UCK35,45 4-SPOKE,LEATHER,SANDAL WOOD,TRIM4# |
45100-0C181-E1 |
— | ||
|
45130
|
45130
45130-0C060-B0
Button Assy, Horn
[08.2004 -] UCK35,45 W(STEERING AUDIO SWITCH),DK.CHARCOAL,TRIM1# |
45130-0C060-B0 |
— | ||
|
45130
|
45130
45130-0C060-E0
Button Assy, Horn
[08.2004 -] UCK35,45 W(STEERING AUDIO SWITCH),SANDAL WOOD,TRIM42,43 |
45130-0C060-E0 |
— | ||
|
45186
|
45186
45186-0C020-B0
Cover, Steering Wheel, Lower No.2
[08.2004 -] UCK35,45 DK.CHARCOAL,TRIM1# |
45186-0C020-B0 |
— | ||
|
45186
|
45186
45186-0C020-E2
Cover, Steering Wheel, Lower No.2
[08.2004 -] UCK35,45 SANDAL WOOD,TRIM42,43 |
45186-0C020-E2 |
— | ||
|
45187
|
45187
45187-0C010-B0
Cover, Steering Wheel, Lower No.3
[08.2004 -] UCK35,45 DK.CHARCOAL,TRIM1# |
45187-0C010-B0 |
— | ||
|
45187
|
45187
45187-0C010-E2
Cover, Steering Wheel, Lower No.3
[08.2004 -] UCK35,45 SANDAL WOOD,TRIM42,43 |
45187-0C010-E2 |
— | ||
|
45188
|
45188
45188-07010 Screw, Steering Wheel Pad Attaching[08.2004 -] UCK35,45 L=18.5 |
45188-07010 |
US $2.04 |
||
|
45201P
|
45201P
90179-12071 Nut, Steering Wheel Set[08.2004 -] UCK35,45 |
90179-12071 |
from US $1.58 |
||
