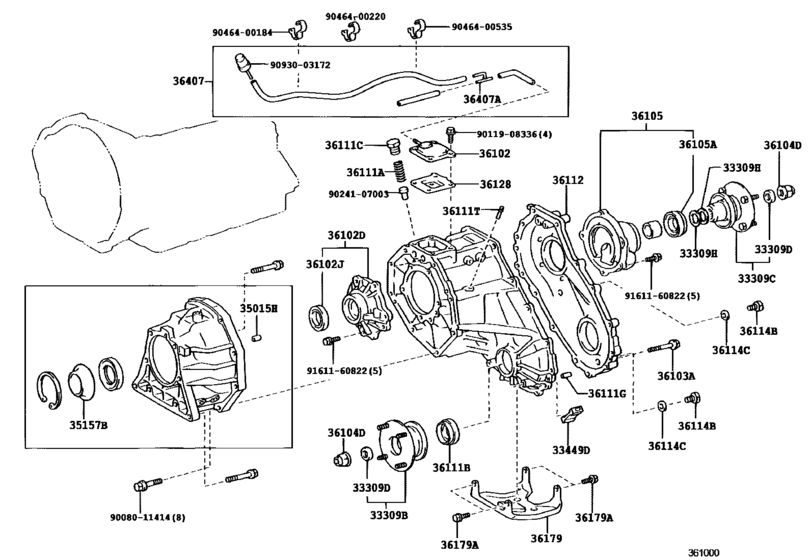

Transfer Case & Extension Housing ([08.2004 - ] (0408- )UCK45) Diagram Toyota SEQUOIA
- Year
- 2004 - 2007
- Sales region
- U.S.A.
- Frame
- UCK45
- grade
- LIMD
- ENGINE
- 2UZFE
- From
- 08.2004
- To
- 11.2007
- Gear Shift Type
- 5HC
- Vehicle Model
- SEQUOIA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33309B
|
33309B
33309-35110
Flange Sub-Assy, Output Shaft Companion
[08.2004 -] UCK45 |
33309-35110 |
— | ||
| replacements | |||||
|
33309B
|
33309B
33309-35112
Flange Sub-Assy, Output Shaft Companion
[08.2004 -] UCK45 |
33309-35112 |
— | ||
|
33309B
|
33309B
90311-41013 Seal, Oil (For Transfer Case)[08.2004 -] UCK45 |
90311-41013 |
from US $6.40 |
||
|
33309B
|
33309B
90311-41017 Seal, Oil (For Transfer Case)[08.2004 -] UCK45 |
90311-41017 |
from US $6.40 |
||
|
33309C
|
33309C
33309-35120 Flange Sub-Assy, Output Shaft Companion[08.2004 -] UCK45 |
33309-35120 |
from US $90.28 |
||
|
33309D
|
33309D
90312-23001 Seal, Oil(For Transfer Output Shaft Companion Flange)[08.2004 -] UCK45 |
90312-23001 |
from US $1.92 |
||
|
33309H
|
33309H
36275-35030 Washer, Transfer Output Shaft[08.2004 -] UCK45 N=31,OD=38 |
36275-35030 |
US $1.12 |
||
|
33449D
|
33449D
33449-32020 Magnet, Transmission[08.2004 -] UCK45 |
33449-32020 |
US $10.40 |
||
|
35015H
|
35015H
90250-11003 Pin, Ring(For Transfer Case)[08.2004 -] UCK45 |
90250-11003 |
US $1.10 |
||
|
35157B
|
35157B
35157-60010 Receiver, Transfer Case Rear Adapter Oil[08.2004 -] UCK45 |
35157-60010 |
US $11.53 |
||
|
36102
|
36102
36102-35040 Cover Sub-Assy, Transfer Case[08.2004 -] UCK45 |
36102-35040 |
US $28.68 |
||
|
36102D
|
36102D
36102-35060 Retainer Sub-Assy, Transfer Rh Bearing[08.2004 -] UCK45 |
36102-35060 |
from US $34.96 |
||
|
36102J
|
36102J
90311-43008 Seal, Oil, No.2 (For Transfer Rh Bearing Retainer)[08.2004 -] UCK45 |
90311-43008 |
from US $6.40 |
||
|
36103A
|
36103A
90119-08A28 Bolt (For Transfer Case)[08.2004 -] UCK45 *8-1.25PX55-30 |
90119-08A28 |
US $0.96 |
||
|
36104D
|
36104D
90179-22016 Nut (For Manual Transmission Output Shaft Rear Set)[08.2004 -] UCK45 |
90179-22016 |
from US $2.48 |
||
|
36105
|
36105
36105-60040 Housing Sub-Assy, Transfer Extension, Front[08.2004 -] UCK45 |
36105-60040 |
US $68.43 |
||
|
36105A
|
36105A
90311-41007
Seal, Oil (Transfer Extension Front Housing Sub-Assy)
[08.2004 -] UCK45 |
90311-41007 |
— | ||
| replacement | |||||
|
36105A
|
36105A
90311-41020 Oil Seal (Transfer Extension Housing Sub-Assy)[08.2004 -] UCK45 |
90311-41020 |
from US $6.24 |
||
|
36111A
|
36111A
90501-20091 Spring, Compression (For Transfer Case)[08.2004 -] UCK45 |
90501-20091 |
US $0.96 |
||
|
36111B
|
36111B
90311-41010
Seal, Oil (For Transfer Case)
[08.2004 - 08.2006] UCK45 |
90311-41010 |
— | ||
| replacement | |||||
|
36111B
|
36111B
90311-41012 Seal, Oil (For Transfer Case)[08.2004 - 08.2006] UCK45 |
90311-41012 |
from US $6.40 |
||
|
36111B
|
36111B
90311-41012 Seal, Oil (For Transfer Case)[09.2006 -] UCK45 |
90311-41012 |
from US $6.40 |
||
|
36111C
|
36111C
90341-14012 Plug (For Transfer Case)[08.2004 -] UCK45 |
90341-14012 |
US $3.04 |
||
|
36111G
|
36111G
90250-10214 Pin, Straight(For End Plate)[08.2004 -] UCK45 L=14,OD=10 |
90250-10214 |
from US $1.46 |
||
|
36111T
|
36111T
90441-05001 Tube (For Transfer Case)[08.2004 -] UCK45 |
90441-05001 |
US $2.33 |
||
|
36112
|
36112
36112-35090 Case, Transfer, Rear[08.2004 -] UCK45 |
36112-35090 |
US $195.10 |
||
|
36114B
|
36114B
90341-18006 Plug (No magnet)[08.2004 -] UCK45 |
90341-18006 |
from US $2.76 |
||
|
36114C
|
36114C
90430-18008 Gasket[08.2004 -] UCK45 |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
36114C
|
36114C
90430-T0021 Gasket(For Manual Transmission Filler Plug)[08.2004 -] UCK45 |
90430-T0021 |
US $1.15 |
||
|
36128
|
36128
36128-35060 Deflector Sub-Assy, Breather Oil[08.2004 -] UCK45 |
36128-35060 |
US $6.08 |
||
|
36179
|
36179
36179-35020
Protector, Transfer Case Lower
[08.2004 -] UCK45 |
36179-35020 |
— | ||
| replacement | |||||
|
36179
|
36179
36179-60030 Protector, Transfer Case LowerTRANSFER CASE LOWER [08.2004 -] UCK45 |
36179-60030 |
US $20.79 |
||
|
36179A
|
36179A
90080-11039
Bolt (For Transfer Case Lower Protector)
[08.2004 -] UCK45 |
90080-11039 |
— | ||
|
36407
|
36407
36407-34010
Hose Sub-Assy, Transfer Breather
[08.2004 -] UCK45 |
36407-34010 |
— | ||
|
36407A
|
36407A
90413-04008 Way, 3(For Transfer Breather Hose)[08.2004 -] UCK45 |
90413-04008 |
from US $6.46 |
||
|
9008011414
|
9008011414
90080-11414 Bolt(For Head To Camshaft Bearing Cap) |
90080-11414 |
US $3.75 |
||
|
9011908336
|
9011908336
90119-08336 BOLT |
90119-08336 |
US $2.56 |
||
|
9024107003
|
9024107003
90241-07003 Pin, Slotted Spring (For Transfer Case) |
90241-07003 |
US $0.87 |
||
|
9046400184
|
9046400184
90464-00184 Clamp, Vacuum Tube |
90464-00184 |
US $5.60 |
||
|
9046400220
|
9046400220
90464-00220 Clamp, Vacuum Tube |
90464-00220 |
US $3.32 |
||
|
9046400535
|
9046400535
90464-00535 Clamp, Throttle Cable, No.1 |
90464-00535 |
US $1.92 |
||
|
9093003172
|
9093003172
90930-03172 PLUG BREATHER |
90930-03172 |
US $1.92 |
||
|
9161160822
|
9161160822
91611-60822 Bolt |
91611-60822 |
from US $1.50 |
||
