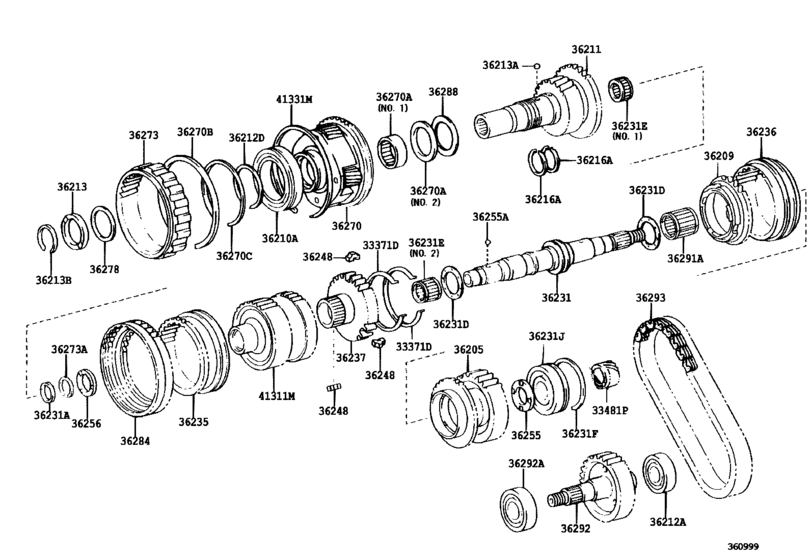

Transfer Gear ([08.2004 - ] (0408- )UCK45) Diagram Toyota SEQUOIA
- Year
- 2004 - 2007
- Sales region
- U.S.A.
- Frame
- UCK45
- grade
- LIMD
- ENGINE
- 2UZFE
- From
- 08.2004
- To
- 11.2007
- Gear Shift Type
- 5HC
- Vehicle Model
- SEQUOIA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33371D
|
33371D
33371-35030 Spring, Synchromesh Shifting Key, No.1 (For Transfer)[08.2004 -] UCK45 |
33371-35030 |
US $6.29 |
||
|
33481P
|
33481P
33481-60130 Gear, Speedometer Drive (For Transfer)[08.2004 -] UCK45 N=11 |
33481-60130 |
US $19.95 |
||
|
36205
|
36205
36205-35100
Sprocket Sub-Assy, Transfer Drive
[08.2004 -] UCK45 |
36205-35100 |
— | ||
|
36209
|
36209
36209-35030 Ring Set, Transfer Synchronizer[08.2004 -] UCK45 |
36209-35030 |
US $161.62 |
||
|
36210A
|
36210A
90363-75001 Bearing (For Transfer Input Shaft)[08.2004 -] UCK45 |
90363-75001 |
from US $26.56 |
||
|
36211
|
36211
36201-35120 Shaft, Transfer Input[08.2004 -] UCK45 |
36201-35120 |
US $122.30 |
||
|
36212A
|
36212A
90363-28013
Bearing, Radial Ball (For Transfer Input Gear)
[08.2004 -] UCK45 |
90363-28013 |
— | ||
| replacement | |||||
|
36212A
|
36212A
90363-28021 9036328021[08.2004 -] UCK45 |
90363-28021 |
from US $24.96 |
||
|
36212D
|
36212D
90520-72001 Ring, Hole Snap (For Transfer Input Shaft)[08.2004 -] UCK45 T=1.45,MARK 1 |
90520-72001 |
US $1.05 |
||
|
36212D
|
36212D
90520-72002 Ring, Hole Snap (For Transfer Input Shaft)[08.2004 -] UCK45 T=1.50,MARK 2 |
90520-72002 |
US $1.75 |
||
|
36212D
|
36212D
90520-72003 Ring, Hole Snap (For Transfer Input Shaft)[08.2004 -] UCK45 T=1.55,MARK 3 |
90520-72003 |
US $1.75 |
||
|
36212D
|
36212D
90520-72004 Ring, Hole Snap (For Transfer Input Shaft)[08.2004 -] UCK45 T=1.60,MARK 4 |
90520-72004 |
US $1.75 |
||
|
36212D
|
36212D
90520-72005 Ring, Hole Snap (For Transfer Input Shaft)[08.2004 -] UCK45 T=1.65,MARK 5 |
90520-72005 |
US $1.75 |
||
|
36213
|
36213
36213-35020 Stopper, Transfer Input Gear[08.2004 -] UCK45 |
36213-35020 |
from US $7.16 |
||
|
36213A
|
36213A
90360-05012 Ball, Reverse Shift Restrict[08.2004 -] UCK45 |
90360-05012 |
from US $0.92 |
||
|
36213B
|
36213B
90520-44003 Ring, Shaft Snap (For Transfer Input Gear Stopper)[08.2004 -] UCK45 T=2.10-2.15,MARK A |
90520-44003 |
US $1.05 |
||
|
36213B
|
36213B
90520-44004 Ring, Shaft Snap (For Transfer Input Gear Stopper)[08.2004 -] UCK45 T=2.15-2.20,MARK B |
90520-44004 |
US $1.75 |
||
|
36213B
|
36213B
90520-44005 Ring, Shaft Snap (For Transfer Input Gear Stopper)[08.2004 -] UCK45 T=2.20-2.25,MARK C |
90520-44005 |
US $1.75 |
||
|
36213B
|
36213B
90520-44006 Ring, Shaft Snap (For Transfer Input Gear Stopper)[08.2004 -] UCK45 T=2.25-2.30,MARK D |
90520-44006 |
US $1.75 |
||
|
36213B
|
36213B
90520-44007 Ring, Shaft Snap (For Transfer Input Gear Stopper)[08.2004 -] UCK45 T=2.30-2.35,MARK E |
90520-44007 |
US $1.75 |
||
|
36213B
|
36213B
90520-44008 Ring, Shaft Snap (For Transfer Input Gear Stopper)[08.2004 -] UCK45 T=2.35-2.40,MARK F |
90520-44008 |
US $1.75 |
||
|
36213B
|
36213B
90520-44009 Ring, Shaft Snap (For Transfer Input Gear Stopper)[08.2004 -] UCK45 T=2.40-2.45,MARK G |
90520-44009 |
US $1.75 |
||
|
36213B
|
36213B
90520-44010 Ring, Shaft Snap (For Transfer Input Gear Stopper)[08.2004 -] UCK45 T=2.45-2.50,MARK H |
90520-44010 |
US $1.75 |
||
|
36213B
|
36213B
90520-44011 Ring, Shaft Snap (For Transfer Input Gear Stopper)[08.2004 -] UCK45 T=2.50-2.55,MARK J |
90520-44011 |
US $1.75 |
||
|
36213B
|
36213B
90520-44012 Ring, Shaft Snap (For Transfer Input Gear Stopper)[08.2004 -] UCK45 T=2.55-2.60,MARK K |
90520-44012 |
US $1.75 |
||
|
36213B
|
36213B
90520-44013 Ring, Shaft Snap (For Transfer Input Gear Stopper)[08.2004 -] UCK45 T=2.60-2.65,MARK L |
90520-44013 |
US $1.75 |
||
|
36213B
|
36213B
90520-44014 Ring, Shaft Snap (For Transfer Input Gear Stopper)[08.2004 -] UCK45 T=2.65-2.70,MARK M |
90520-44014 |
US $1.75 |
||
|
36213B
|
36213B
90520-44015 Ring, Shaft Snap (For Transfer Input Gear Stopper)[08.2004 -] UCK45 T=2.70-2.75,MARK N |
90520-44015 |
US $1.75 |
||
|
36213B
|
36213B
90520-44016 Ring, Shaft Snap (For Transfer Input Gear Stopper)[08.2004 -] UCK45 T=2.75-2.80,MARK P |
90520-44016 |
US $1.75 |
||
|
36213B
|
36213B
90520-44017 Ring, Shaft Snap (For Transfer Input Gear Stopper)[08.2004 -] UCK45 T=2.80-2.85,MARK Q |
90520-44017 |
US $1.75 |
||
|
36213B
|
36213B
90520-44018 Ring, Shaft Snap (For Transfer Input Gear Stopper)[08.2004 -] UCK45 T=2.85-2.90,MARK R |
90520-44018 |
US $1.75 |
||
|
36213B
|
36213B
90520-44019 Ring, Shaft Snap (For Transfer Input Gear Stopper)[08.2004 -] UCK45 T=2.90-2.95,MARK S |
90520-44019 |
US $1.75 |
||
|
36213B
|
36213B
90520-44020 Ring, Shaft Snap (For Transfer Input Gear Stopper)[08.2004 -] UCK45 T=2.95-3.00,MARK T |
90520-44020 |
US $1.75 |
||
|
36213B
|
36213B
90520-44021 Ring, Shaft Snap (For Transfer Input Gear Stopper)[08.2004 -] UCK45 T=3.00-3.05,MARK U |
90520-44021 |
US $1.75 |
||
|
36216A
|
36216A
36216-35011
Ring, Transfer Input Shaft Seal, No.1
[08.2004 -] UCK45 |
36216-35011 |
— | ||
| replacement | |||||
|
36216A
|
36216A
36216-35012 Ring, Transfer Input Shaft Seal, No.1[08.2004 -] UCK45 |
36216-35012 |
from US $2.42 |
||
|
36231
|
36231
36231-35050 Shaft, Transfer Output, Rear[08.2004 -] UCK45 |
36231-35050 |
US $139.78 |
||
|
36231A
|
36231A
90560-28004 Spacer (For Transfer Output Shaft)[08.2004 -] UCK45 T=4.0 |
90560-28004 |
US $0.70 |
||
|
36231D
|
36231D
36275-35020 Washer, Plate (For Transfer Output Shaft)[08.2004 -] UCK45 |
36275-35020 |
US $2.97 |
||
|
36231E
|
36231E
90364-28004 Bearing, Needle Roller (For Transfer Output Shaft Front)[08.2004 -] UCK45 NO.1 |
90364-28004 |
US $24.93 |
||
|
36231E
|
36231E
90364-35009 Bearing, Needle Roller (For Transfer Output Shaft Front)[08.2004 -] UCK45 NO.2 |
90364-35009 |
US $19.09 |
||
|
36231F
|
36231F
90520-82001 Ring, Shaft Snap (For Transfer Input Gear)[08.2004 -] UCK45 T=1.65 |
90520-82001 |
US $3.36 |
||
|
36231J
|
36231J
90363-32040 Bearing, Radial Ball (For Transfer Output Shaft Rear)[08.2004 -] UCK45 |
90363-32040 |
US $42.56 |
||
|
36235
|
36235
36235-35030 Sleeve, Transfer High & Low Clutch[08.2004 -] UCK45 |
36235-35030 |
US $99.01 |
||
| replacement | |||||
|
36235
|
36235
36235-60H00 Sleeve, Transfer High & Low Clutch[08.2004 -] UCK45 |
36235-60H00 |
US $173.26 |
||
|
36236
|
36236
36236-35060 Sleeve, Front Drive Clutch[08.2004 -] UCK45 |
36236-35060 |
US $92.60 |
||
|
36237
|
36237
36203-35020 Hub, Transfer Clutch[08.2004 -] UCK45 |
36203-35020 |
US $161.62 |
||
|
36248
|
36248
36248-35040 Key, Synchromesh Shifting, Transfer Drive, No.1[08.2004 -] UCK45 |
36248-35040 |
US $4.02 |
||
|
36255
|
36255
36255-35030 Spacer, Transfer Output Shaft, No.1[08.2004 -] UCK45 |
36255-35030 |
US $7.34 |
||
|
36255A
|
36255A
90360-05012 Ball, Reverse Shift Restrict[08.2004 -] UCK45 |
90360-05012 |
from US $0.92 |
||
|
36256
|
36256
36256-35030 Spacer, Transfer Output Shaft, No.2[08.2004 -] UCK45 |
36256-35030 |
US $5.07 |
||
|
36270
|
36270
36270-35040
Gear Assy, Transfer Low Planetary
[08.2004 -] UCK45 |
36270-35040 |
— | ||
|
36270A
|
36270A
90364-47001
Bearing (For Transfer Input Shaft)
[08.2004 -] UCK45 NO.1 |
90364-47001 |
— | ||
| replacement | |||||
|
36270A
|
36270A
90364-47013 Bearing (For Transfer Input Shaft)[08.2004 -] UCK45 NO.1 |
90364-47013 |
from US $27.07 |
||
|
36270A
|
36270A
90374-49001 Bearing, Thrust (For Transfer Input Shaft)[08.2004 -] UCK45 NO.2 |
90374-49001 |
from US $10.31 |
||
|
36270B
|
36270B
90520-99078 Ring, Shaft Snap (For Transfer Low Planetary Gear)[08.2004 -] UCK45 T=6.0 |
90520-99078 |
US $4.02 |
||
|
36270C
|
36270C
90520-99072 Ring, Shaft Snap(For Transfer Low Planetary Gear Bearing)[08.2004 -] UCK45 |
90520-99072 |
US $2.62 |
||
|
36273
|
36273
36273-35030 Gear, Transfer Low Planetary Ring[08.2004 -] UCK45 |
36273-35030 |
from US $45.08 |
||
|
36273A
|
36273A
90520-29052 Ring, Shaft Snap (For 5Th Gear)[08.2004 -] UCK45 |
90520-29052 |
US $0.70 |
||
|
36278
|
36278
36278-35020 Washer, Manual Transfer Planetary Carrier[08.2004 -] UCK45 T=0.95-1.05 |
36278-35020 |
US $2.97 |
||
|
36284
|
36284
36284-35030 Piece, Transfer Low Planetary Gear Spline[08.2004 -] UCK45 |
36284-35030 |
US $74.26 |
||
| replacement | |||||
|
36284
|
36284
36235-60H00 Sleeve, Transfer High & Low Clutch[08.2004 -] UCK45 |
36235-60H00 |
US $173.26 |
||
|
36288
|
36288
36288-28010 Race, Transfer Thrust Bearing, No.1[08.2004 -] UCK45 |
36288-28010 |
US $7.68 |
||
|
36291A
|
36291A
90364-37013 Bearing (For Transfer Drive Sprocket)[08.2004 -] UCK45 |
90364-37013 |
US $13.28 |
||
|
36292
|
36292
36292-35050 Sprocket, Transfer Driven[08.2004 -] UCK45 |
36292-35050 |
from US $162.49 |
||
|
36292A
|
36292A
90363-32037 Bearing (For Transfer Driven Sprocket)[08.2004 -] UCK45 |
90363-32037 |
from US $25.38 |
||
|
36293
|
36293
36293-35040 Chain, Transfer Front Drive[08.2004 -] UCK45 |
36293-35040 |
US $415.80 |
||
|
41311M
|
41311M
41301-35140 Case, Center Differential[08.2004 -] UCK45 |
41301-35140 |
US $754.21 |
||
|
41331M
|
41331M
90520-99079 Ring, Hole Snap(For Center Differential Planetary Ring Gear)[08.2004 -] UCK45 |
90520-99079 |
US $2.62 |
||
