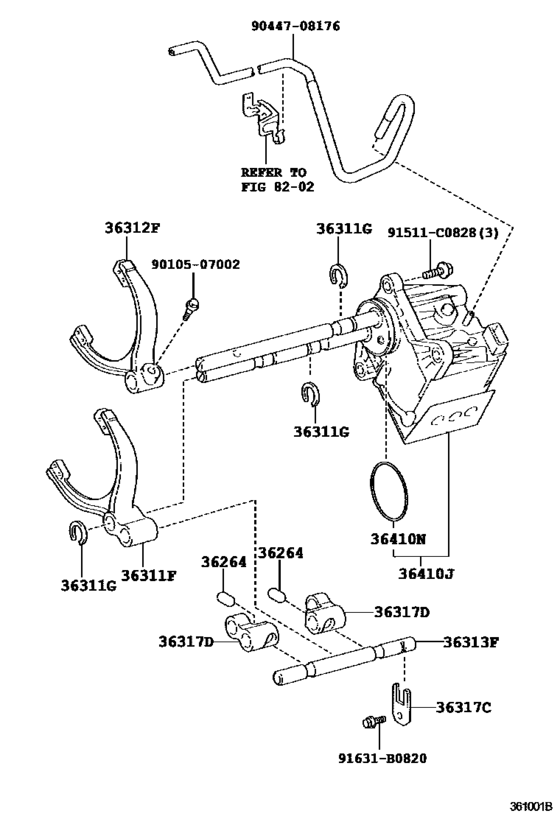

Transfer Lever & Shift Rod ([08.2004 - ] (0408- )UCK45) Diagram Toyota SEQUOIA
- Year
- 2004 - 2007
- Sales region
- U.S.A.
- Frame
- UCK45
- grade
- LIMD
- ENGINE
- 2UZFE
- From
- 08.2004
- To
- 11.2007
- Gear Shift Type
- 5HC
- Vehicle Model
- SEQUOIA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
36264
|
36264
90250-06007 Pin, Shift Inter Lock, No.2[08.2004 -] UCK45 L=8.6,OD=6 |
90250-06007 |
from US $0.87 |
||
|
36311F
|
36311F
36301-35010 Fork, Transfer Gear Shift, No.1[08.2004 -] UCK45 |
36301-35010 |
US $75.71 |
||
|
36311G
|
36311G
90520-13002 Ring, Shaft Snap (For Shift Fork Shaft)[08.2004 -] UCK45 |
90520-13002 |
from US $1.28 |
||
|
36312F
|
36312F
36302-35011 Fork, Transfer Gear Shift, No.2[08.2004 -] UCK45 |
36302-35011 |
US $36.11 |
||
|
36313F
|
36313F
36313-35130 Shaft, Transfer Front Drive Shift Fork[08.2004 -] UCK45 |
36313-35130 |
US $20.97 |
||
|
36317C
|
36317C
36317-35041 Stopper, Transfer Shift Shaft[08.2004 -] UCK45 |
36317-35041 |
US $2.77 |
||
|
36317D
|
36317D
36317-35060 Stopper, No.2, Transfer Shift Shaft[08.2004 -] UCK45 |
36317-35060 |
US $9.61 |
||
|
36410J
|
36410J
36410-35091
Actuator Assy, Transfer Shift
[08.2004 - 11.2004] UCK45 |
36410-35091 |
— | ||
|
36410J
|
36410J
36410-35092
Actuator Assy, Transfer Shift
[11.2004 -] UCK45 |
36410-35092 |
— | ||
| replacement | |||||
|
36410J
|
36410J
36410-35093 Actuator Assy, Transfer Shift[11.2004 -] UCK45 |
36410-35093 |
US $903 |
||
|
36410N
|
36410N
90301-56009 Ring, O (For Transfer Shift Actuator)O (FOR TRANSFER SHIFT ACTUATOR) [08.2004 - 11.2007] UCK45 |
90301-56009 |
from US $2.24 |
||
|
91511C0828
|
91511C0828
91511-C0828 New Genuine Part |
91511-C0828 |
US $0.61 |
||
|
91631B0820
|
91631B0820
91631-B0820 BOLT WWASHER |
91631-B0820 |
from US $0.82 |
||
|
9010507002
|
9010507002
90105-07002 Bolt(For Shift Fork Set) |
90105-07002 |
US $1.44 |
||
|
9044708176
|
9044708176
90447-08176 HOSE |
90447-08176 |
US $3.52 |
||
