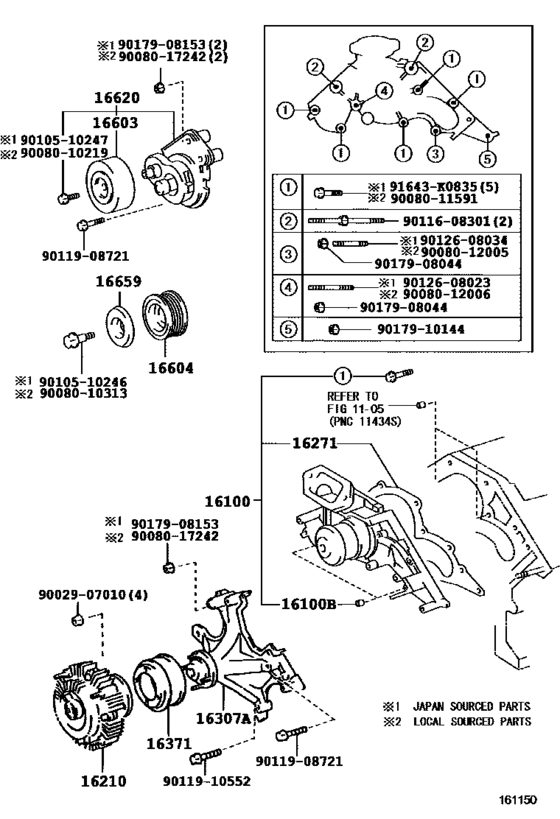

Water Pump ([09.2000 - ] (0009- )) Diagram Toyota SEQUOIA
- Year
- 2004 - 2007
- Sales region
- U.S.A.
- Frame
- UCK45
- grade
- LIMD
- ENGINE
- 2UZFE
- From
- 08.2004
- To
- 11.2007
- Gear Shift Type
- 5HC
- Vehicle Model
- SEQUOIA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16100
|
16100
16100-59275
Pump Assy, Engine Water
[08.2004 -] 2UZFE..UCK35,45 |
16100-59275 |
— | ||
| replacement | |||||
|
16100
|
16100
16100-59276 Pump Assy, Engine Water[08.2004 -] 2UZFE..UCK35,45 |
16100-59276 |
from US $179.13 |
||
|
16100B
|
16100B
90253-11021 Pin, Ring[08.2004 -] 2UZFE..UCK35,45 |
90253-11021 |
from US $1.50 |
||
|
16210
|
16210
16210-0F010
Coupling Assy, Fluid
[08.2004 - 11.2004] 2UZFE..UCK35,45 |
16210-0F010 |
— | ||
|
16210
|
16210
16210-50100 Coupling Assy, FluidFLUID [08.2004 - 08.2005] 2UZFE..UCK35,45 (J) |
16210-50100 |
US $509.60 |
||
| replacement | |||||
|
16210
|
16210
16210-50102 Coupling Assy, Fluid[08.2004 - 08.2005] 2UZFE..UCK35,45 (J) |
16210-50102 |
from US $269.94 |
||
|
16210
|
16210
16210-50101
Coupling Assy, Fluid
[08.2005 -] 2UZFE..UCK35,45 |
16210-50101 |
— | ||
| replacement | |||||
|
16210
|
16210
16210-50102 Coupling Assy, Fluid[08.2005 -] 2UZFE..UCK35,45 |
16210-50102 |
from US $269.94 |
||
|
16271
|
16271
16271-0F010
Gasket, Water Pump
[08.2004 -] 2UZFE..UCK35,45 (L) |
16271-0F010 |
— | ||
|
16271
|
16271
16271-50010 Gasket, Water Pump[08.2004 -] 2UZFE..UCK35,45 (J) |
16271-50010 |
from US $6.49 |
||
|
16307A
|
16307A
16307-0F010
Bracket Sub-Assy, Fan
[08.2004 -] 2UZFE..UCK35,45 (L) |
16307-0F010 |
— | ||
|
16307A
|
16307A
16307-50012 Bracket Sub-Assy, Fan[08.2004 -] 2UZFE..UCK35,45 (J) |
16307-50012 |
from US $197.96 |
||
|
16371
|
16371
16371-0F010
Pulley, Fan
[08.2004 -] 2UZFE..UCK35,45 (L) |
16371-0F010 |
— | ||
|
16371
|
16371
16371-50040 Pulley, Fan[08.2004 -] 2UZFE..UCK35,45 (J) |
16371-50040 |
from US $48.18 |
||
|
16603
|
16603
16603-0W010 Pulley Sub-Assy, Idler, No.1[08.2004 -] 2UZFE..UCK35,45 LITENS |
16603-0W010 |
from US $70.32 |
||
|
16603
|
16603
16603-0W030 Pulley Sub-Assy, Idler, No.1[08.2004 -] 2UZFE..UCK35,45 DAYCO |
16603-0W030 |
from US $88.74 |
||
|
16604
|
16604
16604-0F010
Pulley Sub-Assy, Idler, No.2
[08.2004 -] 2UZFE..UCK35,45 (L) |
16604-0F010 |
— | ||
|
16604
|
16604
16604-50030 Pulley Sub-Assy, Idler, No.2[08.2004 -] 2UZFE..UCK35,45 (J) |
16604-50030 |
from US $60.76 |
||
|
16620
|
16620
16620-0W100 Tensioner Assy, V-Ribbed Belt[08.2004 - 09.2006] 2UZFE..UCK35,45 |
16620-0W100 |
US $390.21 |
||
| replacement | |||||
|
16620
|
16620
16620-0W101 Tensioner Assy, V-Ribbed Belt[08.2004 - 09.2006] 2UZFE..UCK35,45 |
16620-0W101 |
from US $76.44 |
||
|
16620
|
16620
16620-0W101 Tensioner Assy, V-Ribbed Belt[09.2006 -] 2UZFE..UCK35,45 |
16620-0W101 |
from US $76.44 |
||
|
16659
|
16659
16659-50022 Plate, Idler Pulley Cover, No.2[08.2004 -] 2UZFE..UCK35,45 |
16659-50022 |
from US $4.08 |
||
|
91643K0835
|
91643K0835
91643-K0835 BOLT WWASHER |
91643-K0835 |
US $1.44 |
||
|
9002907010
|
9002907010
90029-07010 NUT |
90029-07010 |
from US $2.11 |
||
|
9008010219
|
9008010219
90080-10219 Bolt(For Idler Pulley) |
90080-10219 |
US $1.89 |
||
|
9008010313
|
9008010313
90080-10313
New Genuine Part
|
90080-10313 |
— | ||
|
9008011591
|
9008011591
90080-11591
New Genuine Part
|
90080-11591 |
— | ||
|
9008012005
|
9008012005
90080-12005
New Genuine Part
|
90080-12005 |
— | ||
|
9008012006
|
9008012006
90080-12006
New Genuine Part
|
90080-12006 |
— | ||
|
9008017242
|
9008017242
90080-17242
New Genuine Part
|
90080-17242 |
— | ||
|
9010510246
|
9010510246
90105-10246 BOLT WASHER BASED |
90105-10246 |
US $3.68 |
||
|
9010510247
|
9010510247
90105-10247 Bolt(For Idler Pulley) |
90105-10247 |
US $3.32 |
||
|
9011608301
|
9011608301
90116-08301 BOLT STUD |
90116-08301 |
US $5.68 |
||
|
9011908721
|
9011908721
90119-08721 BOLT WWASHER |
90119-08721 |
US $3.68 |
||
|
9011910552
|
9011910552
90119-10552 BOLT WWASHER |
90119-10552 |
US $5.68 |
||
|
9012608023
|
9012608023
90126-08023 New Genuine Part |
90126-08023 |
US $15.87 |
||
|
9012608034
|
9012608034
90126-08034 STUD HEX LOBULAR |
90126-08034 |
US $5.10 |
||
|
9017908044
|
9017908044
90179-08044 NUT |
90179-08044 |
from US $2.33 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.84 |
||
|
9017910144
|
9017910144
90179-10144 NUT |
90179-10144 |
US $2.77 |
||
