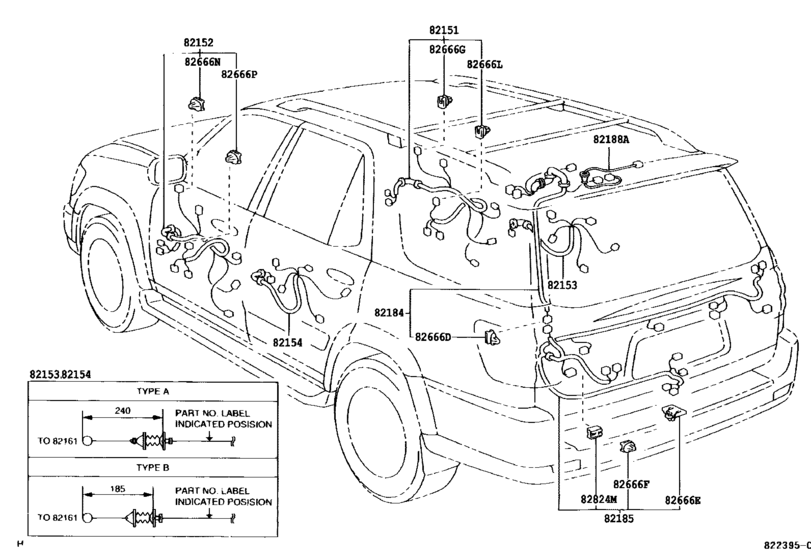

Wiring & Clamp ([09.2000 - ] DOOR (0009- )) Diagram Toyota SEQUOIA
- Year
- 2004 - 2007
- Sales region
- U.S.A.
- Frame
- UCK45
- grade
- LIMD
- ENGINE
- 2UZFE
- From
- 08.2004
- To
- 11.2007
- Gear Shift Type
- 5HC
- Vehicle Model
- SEQUOIA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82151
|
82151
82151-0C051
Wire, Front Door, Rh
[08.2004 -] UCK35,45..LIMD |
82151-0C051 |
— | ||
|
82151
|
82151
82151-0C160
Wire, Front Door, Rh
[08.2004 -] UCK35,45..LIMD LUXURY PACKAGE |
82151-0C160 |
— | ||
|
82152
|
82152
82152-0C040
Wire, Front Door, Lh
[08.2004 -] UCK35,45..LIMD |
82152-0C040 |
— | ||
|
82152
|
82152
82152-0C090
Wire, Front Door, Lh
[08.2004 -] UCK35,45..LIMD LUXURY PACKAGE |
82152-0C090 |
— | ||
|
82153
|
82153
82153-0C020
Wire, Rear Door, No.1
[08.2004 -] UCK35,45 TYPE A:REFER ILLUST. |
82153-0C020 |
— | ||
|
82153
|
82153
82153-0C030
Wire, Rear Door, No.1
[08.2004 -] UCK35,45 TYPE B:REFER ILLUST. |
82153-0C030 |
— | ||
|
82154
|
82154
82154-0C010
Wire, Rear Door, No.2
[08.2004 -] UCK35,45 TYPE A:REFER ILLUST. |
82154-0C010 |
— | ||
|
82154
|
82154
82154-0C030
Wire, Rear Door, No.2
[08.2004 -] UCK35,45 TYPE B:REFER ILLUST. |
82154-0C030 |
— | ||
|
82184
|
82184
82184-0C011
Wire, Back Door, No.1
[08.2004 -] UCK35,45 |
82184-0C011 |
— | ||
|
82184
|
82184
82184-0C021
Wire, Back Door, No.1
[08.2004 -] UCK35,45..LIMD W(REAR SPOILER) |
82184-0C021 |
— | ||
|
82185
|
82185
82185-0C011
Wire, Back Door, No.2
[08.2004 -] UCK35,45 |
82185-0C011 |
— | ||
|
82188A
|
82188A
82188-0C010
Wire, Back Door, No.3
[08.2004 -] UCK35,45..LIMD |
82188-0C010 |
— | ||
|
82666D
|
82666D
82666-22080 Holder, Connector No.2[08.2004 -] UCK35,45 |
82666-22080 |
US $1.16 |
||
|
82666E
|
82666E
82666-0C100
Holder, Connector No.6
[08.2004 -] UCK35,45 |
82666-0C100 |
— | ||
|
82666F
|
82666F
82666-22080 Holder, Connector No.2[08.2004 -] UCK35,45 |
82666-22080 |
US $1.16 |
||
|
82666G
|
82666G
82666-21040 Holder, Connector[08.2004 -] UCK35,45 W(TOWING HITCH) |
82666-21040 |
US $0.73 |
||
|
82666G
|
82666G
82666-22080 Holder, Connector No.2[08.2004 -] UCK35,45 |
82666-22080 |
US $1.16 |
||
|
82666L
|
82666L
82666-22080 Holder, Connector No.2[08.2004 -] UCK35,45..LIMD |
82666-22080 |
US $1.16 |
||
|
82666N
|
82666N
82666-22080 Holder, Connector No.2[08.2004 -] UCK35,45 |
82666-22080 |
US $1.16 |
||
|
82666P
|
82666P
82666-22080 Holder, Connector No.2[08.2004 -] UCK35,45..LIMD |
82666-22080 |
US $1.16 |
||
|
82824M
|
82824M
82824-22080 Connector, Wiring Harness[08.2004 -] UCK35,45 |
82824-22080 |
US $20.68 |
