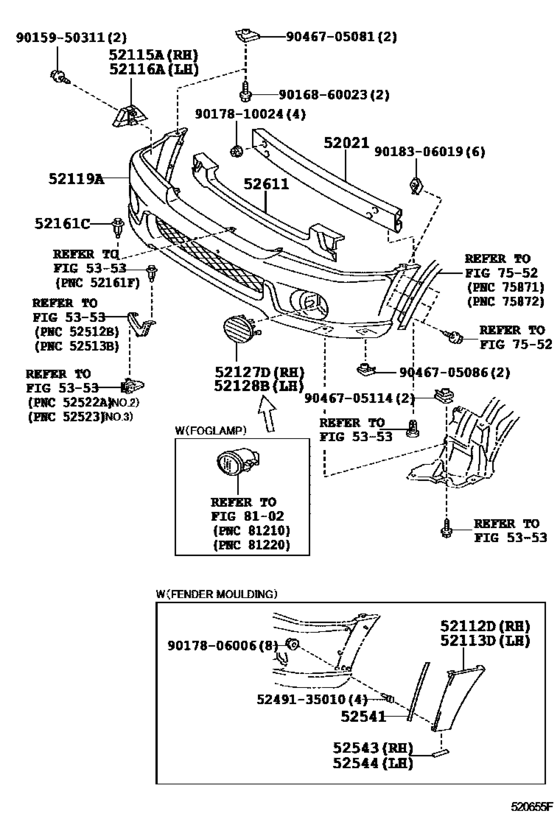

Front Bumper & Bumper Stay ([09.2000 - 08.2004] (0009-0408)) Diagram Toyota SEQUOIA
- Year
- 2000 - 2004
- Sales region
- U.S.A.
- Frame
- UCK45
- grade
- SR5
- ENGINE
- 2UZFE
- From
- 09.2000
- To
- 08.2004
- Gear Shift Type
- 4HC
- Vehicle Model
- SEQUOIA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52021
|
52021
52021-0C020 Reinforcement Sub-Assy, Front BumperFRONT BUMPER [09.2000 - 09.2002] UCK35,45..4HC |
52021-0C020 |
US $430.98 |
||
|
52021
|
52021
52021-0C022
Reinforcement Sub-Assy, Front Bumper
[09.2002 - 08.2004] UCK35,45 |
52021-0C022 |
— | ||
|
52112D
|
52112D
52112-0C902
Extension, Front Bumper, Rh
[09.2000 - 08.2004] UCK35,45 |
52112-0C902 |
— | ||
| replacement | |||||
|
52112D
|
52112D
52112-0C900 Extension, Front Bumper, Rh[09.2000 - 08.2004] UCK35,45 |
52112-0C900 |
US $80.08 |
||
|
52113D
|
52113D
52113-0C902
Extension, Front Bumper, Lh
[09.2000 - 08.2004] UCK35,45 |
52113-0C902 |
— | ||
| replacement | |||||
|
52113D
|
52113D
52113-0C900
Extension, Front Bumper, Lh
[09.2000 - 08.2004] UCK35,45 |
52113-0C900 |
— | ||
|
52115A
|
52115A
52115-0C010 Support, Front Bumper Side, RhFRONT BUMPER SIDE, RH [09.2000 - 08.2004] UCK35,45 |
52115-0C010 |
US $9.03 |
||
|
52116A
|
52116A
52115-0C010 Support, Front Bumper Side, RhFRONT BUMPER SIDE, RH [09.2000 - 08.2004] UCK35,45 |
52115-0C010 |
US $9.03 |
||
|
52119A
|
52119A
52119-0C900
Cover, Front Bumper
[09.2000 - 08.2004] UCK35,45 W(OVER FENDER) |
52119-0C900 |
— | ||
|
52127D
|
52127D
52127-0C020
Cover, Front Bumper Hole, Rh
[09.2000 - 08.2004] UCK35,45..SR5 |
52127-0C020 |
— | ||
|
52128B
|
52128B
52128-0C020
Cover, Front Bumper Hole, Lh
[09.2000 - 08.2004] UCK35,45..SR5 |
52128-0C020 |
— | ||
|
52161C
|
52161C
52161-02020 Clip[08.2002 - 08.2004] UCK35,45 (L) |
52161-02020 |
US $5.27 |
||
| replacement | |||||
|
52161C
|
52161C
52161-16010 Clip[08.2002 - 08.2004] UCK35,45 (L) |
52161-16010 |
from US $1.68 |
||
|
52161C
|
52161C
52161-16010 Clip[09.2000 - 08.2002] UCK35,45..4HC |
52161-16010 |
from US $1.68 |
||
|
52541
|
52541
52541-34010-B0 Protector, Front BumperFRONT BUMPER [09.2000 - 08.2001] UCK35,45..4HC..SR5 GRAY,056 ,1C7 ,1D6 ,202 ,3K4 ,4Q2 ,4Q7 ,6Q7 ,8P9 |
52541-34010-B0 |
US $4.95 |
||
|
52541
|
52541
52541-34010-C0 Protector, Front BumperFRONT BUMPER [09.2000 - 09.2002] UCK35,45..4HC BLACK,202 ,6Q7 |
52541-34010-C0 |
from US $4.95 |
||
|
52543
|
52543
52543-0C010
Seal, Front Bumper Side, Rh
[09.2000 - 08.2004] UCK35,45 |
52543-0C010 |
— | ||
|
52544
|
52544
52543-0C010
Seal, Front Bumper Side, Rh
[09.2000 - 08.2004] UCK35,45 |
52543-0C010 |
— | ||
|
52611
|
52611
52611-0C010 Absorber, Front Bumper EnergyFRONT BUMPER ENERGY [09.2000 - 08.2004] UCK35,45 |
52611-0C010 |
US $116.48 |
||
|
5249135010
|
5249135010
52491-35010 Bolt, Bumper Pad |
52491-35010 |
from US $2.77 |
||
|
9015950311
|
9015950311
90159-50311 SCREW |
90159-50311 |
from US $0.76 |
||
| replacement | |||||
|
9015950311
|
9015950311
90159-A0034 SCREW WWASHER |
90159-A0034 |
US $22.20 |
||
|
9016860023
|
9016860023
90168-60023 SCREW TAPPING |
90168-60023 |
US $1.92 |
||
|
9017806006
|
9017806006
90178-06006 NUT FLANGE |
90178-06006 |
from US $0.86 |
||
|
9017810024
|
9017810024
90178-10024 New Genuine Part |
90178-10024 |
US $1.60 |
||
|
9018306019
|
9018306019
90183-06019 Clip, Outside Moulding, No.1 |
90183-06019 |
from US $0.82 |
||
|
9046705081
|
9046705081
90467-05081 COLLAR |
90467-05081 |
from US $1.62 |
||
| replacement | |||||
|
9046705081
|
9046705081
90467-A0018 CLIP |
90467-A0018 |
from US $2.48 |
||
|
9046705086
|
9046705086
90467-05086 New Genuine Part |
90467-05086 |
US $3.67 |
||
|
9046705114
|
9046705114
90467-05114 Clip(For Front Bumper), No.1 |
90467-05114 |
from US $2.16 |
||
