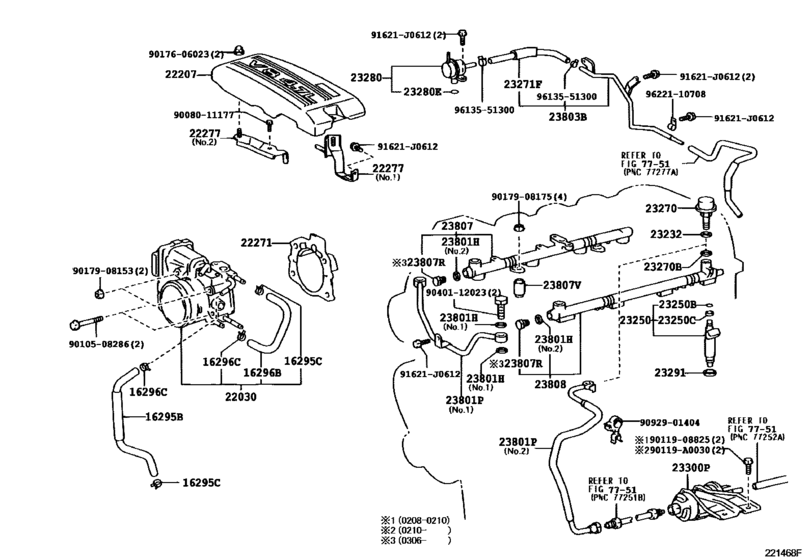

Fuel Injection System ([08.2002 - 08.2004] (0208-0408)) Diagram Toyota SEQUOIA
- Year
- 2000 - 2004
- Sales region
- U.S.A.
- Frame
- UCK45
- grade
- SR5
- ENGINE
- 2UZFE
- From
- 09.2000
- To
- 08.2004
- Gear Shift Type
- 4HC
- Vehicle Model
- SEQUOIA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16295B
|
16295B
16295-50060 Hose, Water By-Pass, No.7[09.2000 - 08.2002] 2UZFE..UCK35,45 |
16295-50060 |
from US $19.03 |
||
|
16295B
|
16295B
16295-50070 Hose, Water By-Pass, No.7[08.2002 - 08.2004] 2UZFE..UCK35,45 |
16295-50070 |
from US $5.50 |
||
|
16295C
|
16295C
90467-20011 Clamp Or Clip(For Water By-Pass Hose No.2)[09.2000 - 08.2002] 2UZFE..UCK35,45 |
90467-20011 |
from US $2.55 |
||
|
16296B
|
16296B
16296-50020 Hose, Water By-Pass, No.8[09.2000 - 08.2002] 2UZFE..UCK35,45 |
16296-50020 |
US $8.01 |
||
|
16296B
|
16296B
16296-50030 Hose, Water By-Pass, No.8[08.2002 - 08.2004] 2UZFE..UCK35,45 |
16296-50030 |
from US $5.89 |
||
|
16296C
|
16296C
90467-13054 Clamp Or Clip, Hose(For Water By-Pass Hose)[09.2000 - 08.2002] 2UZFE..UCK35,45 |
90467-13054 |
from US $0.96 |
||
| replacement | |||||
|
16296C
|
16296C
96135-51300 Clamp, Hose[09.2000 - 08.2002] 2UZFE..UCK35,45 |
96135-51300 |
from US $1.92 |
||
|
16296C
|
16296C
96135-51300 Clamp, Hose[08.2002 - 08.2004] 2UZFE..UCK35,45 |
96135-51300 |
from US $1.92 |
||
|
22030
|
22030
22030-50142 Body Assy, Throttle W/motor[09.2000 - 08.2002] 2UZFE..UCK35,45 |
22030-50142 |
from US $1,410.67 |
||
|
22030
|
22030
22030-50170 Body Assy, Throttle W/motor[08.2002 - 08.2004] 2UZFE..UCK35,45 |
22030-50170 |
US $1,126.94 |
||
|
22207
|
22207
22266-50030 Cover Sub-Assy, Throttle Body[09.2000 - 09.2002] 2UZFE..UCK35,45 |
22266-50030 |
US $52.27 |
||
| replacement | |||||
|
22207
|
22207
22266-50H00 Cover Sub-Assy, Throttle Body[09.2000 - 09.2002] 2UZFE..UCK35,45 |
22266-50H00 |
US $52.27 |
||
|
22207
|
22207
22266-50040 Cover Sub-Assy, Throttle BodyTHROTTLE BODY [09.2002 - 08.2004] 2UZFE..UCK35,45 |
22266-50040 |
US $66.68 |
||
|
22271
|
22271
22271-50042 Gasket, Throttle Body[09.2000 - 08.2002] 2UZFE..UCK35,45 |
22271-50042 |
US $34.81 |
||
|
22277
|
22277
22277-50010
Bracket, Throttle Body Cover
[09.2000 - 09.2002] 2UZFE..UCK35,45 NO.1 |
22277-50010 |
— | ||
|
22277
|
22277
22277-50020
Bracket, Throttle Body Cover
[09.2000 - 09.2002] 2UZFE..UCK35,45 NO.2 |
22277-50020 |
— | ||
|
22277
|
22277
22277-50040 Bracket, Throttle Body CoverTHROTTLE BODY COVER [09.2002 - 08.2004] 2UZFE..UCK35,45 NO.2 |
22277-50040 |
US $10.13 |
||
|
22277
|
22277
22277-50050 Bracket, Throttle Body CoverTHROTTLE BODY COVER [09.2002 - 08.2004] 2UZFE..UCK35,45 NO.1 |
22277-50050 |
US $9.03 |
||
|
23232
|
23232
23232-41081 Gasket(For Fuel Pump Hose)[09.2000 - 08.2004] 2UZFE..UCK35,45 |
23232-41081 |
from US $1.40 |
||
|
23250
|
23250
23209-50040 Injector Assy, Fuel[09.2000 - 08.2004] 2UZFE..UCK35,45 |
23209-50040 |
from US $219.73 |
||
|
23250B
|
23250B
90301-07024 Ring, O(For Fuel Injector)[09.2000 - 08.2004] 2UZFE..UCK35,45 |
90301-07024 |
US $3.04 |
||
|
23250C
|
23250C
90480-13005 Grommet(For Fuel Injector)[09.2000 - 08.2004] 2UZFE..UCK35,45 |
90480-13005 |
from US $2.50 |
||
|
23270
|
23270
23270-50010
Damper Assy, Fuel Pressure Pulsation
[09.2000 - 08.2004] 2UZFE..UCK35,45 |
23270-50010 |
— | ||
| replacement | |||||
|
23270
|
23270
23270-50012 Damper Assy, Fuel Pressure Pulsation[09.2000 - 08.2004] 2UZFE..UCK35,45 |
23270-50012 |
from US $76.01 |
||
|
23270B
|
23270B
90430-12026 Gasket[09.2000 - 08.2004] 2UZFE..UCK35,45 |
90430-12026 |
from US $0.88 |
||
|
23271F
|
23271F
23271-50160
Hose, Fuel
[09.2000 - 08.2002] 2UZFE..UCK35,45 |
23271-50160 |
— | ||
| replacement | |||||
|
23271F
|
23271F
23803-50120 Pipe Sub-Assy, Fuel, No.3[09.2000 - 08.2002] 2UZFE..UCK35,45 |
23803-50120 |
US $64.47 |
||
|
23271F
|
23271F
95337-08009 Hose, Fuel[08.2002 - 08.2004] 2UZFE..UCK35,45 |
95337-08009 |
US $16.60 |
||
|
23280
|
23280
23280-50050 Regulator Assy, Fuel Pressure[09.2000 - 08.2004] 2UZFE..UCK35,45 |
23280-50050 |
US $125.80 |
||
|
23280E
|
23280E
90301-07037 Ring, O(For Fuel Injector)[09.2000 - 08.2004] 2UZFE..UCK35,45 |
90301-07037 |
US $2.24 |
||
|
23291
|
23291
23291-41010 Insulator, Injector Vibration[09.2000 - 08.2004] 2UZFE..UCK35,45 |
23291-41010 |
from US $2.87 |
||
|
23300P
|
23300P
23030-50010 Filter, Fuel(For Efi)FUEL(FOR EFI) [09.2000 - 08.2004] 2UZFE..UCK35,45 |
23030-50010 |
US $84.45 |
||
|
23801H
|
23801H
90430-12026 Gasket[09.2000 - 08.2004] 2UZFE..UCK35,45 NO.1 |
90430-12026 |
from US $0.88 |
||
|
23801H
|
23801H
90430-14008 Gasket(For Water Hole)[06.2003 - 08.2004] 2UZFE..UCK35,45 NO.2 |
90430-14008 |
US $1.44 |
||
|
23801P
|
23801P
23801-50020 Pipe Sub-Assy, Fuel, No.1[09.2000 - 08.2002] 2UZFE..UCK35,45 NO.1 |
23801-50020 |
US $51.25 |
||
|
23801P
|
23801P
23801-50021 Pipe Sub-Assy, Fuel, No.1[08.2002 - 08.2004] 2UZFE..UCK35,45 NO.1 |
23801-50021 |
US $49.97 |
||
|
23801P
|
23801P
23801-50050
Pipe Sub-Assy, Fuel, No.1
[09.2000 - 08.2004] 2UZFE..UCK35,45 NO.2 |
23801-50050 |
— | ||
|
23803B
|
23803B
23803-50100 Pipe Sub-Assy, Fuel, No.3[09.2000 - 08.2002] 2UZFE..UCK35,45 |
23803-50100 |
US $66.25 |
||
| replacement | |||||
|
23803B
|
23803B
23803-50120 Pipe Sub-Assy, Fuel, No.3[09.2000 - 08.2002] 2UZFE..UCK35,45 |
23803-50120 |
US $64.47 |
||
|
23803B
|
23803B
23803-50120 Pipe Sub-Assy, Fuel, No.3[08.2002 - 08.2004] 2UZFE..UCK35,45 |
23803-50120 |
US $64.47 |
||
|
23807
|
23807
23807-50050 Pipe Sub-Assy, Fuel Delivery[09.2000 - 08.2002] 2UZFE..UCK35,45 |
23807-50050 |
US $168.90 |
||
| replacements | |||||
|
23807
|
23807
23807-50052 Pipe Sub-Assy, Fuel Delivery[09.2000 - 08.2002] 2UZFE..UCK35,45 |
23807-50052 |
US $168.90 |
||
|
23807
|
23807
23801-50021 Pipe Sub-Assy, Fuel, No.1[09.2000 - 08.2002] 2UZFE..UCK35,45 |
23801-50021 |
US $49.97 |
||
|
23807
|
23807
23807-50051 Pipe Sub-Assy, Fuel Delivery[08.2002 - 06.2003] 2UZFE..UCK35,45 |
23807-50051 |
US $168.90 |
||
| replacement | |||||
|
23807
|
23807
23807-50052 Pipe Sub-Assy, Fuel Delivery[08.2002 - 06.2003] 2UZFE..UCK35,45 |
23807-50052 |
US $168.90 |
||
|
23807
|
23807
23807-50052 Pipe Sub-Assy, Fuel Delivery[06.2003 - 08.2004] 2UZFE..UCK35,45 |
23807-50052 |
US $168.90 |
||
|
23807R
|
23807R
90341-14032 Plug, W/head Taper Screw, No.1[06.2003 - 08.2004] 2UZFE..UCK35,45 |
90341-14032 |
US $2.53 |
||
|
23807V
|
23807V
90561-08029 Spacer, No.1(For Delivery Pipe)[09.2000 - 08.2004] 2UZFE..UCK35,45 |
90561-08029 |
from US $1.60 |
||
|
23808
|
23808
23808-50040 Pipe Sub-Assy, Fuel Delivery, No.2[09.2000 - 08.2002] 2UZFE..UCK35,45 |
23808-50040 |
US $168.90 |
||
| replacements | |||||
|
23808
|
23808
23808-50042
Pipe Sub-Assy, Fuel Delivery, No.2
[09.2000 - 08.2002] 2UZFE..UCK35,45 |
23808-50042 |
— | ||
|
23808
|
23808
23801-50021 Pipe Sub-Assy, Fuel, No.1[09.2000 - 08.2002] 2UZFE..UCK35,45 |
23801-50021 |
US $49.97 |
||
|
23808
|
23808
23808-50041
Pipe Sub-Assy, Fuel Delivery, No.2
[08.2002 - 06.2003] 2UZFE..UCK35,45 |
23808-50041 |
— | ||
| replacement | |||||
|
23808
|
23808
23808-50042
Pipe Sub-Assy, Fuel Delivery, No.2
[08.2002 - 06.2003] 2UZFE..UCK35,45 |
23808-50042 |
— | ||
|
23808
|
23808
23808-50042
Pipe Sub-Assy, Fuel Delivery, No.2
[06.2003 - 08.2004] 2UZFE..UCK35,45 |
23808-50042 |
— | ||
|
90119A0030
|
90119A0030
90119-A0030
New Genuine Part
|
90119-A0030 |
— | ||
|
91621J0612
|
91621J0612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.70 |
||
|
9008011177
|
9008011177
90080-11177 New Genuine Part |
90080-11177 |
US $2.13 |
||
|
9010508286
|
9010508286
90105-08286 New Genuine Part |
90105-08286 |
US $4.16 |
||
|
9011908825
|
9011908825
90119-08825
New Genuine Part
|
90119-08825 |
— | ||
|
9017606023
|
9017606023
90176-06023 NUT CAP |
90176-06023 |
from US $0.84 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.84 |
||
|
9017908175
|
9017908175
90179-08175 New Genuine Part |
90179-08175 |
US $1.44 |
||
|
9040112023
|
9040112023
90401-12023 Bolt, Union(For Fuel Pipe) |
90401-12023 |
US $5.44 |
||
|
9092901404
|
9092901404
90929-01404
New Genuine Part
|
90929-01404 |
— | ||
|
9613551300
|
9613551300
96135-51300 Clamp, Hose |
96135-51300 |
from US $1.92 |
||
|
9622110708
|
9622110708
96221-10708 New Genuine Part |
96221-10708 |
US $2.33 |
||
