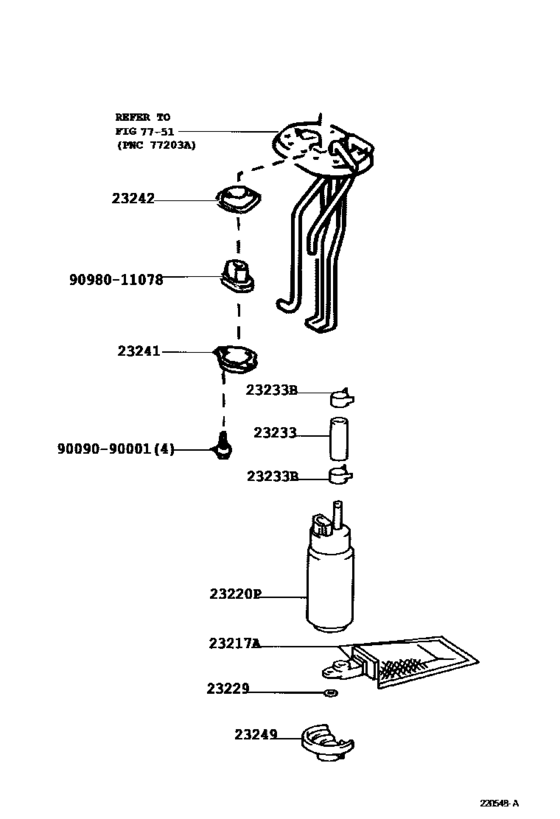

Fuel Injection System ([09.2000 - 08.2004] (0009-0408)) Diagram Toyota SEQUOIA
- Year
- 2000 - 2004
- Sales region
- U.S.A.
- Frame
- UCK45
- grade
- SR5
- ENGINE
- 2UZFE
- From
- 09.2000
- To
- 08.2004
- Gear Shift Type
- 4HC
- Vehicle Model
- SEQUOIA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23217A
|
23217A
23217-0F010 Filter, Fuel Pump[08.2002 - 08.2004] 2UZFE..UCK35,45 (L) |
23217-0F010 |
from US $8.83 |
||
|
23217A
|
23217A
23217-46090 Filter, Fuel Pump[09.2000 - 04.2003] 2UZFE..UCK35,45 (J) |
23217-46090 |
from US $7.57 |
||
|
23220P
|
23220P
23221-0F010
Pump Assy, Fuel
[08.2002 - 08.2004] 2UZFE..UCK35,45 (L) |
23221-0F010 |
— | ||
|
23220P
|
23220P
23221-50060 Pump Assy, Fuel[09.2000 - 04.2003] 2UZFE..UCK35,45 (J) |
23221-50060 |
US $500.86 |
||
| replacement | |||||
|
23220P
|
23220P
23221-32020 Pump Assy, FuelFUEL [09.2000 - 04.2003] 2UZFE..UCK35,45 (J) |
23221-32020 |
US $519.40 |
||
|
23229
|
23229
23219-03010 Clip(For Fuel Pump Filter)[08.2002 - 08.2004] 2UZFE..UCK35,45 (L) |
23219-03010 |
US $2.55 |
||
|
23229
|
23229
23229-16010 Clip(For Fuel Pump Filter)[09.2000 - 04.2003] 2UZFE..UCK35,45 (J) |
23229-16010 |
from US $0.92 |
||
| replacement | |||||
|
23229
|
23229
23219-03010 Clip(For Fuel Pump Filter)[09.2000 - 04.2003] 2UZFE..UCK35,45 (J) |
23219-03010 |
US $2.55 |
||
|
23233
|
23233
23233-02010 Hose, Fuel Pump[09.2000 - 08.2004] 2UZFE..UCK35,45 |
23233-02010 |
US $9.32 |
||
|
23233B
|
23233B
90467-13054 Clamp Or Clip, Hose(For Water By-Pass Hose)[09.2000 - 08.2004] 2UZFE..UCK35,45 |
90467-13054 |
from US $0.96 |
||
| replacement | |||||
|
23233B
|
23233B
96135-51300 Clamp, Hose[09.2000 - 08.2004] 2UZFE..UCK35,45 |
96135-51300 |
from US $1.92 |
||
|
23241
|
23241
23241-16010
Support, Fuel Pump Connector
[09.2000 - 08.2004] 2UZFE..UCK35,45 |
23241-16010 |
— | ||
|
23242
|
23242
23242-16010
Gasket, Fuel Pump Connector
[09.2000 - 08.2004] 2UZFE..UCK35,45 |
23242-16010 |
— | ||
|
23249
|
23249
23218-02010 Rubber, Cushion(For Fuel Pump)[09.2000 - 08.2004] 2UZFE..UCK35,45 |
23218-02010 |
US $4.22 |
||
|
9009090001
|
9009090001
90090-90001
New Genuine Part
|
90090-90001 |
— | ||
|
9098011078
|
9098011078
90980-11078 HOUSING CONNECTOR |
90980-11078 |
US $4.80 |
||
