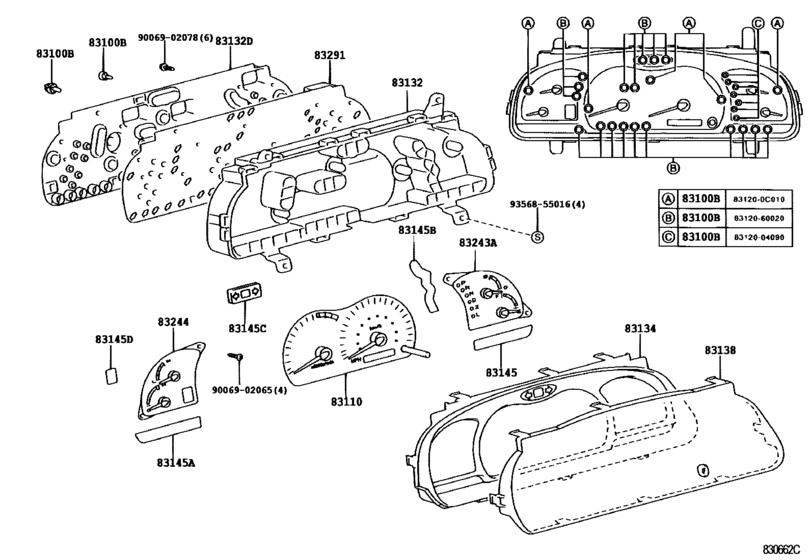

Meter ([09.2000 - 08.2004] (0009-0408)) Diagram Toyota SEQUOIA
- Year
- 2000 - 2004
- Sales region
- U.S.A.
- Frame
- UCK45
- grade
- SR5
- ENGINE
- 2UZFE
- From
- 09.2000
- To
- 08.2004
- Gear Shift Type
- 4HC
- Vehicle Model
- SEQUOIA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83120-04090 Bulb, Combination Meter, No.1COMBINATION METER, NO.1 [09.2000 - 08.2004] UCK35,45 14V 1.12W,TYPE C:REFER TO ILLUSTRATION |
83120-04090 |
US $15.81 |
||
|
83100B
|
83100B
83120-0C010
Bulb, Combination Meter, No.1
[09.2000 - 08.2004] UCK35,45 14V 3.0W,TYPE A:REFER TO ILLUSTRATION |
83120-0C010 |
— | ||
|
83100B
|
83100B
83120-60020 Bulb, Combination Meter, No.1[09.2000 - 08.2004] UCK35,45 12V 1.4W,W(SOCKET),TYPE B:REFER TO ILLUSTRATION |
83120-60020 |
from US $3.67 |
||
|
83110
|
83110
83220-0C050
Speedometer Assy
[09.2000 - 08.2004] UCK35,45 |
83220-0C050 |
— | ||
|
83110
|
83110
83220-0C060
Speedometer Assy
[09.2000 - 08.2004] UCK45 CANADA SPEC |
83220-0C060 |
— | ||
|
83132
|
83132
83841-0C110
Case, Combination Meter
[09.2000 - 08.2004] UCK35,45 |
83841-0C110 |
— | ||
|
83132D
|
83132D
83842-0C110
Case, Combination Meter, No.2
[09.2000 - 08.2004] UCK35,45 |
83842-0C110 |
— | ||
|
83134
|
83134
83821-0C110
Cover, Combination Meter, No.1
[09.2000 - 08.2004] UCK35,45 |
83821-0C110 |
— | ||
|
83138
|
83138
83852-0C030
Glass, Speedometer
[09.2000 - 08.2004] UCK35,45 |
83852-0C030 |
— | ||
|
83145
|
83145
83831-0C110
Lens, Meter, No.1
[09.2000 - 08.2004] UCK35,45 |
83831-0C110 |
— | ||
|
83145A
|
83145A
83832-0C110
Lens, Meter, No.2
[09.2000 - 08.2004] UCK35,45 |
83832-0C110 |
— | ||
|
83145B
|
83145B
83833-0C110
Lens, Meter, No.3
[09.2000 - 08.2004] UCK35,45 |
83833-0C110 |
— | ||
|
83145C
|
83145C
83834-0C030
Lens, Meter, No.4
[09.2000 - 08.2004] UCK35,45 |
83834-0C030 |
— | ||
|
83145D
|
83145D
83835-0C110
Lens, Meter, No.5
[09.2000 - 08.2004] UCK45 |
83835-0C110 |
— | ||
|
83243A
|
83243A
83882-0C110
Gauge Sub-Assy, Fuel Receiver
[09.2000 - 08.2004] UCK35,45 |
83882-0C110 |
— | ||
|
83244
|
83244
83883-0C110
Gauge Sub-Assy, Water Temperature Receiver
[09.2000 - 08.2004] UCK45 |
83883-0C110 |
— | ||
|
83291
|
83291
83291-0C010
Computer, Combination Meter
[09.2000 - 01.2002] UCK35,45 |
83291-0C010 |
— | ||
| replacement | |||||
|
83291
|
83291
83291-0C011
Computer, Combination Meter
[09.2000 - 01.2002] UCK35,45 |
83291-0C011 |
— | ||
|
83291
|
83291
83291-0C011
Computer, Combination Meter
[01.2002 - 08.2004] UCK35,45 |
83291-0C011 |
— | ||
|
83291
|
83291
83291-0C020
Computer, Combination Meter
[09.2000 - 01.2002] UCK45 CANADA SPEC |
83291-0C020 |
— | ||
| replacement | |||||
|
83291
|
83291
83291-0C021
Computer, Combination Meter
[09.2000 - 01.2002] UCK45 CANADA SPEC |
83291-0C021 |
— | ||
|
83291
|
83291
83291-0C021
Computer, Combination Meter
[01.2002 - 08.2004] UCK45 CANADA SPEC |
83291-0C021 |
— | ||
|
9006902065
|
9006902065
90069-02065
New Genuine Part
|
90069-02065 |
— | ||
|
9006902078
|
9006902078
90069-02078
New Genuine Part
|
90069-02078 |
— | ||
|
9356855016
|
9356855016
93568-55016 Screw |
93568-55016 |
from US $1.12 |
||
