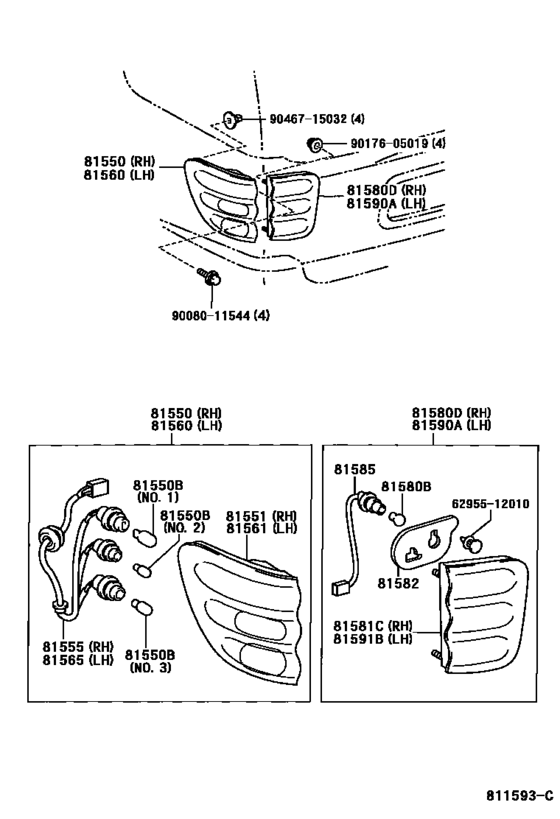

Rear Combination Lamp ([09.2000 - 08.2004] (0009-0408)) Diagram Toyota SEQUOIA
- Year
- 2000 - 2004
- Sales region
- U.S.A.
- Frame
- UCK45
- grade
- SR5
- ENGINE
- 2UZFE
- From
- 09.2000
- To
- 08.2004
- Gear Shift Type
- 4HC
- Vehicle Model
- SEQUOIA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-0C020 Lamp Assy, Rear Combination, RhREAR COMBINATION, RH [09.2000 - 08.2004] UCK35,45 |
81550-0C020 |
US $214.03 |
||
|
81550B
|
81550B
90981-11059 Bulb(For Rear Combination Lamp) (12V 16W)[09.2000 - 08.2004] UCK35,45 12V 16W,NO.2 |
90981-11059 |
from US $3.20 |
||
|
81550B
|
81550B
90981-13043 Bulb (12V 21W)[09.2000 - 08.2004] UCK35,45 12V 21W,NO.3 |
90981-13043 |
from US $3.52 |
||
|
81550B
|
81550B
90981-13044 Bulb(For Rear Combination Lamp) (12V 21/5W)[09.2000 - 08.2004] UCK35,45 12V 21/5W,NO.1 |
90981-13044 |
from US $3.65 |
||
|
81551
|
81551
81551-0C020
Lens, Rear Combination Lamp, Rh
[09.2000 - 08.2004] UCK35,45 |
81551-0C020 |
— | ||
| replacement | |||||
|
81551
|
81551
81550-0C020 Lamp Assy, Rear Combination, RhREAR COMBINATION, RH [09.2000 - 08.2004] UCK35,45 |
81550-0C020 |
US $214.03 |
||
|
81555
|
81555
81555-0C020
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[09.2000 - 08.2004] UCK35,45 |
81555-0C020 |
— | ||
|
81560
|
81560
81560-0C020 Lamp Assy, Rear Combination, LhREAR COMBINATION, LH [09.2000 - 08.2004] UCK35,45 |
81560-0C020 |
US $214.03 |
||
|
81561
|
81561
81561-0C020
Lens, Rear Combination Lamp, Lh
[09.2000 - 08.2004] UCK35,45 |
81561-0C020 |
— | ||
| replacement | |||||
|
81561
|
81561
81560-0C020 Lamp Assy, Rear Combination, LhREAR COMBINATION, LH [09.2000 - 08.2004] UCK35,45 |
81560-0C020 |
US $214.03 |
||
|
81565
|
81565
81555-0C020
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[09.2000 - 08.2004] UCK35,45 |
81555-0C020 |
— | ||
|
81580B
|
81580B
90080-81012
Bulb(For Rear Combination Lamp)
[09.2000 - 08.2004] UCK35,45 12V 5W |
90080-81012 |
— | ||
|
81580D
|
81580D
81580-0C010
Lamp Assy, Rear, Rh
[09.2000 - 08.2004] UCK35,45 |
81580-0C010 |
— | ||
|
81581C
|
81581C
81581-0C010 Lens And Body, Rear Lamp, RhREAR LAMP, RH [09.2000 - 08.2004] UCK35,45 |
81581-0C010 |
US $112.01 |
||
|
81582
|
81582
81582-0C010
Gasket, Rear Lamp
[09.2000 - 08.2004] UCK35,45 |
81582-0C010 |
— | ||
|
81585
|
81585
81585-0C010
Socket & Wire, Rear Lamp
[09.2000 - 08.2004] UCK35,45 |
81585-0C010 |
— | ||
|
81590A
|
81590A
81590-0C010
Lamp Assy, Rear, Lh
[09.2000 - 08.2004] UCK35,45 |
81590-0C010 |
— | ||
|
81591B
|
81591B
81591-0C010
Lens And Body, Rear Lamp, Lh
[09.2000 - 08.2004] UCK35,45 |
81591-0C010 |
— | ||
|
6295512010
|
6295512010
62955-12010 Retainer, Radiator Grille, No.1 |
62955-12010 |
from US $1.46 |
||
|
9008011544
|
9008011544
90080-11544
New Genuine Part
|
90080-11544 |
— | ||
|
9017605019
|
9017605019
90176-05019 NUT CAP |
90176-05019 |
US $1.60 |
||
|
9046715032
|
9046715032
90467-15032 CLIP |
90467-15032 |
US $1.31 |
||
