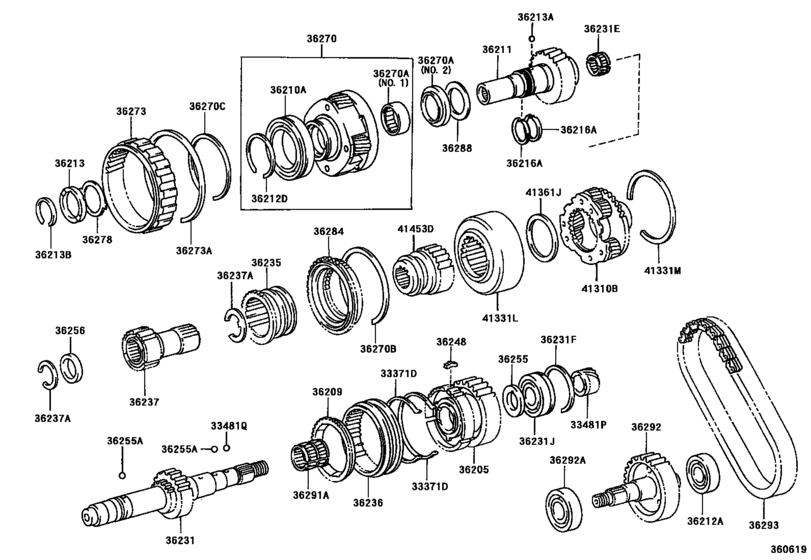

Transfer Gear ([09.2000 - 08.2004] (0009-0408)UCK45) Diagram Toyota SEQUOIA
- Year
- 2000 - 2004
- Sales region
- U.S.A.
- Frame
- UCK45
- grade
- SR5
- ENGINE
- 2UZFE
- From
- 09.2000
- To
- 08.2004
- Gear Shift Type
- 4HC
- Vehicle Model
- SEQUOIA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33371D
|
33371D
33371-36030 Spring, Synchromesh Shifting Key, No.1[09.2000 - 08.2004] UCK45 |
33371-36030 |
from US $3.49 |
||
|
33481P
|
33481P
33481-35200 Gear, Speedometer Drive (For Transfer)[09.2000 - 08.2004] UCK45 N=11 |
33481-35200 |
US $19.95 |
||
|
33481Q
|
33481Q
90360-05012 Ball, Reverse Shift Restrict[09.2000 - 08.2004] UCK45 |
90360-05012 |
from US $0.92 |
||
|
36205
|
36205
36205-35080 Sprocket Sub-Assy, Transfer Drive[09.2000 - 08.2004] UCK45 |
36205-35080 |
US $108.33 |
||
| replacement | |||||
|
36205
|
36205
36205-35081 Sprocket Sub-Assy, Transfer DriveTRANSFER DRIVE [09.2000 - 08.2004] UCK45 |
36205-35081 |
US $108.33 |
||
|
36209
|
36209
36209-35021 Ring Set, Transfer Synchronizer[09.2000 - 08.2004] UCK45 |
36209-35021 |
US $196.56 |
||
|
36210A
|
36210A
90363-75001 Bearing (For Transfer Input Shaft)[09.2000 - 08.2004] UCK45 |
90363-75001 |
from US $26.56 |
||
|
36211
|
36211
36201-35061 Shaft, Transfer Input[09.2000 - 08.2004] UCK45 |
36201-35061 |
US $167.73 |
||
|
36212A
|
36212A
90363-28004 Bearing, Radial Ball (For Transfer Input Gear)[09.2000 - 08.2004] UCK45 |
90363-28004 |
from US $20.79 |
||
|
36212D
|
36212D
90520-72001 Ring, Hole Snap (For Transfer Input Shaft)[09.2000 - 08.2004] UCK45 T=1.45,MARK 1 |
90520-72001 |
US $1.05 |
||
|
36212D
|
36212D
90520-72002 Ring, Hole Snap (For Transfer Input Shaft)[09.2000 - 08.2004] UCK45 T=1.50,MARK 2 |
90520-72002 |
US $1.75 |
||
|
36212D
|
36212D
90520-72003 Ring, Hole Snap (For Transfer Input Shaft)[09.2000 - 08.2004] UCK45 T=1.55,MARK 3 |
90520-72003 |
US $1.75 |
||
|
36212D
|
36212D
90520-72004 Ring, Hole Snap (For Transfer Input Shaft)[09.2000 - 08.2004] UCK45 T=1.60,MARK 4 |
90520-72004 |
US $1.75 |
||
|
36212D
|
36212D
90520-72005 Ring, Hole Snap (For Transfer Input Shaft)[09.2000 - 08.2004] UCK45 T=1.65,MARK 5 |
90520-72005 |
US $1.75 |
||
|
36213
|
36213
36213-35020 Stopper, Transfer Input Gear[09.2000 - 08.2004] UCK45 |
36213-35020 |
from US $7.16 |
||
|
36213A
|
36213A
90360-05012 Ball, Reverse Shift Restrict[09.2000 - 08.2004] UCK45 |
90360-05012 |
from US $0.92 |
||
|
36213B
|
36213B
90520-44003 Ring, Shaft Snap (For Transfer Input Gear Stopper)[09.2000 - 08.2004] UCK45 T=2.10-2.15,MARK A |
90520-44003 |
US $1.05 |
||
|
36213B
|
36213B
90520-44004 Ring, Shaft Snap (For Transfer Input Gear Stopper)[09.2000 - 08.2004] UCK45 T=2.15-2.20,MARK B |
90520-44004 |
US $1.75 |
||
|
36213B
|
36213B
90520-44005 Ring, Shaft Snap (For Transfer Input Gear Stopper)[09.2000 - 08.2004] UCK45 T=2.20-2.25,MARK C |
90520-44005 |
from US $1.75 |
||
|
36213B
|
36213B
90520-44006 Ring, Shaft Snap (For Transfer Input Gear Stopper)[09.2000 - 08.2004] UCK45 T=2.25-2.30,MARK D |
90520-44006 |
from US $1.75 |
||
|
36213B
|
36213B
90520-44007 Ring, Shaft Snap (For Transfer Input Gear Stopper)[09.2000 - 08.2004] UCK45 T=2.30-2.35,MARK E |
90520-44007 |
US $1.75 |
||
|
36213B
|
36213B
90520-44008 Ring, Shaft Snap (For Transfer Input Gear Stopper)[09.2000 - 08.2004] UCK45 T=2.35-2.40,MARK F |
90520-44008 |
from US $1.75 |
||
|
36213B
|
36213B
90520-44009 Ring, Shaft Snap (For Transfer Input Gear Stopper)[09.2000 - 08.2004] UCK45 T=2.40-2.45,MARK G |
90520-44009 |
from US $1.75 |
||
|
36213B
|
36213B
90520-44010 Ring, Shaft Snap (For Transfer Input Gear Stopper)[09.2000 - 08.2004] UCK45 T=2.45-2.50,MARK H |
90520-44010 |
from US $1.75 |
||
|
36213B
|
36213B
90520-44011 Ring, Shaft Snap (For Transfer Input Gear Stopper)[09.2000 - 08.2004] UCK45 T=2.50-2.55,MARK J |
90520-44011 |
from US $1.75 |
||
|
36213B
|
36213B
90520-44012 Ring, Shaft Snap (For Transfer Input Gear Stopper)[09.2000 - 08.2004] UCK45 T=2.55-2.60,MARK K |
90520-44012 |
from US $1.75 |
||
|
36213B
|
36213B
90520-44013 Ring, Shaft Snap (For Transfer Input Gear Stopper)[09.2000 - 08.2004] UCK45 T=2.60-2.65,MARK L |
90520-44013 |
from US $1.75 |
||
|
36213B
|
36213B
90520-44014 Ring, Shaft Snap (For Transfer Input Gear Stopper)[09.2000 - 08.2004] UCK45 T=2.65-2.70,MARK M |
90520-44014 |
from US $1.75 |
||
|
36213B
|
36213B
90520-44015 Ring, Shaft Snap (For Transfer Input Gear Stopper)[09.2000 - 08.2004] UCK45 T=2.70-2.75,MARK N |
90520-44015 |
from US $1.75 |
||
|
36213B
|
36213B
90520-44016 Ring, Shaft Snap (For Transfer Input Gear Stopper)[09.2000 - 08.2004] UCK45 T=2.75-2.80,MARK P |
90520-44016 |
US $1.75 |
||
|
36213B
|
36213B
90520-44017 Ring, Shaft Snap (For Transfer Input Gear Stopper)[09.2000 - 08.2004] UCK45 T=2.80-2.85,MARK Q |
90520-44017 |
from US $1.75 |
||
|
36213B
|
36213B
90520-44018 Ring, Shaft Snap (For Transfer Input Gear Stopper)[09.2000 - 08.2004] UCK45 T=2.85-2.90,MARK R |
90520-44018 |
US $1.75 |
||
|
36213B
|
36213B
90520-44019 Ring, Shaft Snap (For Transfer Input Gear Stopper)[09.2000 - 08.2004] UCK45 T=2.90-2.95,MARK S |
90520-44019 |
from US $1.75 |
||
|
36213B
|
36213B
90520-44020 Ring, Shaft Snap (For Transfer Input Gear Stopper)[09.2000 - 08.2004] UCK45 T=2.95-3.00,MARK T |
90520-44020 |
from US $1.75 |
||
|
36213B
|
36213B
90520-44021 Ring, Shaft Snap (For Transfer Input Gear Stopper)[09.2000 - 08.2004] UCK45 T=3.00-3.05,MARK U |
90520-44021 |
from US $1.75 |
||
|
36216A
|
36216A
36216-35011
Ring, Transfer Input Shaft Seal, No.1
[09.2000 - 08.2004] UCK45 |
36216-35011 |
— | ||
| replacement | |||||
|
36216A
|
36216A
36216-35012 Ring, Transfer Input Shaft Seal, No.1[09.2000 - 08.2004] UCK45 |
36216-35012 |
from US $2.42 |
||
|
36231
|
36231
36231-60090 Shaft, Transfer Output, Rear[09.2000 - 08.2004] UCK45 |
36231-60090 |
US $182.51 |
||
|
36231E
|
36231E
90364-28004 Bearing, Needle Roller (For Transfer Output Shaft Front)[09.2000 - 08.2004] UCK45 |
90364-28004 |
US $24.93 |
||
|
36231F
|
36231F
90520-71221 Ring, Shaft Snap (For Front Bearing)[09.2000 - 08.2004] UCK45 T=1.65,ID=71.1 |
90520-71221 |
US $3.68 |
||
|
36231J
|
36231J
90363-32006 Bearing (For Transfer Counter Gear)[09.2000 - 08.2004] UCK45 |
90363-32006 |
from US $20.27 |
||
|
36235
|
36235
36235-35021 Sleeve, Transfer High & Low Clutch[09.2000 - 08.2004] UCK45 |
36235-35021 |
US $172.97 |
||
| replacements | |||||
|
36235
|
36235
36235-35H00 Piece, Transfer Low Planetary Gear Spline[09.2000 - 08.2004] UCK45 |
36235-35H00 |
US $181.71 |
||
|
36235
|
36235
36235-35H01 Piece, Transfer Low Planetary Gear Spline[09.2000 - 08.2004] UCK45 |
36235-35H01 |
US $181.71 |
||
|
36236
|
36236
36236-35050 Sleeve, Front Drive Clutch[09.2000 - 08.2004] UCK45 |
36236-35050 |
US $41.23 |
||
|
36237
|
36237
36203-35010 Hub, Transfer Clutch[09.2000 - 08.2004] UCK45 |
36203-35010 |
US $174.72 |
||
|
36237A
|
36237A
90520-38008 Ring, Shaft Snap (For Front Bearing)[09.2000 - 08.2004] UCK45 T=2.10,MARK A |
90520-38008 |
from US $0.87 |
||
|
36248
|
36248
36248-35030 Key, Synchromesh Shifting, Transfer Drive, No.1[09.2000 - 08.2004] UCK45 |
36248-35030 |
US $4.54 |
||
|
36255
|
36255
36255-35020 Spacer, Transfer Output Shaft, No.1[09.2000 - 08.2004] UCK45 |
36255-35020 |
US $9.90 |
||
|
36255A
|
36255A
90360-05012 Ball, Reverse Shift Restrict[09.2000 - 08.2004] UCK45 |
90360-05012 |
from US $0.92 |
||
|
36256
|
36256
36256-35020 Spacer, Transfer Output Shaft, No.2[09.2000 - 08.2004] UCK45 |
36256-35020 |
US $6.29 |
||
|
36270
|
36270
36270-35900 Gear Assy, Transfer Low Planetary[09.2000 - 08.2004] UCK45 |
36270-35900 |
US $569.59 |
||
|
36270A
|
36270A
90364-47001
Bearing (For Transfer Input Shaft)
[09.2000 - 08.2004] UCK45 NO.1 |
90364-47001 |
— | ||
| replacement | |||||
|
36270A
|
36270A
90364-47013 Bearing (For Transfer Input Shaft)[09.2000 - 08.2004] UCK45 NO.1 |
90364-47013 |
from US $26.97 |
||
|
36270A
|
36270A
90374-49001 Bearing, Thrust (For Transfer Input Shaft)[09.2000 - 08.2004] UCK45 NO.2 |
90374-49001 |
from US $10.31 |
||
|
36270B
|
36270B
90521-99056 Ring, Shaft Snap (For Transfer Low Planetary Gear)[09.2000 - 08.2004] UCK45 T=1.8 |
90521-99056 |
US $3.14 |
||
|
36270C
|
36270C
90520-99001 Ring, Shaft Snap (For Transfer Input Shaft)[09.2000 - 08.2002] UCK45 |
90520-99001 |
US $1.49 |
||
|
36270C
|
36270C
90520-99072 Ring, Shaft Snap(For Transfer Low Planetary Gear Bearing)[08.2002 - 08.2004] UCK45 |
90520-99072 |
US $2.62 |
||
|
36273
|
36273
36273-35030 Gear, Transfer Low Planetary Ring[09.2000 - 08.2004] UCK45 |
36273-35030 |
from US $45.08 |
||
|
36273A
|
36273A
90520-99078 Ring, Shaft Snap (For Transfer Low Planetary Gear)[08.2002 - 08.2004] UCK45 |
90520-99078 |
US $4.02 |
||
|
36273A
|
36273A
90521-99052 Ring, Hole Snap (For Transfer Low Planetary Ring Gear)[09.2000 - 08.2002] UCK45 |
90521-99052 |
US $6.99 |
||
| replacement | |||||
|
36273A
|
36273A
90520-99078 Ring, Shaft Snap (For Transfer Low Planetary Gear)[09.2000 - 08.2002] UCK45 |
90520-99078 |
US $4.02 |
||
|
36278
|
36278
36278-35010
Washer, Manual Transfer Planetary Carrier
[09.2000 - 08.2002] UCK45 T=0.95-1.05 |
36278-35010 |
— | ||
| replacement | |||||
|
36278
|
36278
36278-35020 Washer, Manual Transfer Planetary Carrier[09.2000 - 08.2002] UCK45 T=0.95-1.05 |
36278-35020 |
US $2.97 |
||
|
36278
|
36278
36278-35020 Washer, Manual Transfer Planetary Carrier[08.2002 - 08.2004] UCK45 T=0.95-1.05 |
36278-35020 |
US $2.97 |
||
|
36284
|
36284
36284-35021
Piece, Transfer Low Planetary Gear Spline
[09.2000 - 08.2004] UCK45 |
36284-35021 |
— | ||
| replacement | |||||
|
36284
|
36284
36235-35H01 Piece, Transfer Low Planetary Gear Spline[09.2000 - 08.2004] UCK45 |
36235-35H01 |
US $181.71 |
||
|
36288
|
36288
36288-28010 Race, Transfer Thrust Bearing, No.1[09.2000 - 08.2004] UCK45 |
36288-28010 |
US $7.68 |
||
|
36291A
|
36291A
90364-37009
Bearing (For Transfer Drive Sprocket)
[09.2000 - 08.2002] UCK45 |
90364-37009 |
— | ||
| replacement | |||||
|
36291A
|
36291A
90364-37013 Bearing (For Transfer Drive Sprocket)[09.2000 - 08.2002] UCK45 |
90364-37013 |
from US $13.28 |
||
|
36291A
|
36291A
90364-37013 Bearing (For Transfer Drive Sprocket)[08.2002 - 08.2004] UCK45 |
90364-37013 |
from US $13.28 |
||
|
36292
|
36292
36292-35030
Sprocket, Transfer Driven
[09.2000 - 04.2002] UCK45 |
36292-35030 |
— | ||
| replacement | |||||
|
36292
|
36292
36292-35050 Sprocket, Transfer Driven[09.2000 - 04.2002] UCK45 |
36292-35050 |
from US $162.49 |
||
|
36292
|
36292
36292-35050 Sprocket, Transfer Driven[04.2002 - 08.2004] UCK45 |
36292-35050 |
from US $162.49 |
||
|
36292A
|
36292A
90363-32037 Bearing (For Transfer Driven Sprocket)[09.2000 - 08.2004] UCK45 |
90363-32037 |
from US $25.38 |
||
|
36293
|
36293
36293-35031
Chain, Transfer Front Drive
[09.2000 - 12.2002] UCK45 |
36293-35031 |
— | ||
| replacement | |||||
|
36293
|
36293
36293-35040 Chain, Transfer Front Drive[09.2000 - 12.2002] UCK45 |
36293-35040 |
from US $415.80 |
||
|
36293
|
36293
36293-35040 Chain, Transfer Front Drive[12.2002 - 08.2004] UCK45 |
36293-35040 |
from US $415.80 |
||
|
41310B
|
41310B
41310-35062 Gear Assy, Center Differential Planetary[09.2000 - 08.2004] UCK45 |
41310-35062 |
US $461.55 |
||
|
41331L
|
41331L
41331-35060 Gear, Center Differential Planetary Ring[09.2000 - 08.2004] UCK45 |
41331-35060 |
US $152.01 |
||
|
41331M
|
41331M
90521-99116 Ring, Hole Snap(For Center Differential Planetary Ring Gear)[09.2000 - 08.2004] UCK45 |
90521-99116 |
US $4.54 |
||
|
41361J
|
41361J
41361-35300 Washer, Center Differential Planetary Carrier, No.1[09.2000 - 08.2004] UCK45 |
41361-35300 |
from US $4.27 |
||
|
41453D
|
41453D
41453-35010 Sleeve, Center Differential Lock[09.2000 - 08.2004] UCK45 |
41453-35010 |
US $50.84 |
||
