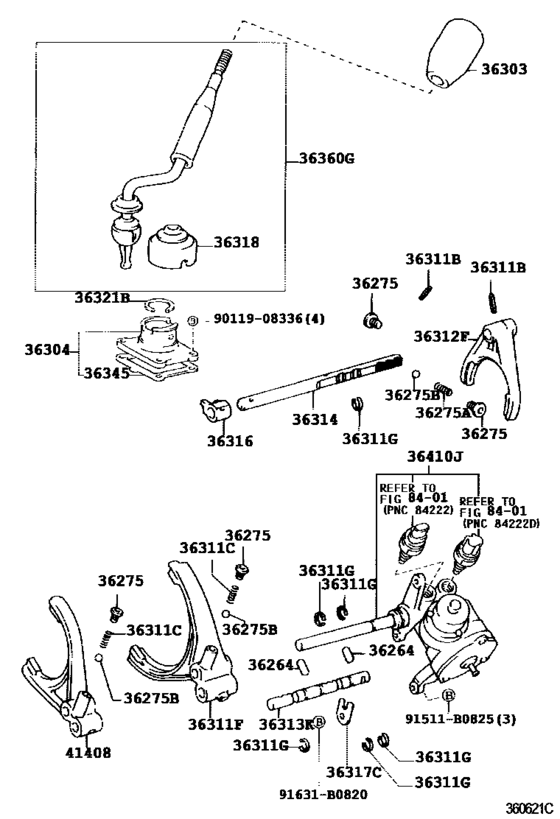

Transfer Lever & Shift Rod ([09.2000 - 08.2004] (0009-0408)UCK45) Diagram Toyota SEQUOIA
- Year
- 2000 - 2004
- Sales region
- U.S.A.
- Frame
- UCK45
- grade
- SR5
- ENGINE
- 2UZFE
- From
- 09.2000
- To
- 08.2004
- Gear Shift Type
- 4HC
- Vehicle Model
- SEQUOIA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
36264
|
36264
90250-06007 Pin, Shift Inter Lock, No.2[09.2000 - 08.2004] UCK45 L=8.6,OD=6 |
90250-06007 |
from US $0.87 |
||
|
36275
|
36275
90341-12014 Plug, W/head Straight Screw, No.1(For Cylinder Block)[09.2000 - 08.2004] UCK45 |
90341-12014 |
from US $1.76 |
||
|
36275A
|
36275A
90501-16116 Spring, Compression (For Shift Detent Ball)[09.2000 - 08.2004] UCK45 L=23 |
90501-16116 |
US $0.87 |
||
|
36275B
|
36275B
90360-10003 Ball(For Transmission Oil Pump Cover)[09.2000 - 08.2004] UCK45 OD=9.52,STEEL |
90360-10003 |
from US $1.29 |
||
|
36303
|
36303
36303-34030 Knob Sub-Assy, Shift LeverSHIFT LEVER [09.2000 - 08.2004] UCK45 |
36303-34030 |
US $30.14 |
||
|
36304
|
36304
36304-35051 Retainer Sub-Assy, Transfer Control Shift Lever[09.2000 - 08.2004] UCK45 |
36304-35051 |
from US $32.67 |
||
|
36311B
|
36311B
90254-05001 Pin, Slotted Spring(For Shift Lever Shaft Set)[09.2000 - 08.2004] UCK45 L=22 |
90254-05001 |
from US $1.03 |
||
|
36311C
|
36311C
90501-18091 Spring, Compression (For Shift Detent Ball)[09.2000 - 08.2004] UCK45 |
90501-18091 |
US $1.44 |
||
|
36311F
|
36311F
36311-35060 Fork, Transfer Gear Shift, No.1[09.2000 - 08.2004] UCK45 |
36311-35060 |
US $69.01 |
||
|
36311G
|
36311G
90520-13002 Ring, Shaft Snap (For Shift Fork Shaft)[09.2000 - 08.2004] UCK45 |
90520-13002 |
from US $1.28 |
||
|
36312F
|
36312F
36312-35040 Fork, Transfer Gear Shift, No.2[09.2000 - 08.2004] UCK45 |
36312-35040 |
US $27.96 |
||
|
36313K
|
36313K
36313-35090 Shaft, Transfer Gear Shift Fork[09.2000 - 04.2001] UCK45 |
36313-35090 |
US $26.21 |
||
| replacement | |||||
|
36313K
|
36313K
36313-35091 Shaft, Transfer Gear Shift Fork[09.2000 - 04.2001] UCK45 |
36313-35091 |
US $26.50 |
||
|
36313K
|
36313K
36313-35091 Shaft, Transfer Gear Shift Fork[04.2001 - 08.2004] UCK45 |
36313-35091 |
US $26.50 |
||
|
36314
|
36314
36314-35160 Shaft, Transfer High And Low Shift Fork[09.2000 - 08.2004] UCK45 |
36314-35160 |
US $46.16 |
||
|
36316
|
36316
36316-35040 Head, Transfer Gear Shift, No.2[09.2000 - 08.2004] UCK45 |
36316-35040 |
US $22.28 |
||
|
36317C
|
36317C
36317-35041 Stopper, Transfer Shift Shaft[09.2000 - 08.2004] UCK45 |
36317-35041 |
US $2.77 |
||
|
36318
|
36318
33555-35190 Boot, Transfer Front Drive Shift[09.2000 - 08.2004] UCK45 |
33555-35190 |
from US $4.64 |
||
|
36321B
|
36321B
90520-45009 Ring, Hole Snap (For Transfer Front Drive Shift Lever)HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER) [09.2000 - 08.2004] UCK45 |
90520-45009 |
US $1.75 |
||
|
36345
|
36345
36345-35040 Gasket, Transfer Control Shift Lever Retainer[09.2000 - 08.2004] UCK45 |
36345-35040 |
from US $2.73 |
||
|
36360G
|
36360G
36360-34050 Lever Assy, Transfer High & Low ShiftTRANSFER HIGH & LOW SHIFT [09.2000 - 08.2004] UCK45 |
36360-34050 |
US $196.56 |
||
|
36410J
|
36410J
36410-34021
Actuator Assy, Transfer Shift
[09.2000 - 02.2001] UCK45 |
36410-34021 |
— | ||
| replacement | |||||
|
36410J
|
36410J
36410-34022 Actuator Assy, Transfer Shift[09.2000 - 02.2001] UCK45 |
36410-34022 |
US $847 |
||
|
36410J
|
36410J
36410-34022 Actuator Assy, Transfer Shift[02.2001 - 08.2004] UCK45 |
36410-34022 |
US $847 |
||
|
41408
|
41408
41408-35010 Fork Sub-Assy, Center Differential Lock[09.2000 - 08.2004] UCK45 |
41408-35010 |
US $49.80 |
||
|
91511B0825
|
91511B0825
91511-B0825 Bolt (For Transfer Stiffener Plate) |
91511-B0825 |
from US $1.07 |
||
|
91631B0820
|
91631B0820
91631-B0820 BOLT WWASHER |
91631-B0820 |
from US $0.82 |
||
|
9011908336
|
9011908336
90119-08336 BOLT |
90119-08336 |
US $2.56 |
||
