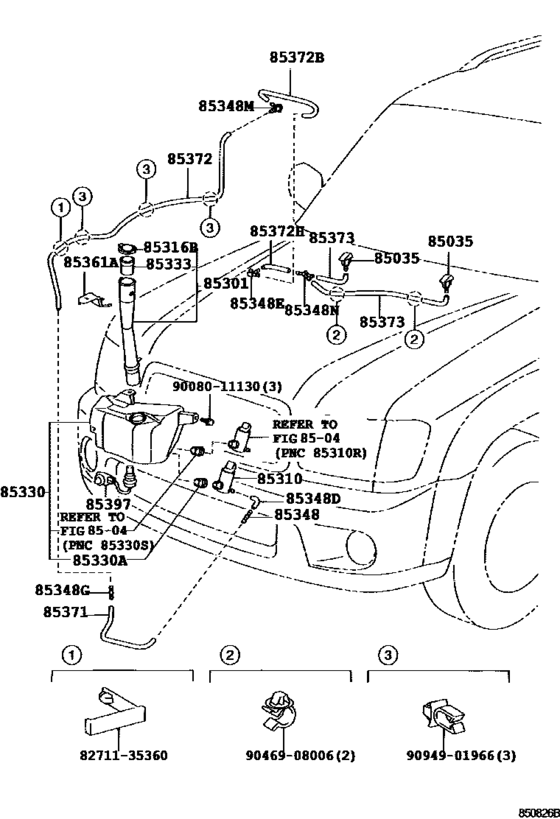

Windshield Washer ([09.2000 - 08.2004] (0009-0408)) Diagram Toyota SEQUOIA
- Year
- 2000 - 2004
- Sales region
- U.S.A.
- Frame
- UCK45
- grade
- SR5
- ENGINE
- 2UZFE
- From
- 09.2000
- To
- 08.2004
- Gear Shift Type
- 4HC
- Vehicle Model
- SEQUOIA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85035
|
85035
85381-0C010
Nozzle Sub-Assy, Washer
[09.2000 - 11.2001] UCK35,45 |
85381-0C010 |
— | ||
|
85035
|
85035
85381-34020
Nozzle Sub-Assy, Washer
[09.2000 - 11.2001] UCK45 CANADA SPEC |
85381-34020 |
— | ||
| replacement | |||||
|
85035
|
85035
85381-52180
Nozzle Sub-Assy, Washer
[09.2000 - 11.2001] UCK45 CANADA SPEC |
85381-52180 |
— | ||
|
85035
|
85035
85381-52180
Nozzle Sub-Assy, Washer
[11.2001 - 08.2004] UCK35,45 |
85381-52180 |
— | ||
|
85301
|
85301
85301-0C020
Inlet Sub-Assy, Washer
[09.2000 - 08.2004] UCK35,45 |
85301-0C020 |
— | ||
|
85310
|
85310
85330-0C020
Motor And Pump Assy, Windshield Washer
[09.2000 - 08.2004] UCK35,45 |
85330-0C020 |
— | ||
| replacement | |||||
|
85310
|
85310
85330-34010
Motor And Pump Assy, Windshield Washer
[09.2000 - 08.2004] UCK35,45 |
85330-34010 |
— | ||
|
85316B
|
85316B
85386-0C010
Cap, Washer, Inlet
[09.2000 - 08.2004] UCK35,45 |
85386-0C010 |
— | ||
|
85330
|
85330
85315-0C040
Jar Assy, Windshield Washer
[09.2000 - 08.2004] UCK35,45 |
85315-0C040 |
— | ||
|
85330A
|
85330A
90068-32002 Bush, Windshield Washer Jar[09.2000 - 08.2004] UCK35,45 |
90068-32002 |
US $7.46 |
||
|
85333
|
85333
85333-20010
Filter, Windshield Washer Jar
[09.2000 - 08.2004] UCK35,45 |
85333-20010 |
— | ||
|
85348
|
85348
85349-89122 Valve Sub-Assy, Washer[09.2000 - 08.2004] UCK35,45 |
85349-89122 |
from US $1.25 |
||
|
85348D
|
85348D
85355-14481 Joint, Windshield Washer Elbow, No.1[09.2000 - 08.2004] UCK35,45 |
85355-14481 |
US $0.98 |
||
|
85348E
|
85348E
85377-32220 Joint, Windshield Washer Elbow, No.1[09.2000 - 08.2004] UCK35,45 |
85377-32220 |
from US $0.84 |
||
|
85348G
|
85348G
85349-89122 Valve Sub-Assy, Washer[09.2000 - 08.2004] UCK35,45 |
85349-89122 |
from US $1.25 |
||
|
85348M
|
85348M
85377-34010 Joint, Windshield Washer Elbow, No.3[09.2000 - 08.2004] UCK35,45 |
85377-34010 |
from US $1.25 |
||
|
85348N
|
85348N
85378-2B160
Joint, Windshield Washer Elbow, No.2
[09.2000 - 08.2004] UCK35,45 |
85378-2B160 |
— | ||
|
85361A
|
85361A
85361-0C020
Bracket, Windshield Washer, No.1
[09.2000 - 08.2004] UCK35,45 |
85361-0C020 |
— | ||
|
85371
|
85371
90068-33011
Hose, Windshield Washer (From Motor To Joint)
[09.2000 - 08.2004] UCK35,45 *H,L=310 |
90068-33011 |
— | ||
| replacement | |||||
|
85371
|
85371
90068-33017
Hose, Windshield Washer (From Motor To Joint)
[09.2000 - 08.2004] UCK35,45 *H,L=310 |
90068-33017 |
— | ||
|
85372
|
85372
90068-33017
Hose, Windshield Washer (From Motor To Joint)
[09.2000 - 08.2004] UCK35,45 L=1280 |
90068-33017 |
— | ||
|
85372B
|
85372B
90068-33011
Hose, Windshield Washer (From Motor To Joint)
[09.2000 - 08.2004] UCK35,45 *H,L=340 |
90068-33011 |
— | ||
| replacement | |||||
|
85372B
|
85372B
90068-33017
Hose, Windshield Washer (From Motor To Joint)
[09.2000 - 08.2004] UCK35,45 *H,L=340 |
90068-33017 |
— | ||
|
85372H
|
85372H
90068-33011
Hose, Windshield Washer (From Motor To Joint)
[09.2000 - 08.2004] UCK35,45 *H,L=250 |
90068-33011 |
— | ||
| replacement | |||||
|
85372H
|
85372H
90068-33017
Hose, Windshield Washer (From Motor To Joint)
[09.2000 - 08.2004] UCK35,45 *H,L=250 |
90068-33017 |
— | ||
|
85373
|
85373
90068-33011
Hose, Windshield Washer (From Motor To Joint)
[09.2000 - 08.2004] UCK35,45 *H,L=130,RH,LH |
90068-33011 |
— | ||
| replacement | |||||
|
85373
|
85373
90068-33017
Hose, Windshield Washer (From Motor To Joint)
[09.2000 - 08.2004] UCK35,45 *H,L=130,RH,LH |
90068-33017 |
— | ||
|
85397
|
85397
85397-0C030
Switch Assy,level Warning
[09.2000 - 08.2004] UCK35,45 |
85397-0C030 |
— | ||
|
8271135360
|
8271135360
82711-35360 Wire, Fuse To Fuse(for Combustion Heater) |
82711-35360 |
US $1.16 |
||
|
9008011130
|
9008011130
90080-11130
New Genuine Part
|
90080-11130 |
— | ||
|
9046908006
|
9046908006
90469-08006 New Genuine Part |
90469-08006 |
US $3.35 |
||
|
9094901966
|
9094901966
90949-01966 New Genuine Part |
90949-01966 |
US $1.60 |
||
