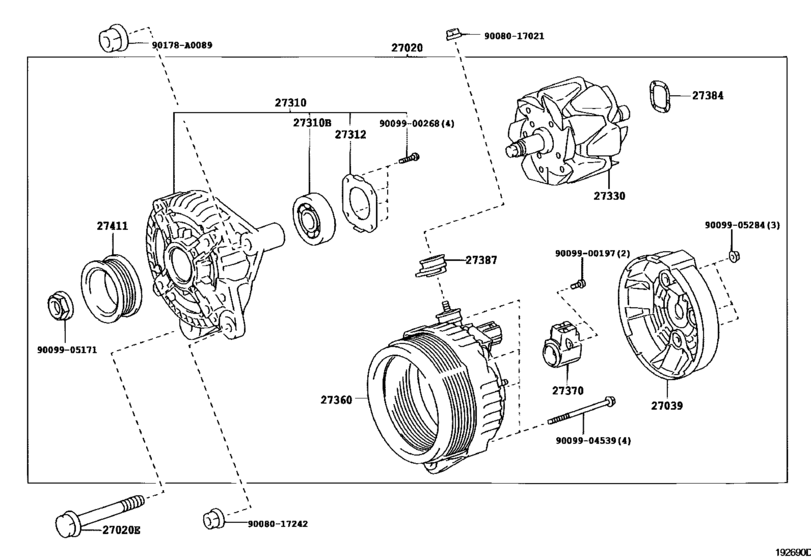

Alternator ([11.2007 - ] 12V 130A,150A (0711- )2UZFE) Diagram Toyota SEQUOIA
- Year
- 2007 - 2009
- Sales region
- U.S.A.
- Frame
- UCK65
- grade
- LIMD
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- From
- 11.2007
- To
- 04.2009
- Gear Shift Type
- 5FC
- Vehicle Model
- SEQUOIA
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-0F070
Alternator Assy
[11.2007 - 04.2009] 2UZFE..UCK6# 12V 130A |
27060-0F070 |
— | ||
|
27020
|
27020
27060-0F110
Alternator Assy
[11.2007 - 04.2009] 2UZFE..UCK6# 12V 150A,TOWING PACKAGE-WITH |
27060-0F110 |
— | ||
|
27020E
|
27020E
90119-A0280
Bolt(For Alternator)
[11.2007 - 04.2009] 2UZFE..UCK6# |
90119-A0280 |
— | ||
|
27039
|
27039
27039-0F060
Cover, Alternator Rear End
[11.2007 - 04.2009] 2UZFE..UCK6# |
27039-0F060 |
— | ||
|
27310
|
27310
27310-0F060
Frame Assy, Drive End, Alternator
[11.2007 - 04.2009] 2UZFE..UCK6# |
27310-0F060 |
— | ||
|
27310B
|
27310B
90068-10033
Bearing(For Alternator Drive End Frame)
[11.2007 - 08.2013] 2UZFE,3UR#..UCK6#,USK6# |
90068-10033 |
— | ||
|
27312
|
27312
27312-72100 Plate, Bearing Retainer, Alternator[11.2007 -] 2UZFE,3URFE..UCK6#,USK6# |
27312-72100 |
US $3.92 |
||
|
27330
|
27330
27330-0A100
Rotor Assy, Alternator
[11.2007 - 08.2013] 2UZFE..UCK6#;3UR#..USK6#..SR5 |
27330-0A100 |
— | ||
| replacement | |||||
|
27330
|
27330
27330-33090 Rotor Assy, Alternator[11.2007 - 08.2013] 2UZFE..UCK6#;3UR#..USK6#..SR5 |
27330-33090 |
US $193.94 |
||
|
27330
|
27330
27330-0A110
Rotor Assy, Alternator
[11.2007 - 04.2009] 2UZFE..UCK6# TOWING PACKAGE-WITH |
27330-0A110 |
— | ||
|
27360
|
27360
27360-0F070
Coil Assy, Alternator
[11.2007 - 04.2009] 2UZFE..UCK6# |
27360-0F070 |
— | ||
|
27360
|
27360
27360-0F110
Coil Assy, Alternator
[11.2007 - 04.2009] 2UZFE..UCK6# TOWING PACKAGE-WITH |
27360-0F110 |
— | ||
|
27370
|
27370
27370-0F060
Holder Assy, Alternator Brush
[11.2007 - 04.2009] 2UZFE..UCK6# |
27370-0F060 |
— | ||
|
27384
|
27384
27384-0A020 Washer[11.2007 - 08.2013] 2UZFE,3UR#..UCK6#,USK6# |
27384-0A020 |
US $9.32 |
||
|
27387
|
27387
27387-20130 Insulator, Terminal[11.2007 -] 2UZFE..UCK6# |
27387-20130 |
US $4.02 |
||
|
27411
|
27411
27411-0A050
Pulley, Alternator
[11.2007 - 04.2009] 2UZFE..UCK6# |
27411-0A050 |
— | ||
|
90178A0089
|
90178A0089
90178-A0089
New Genuine Part
|
90178-A0089 |
— | ||
|
9008017021
|
9008017021
90080-17021
Nut (For Rear Wiper Arm Setting)
|
90080-17021 |
— | ||
| replacement | |||||
|
9008017021
|
9008017021
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $1.03 |
||
|
9008017242
|
9008017242
90080-17242
New Genuine Part
|
90080-17242 |
— | ||
|
9009900197
|
9009900197
90099-00197 Screw |
90099-00197 |
from US $0.28 |
||
|
9009900268
|
9009900268
90099-00268
Screw(For Alternator Drive End Frame)
|
90099-00268 |
— | ||
|
9009904539
|
9009904539
90099-04539 BOLT |
90099-04539 |
US $1.50 |
||
|
9009905171
|
9009905171
90099-05171 Nut(For Alternator Pulley) |
90099-05171 |
US $1.12 |
||
|
9009905284
|
9009905284
90099-05284 NUT |
90099-05284 |
US $0.82 |
||
