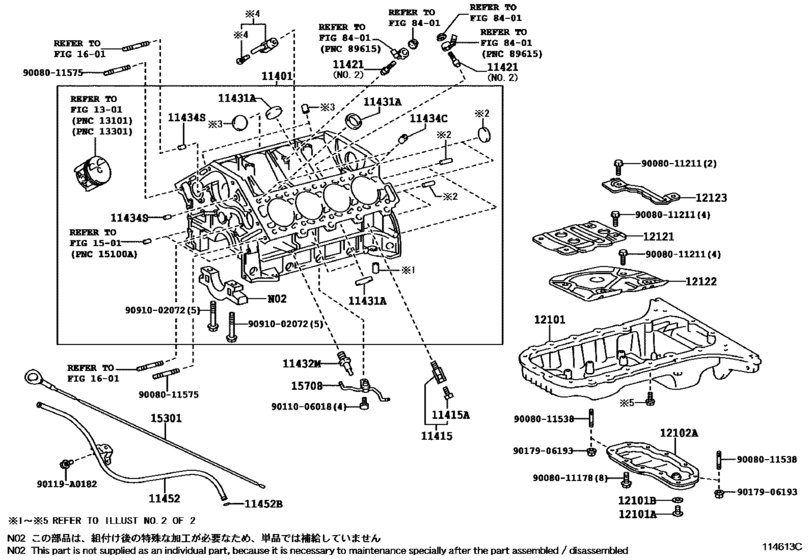

Cylinder Block ([11.2007 - 04.2009] (0711-0904)2UZFE) Diagram Toyota SEQUOIA
- Year
- 2007 - 2009
- Sales region
- U.S.A.
- Frame
- UCK65
- grade
- LIMD
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- From
- 11.2007
- To
- 04.2009
- Gear Shift Type
- 5FC
- Vehicle Model
- SEQUOIA
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11401
|
11401
11401-09336
Block Sub-Assy, Cylinder
[11.2007 - 04.2009] 2UZFE..UCK6# E/G NO.= TO 5218273 |
11401-09336 |
— | ||
| replacement | |||||
|
11401
|
11401
11401-80796 Block Sub-Assy, CylinderCYLINDER [11.2007 - 04.2009] 2UZFE..UCK6# E/G NO.= TO 5218273 |
11401-80796 |
US $4,571.84 |
||
|
11401
|
11401
11401-09711
Block Sub-Assy, Cylinder
[11.2007 - 04.2009] 2UZFE..UCK6# E/G NO.= FROM5218274 |
11401-09711 |
— | ||
| replacements | |||||
|
11401
|
11401
11401-80796 Block Sub-Assy, CylinderCYLINDER [11.2007 - 04.2009] 2UZFE..UCK6# E/G NO.= FROM5218274 |
11401-80796 |
US $4,571.84 |
||
|
11401
|
11401
13011-50162 Ring Set, PistonPISTON [11.2007 - 04.2009] 2UZFE..UCK6# E/G NO.= FROM5218274 |
13011-50162 |
from US $394.80 |
||
|
11415
|
11415
90910-09095 Cock Sub-Assy, Water Drain(For Cylinder Block)[11.2007 - 04.2009] 2UZFE..UCK6# |
90910-09095 |
US $8.96 |
||
|
11415A
|
11415A
90910-09087 Plug, Water Drain Cock(For Cylinder Block)[11.2007 - 04.2009] 2UZFE..UCK6# |
90910-09087 |
from US $3.68 |
||
|
11421
|
11421
90080-12009
Bolt, Stud(For Oil Pan)
[11.2007 - 04.2009] 2UZFE..UCK6# NO.1 |
90080-12009 |
— | ||
|
11421
|
11421
90126-08039 Bolt, Stud(For Oil Pan)[11.2007 - 04.2009] 2UZFE..UCK6# NO.2 |
90126-08039 |
US $3.84 |
||
|
11431A
|
11431A
96411-63500 Plug, Tight[11.2007 - 04.2009] 2UZFE..UCK6# |
96411-63500 |
from US $3.20 |
||
|
11432M
|
11432M
90404-53001 Union(For Cylinder Block)[11.2007 - 04.2009] 2UZFE..UCK6# |
90404-53001 |
US $5.76 |
||
|
11434C
|
11434C
90253-16001 Pin, Straight (For Cylinder Head Set)[07.2008 - 04.2009] 2UZFE..UCK6# L=20,OD=16 |
90253-16001 |
US $4.64 |
||
|
11434C
|
11434C
90253-A0010
Pin, Straight (For Cylinder Head Set)
[11.2007 - 07.2008] 2UZFE..UCK6# L=20,OD=16 |
90253-A0010 |
— | ||
|
11434S
|
11434S
90253-11021 Pin, Ring[07.2008 - 04.2009] 2UZFE..UCK6# |
90253-11021 |
from US $1.50 |
||
|
11434S
|
11434S
90253-A0007
Pin, Ring W/head
[11.2007 - 07.2008] 2UZFE..UCK6# |
90253-A0007 |
— | ||
|
11452
|
11452
11452-50200
Guide, Oil Level Gage
[11.2007 - 04.2009] 2UZFE..UCK6# |
11452-50200 |
— | ||
|
11452B
|
11452B
96721-19010 Ring, O(For Oil Level Gage Guide)[11.2007 -] 1URFE,2UZFE,3UR#..UCK6#,UPK6#,USK6# |
96721-19010 |
from US $1.64 |
||
|
12101
|
12101
12111-0F020
Pan Sub-Assy, Oil
[11.2007 - 04.2009] 2UZFE..UCK6# |
12111-0F020 |
— | ||
|
12101A
|
12101A
90341-12023 Plug(For Oil Pan Drain)[11.2007 - 04.2009] 2UZFE..UCK6# |
90341-12023 |
from US $4.29 |
||
|
12101B
|
12101B
90430-12031 Gasket (For Oil Pan Drain Plug)[11.2007 -] 1URFE,2UZFE,3UR#..UCK6#,UPK6#,USK6# |
90430-12031 |
from US $0.88 |
||
|
12102A
|
12102A
12102-0F020
Pan Sub-Assy, Oil, No.2
[11.2007 - 04.2009] 2UZFE..UCK6# |
12102-0F020 |
— | ||
|
12121
|
12121
12121-50230
Plate, Oil Pan Baffle, No.1
[11.2007 - 04.2009] 2UZFE..UCK6# |
12121-50230 |
— | ||
|
12122
|
12122
12122-50040
Plate, Oil Pan Baffle, No.2
[11.2007 - 04.2009] 2UZFE..UCK6# |
12122-50040 |
— | ||
|
12123
|
12123
12123-50020
Plate, Oil Pan Baffle No.3
[11.2007 - 04.2009] 2UZFE..UCK6# |
12123-50020 |
— | ||
|
15301
|
15301
15301-0F020
Gage Sub-Assy, Oil Level
[11.2007 - 04.2009] 2UZFE..UCK6# |
15301-0F020 |
— | ||
|
15708
|
15708
15790-50010 Nozzle Sub-Assy, Oil, No.1[11.2007 - 04.2009] 2UZFE..UCK6# |
15790-50010 |
US $10.90 |
||
|
90119A0182
|
90119A0182
90119-A0182 New Genuine Part |
90119-A0182 |
US $2.48 |
||
|
9008011178
|
9008011178
90080-11178
New Genuine Part
|
90080-11178 |
— | ||
|
9008011211
|
9008011211
90080-11211
New Genuine Part
|
90080-11211 |
— | ||
|
9008011538
|
9008011538
90080-11538
Bolt, Stud(For Oil Pan)
|
90080-11538 |
— | ||
|
9008011575
|
9008011575
90080-11575
New Genuine Part
|
90080-11575 |
— | ||
|
9011006018
|
9011006018
90110-06018 Bolt(For Rear Steering Worm Control Cam) |
90110-06018 |
from US $0.76 |
||
|
9017906193
|
9017906193
90179-06193 New Genuine Part |
90179-06193 |
US $1.92 |
||
|
9091002072
|
9091002072
90910-02072
Bolt(For Crankshaft Bearing Cap Set)
|
90910-02072 |
— | ||
| replacement | |||||
|
9091002072
|
9091002072
90910-02176 Bolt(For Crankshaft Bearing Cap Set) |
90910-02176 |
from US $3.84 |
||
