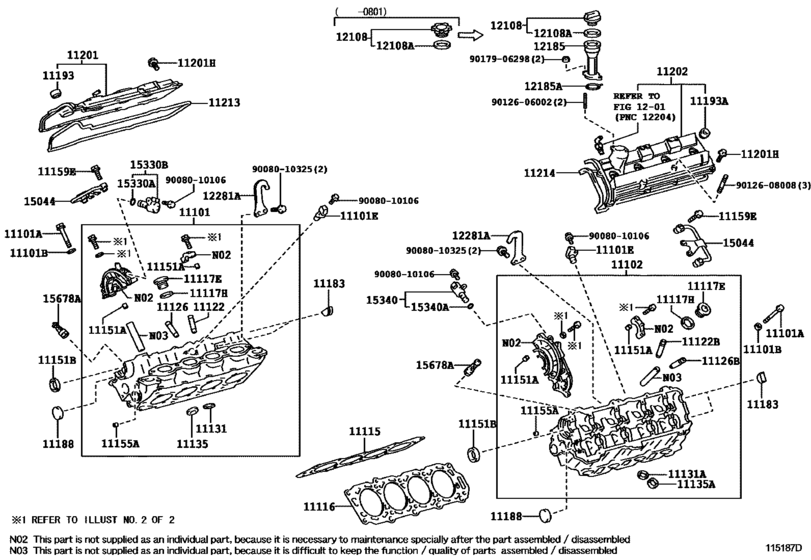

Cylinder Head ([11.2007 - 04.2009] (0711-0904)2UZFE) Diagram Toyota SEQUOIA
- Year
- 2007 - 2009
- Sales region
- U.S.A.
- Frame
- UCK65
- grade
- LIMD
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- From
- 11.2007
- To
- 04.2009
- Gear Shift Type
- 5FC
- Vehicle Model
- SEQUOIA
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-09220
Head Sub-Assy, Cylinder
[11.2007 - 04.2009] 2UZFE..UCK6# |
11101-09220 |
— | ||
|
11101A
|
11101A
90910-02132
Bolt(For Cylinder Head Set)
[11.2007 - 04.2009] 2UZFE..UCK6# |
90910-02132 |
— | ||
| replacement | |||||
|
11101A
|
11101A
90910-02181 Bolt(For Cylinder Head Set)[11.2007 - 04.2009] 2UZFE..UCK6# |
90910-02181 |
US $6.24 |
||
|
11101B
|
11101B
90201-10133 Washer, Plate(For Cylinder Head Set)[11.2007 - 04.2009] 2UZFE..UCK6# |
90201-10133 |
from US $1.42 |
||
|
11101E
|
11101E
90919-A5002
Sensor, Cam Position
[11.2007 - 04.2009] 2UZFE..UCK6# |
90919-A5002 |
— | ||
|
11102
|
11102
11102-09110
Head, Cylinder, Lh
[11.2007 - 04.2009] 2UZFE..UCK6# |
11102-09110 |
— | ||
|
11115
|
11115
11115-50080 Gasket, Cylinder Head[11.2007 - 04.2009] 2UZFE..UCK6# |
11115-50080 |
from US $87.93 |
||
|
11116
|
11116
11116-50070 Gasket, Cylinder Head, No.2[11.2007 - 04.2009] 2UZFE..UCK6# |
11116-50070 |
from US $88.74 |
||
|
11117E
|
11117E
90341-27006 Plug, W/head Straight Screw, No.1[11.2007 - 04.2009] 2UZFE..UCK6# |
90341-27006 |
from US $5.12 |
||
|
11117H
|
11117H
90430-27005 Gasket(For Cylinder Head Screw Plug)[11.2007 - 04.2009] 2UZFE..UCK6# |
90430-27005 |
from US $1.12 |
||
|
11122
|
11122
11122-20020
Bush, Intake Valve Guide
[11.2007 - 04.2009] 2UZFE..UCK6# STD |
11122-20020 |
— | ||
| replacement | |||||
|
11122
|
11122
11122-22040 Bush, Intake Valve GuideINTAKE VALVE GUIDE [11.2007 - 04.2009] 2UZFE..UCK6# STD |
11122-22040 |
from US $8.46 |
||
|
11122
|
11122
11123-20020 Bush, Intake Valve Guide[11.2007 - 04.2009] 2UZFE..UCK6# O/S 0.05 |
11123-20020 |
US $6.41 |
||
|
11122B
|
11122B
11122-20020
Bush, Intake Valve Guide
[11.2007 - 04.2009] 2UZFE..UCK6# STD |
11122-20020 |
— | ||
| replacement | |||||
|
11122B
|
11122B
11122-22040 Bush, Intake Valve GuideINTAKE VALVE GUIDE [11.2007 - 04.2009] 2UZFE..UCK6# STD |
11122-22040 |
from US $8.46 |
||
|
11122B
|
11122B
11123-20020 Bush, Intake Valve Guide[11.2007 - 04.2009] 2UZFE..UCK6# O/S 0.05 |
11123-20020 |
US $6.41 |
||
|
11126
|
11126
11126-20020 Bush, Exhaust Valve Guide[11.2007 - 04.2009] 2UZFE..UCK6# STD |
11126-20020 |
from US $6.81 |
||
|
11126
|
11126
11127-20020 Bush, Exhaust Valve Guide[11.2007 - 04.2009] 2UZFE..UCK6# O/S 0.05 |
11127-20020 |
US $7.68 |
||
|
11126B
|
11126B
11126-20020 Bush, Exhaust Valve Guide[11.2007 - 04.2009] 2UZFE..UCK6# STD |
11126-20020 |
from US $6.81 |
||
|
11126B
|
11126B
11127-20020 Bush, Exhaust Valve Guide[11.2007 - 04.2009] 2UZFE..UCK6# O/S 0.05 |
11127-20020 |
US $7.68 |
||
|
11131
|
11131
11131-0F010
Seat, Intake Valve
[11.2007 - 04.2009] 2UZFE..UCK6# STD |
11131-0F010 |
— | ||
|
11131
|
11131
11132-0F010
Seat, Intake Valve
[11.2007 - 04.2009] 2UZFE..UCK6# O/S 0.03 |
11132-0F010 |
— | ||
|
11131A
|
11131A
11131-0F010
Seat, Intake Valve
[11.2007 - 04.2009] 2UZFE..UCK6# STD |
11131-0F010 |
— | ||
|
11131A
|
11131A
11132-0F010
Seat, Intake Valve
[11.2007 - 04.2009] 2UZFE..UCK6# O/S 0.03 |
11132-0F010 |
— | ||
|
11135
|
11135
11135-0F020
Seat, Exhaust Valve
[11.2007 - 04.2009] 2UZFE..UCK6# STD |
11135-0F020 |
— | ||
|
11135
|
11135
11136-0F020
Seat, Exhaust Valve
[11.2007 - 04.2009] 2UZFE..UCK6# O/S 0.03 |
11136-0F020 |
— | ||
|
11135A
|
11135A
11135-0F020
Seat, Exhaust Valve
[11.2007 - 04.2009] 2UZFE..UCK6# STD |
11135-0F020 |
— | ||
|
11135A
|
11135A
11136-0F020
Seat, Exhaust Valve
[11.2007 - 04.2009] 2UZFE..UCK6# O/S 0.03 |
11136-0F020 |
— | ||
|
11151A
|
11151A
90253-10006 Pin, Ring(For Camshaft Bearing Cap Setting)[07.2008 - 04.2009] 2UZFE..UCK6# L=7,OD=10 |
90253-10006 |
US $0.79 |
||
|
11151A
|
11151A
90253-A0005
Pin, Ring(For Camshaft Bearing Cap Setting)
[11.2007 - 07.2008] 2UZFE..UCK6# L=7,OD=10 |
90253-A0005 |
— | ||
|
11151B
|
11151B
90311-A0004 Seal, Oil(For Camshaft Setting)OIL(FOR CAMSHAFT SETTING) [11.2007 - 04.2009] 2UZFE..UCK6# |
90311-A0004 |
US $13.21 |
||
|
11155A
|
11155A
90253-09001 Pin, Ring W/head[07.2008 - 04.2009] 2UZFE..UCK6# |
90253-09001 |
from US $1.33 |
||
|
11155A
|
11155A
90253-A0003
Pin, Ring W/head
[11.2007 - 07.2008] 2UZFE..UCK6# |
90253-A0003 |
— | ||
| replacement | |||||
|
11155A
|
11155A
90253-09001 Pin, Ring W/head[11.2007 - 07.2008] 2UZFE..UCK6# |
90253-09001 |
from US $1.33 |
||
|
11159E
|
11159E
90080-11581
Bolt(For Camshaft Oil Feed Pipe)
[11.2007 - 04.2009] 2UZFE..UCK6# |
90080-11581 |
— | ||
|
11183
|
11183
11183-50020 Plug, Semicircular[11.2007 - 04.2009] 2UZFE..UCK6# |
11183-50020 |
US $9.44 |
||
|
11188
|
11188
11188-50010 Plug, Camshaft Housing[11.2007 - 04.2009] 2UZFE..UCK6# |
11188-50010 |
from US $7.59 |
||
|
11193
|
11193
11193-50010 Gasket, Spark Plug Tube[11.2007 - 04.2009] 2UZFE..UCK6# |
11193-50010 |
from US $2.55 |
||
|
11193A
|
11193A
11193-50010 Gasket, Spark Plug Tube[11.2007 - 04.2009] 2UZFE..UCK6# |
11193-50010 |
from US $2.55 |
||
|
11201
|
11201
11201-0F020
Cover Sub-Assy, Cylinder Head
[11.2007 - 04.2009] 2UZFE..UCK6# |
11201-0F020 |
— | ||
|
11201H
|
11201H
90105-A0103
Bolt(For Camshaft Housing Set)
[11.2007 - 04.2009] 2UZFE..UCK6# |
90105-A0103 |
— | ||
|
11202
|
11202
11202-0F020
Cover Sub-Assy, Cylinder Head, Lh
[11.2007 - 04.2009] 2UZFE..UCK6# |
11202-0F020 |
— | ||
|
11213
|
11213
11213-0F010 Gasket, Cylinder Head Cover[11.2007 - 04.2009] 2UZFE..UCK6# |
11213-0F010 |
from US $22.04 |
||
|
11214
|
11214
11214-0F010 Gasket, Cylinder Head Cover, No.2[11.2007 - 04.2009] 2UZFE..UCK6# |
11214-0F010 |
US $19.51 |
||
|
12108
|
12108
12180-0D011
Cap Sub-Assy, Oil Filler
[11.2007 - 01.2008] 2UZFE..UCK6# |
12180-0D011 |
— | ||
| replacement | |||||
|
12108
|
12108
12180-22011 Cap Sub-Assy, Oil FillerOIL FILLER [11.2007 - 01.2008] 2UZFE..UCK6# |
12180-22011 |
from US $15.66 |
||
|
12108
|
12108
12180-38030 Cap Sub-Assy, Oil FillerOIL FILLER [01.2008 - 04.2009] 2UZFE..UCK6# |
12180-38030 |
US $10.24 |
||
|
12108A
|
12108A
90080-43032
Gasket(For Oil Filler Cap)
[11.2007 - 01.2008] 2UZFE..UCK6# |
90080-43032 |
— | ||
| replacement | |||||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[11.2007 - 01.2008] 2UZFE..UCK6# |
90430-37140 |
from US $1.25 |
||
|
12108A
|
12108A
90430-35001 Gasket(For Oil Filler Cap)[01.2008 - 04.2009] 2UZFE..UCK6# |
90430-35001 |
from US $1.21 |
||
|
12185
|
12185
12185-0F010
Housing, Oil Filler Cap
[11.2007 - 04.2009] 2UZFE..UCK6# |
12185-0F010 |
— | ||
|
12185A
|
12185A
12196-0F010
Gasket, Oil Filler Cap Housing
[11.2007 - 04.2009] 2UZFE..UCK6# |
12196-0F010 |
— | ||
|
12281A
|
12281A
12281-0F010
Hanger, Engine, No.1
[11.2007 - 05.2008] 2UZFE..UCK6# |
12281-0F010 |
— | ||
| replacement | |||||
|
12281A
|
12281A
12281-0F011
Hanger, Engine, No.1
[11.2007 - 05.2008] 2UZFE..UCK6# |
12281-0F011 |
— | ||
|
12281A
|
12281A
12281-0F011
Hanger, Engine, No.1
[05.2008 - 04.2009] 2UZFE..UCK6# |
12281-0F011 |
— | ||
|
15044
|
15044
15044-50020 Pipe Sub-Assy, Camshaft Oil Feed[11.2007 - 04.2009] 2UZFE..UCK6# |
15044-50020 |
US $10.77 |
||
|
15330A
|
15330A
90068-14030
Ring, O(For Cam Timing Oil Control Valve)
[11.2007 - 04.2009] 2UZFE..UCK6# |
90068-14030 |
— | ||
| replacement | |||||
|
15330A
|
15330A
90099-14137 Ring, O(For Cam Timing Oil Control Valve)[11.2007 - 04.2009] 2UZFE..UCK6# |
90099-14137 |
from US $2.22 |
||
|
15330B
|
15330B
15330-0F010
Valve Assy, Camshaft Timing Oil Control
[11.2007 - 04.2009] 2UZFE..UCK6# |
15330-0F010 |
— | ||
|
15340
|
15340
15340-0F010
Valve Assy, Camshaft Timing Oil Control
[11.2007 - 04.2009] 2UZFE..UCK6# |
15340-0F010 |
— | ||
|
15340A
|
15340A
90068-14030
Ring, O(For Cam Timing Oil Control Valve)
[11.2007 - 04.2009] 2UZFE..UCK6# |
90068-14030 |
— | ||
| replacement | |||||
|
15340A
|
15340A
90099-14137 Ring, O(For Cam Timing Oil Control Valve)[11.2007 - 04.2009] 2UZFE..UCK6# |
90099-14137 |
from US $2.22 |
||
|
15678A
|
15678A
15678-46020 Filter, Oil Control Valve[11.2007 - 04.2009] 2UZFE..UCK6# |
15678-46020 |
from US $3.63 |
||
|
9008010106
|
9008010106
90080-10106
New Genuine Part
|
90080-10106 |
— | ||
|
9008010325
|
9008010325
90080-10325
New Genuine Part
|
90080-10325 |
— | ||
|
9012606002
|
9012606002
90126-06002 New Genuine Part |
90126-06002 |
US $2.40 |
||
|
9012608008
|
9012608008
90126-08008 Bolt, Stud(For Water Outlet) |
90126-08008 |
from US $1.13 |
||
|
9017906298
|
9017906298
90179-06298 NUT |
90179-06298 |
US $1.44 |
||
