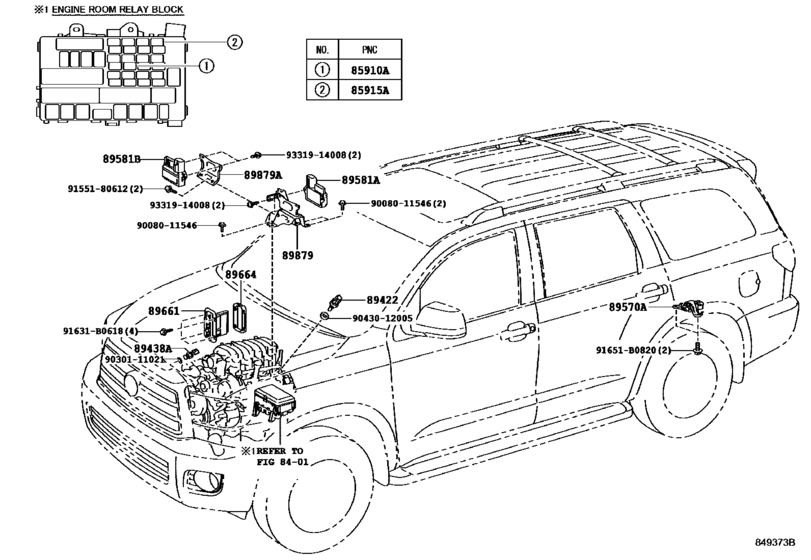

Electronic Fuel Injection System ([11.2007 - ] (0711- )UCK6#) Diagram Toyota SEQUOIA
- Year
- 2007 - 2009
- Sales region
- U.S.A.
- Frame
- UCK65
- grade
- LIMD
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- From
- 11.2007
- To
- 04.2009
- Gear Shift Type
- 5FC
- Vehicle Model
- SEQUOIA
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85910A
|
85910A
90080-87026
Relay, Water Pump
[11.2007 -] UCK6#;USK65..HTWCF |
90080-87026 |
— | ||
| replacement | |||||
|
85910A
|
85910A
90987-02027 Relay[11.2007 -] UCK6#;USK65..HTWCF |
90987-02027 |
from US $44.54 |
||
|
89422
|
89422
89422-06010 Sensor, Water Temperature (For E.f.i.)[11.2007 - 08.2008] UCK6# |
89422-06010 |
US $54.51 |
||
|
89422
|
89422
89422-33030 Sensor, Water Temperature (For E.f.i.)[08.2008 - 04.2009] UCK6# (J) |
89422-33030 |
from US $36.63 |
||
|
89438A
|
89438A
89448-34010
Switch, Power Steering Oil Pressure
[11.2007 - 12.2007] UCK6#,USK6# |
89448-34010 |
— | ||
| replacement | |||||
|
89438A
|
89438A
89448-34020 Switch, Power Steering Oil Pressure[11.2007 - 12.2007] UCK6#,USK6# |
89448-34020 |
from US $108.04 |
||
|
89438A
|
89438A
89448-34020 Switch, Power Steering Oil Pressure[01.2008 -] UCK6#,UPK6#,USK6# |
89448-34020 |
from US $108.04 |
||
|
89570A
|
89570A
89570-34040
Computer Assy, Fuel Pump Control
[11.2007 - 08.2010] UCK6#,UPK6# |
89570-34040 |
— | ||
|
89581A
|
89581A
89581-34041 Driver, Air Injection Control[11.2007 - 08.2012] UCK6#,UPK6# |
89581-34041 |
from US $128.76 |
||
|
89581B
|
89581B
89581-34051 Driver, Air Injection ControlAIR INJECTION CONTROL [11.2007 - 08.2012] UCK6#,UPK6# |
89581-34051 |
from US $149.76 |
||
|
89661
|
89661
89661-0CA30
Computer, Engine Control
[11.2007 - 06.2008] UCK65 TOWING PACKAGE-WITH |
89661-0CA30 |
— | ||
|
89661
|
89661
89661-0CA31
Computer, Engine Control
[06.2008 - 08.2008] UCK65 TOWING PACKAGE-WITH |
89661-0CA31 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-0CE81
Computer, Engine Control
[06.2008 - 08.2008] UCK65 TOWING PACKAGE-WITH |
89661-0CE81 |
— | ||
|
89661
|
89661
89661-0CA50
Computer, Engine Control
[11.2007 - 06.2008] UCK65 |
89661-0CA50 |
— | ||
|
89661
|
89661
89661-0CA51
Computer, Engine Control
[06.2008 - 08.2008] UCK65 |
89661-0CA51 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-0CF01
Computer, Engine Control
[06.2008 - 08.2008] UCK65 |
89661-0CF01 |
— | ||
|
89661
|
89661
89661-0CE80
Computer, Engine Control
[08.2008 - 02.2009] UCK65 TOWING PACKAGE-WITH |
89661-0CE80 |
— | ||
| replacement | |||||
|
89661
|
89661
89661-0CE81
Computer, Engine Control
[08.2008 - 02.2009] UCK65 TOWING PACKAGE-WITH |
89661-0CE81 |
— | ||
|
89661
|
89661
89661-0CF00
Computer, Engine Control
[08.2008 - 02.2009] UCK65 |
89661-0CF00 |
— | ||
|
89664
|
89664
89664-34010 Plate, Engine Control Computer[11.2007 - 02.2009] UCK6# |
89664-34010 |
US $7.72 |
||
|
89879
|
89879
89589-34020
Bracket, Injector Driver
[11.2007 -] UCK6#,UPK6#,USK6# |
89589-34020 |
— | ||
|
89879A
|
89879A
89589-34030
Bracket, Injector Driver
[11.2007 -] UCK6#,UPK6#,USK6# |
89589-34030 |
— | ||
|
91631B0618
|
91631B0618
91631-B0618 BOLT WWASHER |
91631-B0618 |
from US $0.82 |
||
|
91651B0820
|
91651B0820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.07 |
||
| replacement | |||||
|
91651B0820
|
91651B0820
90080-11347 New Genuine Part |
90080-11347 |
US $2.48 |
||
|
9008011546
|
9008011546
90080-11546
New Genuine Part
|
90080-11546 |
— | ||
|
9030111021
|
9030111021
90301-11021 RING O |
90301-11021 |
from US $2.20 |
||
|
9043012005
|
9043012005
90430-12005 Gasket(For Water Hole) |
90430-12005 |
from US $0.90 |
||
|
9155180612
|
9155180612
91551-80612 Bolt (For Front Differential Breather Plug Oil Deflector) |
91551-80612 |
from US $0.70 |
||
|
9331914008
|
9331914008
93319-14008 SCREW |
93319-14008 |
from US $0.80 |
||
