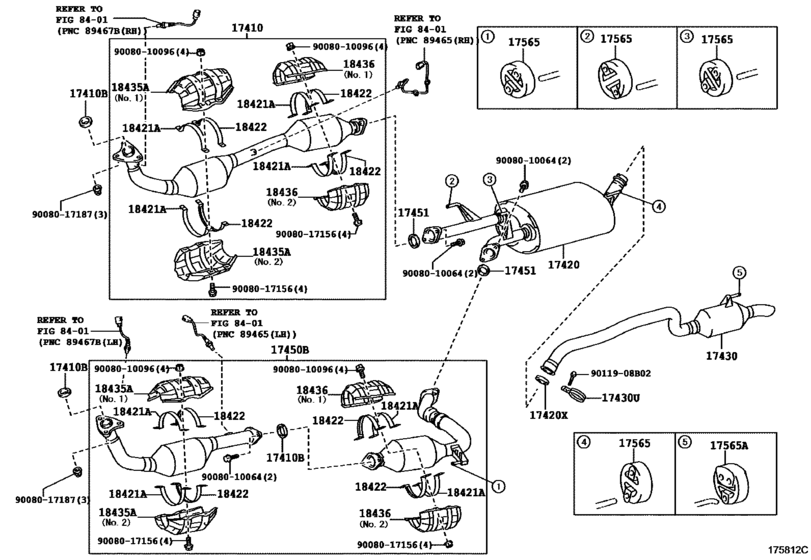

Exhaust Pipe ([11.2007 - 04.2009] (0711-0904)2UZFE) Diagram Toyota SEQUOIA
- Year
- 2007 - 2009
- Sales region
- U.S.A.
- Frame
- UCK65
- grade
- LIMD
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- From
- 11.2007
- To
- 04.2009
- Gear Shift Type
- 5FC
- Vehicle Model
- SEQUOIA
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-0F090
Pipe Assy, Exhaust, Front
[11.2007 - 04.2009] 2UZFE..UCK6# |
17410-0F090 |
— | ||
|
17410B
|
17410B
90917-A6002 Gasket, Exhaust PipeEXHAUST PIPE [11.2007 - 04.2009] 2UZFE..UCK6# |
90917-A6002 |
from US $5.60 |
||
|
17420
|
17420
17420-0F060
Pipe Assy, Exhaust, Center
[11.2007 - 04.2009] 2UZFE..UCK6# |
17420-0F060 |
— | ||
|
17420X
|
17420X
90917-06085 Gasket, Exhaust Pipe, Center[11.2007 - 04.2009] 2UZFE..UCK6# |
90917-06085 |
from US $5.27 |
||
|
17430
|
17430
17430-0F020
Pipe Assy, Exhaust, Tail
[11.2007 - 04.2009] 2UZFE..UCK6# |
17430-0F020 |
— | ||
|
17430U
|
17430U
90080-46263 Clamp No.1, Exhaust Tail Pipe (For Rear)[11.2007 - 04.2009] 2UZFE..UCK6# |
90080-46263 |
US $13.44 |
||
|
17450B
|
17450B
17450-0F120
Pipe Assy, Exhaust, Front No.2
[11.2007 - 04.2009] 2UZFE..UCK6# |
17450-0F120 |
— | ||
|
17451
|
17451
90080-43036
Gasket, Exhaust Pipe
[11.2007 - 04.2009] 2UZFE..UCK6# |
90080-43036 |
— | ||
|
17565
|
17565
17565-0S010
Support, Exhaust Pipe, No.5
[11.2007 - 03.2011] 1URFE,2UZFE,3UR#..UCK6#,UPK6#,USK6# |
17565-0S010 |
— | ||
| replacement | |||||
|
17565
|
17565
17565-0S011
Support,exhaust Pipe, No.4
[11.2007 - 03.2011] 1URFE,2UZFE,3UR#..UCK6#,UPK6#,USK6# |
17565-0S011 |
— | ||
|
17565A
|
17565A
17565-0S020
Support, Exhaust Pipe, No.4
[11.2007 - 03.2011] 1URFE,2UZFE,3UR#..UCK6#,UPK6#,USK6# |
17565-0S020 |
— | ||
| replacement | |||||
|
17565A
|
17565A
17565-0S021 Support, Exhaust Pipe, No.3[11.2007 - 03.2011] 1URFE,2UZFE,3UR#..UCK6#,UPK6#,USK6# |
17565-0S021 |
US $12.08 |
||
|
18421A
|
18421A
18421-0S020
Stay, Converter Protector, Lh
[11.2007 - 04.2009] 2UZFE..UCK6# |
18421-0S020 |
— | ||
|
18422
|
18422
18422-0S010
Stay, Converter Protector, No.2
[11.2007 - 04.2009] 2UZFE..UCK6# |
18422-0S010 |
— | ||
|
18435A
|
18435A
18435-0S010 Protector, Monolithic ConverterMONOLITHIC CONVERTER [11.2007 -] 1URFE,2UZFE,3UR#..UCK6#,UPK6#,USK6# NO.1 |
18435-0S010 |
US $40.19 |
||
|
18435A
|
18435A
18445-0S010 Protector, Monolithic ConverterMONOLITHIC CONVERTER [11.2007 -] 1URFE,2UZFE,3UR#..UCK6#,UPK6#,USK6# NO.2 |
18445-0S010 |
US $40.19 |
||
|
18436
|
18436
18435-0F060
Protector, Monolithic Converter, No.1
[11.2007 - 04.2009] 2UZFE..UCK6# NO.1 |
18435-0F060 |
— | ||
|
18436
|
18436
18445-0F040
Protector, Monolithic Converter, No.1
[11.2007 - 04.2009] 2UZFE..UCK6# NO.2 |
18445-0F040 |
— | ||
|
9011908B02
|
9011908B02
90119-08B02 BOLT WWASHER |
90119-08B02 |
from US $0.96 |
||
|
9008010064
|
9008010064
90080-10064
New Genuine Part
|
90080-10064 |
— | ||
|
9008010096
|
9008010096
90080-10096
New Genuine Part
|
90080-10096 |
— | ||
| replacement | |||||
|
9008010096
|
9008010096
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.74 |
||
|
9008017156
|
9008017156
90080-17156 New Genuine Part |
90080-17156 |
US $1.02 |
||
|
9008017187
|
9008017187
90080-17187 Nut, Exhaust Pipe Set Stud Bolt |
90080-17187 |
US $33.80 |
||
| replacement | |||||
|
9008017187
|
9008017187
90179-10070 Nut, Exhaust Pipe Set Stud Bolt |
90179-10070 |
from US $1.54 |
||
