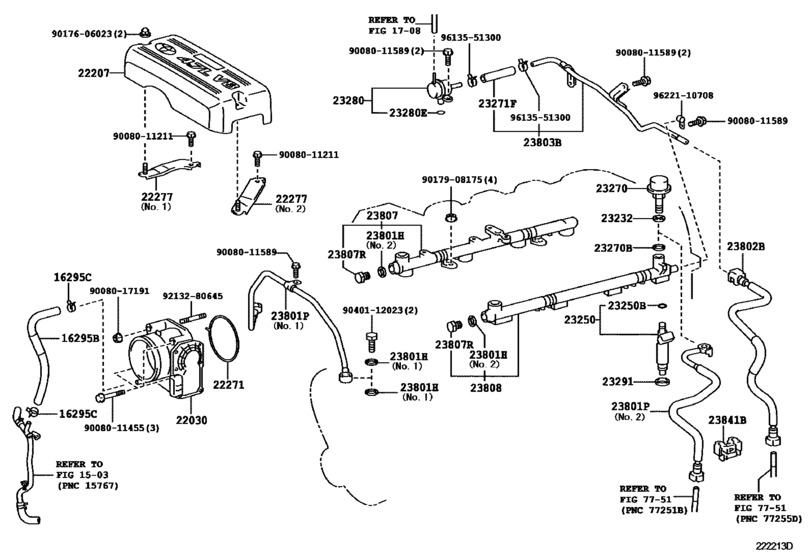

Fuel Injection System ([11.2007 - 04.2009] (0711-0904)2UZFE) Diagram Toyota SEQUOIA
- Year
- 2007 - 2009
- Sales region
- U.S.A.
- Frame
- UCK65
- grade
- LIMD
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- From
- 11.2007
- To
- 04.2009
- Gear Shift Type
- 5FC
- Vehicle Model
- SEQUOIA
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16295B
|
16295B
16295-50110 Hose, Water By-Pass, No.7[11.2007 - 04.2009] 2UZFE..UCK6# |
16295-50110 |
from US $7.51 |
||
|
16295C
|
16295C
90467-13054 Clamp Or Clip, Hose(For Water By-Pass Hose)[11.2007 - 04.2009] 2UZFE..UCK6# |
90467-13054 |
from US $0.96 |
||
| replacement | |||||
|
16295C
|
16295C
96135-51300 Clamp, Hose[11.2007 - 04.2009] 2UZFE..UCK6# |
96135-51300 |
from US $1.92 |
||
|
22030
|
22030
22030-0F010
Body Assy, Throttle W/motor
[11.2007 - 04.2009] 2UZFE..UCK6# |
22030-0F010 |
— | ||
|
22207
|
22207
22266-50070 Cover Sub-Assy, Throttle BodyTHROTTLE BODY [11.2007 - 04.2009] 2UZFE..UCK6# |
22266-50070 |
US $87.36 |
||
|
22271
|
22271
22271-50050 Gasket, Throttle Body[11.2007 - 08.2012] 1URFE,2UZFE..UCK6#,UPK6# |
22271-50050 |
from US $2.55 |
||
|
22277
|
22277
22277-50061 Bracket, Throttle Body CoverTHROTTLE BODY COVER [11.2007 - 04.2009] 2UZFE..UCK6# NO.2 |
22277-50061 |
US $9.46 |
||
|
22277
|
22277
22277-50070 Bracket, Throttle Body CoverTHROTTLE BODY COVER [11.2007 - 04.2009] 2UZFE..UCK6# NO.1 |
22277-50070 |
US $10.48 |
||
|
23232
|
23232
23232-41081 Gasket(For Fuel Pump Hose)[11.2007 - 04.2009] 2UZFE..UCK6# |
23232-41081 |
from US $1.40 |
||
|
23250
|
23250
23209-0F020
Injector Assy, Fuel
[11.2007 - 04.2009] 2UZFE..UCK6# |
23209-0F020 |
— | ||
|
23250B
|
23250B
90301-07037 Ring, O(For Fuel Injector)[11.2007 - 04.2009] 2UZFE..UCK6# |
90301-07037 |
from US $2.24 |
||
|
23270
|
23270
23270-50010
Damper Assy, Fuel Pressure Pulsation
[11.2007 - 04.2009] 2UZFE..UCK6# |
23270-50010 |
— | ||
| replacement | |||||
|
23270
|
23270
23270-50012 Damper Assy, Fuel Pressure Pulsation[11.2007 - 04.2009] 2UZFE..UCK6# |
23270-50012 |
from US $78.57 |
||
|
23270B
|
23270B
90430-12026 Gasket[11.2007 - 04.2009] 2UZFE..UCK6# |
90430-12026 |
from US $0.88 |
||
|
23271F
|
23271F
95337-08009 Hose, Fuel[11.2007 - 04.2009] 2UZFE..UCK6# |
95337-08009 |
US $16.60 |
||
|
23280
|
23280
23280-50050 Regulator Assy, Fuel Pressure[11.2007 - 04.2009] 2UZFE..UCK6# |
23280-50050 |
from US $101.58 |
||
|
23280E
|
23280E
90301-07037 Ring, O(For Fuel Injector)[11.2007 - 04.2009] 2UZFE..UCK6# |
90301-07037 |
from US $2.24 |
||
|
23291
|
23291
23291-41010 Insulator, Injector Vibration[11.2007 - 04.2009] 2UZFE..UCK6# |
23291-41010 |
from US $2.87 |
||
|
23801H
|
23801H
90430-12026 Gasket[11.2007 - 04.2009] 2UZFE..UCK6# NO.1 |
90430-12026 |
from US $0.88 |
||
|
23801H
|
23801H
90430-14008 Gasket(For Water Hole)[11.2007 - 04.2009] 2UZFE..UCK6# NO.2 |
90430-14008 |
US $1.44 |
||
|
23801P
|
23801P
23271-0F010
Pipe Sub-Assy, Fuel, No.1
[11.2007 - 04.2009] 2UZFE..UCK6# NO.2 |
23271-0F010 |
— | ||
|
23801P
|
23801P
23801-50071 Pipe Sub-Assy, Fuel, No.1[11.2007 - 04.2009] 2UZFE..UCK6# NO.1 |
23801-50071 |
US $48.92 |
||
|
23802B
|
23802B
23273-0F020
Pipe Sub-Assy, Fuel, No.2
[11.2007 - 04.2009] 2UZFE..UCK6# |
23273-0F020 |
— | ||
|
23803B
|
23803B
23803-50130 Pipe Sub-Assy, Fuel, No.3[11.2007 - 04.2009] 2UZFE..UCK6# |
23803-50130 |
US $48.92 |
||
| replacement | |||||
|
23803B
|
23803B
23803-50131 Pipe Sub-Assy, Fuel, No.3[11.2007 - 04.2009] 2UZFE..UCK6# |
23803-50131 |
US $48.92 |
||
|
23807
|
23807
23807-0F020
Pipe Sub-Assy, Fuel Delivery
[11.2007 - 04.2009] 2UZFE..UCK6# |
23807-0F020 |
— | ||
|
23807R
|
23807R
90341-14032 Plug, W/head Taper Screw, No.1[11.2007 - 04.2009] 2UZFE..UCK6# |
90341-14032 |
US $2.53 |
||
|
23808
|
23808
23808-0F020
Pipe Sub-Assy, Fuel Delivery, No.2
[11.2007 - 04.2009] 2UZFE..UCK6# |
23808-0F020 |
— | ||
|
23841B
|
23841B
23841-0F010 Clamp, Fuel Pipe, No.1(For Efi)FUEL PIPE, NO.1(FOR EFI) [11.2007 - 08.2012] 1URFE,2UZFE..UCK6#,UPK6# |
23841-0F010 |
US $3.79 |
||
|
9008011211
|
9008011211
90080-11211
New Genuine Part
|
90080-11211 |
— | ||
|
9008011455
|
9008011455
90080-11455 New Genuine Part |
90080-11455 |
US $1.02 |
||
|
9008011589
|
9008011589
90080-11589 New Genuine Part |
90080-11589 |
US $2.63 |
||
|
9008017191
|
9008017191
90080-17191
New Genuine Part
|
90080-17191 |
— | ||
|
9017606023
|
9017606023
90176-06023 NUT CAP |
90176-06023 |
from US $0.84 |
||
|
9017908175
|
9017908175
90179-08175 New Genuine Part |
90179-08175 |
US $1.44 |
||
|
9040112023
|
9040112023
90401-12023 Bolt, Union(For Fuel Pipe) |
90401-12023 |
US $5.44 |
||
|
9213280645
|
9213280645
92132-80645 New Genuine Part |
92132-80645 |
US $1.60 |
||
|
9613551300
|
9613551300
96135-51300 Clamp, Hose |
96135-51300 |
from US $1.92 |
||
|
9622110708
|
9622110708
96221-10708 New Genuine Part |
96221-10708 |
US $2.33 |
||
