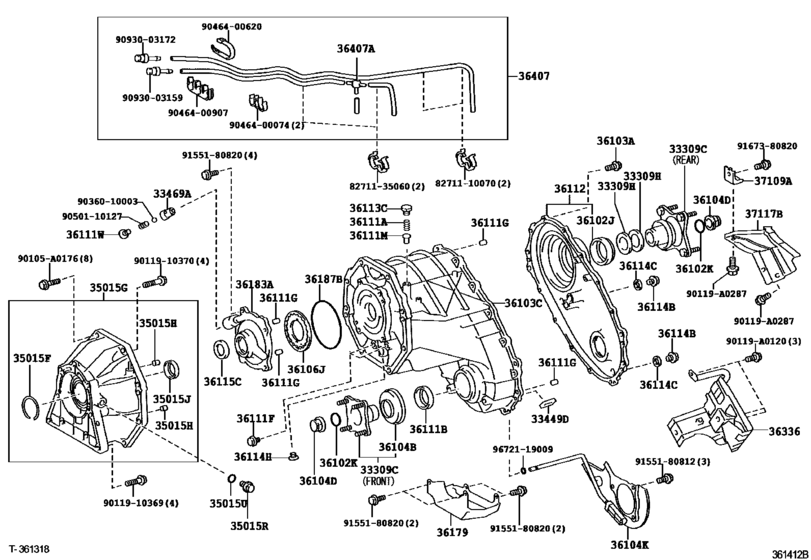

Transfer Case & Extension Housing ([11.2007 - ] (0711- )UCK65) Diagram Toyota SEQUOIA
- Year
- 2007 - 2009
- Sales region
- U.S.A.
- Frame
- UCK65
- grade
- LIMD
- ENGINE
- 2UZFE
- TRANSMISSION
- ATM
- From
- 11.2007
- To
- 04.2009
- Gear Shift Type
- 5FC
- Vehicle Model
- SEQUOIA
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33309C
|
33309C
33309-34010
Flange Sub-Assy, Output Shaft Companion
[11.2007 -] UCK65,UPK65,USK65 REAR |
33309-34010 |
— | ||
|
33309C
|
33309C
33309-34020 Flange Sub-Assy, Output Shaft Companion[11.2007 -] UCK65,UPK65,USK65 FRONT |
33309-34020 |
from US $99.01 |
||
|
33309H
|
33309H
36275-34010 Washer, Transfer Output Shaft[11.2007 -] UCK65,UPK65,USK65 T=0.8 |
36275-34010 |
from US $1.28 |
||
|
33449D
|
33449D
33449-60010 Magnet, Transmission[11.2007 -] UCK65,UPK65,USK65 |
33449-60010 |
from US $4.37 |
||
|
33469A
|
33469A
33469-60020 Seat, Relief Valve (For Transfer Extension Rear Housing)[11.2007 -] UCK65,UPK65,USK65 |
33469-60020 |
US $3.06 |
||
|
35015F
|
35015F
90521-80004 Ring, Hole Snap(For Transfer Adapter)[11.2007 - 02.2014] UCK65,UPK65,USK65 |
90521-80004 |
US $2.48 |
||
|
35015G
|
35015G
35015-0C030
Adapter, Transfer, Rear
[11.2007 - 04.2009] UCK65 |
35015-0C030 |
— | ||
|
35015H
|
35015H
90250-11003 Pin, Ring(For Transfer Case)[11.2007 -] UCK65,UPK65,USK65 |
90250-11003 |
US $1.10 |
||
|
35015J
|
35015J
90311-51008 Seal, Oil(For Transfer Case Adapter Rear)[11.2007 -] UCK65,UPK65,USK65 |
90311-51008 |
US $8.64 |
||
| replacement | |||||
|
35015J
|
35015J
90311-51010 Seal, Oil(For Transfer Case Adapter Rear)[11.2007 -] UCK65,UPK65,USK65 |
90311-51010 |
from US $7.59 |
||
|
35015R
|
35015R
90341-18059 Plug, W/head Straight Screw(For Transmission Case Adapter)[11.2007 - 08.2012] UCK65,UPK65 |
90341-18059 |
US $3.04 |
||
|
35015U
|
35015U
90301-15004 Ring, O(For Oil Cooler Tube Union)[11.2007 - 08.2012] UCK65,UPK65 |
90301-15004 |
from US $1.60 |
||
|
36102J
|
36102J
90311-50040
Seal, Type T Oil (For Transfer Cover)
[11.2007 -] UCK65,UPK65,USK65 |
90311-50040 |
— | ||
| replacement | |||||
|
36102J
|
36102J
90311-50065 SEAL TYPE T OIL[11.2007 -] UCK65,UPK65,USK65 |
90311-50065 |
from US $9.76 |
||
|
36102K
|
36102K
90301-31003 Ring, O(For Manual Transmisson Output Shaft Rear Set Nut)[11.2007 -] UCK65,UPK65,USK65 |
90301-31003 |
from US $3.36 |
||
|
36103A
|
36103A
91551-00845 Bolt (For Transfer Case)[11.2007 -] UCK65,UPK65,USK65 *8-1.25PX45-22 |
91551-00845 |
US $1.60 |
||
|
36103C
|
36103C
36103-34030
Case, Transfer, Front
[11.2007 -] UCK65,UPK65,USK65 |
36103-34030 |
— | ||
|
36104B
|
36104B
33325-34020 Deflector, Dust (For Transfer Output Shaft)[11.2007 -] UCK65,UPK65,USK65 |
33325-34020 |
US $11.65 |
||
|
36104D
|
36104D
90179-24011 Nut (For Manual Transmission Output Shaft Rear Set)[11.2007 -] UCK65,UPK65,USK65 |
90179-24011 |
from US $3.52 |
||
|
36104K
|
36104K
36104-34030
Separator Sub-Assy, Transfer Oil
[11.2007 -] UCK65,UPK65,USK65 |
36104-34030 |
— | ||
|
36106J
|
36106J
36106-34010 Rotor, Transfer Oil Pump[11.2007 -] UCK65,UPK65,USK65 |
36106-34010 |
US $24.11 |
||
|
36111A
|
36111A
90501-20091 Spring, Compression (For Transfer Case)[11.2007 -] UCK65,UPK65,USK65 |
90501-20091 |
US $0.96 |
||
|
36111B
|
36111B
90311-50039 Seal, Oil (For Transfer Case)[11.2007 -] UCK65,UPK65,USK65 |
90311-50039 |
from US $9.76 |
||
|
36111F
|
36111F
90341-24006 Plug, W/head Straight Screw, No.3[11.2007 -] UCK65,UPK65,USK65 |
90341-24006 |
US $2.97 |
||
|
36111G
|
36111G
90250-10214 Pin, Straight(For End Plate)[11.2007 -] UCK65,UPK65,USK65 L=14,OD=10 |
90250-10214 |
from US $1.46 |
||
|
36111M
|
36111M
90241-07003 Pin, Slotted Spring (For Transfer Case)[11.2007 -] UCK65,UPK65,USK65 |
90241-07003 |
US $0.87 |
||
|
36111W
|
36111W
90341-18039 Plug, No.2(For Transmission Case)[11.2007 -] UCK65,UPK65,USK65 |
90341-18039 |
from US $2.62 |
||
|
36112
|
36112
36104-34041
Case, Transfer, Rear
[11.2007 - 10.2010] UCK65,UPK65,USK65 |
36104-34041 |
— | ||
|
36113C
|
36113C
90341-14012 Plug (For Transfer Case)[11.2007 -] UCK65,UPK65,USK65 |
90341-14012 |
US $3.04 |
||
|
36114B
|
36114B
90341-18006 Plug (No magnet)[11.2007 -] UCK65,UPK65,USK65 |
90341-18006 |
from US $2.76 |
||
|
36114C
|
36114C
90430-18008 Gasket[11.2007 -] UCK65,UPK65,USK65 |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
36114C
|
36114C
90430-T0021 Gasket(For Manual Transmission Filler Plug)[11.2007 -] UCK65,UPK65,USK65 |
90430-T0021 |
US $1.15 |
||
|
36114H
|
36114H
90341-14008 Plug, W/head Taper Screw, No.1[11.2007 -] UCK65,UPK65,USK65 |
90341-14008 |
US $1.75 |
||
|
36115C
|
36115C
90311-51009 Seal, Type T Oil (For Transfer Extension Housing)[11.2007 -] UCK65,UPK65,USK65 |
90311-51009 |
from US $8.64 |
||
|
36179
|
36179
36179-34010
Protector, Transfer Case Lower
[11.2007 - 04.2012] UCK65,UPK65,USK65 |
36179-34010 |
— | ||
| replacement | |||||
|
36179
|
36179
36179-34011
Protector, Transfer Case Lower
[11.2007 - 04.2012] UCK65,UPK65,USK65 |
36179-34011 |
— | ||
|
36183A
|
36183A
36183-34011 Plate, Transfer Oil Pump[11.2007 -] UCK65,UPK65,USK65 |
36183-34011 |
US $61.44 |
||
|
36187B
|
36187B
96721-31130 Ring, O (For Transfer Oil Strainer)[11.2007 -] UCK65,UPK65,USK65 |
96721-31130 |
from US $3.14 |
||
|
36336
|
36336
36336-0C010
Insulator, Transfer Heat
[11.2007 -] UCK65,UPK65,USK65 |
36336-0C010 |
— | ||
|
36407
|
36407
36407-34040
Hose Sub-Assy, Transfer Breather
[11.2007 - 04.2009] UCK65 |
36407-34040 |
— | ||
|
36407A
|
36407A
90413-04001 Way, 3(For Transfer Breather Hose)[11.2007 -] UCK65,UPK65,USK65 |
90413-04001 |
US $4.96 |
||
|
37109A
|
37109A
37109-34010
Bracket Sub-Assy, Propeller Shaft Heat Insulator
[11.2007 -] UCK65,UPK65,USK65 |
37109-34010 |
— | ||
|
37117B
|
37117B
37117-0C030
Insulator, Propeller Shaft Heat
[11.2007 -] UCK65,UPK65,USK65 |
37117-0C030 |
— | ||
|
90105A0176
|
90105A0176
90105-A0176
New Genuine Part
|
90105-A0176 |
— | ||
|
90119A0120
|
90119A0120
90119-A0120
New Genuine Part
|
90119-A0120 |
— | ||
|
90119A0287
|
90119A0287
90119-A0287
New Genuine Part
|
90119-A0287 |
— | ||
|
8271110070
|
8271110070
82711-10070 Clamp, Wiring Harness |
82711-10070 |
US $3.20 |
||
|
8271135060
|
8271135060
82711-35060 Clamp, Wiring Harness |
82711-35060 |
from US $3.84 |
||
|
9011910369
|
9011910369
90119-10369 New Genuine Part |
90119-10369 |
US $1.60 |
||
|
9011910370
|
9011910370
90119-10370 New Genuine Part |
90119-10370 |
US $1.76 |
||
|
9036010003
|
9036010003
90360-10003 Ball(For Transmission Oil Pump Cover) |
90360-10003 |
from US $1.29 |
||
|
9046400074
|
9046400074
90464-00074 Joint, No.1 (For Idle Up Divice) |
90464-00074 |
US $1.92 |
||
|
9046400620
|
9046400620
90464-00620 New Genuine Part |
90464-00620 |
US $1.92 |
||
|
9046400907
|
9046400907
90464-00907 New Genuine Part |
90464-00907 |
US $1.46 |
||
|
9050110127
|
9050110127
90501-10127 Spring, Compression(For Transmission Oil Pump Cover) |
90501-10127 |
from US $0.79 |
||
|
9093003159
|
9093003159
90930-03159 Plug, Breather (For Rear Differential) |
90930-03159 |
from US $1.44 |
||
|
9093003172
|
9093003172
90930-03172 PLUG BREATHER |
90930-03172 |
US $1.92 |
||
|
9155180812
|
9155180812
91551-80812 BOLT FLANGE |
91551-80812 |
US $1.28 |
||
|
9155180820
|
9155180820
91551-80820 Bolt, W/washer (For Transmission Oil Pump Cover) |
91551-80820 |
from US $0.78 |
||
|
9167380820
|
9167380820
91673-80820 Bolt (For Transmission Control Cable Bracket) |
91673-80820 |
from US $0.84 |
||
|
9672119009
|
9672119009
96721-19009 Ring, O(For Oil Level Gage) |
96721-19009 |
from US $1.56 |
||
