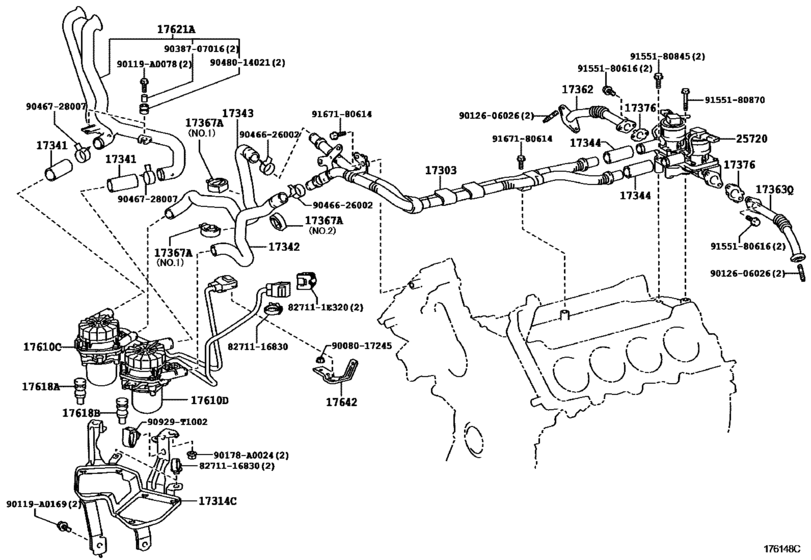

Manifold Air Injection System ([11.2008 - ] (0811- )3URFE..USK60) Diagram Toyota SEQUOIA
- Year
- 2008 - 2016
- Sales region
- General
- Frame
- USK60
- grade
- SR5
- ENGINE
- 3URFE
- TRANSMISSION
- ATM
- From
- 11.2008
- To
- 09.2016
- Gear Shift Type
- 6FC
- Vehicle Model
- SEQUOIA
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17303
|
17303
17303-38070 Pipe Sub-Assy, AirAIR [11.2008 - 11.2009] 3URFE..USK60 |
17303-38070 |
from US $51.75 |
||
|
17314C
|
17314C
17314-0S010 Bracket, Air PumpAIR PUMP [11.2008 - 11.2009] 3URFE..USK60 |
17314-0S010 |
US $135.41 |
||
|
17341
|
17341
17341-0S010 Hose, No.1(For Air Injection System)NO.1(FOR AIR INJECTION SYSTEM) [11.2008 - 11.2009] 3URFE..USK60 |
17341-0S010 |
US $11.84 |
||
|
17342
|
17342
17342-0S010 Hose, No.2(For Air Injection System)NO.2(FOR AIR INJECTION SYSTEM) [11.2008 - 11.2009] 3URFE..USK60 |
17342-0S010 |
US $27.96 |
||
|
17343
|
17343
17343-0S010 Hose, No.3(For Air Injection System)NO.3(FOR AIR INJECTION SYSTEM) [11.2008 - 11.2009] 3URFE..USK60 |
17343-0S010 |
US $39.14 |
||
|
17344
|
17344
17341-38050 Hose, No.1(For Air Injection System)NO.1(FOR AIR INJECTION SYSTEM) [11.2008 - 11.2009] 3URFE..USK60 |
17341-38050 |
US $11.84 |
||
|
17362
|
17362
17362-38010
Tube, Air, No.2
[11.2008 - 11.2009] 3URFE..USK60 |
17362-38010 |
— | ||
|
17363Q
|
17363Q
17363-38010 Tube, Air, No.3AIR, NO.3 [11.2008 - 11.2009] 3URFE..USK60 |
17363-38010 |
US $42.08 |
||
|
17367A
|
17367A
90929-A1002
Clamp, Air Injection Hose, No.2
[11.2008 - 11.2009] 3URFE..USK60 NO.1 |
90929-A1002 |
— | ||
| replacement | |||||
|
17367A
|
17367A
17366-0S010 Clamp, Air Injection Hose, No.1[11.2008 - 11.2009] 3URFE..USK60 NO.1 |
17366-0S010 |
US $2.97 |
||
|
17367A
|
17367A
90929-A1003 Clamp, Air Injection Hose, No.2[11.2008 - 11.2009] 3URFE..USK60 NO.2 |
90929-A1003 |
US $2.18 |
||
|
17376
|
17376
17376-38020 Gasket, Air Tube, No.1AIR TUBE, NO.1 [11.2008 - 11.2009] 3URFE..USK60 |
17376-38020 |
from US $2.67 |
||
|
17610C
|
17610C
17610-0S010 Pump Assy, AirAIR [11.2008 - 11.2009] 3URFE..USK60 |
17610-0S010 |
from US $525 |
||
|
17610D
|
17610D
17610-0S010 Pump Assy, AirAIR [11.2008 - 11.2009] 3URFE..USK60 |
17610-0S010 |
from US $525 |
||
|
17618A
|
17618A
17618-0C010 Insulator, Air Pump[11.2008 - 11.2009] 3URFE..USK60 |
17618-0C010 |
US $11.68 |
||
|
17618B
|
17618B
17618-0C010 Insulator, Air Pump[11.2008 - 11.2009] 3URFE..USK60 |
17618-0C010 |
US $11.68 |
||
|
17621A
|
17621A
17621-0S011 Inlet, Air PumpAIR PUMP [11.2008 - 11.2009] 3URFE..USK60 |
17621-0S011 |
US $49.65 |
||
| replacement | |||||
|
17621A
|
17621A
17621-0S012 Inlet, Air Pump[11.2008 - 11.2009] 3URFE..USK60 |
17621-0S012 |
US $46.62 |
||
|
17642
|
17642
17642-0S010 Bracket, Air Pump WireAIR PUMP WIRE [11.2008 - 11.2009] 3URFE..USK60 |
17642-0S010 |
US $8.74 |
||
|
25720
|
25720
25701-38060
Valve Assy, Electric Air Control
[11.2008 - 11.2009] 3URFE..USK60 |
25701-38060 |
— | ||
| replacement | |||||
|
25720
|
25720
25701-38064 Valve Assy, Electric Air Control[11.2008 - 11.2009] 3URFE..USK60 |
25701-38064 |
from US $349.97 |
||
|
90119A0078
|
90119A0078
90119-A0078
New Genuine Part
|
90119-A0078 |
— | ||
|
90119A0169
|
90119A0169
90119-A0169
New Genuine Part
|
90119-A0169 |
— | ||
|
90178A0024
|
90178A0024
90178-A0024
New Genuine Part
|
90178-A0024 |
— | ||
|
90929T1002
|
90929T1002
90929-T1002 New Genuine Part |
90929-T1002 |
US $2.18 |
||
|
827111E320
|
827111E320
82711-1E320 Clamp, Wiring Harness |
82711-1E320 |
US $1.12 |
||
|
8271116830
|
8271116830
82711-16830 Clamp, Headlamp Cleaner, No.1 |
82711-16830 |
US $1.60 |
||
|
9008017245
|
9008017245
90080-17245
New Genuine Part
|
90080-17245 |
— | ||
|
9012606026
|
9012606026
90126-06026 Bolt, Stud(Manifold To Throttle Body) |
90126-06026 |
from US $0.70 |
||
|
9038707016
|
9038707016
90387-07016 Collar(For Intake Air Connector) |
90387-07016 |
US $0.79 |
||
|
9046626002
|
9046626002
90466-26002 Clamp Or Clip, No.1(For Air Injection System Hose, No.1)NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1) |
90466-26002 |
US $2.88 |
||
|
9046728007
|
9046728007
90467-28007 Clip Or Clamp(For Ventilation Hose) |
90467-28007 |
from US $3.10 |
||
|
9048014021
|
9048014021
90480-14021 GROMMET |
90480-14021 |
US $1.92 |
||
|
9155180616
|
9155180616
91551-80616 BOLT FLANGE |
91551-80616 |
from US $0.72 |
||
|
9155180845
|
9155180845
91551-80845 BOLT FLANGE |
91551-80845 |
US $1.76 |
||
|
9155180870
|
9155180870
91551-80870 Bolt(For Cylinder Head Cover) |
91551-80870 |
from US $1.05 |
||
|
9167180614
|
9167180614
91671-80614 Bolt (For Transmission Control Cable Bracket) |
91671-80614 |
from US $0.68 |
||
