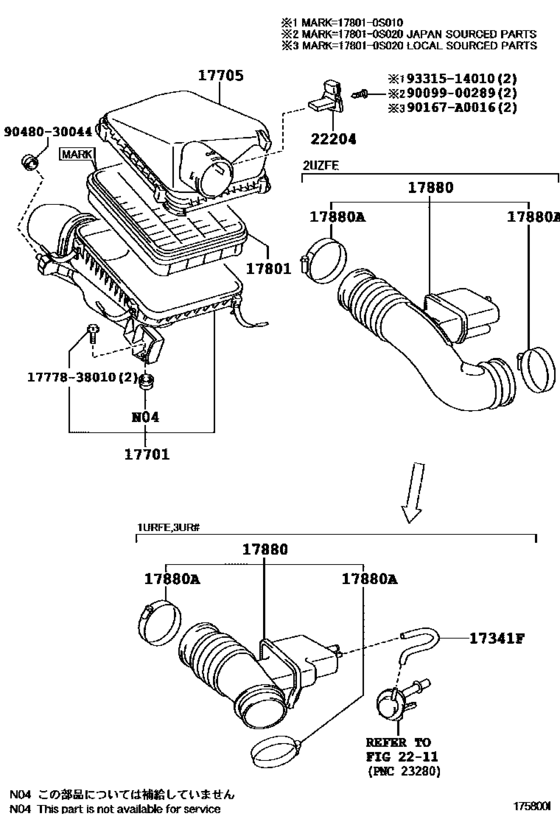

Air Cleaner ([11.2007 - ] (0711- )) Diagram Toyota SEQUOIA
- Year
- 2007 - 2017
- Sales region
- U.S.A.
- Frame
- USK65
- grade
- LIMD
- ENGINE
- 3URFE
- TRANSMISSION
- ATM
- From
- 11.2007
- To
- 08.2017
- Gear Shift Type
- 6FC
- Vehicle Model
- SEQUOIA
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17341F
|
17341F
17341-38060 Hose, Air, No.1AIR, NO.1 [11.2007 -] 1URFE,3UR#..UPK6#,USK6# |
17341-38060 |
US $6.29 |
||
|
17701
|
17701
17701-0S010 Case Sub-Assy, Air CleanerAIR CLEANER [11.2007 - 08.2013] 1URFE,2UZFE,3UR#..UCK6#,UPK6#,USK6# REFER TO PNC 17801 |
17701-0S010 |
US $181.71 |
||
|
17701
|
17701
17701-0S030 Case Sub-Assy, Air Cleaner[08.2013 -] 3UR#..USK6# REFER TO PNC 17801 |
17701-0S030 |
from US $157.50 |
||
|
17705
|
17705
17705-0S010
Cap Sub-Assy, Air Cleaner
[11.2007 - 08.2009] 1URFE,2UZFE,3UR#..UCK6#,UPK6#,USK6# |
17705-0S010 |
— | ||
|
17705
|
17705
17705-0S020
Cap Sub-Assy, Air Cleaner
[08.2009 - 02.2010] 1URFE,3UR#..UPK6#,USK6# |
17705-0S020 |
— | ||
| replacement | |||||
|
17705
|
17705
17705-0S021
Cap Sub-Assy, Air Cleaner
[08.2009 - 02.2010] 1URFE,3UR#..UPK6#,USK6# |
17705-0S021 |
— | ||
|
17705
|
17705
17705-0S021
Cap Sub-Assy, Air Cleaner
[03.2010 - 08.2013] 1URFE,3UR#..UPK6#,USK6# REFER TO PNC 17801 |
17705-0S021 |
— | ||
|
17705
|
17705
17705-0S030
Cap Sub-Assy, Air Cleaner
[08.2013 -] 3UR#..USK6# REFER TO PNC 17801 |
17705-0S030 |
— | ||
|
17705
|
17705
17735-0S010
Cap Sub-Assy, Air Cleaner
[08.2013 -] 3URFE..USK60 MEXICO SPEC,REFER TO PNC 17801; 3URFE..USK65 SOUTH AMERICA SPEC,REFER TO PNC 17801 |
17735-0S010 |
— | ||
|
17801
|
17801
17801-0P100 Element Sub-Assy, Air Cleaner Filter[05.2015 -] 3UR#..USK6# |
17801-0P100 |
US $76 |
||
|
17801
|
17801
17801-0S010 Element Sub-Assy, Air Cleaner FilterAIR CLEANER FILTER [11.2007 - 08.2013] 1URFE,2UZFE,3UR#..UCK6#,UPK6#,USK6# MARK 17801-0S010 |
17801-0S010 |
from US $56.24 |
||
|
17801
|
17801
17801-0S020 Element Sub-Assy, Air Cleaner Filter[08.2013 - 04.2015] 3UR#..USK6# MARK 17801-0S020 |
17801-0S020 |
US $72.80 |
||
| replacement | |||||
|
17801
|
17801
17801-0P100 Element Sub-Assy, Air Cleaner Filter[08.2013 - 04.2015] 3UR#..USK6# MARK 17801-0S020 |
17801-0P100 |
US $76 |
||
|
17880
|
17880
17880-0S010 Hose Assy, Air CleanerAIR CLEANER [11.2007 -] 1URFE,3UR#..UPK6#,USK6# |
17880-0S010 |
US $56.78 |
||
|
17880A
|
17880A
90460-A0001
Clamp, Hose
[11.2007 -] 1URFE,2UZFE,3UR#..UCK6#,UPK6#,USK6# |
90460-A0001 |
— | ||
|
22204
|
22204
22204-0F030
Meter Sub-Assy, Intake Air Flow
[11.2007 -] 1URFE,2UZFE,3UR#..UCK6#,UPK6#,USK6# |
22204-0F030 |
— | ||
|
90167A0016
|
90167A0016
90167-A0016
New Genuine Part
|
90167-A0016 |
— | ||
|
1777838010
|
1777838010
17778-38010 BOLT AIR CLEANER |
17778-38010 |
US $4.58 |
||
|
9009900289
|
9009900289
90099-00289 SCREW |
90099-00289 |
from US $0.70 |
||
|
9048030044
|
9048030044
90480-30044 GROMMET |
90480-30044 |
from US $2.46 |
||
|
9331514010
|
9331514010
93315-14010 SCREW |
93315-14010 |
from US $0.80 |
||
