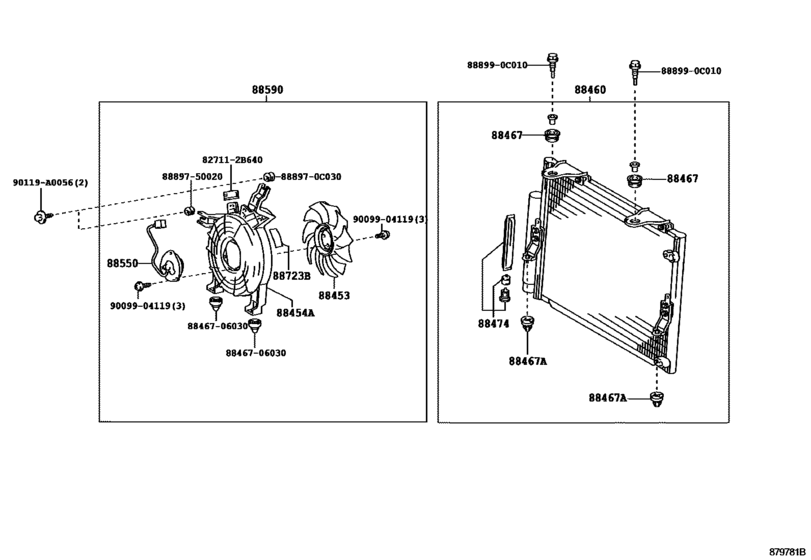

Heating & Air Conditioning - Cooler Piping ([11.2007 - ] CONDENSER & FUN SHROUD (0711- )) Diagram Toyota SEQUOIA
- Year
- 2007 - 2017
- Sales region
- U.S.A.
- Frame
- USK65
- grade
- LIMD
- ENGINE
- 3URFE
- TRANSMISSION
- ATM
- From
- 11.2007
- To
- 08.2017
- Gear Shift Type
- 6FC
- Vehicle Model
- SEQUOIA
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88453
|
88453
88453-0C010 Fan, Cooling (For Condenser)COOLING (FOR CONDENSER) [11.2007 -] UCK6#,UPK6#,USK6# |
88453-0C010 |
US $96.10 |
||
|
88454A
|
88454A
88454-0C030
Shroud, Fan
[11.2007 - 11.2009] UCK6#,UPK6#,USK6# |
88454-0C030 |
— | ||
| replacement | |||||
|
88454A
|
88454A
88454-0C031 Shroud, Fan[11.2007 - 11.2009] UCK6#,UPK6#,USK6# |
88454-0C031 |
US $248.10 |
||
|
88454A
|
88454A
88454-0C031 Shroud, Fan[11.2009 -] UPK6#,USK6# |
88454-0C031 |
US $248.10 |
||
|
88460
|
88460
88460-0C100 Condenser Assy, CoolerCOOLER [11.2007 -] UCK6#,UPK6#,USK6# |
88460-0C100 |
US $436.80 |
||
|
88467
|
88467
88467-12180 Cushion, Cooler Condenser, No.1[11.2007 -] UCK6#,UPK6#,USK6# |
88467-12180 |
from US $1.92 |
||
|
88467A
|
88467A
88467-05010 Cushion, Cooler Condenser, No.2[11.2007 -] UCK6#,UPK6#,USK6# |
88467-05010 |
US $3.35 |
||
|
88474
|
88474
88474-08010 Dryer, CoolerCOOLER [11.2009 - 11.2010] USK6# TOWING PACKAGE-WITH |
88474-08010 |
US $39.14 |
||
|
88474
|
88474
88474-17010 Dryer, Cooler[11.2007 -] UCK6#,UPK6#,USK6# |
88474-17010 |
from US $67.27 |
||
|
88550
|
88550
88550-34010 Motor Assy, Blower (For Condenser)BLOWER (FOR CONDENSER) [11.2007 -] UCK6#,UPK6#,USK6# |
88550-34010 |
from US $256.84 |
||
|
88590
|
88590
88590-0C030
Blower Assy, W/shroud
[11.2007 - 10.2009] UCK6#,UPK6#,USK6# |
88590-0C030 |
— | ||
| replacement | |||||
|
88590
|
88590
88590-0C031 Blower Assy, W/shroud[11.2007 - 10.2009] UCK6#,UPK6#,USK6# |
88590-0C031 |
US $573.66 |
||
|
88590
|
88590
88590-0C031 Blower Assy, W/shroud[11.2009 -] UPK6#,USK6# |
88590-0C031 |
US $573.66 |
||
|
88723B
|
88723B
16793-28020
Label, Cooling Fan Caution
[11.2007 -] UCK6#,UPK6#,USK6# |
16793-28020 |
— | ||
| replacement | |||||
|
88723B
|
88723B
16793-36040 Label, Cooling Fan Information[11.2007 -] UCK6#,UPK6#,USK6# |
16793-36040 |
US $3.20 |
||
|
90119A0056
|
90119A0056
90119-A0056
New Genuine Part
|
90119-A0056 |
— | ||
|
827112B640
|
827112B640
82711-2B640 Wire, Fuse To Fuse(for Combustion Heater) |
82711-2B640 |
US $1.76 |
||
|
888970C030
|
888970C030
88897-0C030
Valve, Cooler Magnet
|
88897-0C030 |
— | ||
|
888990C010
|
888990C010
88899-0C010
Cover, Evaporator
|
88899-0C010 |
— | ||
|
8846706030
|
8846706030
88467-06030
Cushion, Cooler Condenser, No.1
|
88467-06030 |
— | ||
|
8889750020
|
8889750020
88897-50020
Grommet, Cooler
|
88897-50020 |
— | ||
|
9009904119
|
9009904119
90099-04119 BOLT WASHER HEAD |
90099-04119 |
from US $0.68 |
||
