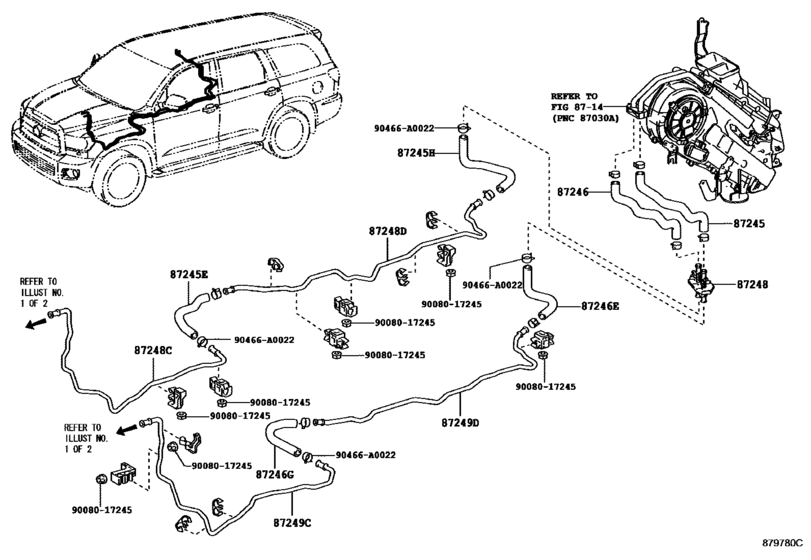

Heating & Air Conditioning - Water Piping ([11.2007 - ] REAR (0711- )) Diagram Toyota SEQUOIA
- Year
- 2007 - 2017
- Sales region
- U.S.A.
- Frame
- USK65
- grade
- LIMD
- ENGINE
- 3URFE
- TRANSMISSION
- ATM
- From
- 11.2007
- To
- 08.2017
- Gear Shift Type
- 6FC
- Vehicle Model
- SEQUOIA
- Fuel Induction
- HTWC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87245
|
87245
87245-0C230
Hose, Heater Water, Inlet
[11.2007 - 08.2008] UCK6#,USK6# |
87245-0C230 |
— | ||
|
87245
|
87245
87245-0C450
Hose, Heater Water, Inlet
[08.2008 -] UCK6#,UPK6#,USK6# |
87245-0C450 |
— | ||
|
87245E
|
87245E
87245-0C290
Hose, Heater Water, Inlet E
[11.2007 -] UCK6#,UPK6#,USK6# |
87245-0C290 |
— | ||
|
87245H
|
87245H
87245-0C320
Hose, Heater Water, Inlet H
[11.2007 -] UCK6#,UPK6#,USK6# |
87245-0C320 |
— | ||
|
87246
|
87246
87245-0C220
Hose, Heater Water, Outlet
[11.2007 - 08.2008] UCK6#,USK6# |
87245-0C220 |
— | ||
|
87246
|
87246
87245-0C450
Hose, Heater Water, Inlet
[08.2008 -] UCK6#,UPK6#,USK6# |
87245-0C450 |
— | ||
|
87246E
|
87246E
87245-0C300
Hose, Heater Water, Outlet E
[11.2007 -] UCK6#,UPK6#,USK6# |
87245-0C300 |
— | ||
|
87246G
|
87246G
87245-0C310
Hose, Heater Water, Outlet G
[11.2007 -] UCK6#,UPK6#,USK6# |
87245-0C310 |
— | ||
|
87248
|
87248
87248-0C070
Pipe Sub-Assy, Water
[11.2007 -] UCK6#,UPK6#,USK6# |
87248-0C070 |
— | ||
|
87248C
|
87248C
87248-0C100
Pipe, Heater Water Inlet, C
[11.2007 -] UCK6#,UPK6#,USK6# |
87248-0C100 |
— | ||
|
87248D
|
87248D
87248-0C120
Pipe, Heater Water Inlet, D
[11.2007 -] UCK6#,UPK6#,USK6# |
87248-0C120 |
— | ||
|
87249C
|
87249C
87248-0C110
Pipe, Heater Water Outlet, C
[11.2007 -] UCK6#,UPK6#,USK6# |
87248-0C110 |
— | ||
|
87249D
|
87249D
87248-0C130
Pipe, Heater Water Outlet, D
[11.2007 -] UCK6#,UPK6#,USK6# |
87248-0C130 |
— | ||
|
90466A0022
|
90466A0022
90466-A0022
Clip Or Clamp (For Heater Water Hose)
|
90466-A0022 |
— | ||
|
9008017245
|
9008017245
90080-17245
New Genuine Part
|
90080-17245 |
— |
