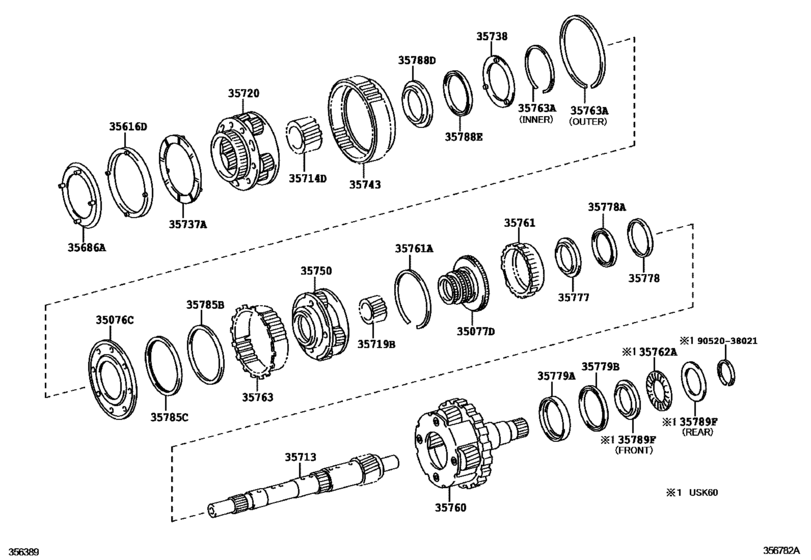

Planetary Gear, Reverse Piston & Counter Gear(Atm) ([11.2007 - ] AB60E,AB60F (0711- )USK6#) Diagram Toyota SEQUOIA
- Year
- 2007 - 2017
- Sales region
- U.S.A.
- Frame
- USK65
- grade
- LIMD
- ENGINE
- 3URFE
- TRANSMISSION
- ATM
- From
- 11.2007
- To
- 08.2017
- Gear Shift Type
- 6FC
- Vehicle Model
- SEQUOIA
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35076C
|
35076C
35076-34010
Flange Sub-Assy, Front Planetary Ring Gear
[11.2007 - 09.2009] USK6# |
35076-34010 |
— | ||
| replacement | |||||
|
35076C
|
35076C
35076-34020 Flange Sub-Assy, Front Planetary Ring GearFRONT PLANETARY RING GEAR [11.2007 - 09.2009] USK6# |
35076-34020 |
US $40.62 |
||
|
35076C
|
35076C
35076-34020 Flange Sub-Assy, Front Planetary Ring GearFRONT PLANETARY RING GEAR [09.2009 -] USK6# |
35076-34020 |
US $40.62 |
||
|
35077D
|
35077D
35077-0C030
Flange Sub-Assy, Rr Planetary Ring Gear
[11.2007 -] USK6# |
35077-0C030 |
— | ||
|
35616D
|
35616D
35616-34010 Washer, Clutch Drum ThrustCLUTCH DRUM THRUST [11.2007 -] USK6# |
35616-34010 |
US $30.14 |
||
|
35686A
|
35686A
35686-34010 Washer, Clutch Drum Thrust, No.2CLUTCH DRUM THRUST, NO.2 [11.2007 -] USK6# |
35686-34010 |
US $19.51 |
||
|
35713
|
35713
35713-0C020
Shaft, Intermediate
[11.2007 -] USK6# |
35713-0C020 |
— | ||
|
35714D
|
35714D
35714-34010
Gear, Fr Planetary Sun
[11.2007 -] USK6# |
35714-34010 |
— | ||
|
35719B
|
35719B
35719-34010
Gear, Planetary Sun
[11.2007 -] USK6# |
35719-34010 |
— | ||
|
35720
|
35720
35720-34020
Gear Assy, Front Planetary
[11.2007 -] USK6# |
35720-34020 |
— | ||
|
35737A
|
35737A
35737-34010 Washer, Planetary Carrier Thrust, No.1PLANETARY CARRIER THRUST, NO.1 [11.2007 -] USK6# |
35737-34010 |
US $14.27 |
||
|
35738
|
35738
35738-34010 Washer, Planetary Carrier Thrust, No.2PLANETARY CARRIER THRUST, NO.2 [11.2007 -] USK6# |
35738-34010 |
US $9.61 |
||
|
35743
|
35743
35743-34010 Gear, Front Planetary RingFRONT PLANETARY RING [11.2007 -] USK6# |
35743-34010 |
US $84.92 |
||
|
35750
|
35750
35750-34010
Gear Assy, Center Planetary
[11.2007 -] USK6# |
35750-34010 |
— | ||
|
35760
|
35760
35760-0C060
Gear Assy, Rear Planetary
[11.2007 -] USK65 |
35760-0C060 |
— | ||
|
35761
|
35761
35761-0C020
Gear, Rear Planetary Ring
[11.2007 -] USK6# |
35761-0C020 |
— | ||
|
35761A
|
35761A
90520-99137
Ring, Hole Snap (For Rear Planetary Ring Gear)
[11.2007 - 03.2014] USK6# |
90520-99137 |
— | ||
|
35761A
|
35761A
90520-A0050
Ring, Hole Snap (For Rear Planetary Ring Gear)
[03.2014 -] USK6# |
90520-A0050 |
— | ||
|
35763
|
35763
35763-34010
Gear, Center Planetary Ring
[11.2007 - 09.2009] USK6# |
35763-34010 |
— | ||
| replacement | |||||
|
35763
|
35763
35763-34020 Gear, Center Planetary RingCENTER PLANETARY RING [11.2007 - 09.2009] USK6# |
35763-34020 |
US $167.44 |
||
|
35763
|
35763
35763-34020 Gear, Center Planetary RingCENTER PLANETARY RING [09.2009 -] USK6# |
35763-34020 |
US $167.44 |
||
|
35763A
|
35763A
90520-99139 Ring, Snap(For Center Planetary Ring Gear)SNAP(FOR CENTER PLANETARY RING GEAR) [11.2007 -] USK6# INNER |
90520-99139 |
US $2.48 |
||
|
35763A
|
35763A
90520-99140 Ring, Snap(For Center Planetary Ring Gear)SNAP(FOR CENTER PLANETARY RING GEAR) [11.2007 -] USK6# OUTER |
90520-99140 |
US $3.20 |
||
|
35777
|
35777
35777-0C020
Race, Thrust Bearing, No.7
[11.2007 -] USK6# |
35777-0C020 |
— | ||
|
35778
|
35778
35778-0C020
Race, Thrust Bearing, No.8
[11.2007 -] USK6# |
35778-0C020 |
— | ||
|
35778A
|
35778A
90374-A0019
Bearing, Thrust Needle Roller
[11.2007 -] USK6# |
90374-A0019 |
— | ||
|
35779A
|
35779A
35779-0C020 Race, Thrust Bearing, No.9THRUST BEARING, NO.9 [11.2007 -] UCK6#,UPK6#,USK6# |
35779-0C020 |
US $10.34 |
||
|
35779B
|
35779B
90374-A0017 Bearing, Thrust Needle RollerTHRUST NEEDLE ROLLER [11.2007 -] USK6# |
90374-A0017 |
US $13.98 |
||
|
35785B
|
35785B
35785-34010
Race, Thrust Bearing, No.4
[11.2007 -] USK6# |
35785-34010 |
— | ||
|
35785C
|
35785C
90374-65002 Bearing, Thrust Needle RollerTHRUST NEEDLE ROLLER [11.2007 -] USK6# |
90374-65002 |
US $17.47 |
||
|
35788D
|
35788D
35788-34010
Race, Thrust Bearing, No.3
[11.2007 -] USK6# |
35788-34010 |
— | ||
|
35788E
|
35788E
90374-54004 Bearing, Thrust Needle RollerTHRUST NEEDLE ROLLER [11.2007 -] USK6# |
90374-54004 |
US $17.47 |
||
|
9052038021
|
9052038021
90520-38021
New Genuine Part
|
90520-38021 |
— | ||
