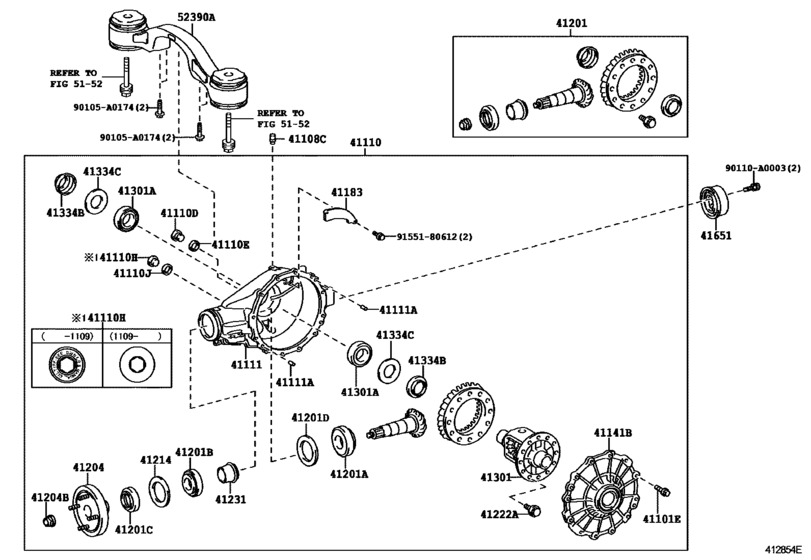

Rear Axle Housing & Differential ([11.2007 - ] (0711- )) Diagram Toyota SEQUOIA
- Year
- 2007 - 2017
- Sales region
- U.S.A.
- Frame
- USK65
- grade
- LIMD
- ENGINE
- 3URFE
- TRANSMISSION
- ATM
- From
- 11.2007
- To
- 08.2017
- Gear Shift Type
- 6FC
- Vehicle Model
- SEQUOIA
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41101E
|
41101E
90105-12350 Bolt (For Rear Axle Bearing Case Rh)[11.2007 -] UCK6#,UPK6#,USK6# |
90105-12350 |
from US $1.38 |
||
|
41108C
|
41108C
90930-03077 Plug, Breather (For Automatic Transmission Case)[11.2007 -] UCK6#,UPK6#,USK6# |
90930-03077 |
from US $7.20 |
||
|
41110
|
41110
41110-34531
Carrier Assy, Differential, Rear
[11.2007 -] UCK6#,UPK6#,USK6#..HTWC *FGR=43:11=3.909 |
41110-34531 |
— | ||
|
41110
|
41110
41110-34541
Carrier Assy, Differential, Rear
[11.2007 -] UCK6#,USK6#..HTWC *FGR=43:10=4.300,TOWING PACKAGE-WITH |
41110-34541 |
— | ||
|
41110D
|
41110D
90341-24014 Plug, Front Differential Drain[11.2007 -] UCK6#,UPK6#,USK6# |
90341-24014 |
from US $4.96 |
||
|
41110E
|
41110E
90430-24003
Gasket(For Oil Filter Bracket Union)
[11.2007 -] UCK6#,UPK6#,USK6# |
90430-24003 |
— | ||
| replacement | |||||
|
41110E
|
41110E
90430-24017 Gasket[11.2007 -] UCK6#,UPK6#,USK6# |
90430-24017 |
from US $0.94 |
||
|
41110H
|
41110H
90341-18032 Plug Sub-Assy, Drain(Mtm)No magnet [09.2011 -] UPK6#,USK6# |
90341-18032 |
from US $3.36 |
||
|
41110H
|
41110H
90341-18066
Plug (For Rear Differential Filler)
[11.2007 - 09.2011] UCK6#,UPK6#,USK6# |
90341-18066 |
— | ||
| replacement | |||||
|
41110H
|
41110H
90341-18032 Plug Sub-Assy, Drain(Mtm)No magnet [11.2007 - 09.2011] UCK6#,UPK6#,USK6# |
90341-18032 |
from US $3.36 |
||
|
41110J
|
41110J
12157-10010 Gasket (For Drain Plug)[11.2007 -] UCK6#,UPK6#,USK6# |
12157-10010 |
from US $1.09 |
||
|
41111
|
41111
41111-34061
Carrier, Rear Differential
[11.2007 -] UCK6#,UPK6#,USK6# |
41111-34061 |
— | ||
|
41111A
|
41111A
90250-10017 Pin, Straight(For Clutch Housing Set)[11.2007 -] UCK6#,UPK6#,USK6# |
90250-10017 |
from US $2.08 |
||
|
41141B
|
41141B
41141-34021
Retainer, Rear Differential Side Bearing
[11.2007 -] UCK6#,UPK6#,USK6# |
41141-34021 |
— | ||
|
41183
|
41183
41183-34020
Deflector, Rear Differential Breather Plug Oil
[11.2007 -] UCK6#,UPK6#,USK6# |
41183-34020 |
— | ||
|
41201
|
41201
41201-09860
Final Gear Kit, Differential, Rear
[11.2007 -] UCK6#,UPK6#,USK6#..HTWC *FGR=43:11=3.909 |
41201-09860 |
— | ||
|
41201
|
41201
41201-09870
Final Gear Kit, Differential, Rear
[11.2007 -] UCK6#,USK6#..HTWC *FGR=43:10=4.300,TOWING PACKAGE-WITH |
41201-09870 |
— | ||
|
41201A
|
41201A
90366-45044
Bearing (For Rear Drive Pinion Rear)
[11.2007 -] UCK6#,UPK6#,USK6# |
90366-45044 |
— | ||
|
41201B
|
41201B
90366-40123
Bearing (For Rear Drive Pinion Front)
[11.2007 -] UCK6#,UPK6#,USK6# |
90366-40123 |
— | ||
|
41201C
|
41201C
90311-52025 Seal, Oil (For Rear Differential Carrier)OIL (FOR REAR DIFFERENTIAL CARRIER) [11.2007 -] UCK6#,UPK6#,USK6# |
90311-52025 |
US $5.69 |
||
|
41201D
|
41201D
90564-83001
Washer, Plate (For Rear Differential Drive Pinion)
[11.2007 -] UCK6#,UPK6#,USK6# T=1.74,MARK 74 |
90564-83001 |
— | ||
|
41201D
|
41201D
90564-83002
Washer, Plate (For Rear Differential Drive Pinion)
[11.2007 -] UCK6#,UPK6#,USK6# T=1.76,MARK 76 |
90564-83002 |
— | ||
|
41201D
|
41201D
90564-83003
Washer, Plate (For Rear Differential Drive Pinion)
[11.2007 -] UCK6#,UPK6#,USK6# T=1.78,MARK 78 |
90564-83003 |
— | ||
|
41201D
|
41201D
90564-83004
Washer, Plate (For Rear Differential Drive Pinion)
[11.2007 -] UCK6#,UPK6#,USK6# T=1.80,MARK 80 |
90564-83004 |
— | ||
|
41201D
|
41201D
90564-83005
Washer, Plate (For Rear Differential Drive Pinion)
[11.2007 -] UCK6#,UPK6#,USK6# T=1.82,MARK 82 |
90564-83005 |
— | ||
|
41201D
|
41201D
90564-83006
Washer, Plate (For Rear Differential Drive Pinion)
[11.2007 -] UCK6#,UPK6#,USK6# T=1.84,MARK 84 |
90564-83006 |
— | ||
|
41201D
|
41201D
90564-83007
Washer, Plate (For Rear Differential Drive Pinion)
[11.2007 -] UCK6#,UPK6#,USK6# T=1.86,MARK 86 |
90564-83007 |
— | ||
|
41201D
|
41201D
90564-83008
Washer, Plate (For Rear Differential Drive Pinion)
[11.2007 -] UCK6#,UPK6#,USK6# T=1.88,MARK 88 |
90564-83008 |
— | ||
|
41201D
|
41201D
90564-83009
Washer, Plate (For Rear Differential Drive Pinion)
[11.2007 -] UCK6#,UPK6#,USK6# T=1.90,MARK 90 |
90564-83009 |
— | ||
|
41201D
|
41201D
90564-83010
Washer, Plate (For Rear Differential Drive Pinion)
[11.2007 -] UCK6#,UPK6#,USK6# T=1.92,MARK 92 |
90564-83010 |
— | ||
|
41201D
|
41201D
90564-83011
Washer, Plate (For Rear Differential Drive Pinion)
[11.2007 -] UCK6#,UPK6#,USK6# T=1.94,MARK 94 |
90564-83011 |
— | ||
|
41201D
|
41201D
90564-83012
Washer, Plate (For Rear Differential Drive Pinion)
[11.2007 -] UCK6#,UPK6#,USK6# T=1.96,MARK 96 |
90564-83012 |
— | ||
|
41201D
|
41201D
90564-83013
Washer, Plate (For Rear Differential Drive Pinion)
[11.2007 -] UCK6#,UPK6#,USK6# T=1.98,MARK 98 |
90564-83013 |
— | ||
|
41201D
|
41201D
90564-83014
Washer, Plate (For Rear Differential Drive Pinion)
[11.2007 -] UCK6#,UPK6#,USK6# T=2.00,MARK 00 |
90564-83014 |
— | ||
|
41201D
|
41201D
90564-83015
Washer, Plate (For Rear Differential Drive Pinion)
[11.2007 -] UCK6#,UPK6#,USK6# T=2.02,MARK 02 |
90564-83015 |
— | ||
|
41201D
|
41201D
90564-83016
Washer, Plate (For Rear Differential Drive Pinion)
[11.2007 -] UCK6#,UPK6#,USK6# T=2.04,MARK 04 |
90564-83016 |
— | ||
|
41201D
|
41201D
90564-83017
Washer, Plate (For Rear Differential Drive Pinion)
[11.2007 -] UCK6#,UPK6#,USK6# T=2.06,MARK 06 |
90564-83017 |
— | ||
|
41201D
|
41201D
90564-83018
Washer, Plate (For Rear Differential Drive Pinion)
[11.2007 -] UCK6#,UPK6#,USK6# T=2.08,MARK 08 |
90564-83018 |
— | ||
|
41201D
|
41201D
90564-83019
Washer, Plate (For Rear Differential Drive Pinion)
[11.2007 -] UCK6#,UPK6#,USK6# T=2.10,MARK 10 |
90564-83019 |
— | ||
|
41201D
|
41201D
90564-83020
Washer, Plate (For Rear Differential Drive Pinion)
[11.2007 -] UCK6#,UPK6#,USK6# T=2.12,MARK 12 |
90564-83020 |
— | ||
|
41201D
|
41201D
90564-83021
Washer, Plate (For Rear Differential Drive Pinion)
[11.2007 -] UCK6#,UPK6#,USK6# T=2.14,MARK 14 |
90564-83021 |
— | ||
|
41201D
|
41201D
90564-83022
Washer, Plate (For Rear Differential Drive Pinion)
[11.2007 -] UCK6#,UPK6#,USK6# T=2.16,MARK 16 |
90564-83022 |
— | ||
|
41201D
|
41201D
90564-83023
Washer, Plate (For Rear Differential Drive Pinion)
[11.2007 -] UCK6#,UPK6#,USK6# T=2.18,MARK 18 |
90564-83023 |
— | ||
|
41201D
|
41201D
90564-83024
Washer, Plate (For Rear Differential Drive Pinion)
[11.2007 -] UCK6#,UPK6#,USK6# T=2.20,MARK 20 |
90564-83024 |
— | ||
|
41201D
|
41201D
90564-83025
Washer, Plate (For Rear Differential Drive Pinion)
[11.2007 -] UCK6#,UPK6#,USK6# T=2.22,MARK 22 |
90564-83025 |
— | ||
|
41201D
|
41201D
90564-83026
Washer, Plate (For Rear Differential Drive Pinion)
[11.2007 -] UCK6#,UPK6#,USK6# T=2.24,MARK 24 |
90564-83026 |
— | ||
|
41201D
|
41201D
90564-83027
Washer, Plate (For Rear Differential Drive Pinion)
[11.2007 -] UCK6#,UPK6#,USK6# T=2.26,MARK 26 |
90564-83027 |
— | ||
|
41201D
|
41201D
90564-83028
Washer, Plate (For Rear Differential Drive Pinion)
[11.2007 -] UCK6#,UPK6#,USK6# T=2.28,MARK 28 |
90564-83028 |
— | ||
|
41201D
|
41201D
90564-83029
Washer, Plate (For Rear Differential Drive Pinion)
[11.2007 -] UCK6#,UPK6#,USK6# T=2.30,MARK 30 |
90564-83029 |
— | ||
|
41201D
|
41201D
90564-83030
Washer, Plate (For Rear Differential Drive Pinion)
[11.2007 -] UCK6#,UPK6#,USK6# T=2.32,MARK 32 |
90564-83030 |
— | ||
|
41201D
|
41201D
90564-83031
Washer, Plate (For Rear Differential Drive Pinion)
[11.2007 -] UCK6#,UPK6#,USK6# T=2.34,MARK 34 |
90564-83031 |
— | ||
|
41204
|
41204
41204-34060
Flange Sub-Assy, Rear Drive Pinion Companion, Rear
[11.2007 -] UCK6#,UPK6#,USK6# |
41204-34060 |
— | ||
|
41204B
|
41204B
90179-22029 Nut (For Rear Drive Pinion)[11.2007 -] UCK6#,UPK6#,USK6# OD=43 |
90179-22029 |
from US $2.93 |
||
|
41214
|
41214
41214-34020
Slinger, Rear Differential Drive Pinion Oil
[11.2007 -] UCK6#,UPK6#,USK6# |
41214-34020 |
— | ||
|
41222A
|
41222A
90105-14183 Bolt (For Rear Differential Ring Gear Set)[11.2007 -] UCK6#,UPK6#,USK6# |
90105-14183 |
US $2.61 |
||
|
41231
|
41231
41231-34050
Spacer, Rear Differential Drive Pinion Bearing
[11.2007 -] UCK6#,UPK6#,USK6# |
41231-34050 |
— | ||
|
41301
|
41301
41301-34060
Case Sub-Assy, Rear Differential
[11.2007 -] UCK6#,UPK6#,USK6# |
41301-34060 |
— | ||
|
41301A
|
41301A
90366-60021
Bearing(For Rear Differential Case)
[11.2007 -] UCK6#,UPK6#,USK6# |
90366-60021 |
— | ||
|
41334B
|
41334B
90311-47013 Oil Seal, Front Drive Shaft, Rh[11.2007 -] UCK6#,UPK6#,USK6# |
90311-47013 |
from US $9.28 |
||
|
41334C
|
41334C
90564-52005
Washer, Plate (For Rear Differential Side Gear Shaft)
[11.2007 -] UCK6#,UPK6#,USK6# T=1.56,MARK 56 |
90564-52005 |
— | ||
|
41334C
|
41334C
90564-52006
Washer, Plate (For Rear Differential Side Gear Shaft)
[11.2007 -] UCK6#,UPK6#,USK6# T=1.58,MARK 58 |
90564-52006 |
— | ||
|
41334C
|
41334C
90564-52007
Washer, Plate (For Rear Differential Side Gear Shaft)
[11.2007 -] UCK6#,UPK6#,USK6# T=1.60,MARK 60 |
90564-52007 |
— | ||
|
41334C
|
41334C
90564-52008
Washer, Plate (For Rear Differential Side Gear Shaft)
[11.2007 -] UCK6#,UPK6#,USK6# T=1.62,MARK 62 |
90564-52008 |
— | ||
|
41334C
|
41334C
90564-52009
Washer, Plate (For Rear Differential Side Gear Shaft)
[11.2007 -] UCK6#,UPK6#,USK6# T=1.64,MARK 64 |
90564-52009 |
— | ||
|
41334C
|
41334C
90564-52010
Washer, Plate (For Rear Differential Side Gear Shaft)
[11.2007 -] UCK6#,UPK6#,USK6# T=1.66,MARK 66 |
90564-52010 |
— | ||
|
41334C
|
41334C
90564-52011
Washer, Plate (For Rear Differential Side Gear Shaft)
[11.2007 -] UCK6#,UPK6#,USK6# T=1.68,MARK 68 |
90564-52011 |
— | ||
|
41334C
|
41334C
90564-52012
Washer, Plate (For Rear Differential Side Gear Shaft)
[11.2007 -] UCK6#,UPK6#,USK6# T=1.70,MARK 70 |
90564-52012 |
— | ||
|
41334C
|
41334C
90564-52013
Washer, Plate (For Rear Differential Side Gear Shaft)
[11.2007 -] UCK6#,UPK6#,USK6# T=1.72,MARK 72 |
90564-52013 |
— | ||
|
41334C
|
41334C
90564-52014
Washer, Plate (For Rear Differential Side Gear Shaft)
[11.2007 -] UCK6#,UPK6#,USK6# T=1.74,MARK 74 |
90564-52014 |
— | ||
|
41334C
|
41334C
90564-52015
Washer, Plate (For Rear Differential Side Gear Shaft)
[11.2007 -] UCK6#,UPK6#,USK6# T=1.76,MARK 76 |
90564-52015 |
— | ||
|
41334C
|
41334C
90564-52016
Washer, Plate (For Rear Differential Side Gear Shaft)
[11.2007 -] UCK6#,UPK6#,USK6# T=1.78,MARK 78 |
90564-52016 |
— | ||
|
41334C
|
41334C
90564-52017
Washer, Plate (For Rear Differential Side Gear Shaft)
[11.2007 -] UCK6#,UPK6#,USK6# T=1.80,MARK 80 |
90564-52017 |
— | ||
|
41334C
|
41334C
90564-52018
Washer, Plate (For Rear Differential Side Gear Shaft)
[11.2007 -] UCK6#,UPK6#,USK6# T=1.82,MARK 82 |
90564-52018 |
— | ||
|
41334C
|
41334C
90564-52019
Washer, Plate (For Rear Differential Side Gear Shaft)
[11.2007 -] UCK6#,UPK6#,USK6# T=1.84,MARK 84 |
90564-52019 |
— | ||
|
41334C
|
41334C
90564-52020
Washer, Plate (For Rear Differential Side Gear Shaft)
[11.2007 -] UCK6#,UPK6#,USK6# T=1.86,MARK 86 |
90564-52020 |
— | ||
|
41334C
|
41334C
90564-52021
Washer, Plate (For Rear Differential Side Gear Shaft)
[11.2007 -] UCK6#,UPK6#,USK6# T=1.88,MARK 88 |
90564-52021 |
— | ||
|
41334C
|
41334C
90564-52022
Washer, Plate (For Rear Differential Side Gear Shaft)
[11.2007 -] UCK6#,UPK6#,USK6# T=1.90,MARK 90 |
90564-52022 |
— | ||
|
41334C
|
41334C
90564-52023
Washer, Plate (For Rear Differential Side Gear Shaft)
[11.2007 -] UCK6#,UPK6#,USK6# T=1.92,MARK 92 |
90564-52023 |
— | ||
|
41334C
|
41334C
90564-52024
Washer, Plate (For Rear Differential Side Gear Shaft)
[11.2007 -] UCK6#,UPK6#,USK6# T=1.94,MARK 94 |
90564-52024 |
— | ||
|
41334C
|
41334C
90564-52025
Washer, Plate (For Rear Differential Side Gear Shaft)
[11.2007 -] UCK6#,UPK6#,USK6# T=1.96,MARK 96 |
90564-52025 |
— | ||
|
41334C
|
41334C
90564-52026
Washer, Plate (For Rear Differential Side Gear Shaft)
[11.2007 -] UCK6#,UPK6#,USK6# T=1.98,MARK 98 |
90564-52026 |
— | ||
|
41334C
|
41334C
90564-52027
Washer, Plate (For Rear Differential Side Gear Shaft)
[11.2007 -] UCK6#,UPK6#,USK6# T=2.00,MARK 00 |
90564-52027 |
— | ||
|
41334C
|
41334C
90564-52028
Washer, Plate (For Rear Differential Side Gear Shaft)
[11.2007 -] UCK6#,UPK6#,USK6# T=2.02,MARK 02 |
90564-52028 |
— | ||
|
41334C
|
41334C
90564-52029
Washer, Plate (For Rear Differential Side Gear Shaft)
[11.2007 -] UCK6#,UPK6#,USK6# T=2.04,MARK 04 |
90564-52029 |
— | ||
|
41334C
|
41334C
90564-52030
Washer, Plate (For Rear Differential Side Gear Shaft)
[11.2007 -] UCK6#,UPK6#,USK6# T=2.06,MARK 06 |
90564-52030 |
— | ||
|
41334C
|
41334C
90564-52031
Washer, Plate (For Rear Differential Side Gear Shaft)
[11.2007 -] UCK6#,UPK6#,USK6# T=2.08,MARK 08 |
90564-52031 |
— | ||
|
41334C
|
41334C
90564-52032
Washer, Plate (For Rear Differential Side Gear Shaft)
[11.2007 -] UCK6#,UPK6#,USK6# T=2.10,MARK 10 |
90564-52032 |
— | ||
|
41334C
|
41334C
90564-52033
Washer, Plate (For Rear Differential Side Gear Shaft)
[11.2007 -] UCK6#,UPK6#,USK6# T=2.12,MARK 12 |
90564-52033 |
— | ||
|
41334C
|
41334C
90564-52034
Washer, Plate (For Rear Differential Side Gear Shaft)
[11.2007 -] UCK6#,UPK6#,USK6# T=2.14,MARK 14 |
90564-52034 |
— | ||
|
41334C
|
41334C
90564-52035
Washer, Plate (For Rear Differential Side Gear Shaft)
[11.2007 -] UCK6#,UPK6#,USK6# T=2.16,MARK 16 |
90564-52035 |
— | ||
|
41334C
|
41334C
90564-52036
Washer, Plate (For Rear Differential Side Gear Shaft)
[11.2007 -] UCK6#,UPK6#,USK6# T=2.18,MARK 18 |
90564-52036 |
— | ||
|
41334C
|
41334C
90564-52037
Washer, Plate (For Rear Differential Side Gear Shaft)
[11.2007 -] UCK6#,UPK6#,USK6# T=2.20,MARK 20 |
90564-52037 |
— | ||
|
41334C
|
41334C
90564-52038
Washer, Plate (For Rear Differential Side Gear Shaft)
[11.2007 -] UCK6#,UPK6#,USK6# T=2.22,MARK 22 |
90564-52038 |
— | ||
|
41334C
|
41334C
90564-52039
Washer, Plate (For Rear Differential Side Gear Shaft)
[11.2007 -] UCK6#,UPK6#,USK6# T=2.24,MARK 24 |
90564-52039 |
— | ||
|
41334C
|
41334C
90564-52040
Washer, Plate (For Rear Differential Side Gear Shaft)
[11.2007 -] UCK6#,UPK6#,USK6# T=2.26,MARK 26 |
90564-52040 |
— | ||
|
41651
|
41651
41651-0C061
Cushion, Rear Differential Mount, No.1
[11.2007 -] UCK6#,UPK6#,USK6# |
41651-0C061 |
— | ||
|
52390A
|
52390A
52390-0C011
Support Assy, Differential, Rear
[11.2007 - 03.2010] UCK6#,UPK6#,USK6# |
52390-0C011 |
— | ||
| replacement | |||||
|
52390A
|
52390A
52390-0C012
Support Assy, Differential, Rear
[11.2007 - 03.2010] UCK6#,UPK6#,USK6# |
52390-0C012 |
— | ||
|
52390A
|
52390A
52390-0C012
Support Assy, Differential, Rear
[04.2010 -] UPK6#,USK6# |
52390-0C012 |
— | ||
|
90105A0174
|
90105A0174
90105-A0174 New Genuine Part |
90105-A0174 |
US $3.20 |
||
|
90110A0003
|
90110A0003
90110-A0003 New Genuine Part |
90110-A0003 |
US $4.08 |
||
|
9155180612
|
9155180612
91551-80612 Bolt (For Front Differential Breather Plug Oil Deflector) |
91551-80612 |
from US $0.70 |
||
