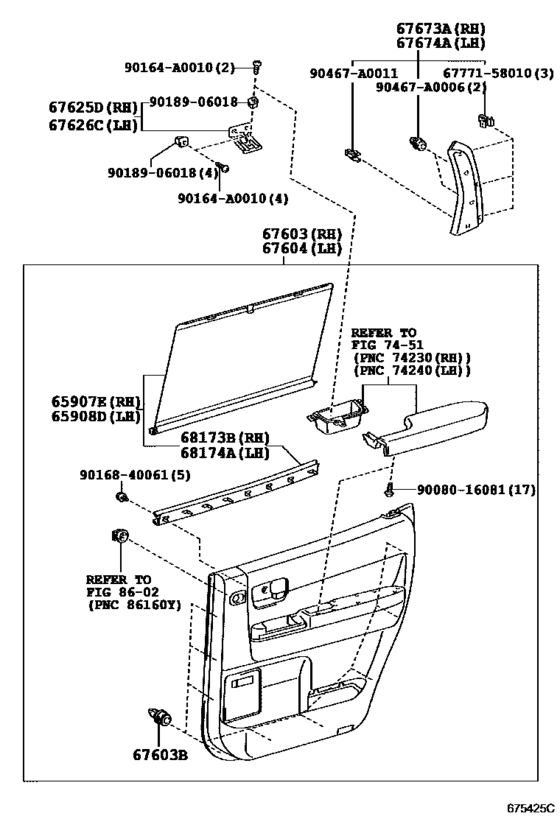

Rear Door Panel & Glass ([11.2007 - ] DDOR TRIM (0711- )LIMD,PLAT) Diagram Toyota SEQUOIA
- Year
- 2007 - 2017
- Sales region
- U.S.A.
- Frame
- USK65
- grade
- LIMD
- ENGINE
- 3URFE
- TRANSMISSION
- ATM
- From
- 11.2007
- To
- 08.2017
- Gear Shift Type
- 6FC
- Vehicle Model
- SEQUOIA
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
65907E
|
65907E
65907-0C020-C0
Curtain Sub-Assy, Rear Rh
[11.2007 - 11.2008] UCK6#,USK6#..LIMD,PLAT BLACK,TRIM13,21 |
65907-0C020-C0 |
— | ||
| replacement | |||||
|
65907E
|
65907E
65907-0C021-C0
Curtain Sub-Assy, Rear Rh
[11.2007 - 11.2008] UCK6#,USK6#..LIMD,PLAT BLACK,TRIM13,21 |
65907-0C021-C0 |
— | ||
|
65907E
|
65907E
65907-0C020-E0
Curtain Sub-Assy, Rear Rh
[11.2007 - 11.2008] UCK6#,USK6#..LIMD,PLAT DK. BROWN,TRIM44 |
65907-0C020-E0 |
— | ||
| replacement | |||||
|
65907E
|
65907E
65907-0C021-E0
Curtain Sub-Assy, Rear Rh
[11.2007 - 11.2008] UCK6#,USK6#..LIMD,PLAT DK. BROWN,TRIM44 |
65907-0C021-E0 |
— | ||
|
65907E
|
65907E
65907-0C021-C0
Curtain Sub-Assy, Rear Rh
[12.2008 - 06.2011] USK6#..PLAT BLACK,TRIM1#,2#; UPK6#,USK6#..LIMD BLACK,TRIM1# |
65907-0C021-C0 |
— | ||
|
65907E
|
65907E
65907-0C021-E0
Curtain Sub-Assy, Rear Rh
[12.2008 - 06.2011] UPK6#,USK6#..LIMD,PLAT DK. BROWN,TRIM44 |
65907-0C021-E0 |
— | ||
|
65907E
|
65907E
65907-0C022-C0
Curtain Sub-Assy, Rear Rh
[06.2011 - 10.2011] USK6#..PLAT BLACK,TRIM1#,2#,4#; UPK6#,USK6#..LIMD BLACK,TRIM1#,4# |
65907-0C022-C0 |
— | ||
| replacement | |||||
|
65907E
|
65907E
65907-0C021-C0
Curtain Sub-Assy, Rear Rh
[06.2011 - 10.2011] USK6#..PLAT BLACK,TRIM1#,2#,4#; UPK6#,USK6#..LIMD BLACK,TRIM1#,4# |
65907-0C021-C0 |
— | ||
|
65908D
|
65908D
65908-0C020-C0
Curtain Sub-Assy, Rear Lh
[11.2007 - 11.2008] UCK6#,USK6#..LIMD,PLAT BLACK,TRIM13,21 |
65908-0C020-C0 |
— | ||
| replacement | |||||
|
65908D
|
65908D
65908-0C021-C0
Curtain Sub-Assy, Rear Lh
[11.2007 - 11.2008] UCK6#,USK6#..LIMD,PLAT BLACK,TRIM13,21 |
65908-0C021-C0 |
— | ||
|
65908D
|
65908D
65908-0C020-E0
Curtain Sub-Assy, Rear Lh
[11.2007 - 11.2008] UCK6#,USK6#..LIMD,PLAT DK. BROWN,TRIM44 |
65908-0C020-E0 |
— | ||
| replacement | |||||
|
65908D
|
65908D
65908-0C021-E0
Curtain Sub-Assy, Rear Lh
[11.2007 - 11.2008] UCK6#,USK6#..LIMD,PLAT DK. BROWN,TRIM44 |
65908-0C021-E0 |
— | ||
|
65908D
|
65908D
65908-0C021-C0
Curtain Sub-Assy, Rear Lh
[12.2008 - 06.2011] USK6#..PLAT BLACK,TRIM1#,2#; UPK6#,USK6#..LIMD BLACK,TRIM1# |
65908-0C021-C0 |
— | ||
|
65908D
|
65908D
65908-0C021-E0
Curtain Sub-Assy, Rear Lh
[12.2008 - 06.2011] UPK6#,USK6#..LIMD,PLAT DK. BROWN,TRIM44 |
65908-0C021-E0 |
— | ||
|
65908D
|
65908D
65908-0C022-C0
Curtain Sub-Assy, Rear Lh
[06.2011 - 10.2011] USK6#..PLAT BLACK,TRIM1#,2#,4#; UPK6#,USK6#..LIMD BLACK,TRIM1#,4# |
65908-0C022-C0 |
— | ||
| replacement | |||||
|
65908D
|
65908D
65908-0C021-C0
Curtain Sub-Assy, Rear Lh
[06.2011 - 10.2011] USK6#..PLAT BLACK,TRIM1#,2#,4#; UPK6#,USK6#..LIMD BLACK,TRIM1#,4# |
65908-0C021-C0 |
— | ||
|
67603
|
67603
67630-0C150
Board Sub-Assy, Rear Door Trim, Rh
[08.2013 - 11.2014] USK6#..LIMD; USK6#..PLAT AUDIO-*DA(DELUXE) 12SPEAKER; USK6#..PLAT AUDIO-AVN 12SPEAKER |
67630-0C150 |
— | ||
|
67603
|
67603
67630-0C152-C1
Board Sub-Assy, Rear Door Trim, Rh
[12.2014 -] USK6#..LIMD GRAY,TRIM1#; USK6#..PLAT AUDIO-*DA(DELUXE) 12SPEAKER,GRAY,TRIM1#; USK6#..PLAT AUDIO-AVN 12SPEAKER,GRAY,TRIM1# |
67630-0C152-C1 |
— | ||
|
67603
|
67603
67630-0C152-C2
Board Sub-Assy, Rear Door Trim, Rh
[12.2014 -] USK6#..LIMD BLACK,TRIM4#; USK6#..PLAT AUDIO-*DA(DELUXE) 12SPEAKER,BLACK,TRIM4#; USK6#..PLAT AUDIO-AVN 12SPEAKER,BLACK,TRIM4# |
67630-0C152-C2 |
— | ||
|
67603
|
67603
67630-0C190-C4
Board Sub-Assy, Rear Door Trim, Rh
[11.2007 - 11.2008] UCK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
67630-0C190-C4 |
— | ||
| replacement | |||||
|
67603
|
67603
67630-0C193-C4
Board Sub-Assy, Rear Door Trim, Rh
[11.2007 - 11.2008] UCK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
67630-0C193-C4 |
— | ||
|
67603
|
67603
67630-0C190-E2
Board Sub-Assy, Rear Door Trim, Rh
[11.2007 - 11.2008] UCK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
67630-0C190-E2 |
— | ||
| replacement | |||||
|
67603
|
67603
67630-0C191-E2
Board Sub-Assy, Rear Door Trim, Rh
[11.2007 - 11.2008] UCK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
67630-0C191-E2 |
— | ||
|
67603
|
67603
67630-0C191-C4 Board Sub-Assy, Rear Door Trim, Rh[12.2008 - 06.2011] UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
67630-0C191-C4 |
US $537.23 |
||
| replacement | |||||
|
67603
|
67603
67630-0C193-C4
Board Sub-Assy, Rear Door Trim, Rh
[12.2008 - 06.2011] UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
67630-0C193-C4 |
— | ||
|
67603
|
67603
67630-0C191-C5
Board Sub-Assy, Rear Door Trim, Rh
[10.2011 - 08.2013] USK6#..LIMD BLACK,TRIM4# |
67630-0C191-C5 |
— | ||
| replacement | |||||
|
67603
|
67603
67630-0C193-C5
Board Sub-Assy, Rear Door Trim, Rh
[10.2011 - 08.2013] USK6#..LIMD BLACK,TRIM4# |
67630-0C193-C5 |
— | ||
|
67603
|
67603
67630-0C191-E2
Board Sub-Assy, Rear Door Trim, Rh
[12.2008 - 06.2011] UCK6#,UPK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
67630-0C191-E2 |
— | ||
|
67603
|
67603
67630-0C192-C4
Board Sub-Assy, Rear Door Trim, Rh
[06.2011 - 10.2011] UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
67630-0C192-C4 |
— | ||
| replacement | |||||
|
67603
|
67603
67630-0C193-C4
Board Sub-Assy, Rear Door Trim, Rh
[06.2011 - 10.2011] UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
67630-0C193-C4 |
— | ||
|
67603
|
67603
67630-0C192-C5
Board Sub-Assy, Rear Door Trim, Rh
[06.2011 - 10.2011] UPK6#,USK6#..LIMD,PLAT BLACK,TRIM4# |
67630-0C192-C5 |
— | ||
| replacement | |||||
|
67603
|
67603
67630-0C193-C5
Board Sub-Assy, Rear Door Trim, Rh
[06.2011 - 10.2011] UPK6#,USK6#..LIMD,PLAT BLACK,TRIM4# |
67630-0C193-C5 |
— | ||
|
67603
|
67603
67630-0C193-C4
Board Sub-Assy, Rear Door Trim, Rh
[12.2014 -] USK6#..PLAT GRAY,TRIM1#; USK6#..LIMD AUDIO-AVN WITH(JBL) 14SPEAKER,GRAY,TRIM1#; USK6#..LIMD POWER MEMORY PACKAGE&AUDIO-AVN WITH(JBL) 14SPEAKER,GRAY,TRIM1# |
67630-0C193-C4 |
— | ||
|
67603
|
67603
67630-0C193-C5
Board Sub-Assy, Rear Door Trim, Rh
[12.2014 -] USK6#..PLAT BLACK,TRIM4#; USK6#..LIMD AUDIO-AVN WITH(JBL) 14SPEAKER,BLACK,TRIM4#; USK6#..LIMD POWER MEMORY PACKAGE&AUDIO-AVN WITH(JBL) 14SPEAKER,BLACK,TRIM4# |
67630-0C193-C5 |
— | ||
|
67603B
|
67603B
90467-09206 Clip, Front Air Shutter Seal[11.2007 -] UCK6#,UPK6#,USK6# |
90467-09206 |
from US $0.49 |
||
|
67604
|
67604
67640-0C150
Board Sub-Assy, Rear Door Trim, Lh
[08.2013 - 11.2014] USK6#..LIMD; USK6#..PLAT AUDIO-*DA(DELUXE) 12SPEAKER; USK6#..PLAT AUDIO-AVN 12SPEAKER |
67640-0C150 |
— | ||
|
67604
|
67604
67640-0C152-C1
Board Sub-Assy, Rear Door Trim, Lh
[12.2014 -] USK6#..LIMD GRAY,TRIM1#; USK6#..PLAT AUDIO-*DA(DELUXE) 12SPEAKER,GRAY,TRIM1#; USK6#..PLAT AUDIO-AVN 12SPEAKER,GRAY,TRIM1# |
67640-0C152-C1 |
— | ||
|
67604
|
67604
67640-0C152-C2
Board Sub-Assy, Rear Door Trim, Lh
[12.2014 -] USK6#..LIMD BLACK,TRIM4#; USK6#..PLAT AUDIO-*DA(DELUXE) 12SPEAKER,BLACK,TRIM4#; USK6#..PLAT AUDIO-AVN 12SPEAKER,BLACK,TRIM4# |
67640-0C152-C2 |
— | ||
|
67604
|
67604
67640-0C190-C4
Board Sub-Assy, Rear Door Trim, Lh
[11.2007 - 11.2008] UCK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
67640-0C190-C4 |
— | ||
| replacement | |||||
|
67604
|
67604
67640-0C193-C4
Board Sub-Assy, Rear Door Trim, Lh
[11.2007 - 11.2008] UCK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
67640-0C193-C4 |
— | ||
|
67604
|
67604
67640-0C190-E2
Board Sub-Assy, Rear Door Trim, Lh
[11.2007 - 11.2008] UCK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
67640-0C190-E2 |
— | ||
| replacement | |||||
|
67604
|
67604
67640-0C191-E2
Board Sub-Assy, Rear Door Trim, Lh
[11.2007 - 11.2008] UCK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
67640-0C191-E2 |
— | ||
|
67604
|
67604
67640-0C191-C4
Board Sub-Assy, Rear Door Trim, Lh
[12.2008 - 06.2011] UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
67640-0C191-C4 |
— | ||
| replacement | |||||
|
67604
|
67604
67640-0C193-C4
Board Sub-Assy, Rear Door Trim, Lh
[12.2008 - 06.2011] UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
67640-0C193-C4 |
— | ||
|
67604
|
67604
67640-0C191-C5
Board Sub-Assy, Rear Door Trim, Lh
[10.2011 - 08.2013] USK6#..LIMD BLACK,TRIM4# |
67640-0C191-C5 |
— | ||
| replacement | |||||
|
67604
|
67604
67640-0C193-C5
Board Sub-Assy, Rear Door Trim, Lh
[10.2011 - 08.2013] USK6#..LIMD BLACK,TRIM4# |
67640-0C193-C5 |
— | ||
|
67604
|
67604
67640-0C191-E2
Board Sub-Assy, Rear Door Trim, Lh
[12.2008 - 06.2011] UCK6#,UPK6#,USK6#..LIMD,PLAT SAND BEIGE,TRIM4# |
67640-0C191-E2 |
— | ||
|
67604
|
67604
67640-0C192-C4
Board Sub-Assy, Rear Door Trim, Lh
[06.2011 - 10.2011] UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
67640-0C192-C4 |
— | ||
| replacement | |||||
|
67604
|
67604
67640-0C193-C4
Board Sub-Assy, Rear Door Trim, Lh
[06.2011 - 10.2011] UPK6#,USK6#..LIMD,PLAT GRAY,TRIM1# |
67640-0C193-C4 |
— | ||
|
67604
|
67604
67640-0C192-C5
Board Sub-Assy, Rear Door Trim, Lh
[06.2011 - 10.2011] UPK6#,USK6#..LIMD,PLAT BLACK,TRIM4# |
67640-0C192-C5 |
— | ||
| replacement | |||||
|
67604
|
67604
67640-0C193-C5
Board Sub-Assy, Rear Door Trim, Lh
[06.2011 - 10.2011] UPK6#,USK6#..LIMD,PLAT BLACK,TRIM4# |
67640-0C193-C5 |
— | ||
|
67604
|
67604
67640-0C193-C4
Board Sub-Assy, Rear Door Trim, Lh
[12.2014 -] USK6#..PLAT GRAY,TRIM1#; USK6#..LIMD AUDIO-AVN WITH(JBL) 14SPEAKER,GRAY,TRIM1#; USK6#..LIMD POWER MEMORY PACKAGE&AUDIO-AVN WITH(JBL) 14SPEAKER,GRAY,TRIM1# |
67640-0C193-C4 |
— | ||
|
67604
|
67604
67640-0C193-C5
Board Sub-Assy, Rear Door Trim, Lh
[12.2014 -] USK6#..PLAT BLACK,TRIM4#; USK6#..LIMD AUDIO-AVN WITH(JBL) 14SPEAKER,BLACK,TRIM4#; USK6#..LIMD POWER MEMORY PACKAGE&AUDIO-AVN WITH(JBL) 14SPEAKER,BLACK,TRIM4# |
67640-0C193-C5 |
— | ||
|
67625D
|
67625D
67626-0C020
Bracket, Rear Door Trim
[11.2007 -] UCK6#,UPK6#,USK6# |
67626-0C020 |
— | ||
|
67626C
|
67626C
67626-0C020
Bracket, Rear Door Trim
[11.2007 -] UCK6#,UPK6#,USK6# |
67626-0C020 |
— | ||
|
67673A
|
67673A
67673-0C030-C0
Garnish, Rear Door Frame, Rh
[11.2007 - 06.2011] UPK6#,USK6#..LIMD BLACK,TRIM1#,44; UPK6#,USK6#..PLAT,SR5 BLACK,TRIM1#,2#,44 |
67673-0C030-C0 |
— | ||
|
67673A
|
67673A
67673-0C030-E0
Garnish, Rear Door Frame, Rh
[11.2007 - 06.2011] UPK6#,USK6# DK. BROWN,TRIM44 |
67673-0C030-E0 |
— | ||
|
67674A
|
67674A
67674-0C030-C0
Garnish, Rear Door Frame, Lh
[11.2007 - 06.2011] UPK6#,USK6#..LIMD BLACK,TRIM1#,44; UPK6#,USK6#..PLAT,SR5 BLACK,TRIM1#,2#,44 |
67674-0C030-C0 |
— | ||
|
67674A
|
67674A
67674-0C030-E0
Garnish, Rear Door Frame, Lh
[11.2007 - 06.2011] UPK6#,USK6# DK. BROWN,TRIM44 |
67674-0C030-E0 |
— | ||
|
68173B
|
68173B
68173-0C050
Weatherstrip, Rear Door Glass, Inner Rh
[11.2007 -] UCK6#,UPK6#,USK6# |
68173-0C050 |
— | ||
|
68174A
|
68174A
68174-0C050
Weatherstrip, Rear Door Glass, Inner Lh
[11.2007 -] UCK6#,UPK6#,USK6# |
68174-0C050 |
— | ||
|
90164A0010
|
90164A0010
90164-A0010
New Genuine Part
|
90164-A0010 |
— | ||
|
90467A0006
|
90467A0006
90467-A0006 Clip(For Front Fender Seal) |
90467-A0006 |
US $1.28 |
||
|
90467A0011
|
90467A0011
90467-A0011
Clip, Instrument Panel, No.1
|
90467-A0011 |
— | ||
|
6777158010
|
6777158010
67771-58010 Clip, Front Pillar Garnish |
67771-58010 |
from US $1.60 |
||
|
9008016081
|
9008016081
90080-16081 New Genuine Part |
90080-16081 |
US $1.02 |
||
|
9016840061
|
9016840061
90168-40061 SCREW |
90168-40061 |
from US $0.74 |
||
|
9018906018
|
9018906018
90189-06018 GROMMET |
90189-06018 |
US $1.28 |
||
