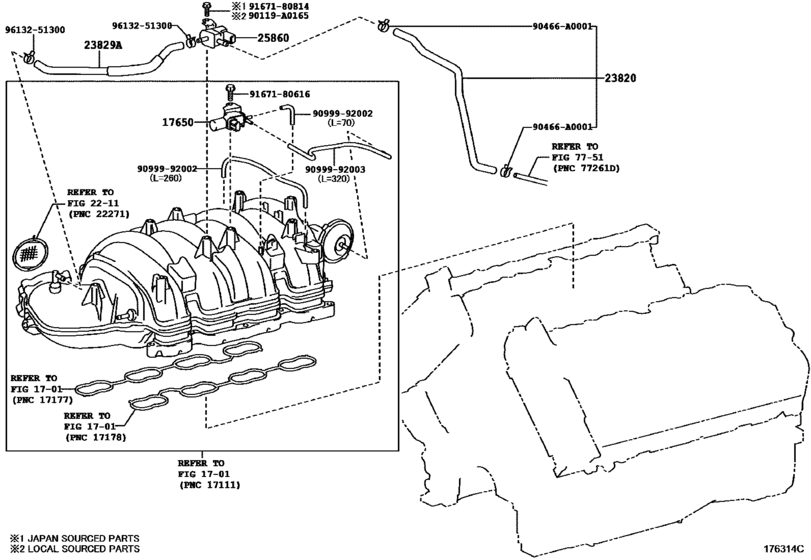

Vacuum Piping ([11.2007 - ] (0711- )3UR#) Diagram Toyota SEQUOIA
- Year
- 2007 - 2017
- Sales region
- U.S.A.
- Frame
- USK65
- grade
- LIMD
- ENGINE
- 3URFE
- TRANSMISSION
- ATM
- From
- 11.2007
- To
- 08.2017
- Gear Shift Type
- 6FC
- Vehicle Model
- SEQUOIA
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17650
|
17650
25860-0S010
Valve Assy, Vacuum Switching
[11.2007 -] 1URFE,3UR#..UPK6#,USK6# |
25860-0S010 |
— | ||
|
23820
|
23820
23820-0S010
Hose Assy, Fuel Vapor Feed
[11.2007 - 09.2011] 3UR#..USK6# |
23820-0S010 |
— | ||
|
23820
|
23820
23820-0S030
Hose Assy, Fuel Vapor Feed
[09.2011 - 09.2016] 3UR#..USK6# |
23820-0S030 |
— | ||
|
23820
|
23820
23820-0S060
Hose Assy, Fuel Vapor Feed
[09.2016 -] 3UR#..USK6# |
23820-0S060 |
— | ||
|
23829A
|
23829A
23829-0S010
Hose, Fuel Vapor Feed
[08.2013 -] 3UR#..USK6# (L) |
23829-0S010 |
— | ||
|
23829A
|
23829A
23829-38010 Hose, Fuel Vapor FeedFUEL VAPOR FEED [11.2007 - 08.2013] 3UR#..USK6# |
23829-38010 |
from US $16.01 |
||
|
25860
|
25860
25860-0S020
Valve Assy, Vacuum Switching, No.1
[12.2008 -] 1URFE,3UR#..UPK6#,USK6# (L) |
25860-0S020 |
— | ||
|
25860
|
25860
25860-31060 Valve Assy, Vacuum Switching, No.1[11.2007 - 12.2008] 3UR#..USK6# |
25860-31060 |
from US $58.37 |
||
|
90119A0165
|
90119A0165
90119-A0165 New Genuine Part |
90119-A0165 |
US $3.48 |
||
|
90466A0001
|
90466A0001
90466-A0001 Clip(For Fuel Vapor Feed Hose, No.1) |
90466-A0001 |
US $3.15 |
||
|
9099992002
|
9099992002
90999-92002
Air Hose (300 mm)
|
90999-92002 |
— | ||
|
9099992003
|
9099992003
90999-92003
Hose, Breather (For Transfer Case)
|
90999-92003 |
— | ||
|
9167180616
|
9167180616
91671-80616 BOLT FLANGE |
91671-80616 |
from US $0.64 |
||
|
9167180814
|
9167180814
91671-80814 BOLT FLANGE WWASER |
91671-80814 |
US $1.28 |
||
| replacement | |||||
|
9167180814
|
9167180814
90119-A0165 New Genuine Part |
90119-A0165 |
US $3.48 |
||
|
9613251300
|
9613251300
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.56 |
||
