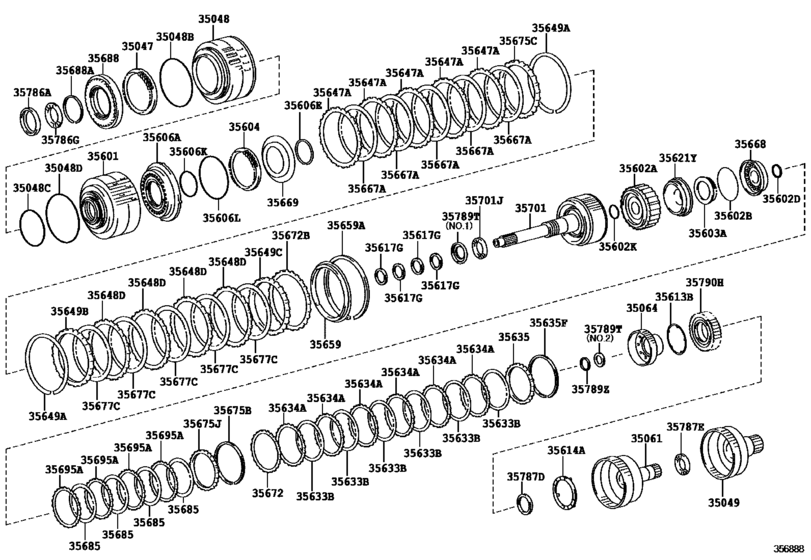

Brake Band & Multiple Disc Clutch (Atm) ([11.2008 - ] AB60E,AB60F (0811- )) Diagram Toyota SEQUOIA
- Year
- 2009 - 2016
- Sales region
- General
- Frame
- USK65
- grade
- SR5
- ENGINE
- 3URFE
- TRANSMISSION
- ATM
- From
- 11.2009
- To
- 09.2016
- Gear Shift Type
- 6FC
- Vehicle Model
- SEQUOIA
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35047
|
35047
35047-0C030
Spring Sub-Assy, Reverse Clutch Return
[11.2008 - 09.2016] USK6# |
35047-0C030 |
— | ||
|
35048
|
35048
35048-0C030
Piston Sub-Assy, Reverse Clutch
[11.2008 - 09.2016] USK6# |
35048-0C030 |
— | ||
|
35048B
|
35048B
90301-99180 Ring, O (For Reverse Clutch Piston)O (FOR REVERSE CLUTCH PISTON) [11.2008 - 09.2016] USK6# |
90301-99180 |
US $3.30 |
||
|
35048C
|
35048C
90301-99174
Ring, O(For Reverse Clutch Piston Inner)
[11.2008 - 09.2016] USK6# |
90301-99174 |
— | ||
|
35048D
|
35048D
90301-99176 Ring, O(For Direct Clutch Piston Outer)O(FOR DIRECT CLUTCH PISTON OUTER) [11.2008 - 09.2016] USK6# |
90301-99176 |
US $3.30 |
||
|
35049
|
35049
35049-0C030
Hub Sub-Assy, Reverse Clutch
[11.2008 - 09.2016] USK6# |
35049-0C030 |
— | ||
|
35061
|
35061
35061-0C030
Hub Sub-Assy, Forward Clutch
[11.2008 - 09.2016] USK6# |
35061-0C030 |
— | ||
|
35064
|
35064
35064-0C020 Hub Sub-Assy, Coast ClutchCOAST CLUTCH [11.2008 - 09.2016] USK6# |
35064-0C020 |
US $49.07 |
||
|
35601
|
35601
35601-0C030
Drum Sub-Assy, Clutch
[11.2008 - 09.2016] USK6# |
35601-0C030 |
— | ||
|
35602A
|
35602A
35602-34010 Piston Sub-Assy, Forward ClutchFORWARD CLUTCH [11.2008 - 09.2016] USK6# |
35602-34010 |
from US $94.72 |
||
|
35602B
|
35602B
90301-99084 Ring, O (For Underdrive Brake Piston)[11.2008 - 09.2016] USK6# |
90301-99084 |
from US $2.62 |
||
|
35602D
|
35602D
90520-35003 Ring, Shaft Snap(For Forward Clutch Piston Return Spring)[11.2008 - 09.2016] USK6# |
90520-35003 |
from US $0.76 |
||
|
35602K
|
35602K
90301-33017 Ring, O (For Forward Clutch Piston)O(FOR FORWARD CLUTCH PISTON INNER) [11.2008 - 09.2016] USK6# |
90301-33017 |
from US $1.14 |
||
|
35603A
|
35603A
35603-0C030
Spring Sub-Assy, Forward Clutch Return
[11.2008 - 09.2016] USK6# |
35603-0C030 |
— | ||
|
35604
|
35604
35604-0C030
Spring Sub-Assy, Direct Clutch Return
[11.2008 - 09.2016] USK6# |
35604-0C030 |
— | ||
|
35606A
|
35606A
35652-34010 Piston Sub-Assy, Direct ClutchDIRECT CLUTCH [11.2008 - 09.2016] USK6# |
35652-34010 |
US $44.99 |
||
|
35606E
|
35606E
90520-68006 Ring, Shaft Snap (For Direct Clutch Piston Return Spring)SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRING) [11.2008 - 07.2013] USK6# |
90520-68006 |
US $2.15 |
||
|
35606E
|
35606E
90520-A0038
Ring, Shaft Snap (For Direct Clutch Piston Return Spring)
[07.2013 - 09.2016] USK6# |
90520-A0038 |
— | ||
|
35606K
|
35606K
90301-76002
Ring, O(For Direct Clutch Piston Inner)
[11.2008 - 09.2016] USK6# |
90301-76002 |
— | ||
|
35606L
|
35606L
90301-99124 Ring, O (For Front Oil Pump Body)[11.2008 - 09.2016] USK6# |
90301-99124 |
US $3.52 |
||
|
35613B
|
35613B
35613-50010
Ring, Clutch Piston Oil Seal, Outer
[11.2008 - 05.2010] USK6# |
35613-50010 |
— | ||
| replacement | |||||
|
35613B
|
35613B
35613-50011 Ring, Clutch Piston Oil Seal, OuterCLUTCH PISTON OIL SEAL, OUTER [11.2008 - 05.2010] USK6# |
35613-50011 |
US $11.53 |
||
|
35613B
|
35613B
35613-50011 Ring, Clutch Piston Oil Seal, OuterCLUTCH PISTON OIL SEAL, OUTER [05.2010 - 09.2016] USK6# |
35613-50011 |
US $11.53 |
||
|
35614A
|
35614A
35614-34010 Washer, Clutch Hub Thrust, No.3CLUTCH HUB THRUST, NO.3 [11.2008 - 09.2016] USK6# |
35614-34010 |
US $8.01 |
||
|
35617G
|
35617G
35617-50050 Ring, Clutch Drum Oil Seal[11.2008 - 09.2016] USK6# |
35617-50050 |
from US $2.45 |
||
|
35621Y
|
35621Y
35621-0C020
Piston, Coast Clutch
[11.2008 - 09.2016] USK6# |
35621-0C020 |
— | ||
|
35633B
|
35633B
35633-0C020
Disc, Clutch (For Forward Multiple Disc Clutch)
[11.2008 - 11.2011] USK6# |
35633-0C020 |
— | ||
| replacement | |||||
|
35633B
|
35633B
35633-0C040
Disc, Clutch (For Forward Multiple Disc Clutch)
[11.2008 - 11.2011] USK6# |
35633-0C040 |
— | ||
|
35633B
|
35633B
35633-0C040
Disc, Clutch (For Forward Multiple Disc Clutch)
[11.2011 - 09.2016] USK6# |
35633-0C040 |
— | ||
|
35634A
|
35634A
35634-0C030
Plate, Clutch (For Forward Multiple Disc Clutch)
[11.2008 - 09.2016] USK6# T=1.8 |
35634-0C030 |
— | ||
|
35635
|
35635
35635-0C120
Flange, Forward Clutch
[11.2008 - 09.2016] USK6# T=3.0,MARK 0 |
35635-0C120 |
— | ||
|
35635
|
35635
35635-0C130
Flange, Forward Clutch
[11.2008 - 09.2016] USK6# T=3.1,MARK 1 |
35635-0C130 |
— | ||
|
35635
|
35635
35635-0C140
Flange, Forward Clutch
[11.2008 - 09.2016] USK6# T=3.2,MARK 2 |
35635-0C140 |
— | ||
|
35635
|
35635
35635-0C150
Flange, Forward Clutch
[11.2008 - 09.2016] USK6# T=3.3,MARK 3 |
35635-0C150 |
— | ||
|
35635
|
35635
35635-0C160
Flange, Forward Clutch
[11.2008 - 09.2016] USK6# T=3.4,MARK 4 |
35635-0C160 |
— | ||
|
35635
|
35635
35635-0C170
Flange, Forward Clutch
[11.2008 - 09.2016] USK6# T=3.5,MARK 5 |
35635-0C170 |
— | ||
|
35635
|
35635
35635-0C180
Flange, Forward Clutch
[11.2008 - 09.2016] USK6# T=3.6,MARK 6 |
35635-0C180 |
— | ||
|
35635
|
35635
35635-0C190
Flange, Forward Clutch
[11.2008 - 09.2016] USK6# T=3.7,MARK 7 |
35635-0C190 |
— | ||
|
35635
|
35635
35635-0C200
Flange, Forward Clutch
[11.2008 - 09.2016] USK6# T=3.8,MARK 8 |
35635-0C200 |
— | ||
|
35635
|
35635
35635-0C210
Flange, Forward Clutch
[11.2008 - 09.2016] USK6# T=3.9,MARK A |
35635-0C210 |
— | ||
|
35635
|
35635
35635-0C220
Flange, Forward Clutch
[11.2008 - 09.2016] USK6# T=4.0,MARK B |
35635-0C220 |
— | ||
|
35635
|
35635
35635-0C230
Flange, Forward Clutch
[11.2008 - 09.2016] USK6# T=4.1,MARK C |
35635-0C230 |
— | ||
|
35635F
|
35635F
90520-99129 Ring Snap (For Foward Clutch Flange)[11.2008 - 02.2014] USK6# |
90520-99129 |
from US $4.32 |
||
|
35635F
|
35635F
90520-A0049
Ring Snap (For Foward Clutch Flange)
[03.2014 - 09.2016] USK6# |
90520-A0049 |
— | ||
|
35647A
|
35647A
35647-0C020
Plate, Clutch (For Direct Multiple Disc Clutch)
[11.2008 - 09.2016] USK6# |
35647-0C020 |
— | ||
|
35648D
|
35648D
35648-0C020 Plate, Clutch, No.3CLUTCH, NO.3 [11.2008 - 09.2016] USK6# |
35648-0C020 |
US $39.12 |
||
|
35649A
|
35649A
90520-99135 Ring, Hole Snap(For Reverse Clutch Flange)HOLE SNAP(FOR REVERSE CLUTCH FLANGE) [11.2008 - 02.2014] USK6# |
90520-99135 |
from US $1.60 |
||
|
35649A
|
35649A
90520-A0055
Ring, Hole Snap(For Reverse Clutch Flange)
[03.2014 - 09.2016] USK6# |
90520-A0055 |
— | ||
|
35649B
|
35649B
35649-0C120
Flange, Reverse Clutch
[11.2008 - 09.2016] USK6# |
35649-0C120 |
— | ||
|
35649C
|
35649C
35649-0C120
Flange, Reverse Clutch
[11.2008 - 09.2016] USK6# T=2.4 MARK 0 |
35649-0C120 |
— | ||
|
35649C
|
35649C
35649-0C130
Flange, Reverse Clutch
[11.2008 - 09.2016] USK6# T=2.5 MARK 1 |
35649-0C130 |
— | ||
|
35649C
|
35649C
35649-0C140
Flange, Reverse Clutch
[11.2008 - 09.2016] USK6# T=2.6 MARK 2 |
35649-0C140 |
— | ||
|
35649C
|
35649C
35649-0C150
Flange, Reverse Clutch
[11.2008 - 09.2016] USK6# T=2.7 MARK 3 |
35649-0C150 |
— | ||
|
35649C
|
35649C
35649-0C160
Flange, Reverse Clutch
[11.2008 - 09.2016] USK6# T=2.8 MARK 4 |
35649-0C160 |
— | ||
|
35649C
|
35649C
35649-0C170
Flange, Reverse Clutch
[11.2008 - 09.2016] USK6# T=2.9 MARK 5 |
35649-0C170 |
— | ||
|
35649C
|
35649C
35649-0C180
Flange, Reverse Clutch
[11.2008 - 09.2016] USK6# T=3.0 MARK 6 |
35649-0C180 |
— | ||
|
35649C
|
35649C
35649-0C190
Flange, Reverse Clutch
[11.2008 - 09.2016] USK6# T=3.1 MARK 7 |
35649-0C190 |
— | ||
|
35649C
|
35649C
35649-0C200
Flange, Reverse Clutch
[11.2008 - 09.2016] USK6# T=3.2 MARK 8 |
35649-0C200 |
— | ||
|
35649C
|
35649C
35649-0C210
Flange, Reverse Clutch
[11.2008 - 09.2016] USK6# T=3.3 MARK A |
35649-0C210 |
— | ||
|
35649C
|
35649C
35649-0C220
Flange, Reverse Clutch
[11.2008 - 09.2016] USK6# T=3.4 MARK B |
35649-0C220 |
— | ||
|
35649C
|
35649C
35649-0C230
Flange, Reverse Clutch
[11.2008 - 09.2016] USK6# T=3.5 MARK C |
35649-0C230 |
— | ||
|
35659
|
35659
35659-34020
Sleeve, Reverse Clutch Reaction
[11.2008 - 09.2016] USK6# |
35659-34020 |
— | ||
|
35659A
|
35659A
90520-99134
Ring, Snap (For Reverse Clutch Reaction Sleeve)
[11.2008 - 02.2014] USK6# |
90520-99134 |
— | ||
|
35659A
|
35659A
90520-A0057
Ring, Snap (For Reverse Clutch Reaction Sleeve)
[03.2014 - 09.2016] USK6# |
90520-A0057 |
— | ||
|
35667A
|
35667A
35667-0C020
Disk, Direct Clutch
[11.2008 - 11.2011] USK6# |
35667-0C020 |
— | ||
| replacement | |||||
|
35667A
|
35667A
35667-0C040
Disk, Direct Clutch
[11.2008 - 11.2011] USK6# |
35667-0C040 |
— | ||
|
35667A
|
35667A
35667-0C040
Disk, Direct Clutch
[11.2011 - 09.2016] USK6# |
35667-0C040 |
— | ||
|
35668
|
35668
35668-34010 Balancer, Clutch, No.1CLUTCH, NO.1 [11.2008 - 09.2016] USK6# |
35668-34010 |
US $28.25 |
||
|
35669
|
35669
35669-0C020
Balancer, Clutch, No.2
[11.2008 - 09.2016] USK6# |
35669-0C020 |
— | ||
|
35672
|
35672
35672-0C040
Plate, Clutch Cushion
[09.2013 - 09.2016] USK6# |
35672-0C040 |
— | ||
|
35672
|
35672
35672-34030 Plate, Clutch CushionCLUTCH CUSHION [11.2008 - 09.2013] USK6# |
35672-34030 |
from US $16.57 |
||
|
35672B
|
35672B
35672-0C050
Plate, Clutch Cushion (For Direct Multiple Disc Clutch)
[09.2013 - 09.2016] USK6# |
35672-0C050 |
— | ||
|
35672B
|
35672B
35672-34040 Plate, Clutch Cushion (For Direct Multiple Disc Clutch)CLUTCH CUSHION (FOR DIRECT MULTIPLE DISC CLUTCH) [11.2008 - 09.2013] USK6# |
35672-34040 |
US $19.07 |
||
|
35675B
|
35675B
90520-99141 Ring, Hole Snap (For Forward Clutch Flange)HOLE SNAP (FOR FORWARD CLUTCH FLANGE) [11.2008 - 02.2014] USK6# |
90520-99141 |
from US $2.48 |
||
|
35675B
|
35675B
90520-A0048
Ring, Hole Snap (For Forward Clutch Flange)
[03.2014 - 09.2016] USK6# |
90520-A0048 |
— | ||
|
35675C
|
35675C
35675-0C120
Flange, Direct Clutch
[11.2008 - 09.2016] USK6# T=3.5 |
35675-0C120 |
— | ||
|
35675C
|
35675C
35675-0C130
Flange, Direct Clutch
[11.2008 - 09.2016] USK6# T=3.6 |
35675-0C130 |
— | ||
|
35675C
|
35675C
35675-0C140
Flange, Direct Clutch
[11.2008 - 09.2016] USK6# T=3.7 |
35675-0C140 |
— | ||
|
35675C
|
35675C
35675-0C150
Flange, Direct Clutch
[11.2008 - 09.2016] USK6# T=3.8 |
35675-0C150 |
— | ||
|
35675C
|
35675C
35675-0C160
Flange, Direct Clutch
[11.2008 - 09.2016] USK6# T=3.9 |
35675-0C160 |
— | ||
|
35675C
|
35675C
35675-0C170
Flange, Direct Clutch
[11.2008 - 09.2016] USK6# T=4.0 |
35675-0C170 |
— | ||
|
35675C
|
35675C
35675-0C180
Flange, Direct Clutch
[11.2008 - 09.2016] USK6# T=4.1 |
35675-0C180 |
— | ||
|
35675C
|
35675C
35675-0C190
Flange, Direct Clutch
[11.2008 - 09.2016] USK6# T=4.2 |
35675-0C190 |
— | ||
|
35675C
|
35675C
35675-0C200
Flange, Direct Clutch
[11.2008 - 09.2016] USK6# T=4.3 |
35675-0C200 |
— | ||
|
35675J
|
35675J
35675-0C010
Flange, Coast Clutch
[11.2008 - 09.2016] USK6# T=3.0 |
35675-0C010 |
— | ||
|
35675J
|
35675J
35675-0C020
Flange, Coast Clutch
[11.2008 - 09.2016] USK6# T=3.1 |
35675-0C020 |
— | ||
|
35675J
|
35675J
35675-0C030
Flange, Coast Clutch
[11.2008 - 09.2016] USK6# T=3.2 |
35675-0C030 |
— | ||
|
35675J
|
35675J
35675-0C040
Flange, Coast Clutch
[11.2008 - 09.2016] USK6# T=3.3 |
35675-0C040 |
— | ||
|
35675J
|
35675J
35675-0C050
Flange, Coast Clutch
[11.2008 - 09.2016] USK6# T=3.4 |
35675-0C050 |
— | ||
|
35675J
|
35675J
35675-0C060
Flange, Coast Clutch
[11.2008 - 09.2016] USK6# T=3.5 |
35675-0C060 |
— | ||
|
35675J
|
35675J
35675-0C070
Flange, Coast Clutch
[11.2008 - 09.2016] USK6# T=3.6 |
35675-0C070 |
— | ||
|
35675J
|
35675J
35675-0C080
Flange, Coast Clutch
[11.2008 - 09.2016] USK6# T=3.7 |
35675-0C080 |
— | ||
|
35675J
|
35675J
35675-0C090
Flange, Coast Clutch
[11.2008 - 09.2016] USK6# T=3.8 |
35675-0C090 |
— | ||
|
35675J
|
35675J
35675-0C100
Flange, Coast Clutch
[11.2008 - 09.2016] USK6# T=3.9 |
35675-0C100 |
— | ||
|
35675J
|
35675J
35675-0C110
Flange, Coast Clutch
[11.2008 - 09.2016] USK6# T=4.0 |
35675-0C110 |
— | ||
|
35677C
|
35677C
35677-0C020
Disc, Rear Clutch
[11.2008 - 09.2016] USK6# |
35677-0C020 |
— | ||
|
35685
|
35685
35685-0C010
Disc, Coast Clutch
[11.2008 - 09.2016] USK6# |
35685-0C010 |
— | ||
|
35688
|
35688
35688-34010
Balancer, Clutch, No.3
[11.2008 - 09.2016] USK6# |
35688-34010 |
— | ||
|
35688A
|
35688A
90520-79001 Ring, Snap (For Reverse Clutch Return Spring)[11.2008 - 07.2013] USK6# |
90520-79001 |
US $0.70 |
||
|
35688A
|
35688A
90520-A0027
Ring, Snap (For Reverse Clutch Return Spring)
[07.2013 - 09.2016] USK6# |
90520-A0027 |
— | ||
|
35695A
|
35695A
35695-0C010
Plate, Coast Clutch
[11.2008 - 09.2016] USK6# |
35695-0C010 |
— | ||
|
35701
|
35701
35710-0C010
Shaft Sub-Assy, Input
[11.2008 - 09.2016] USK6# |
35710-0C010 |
— | ||
|
35701J
|
35701J
90374-A0016
Bearing, Thrust Needle Roller (For Input Shaft Front)
[11.2008 - 09.2016] USK6# |
90374-A0016 |
— | ||
|
35786A
|
35786A
35786-0C010 Race, Thrust Bearing, No.1THRUST BEARING, NO.1 [11.2008 - 09.2016] USK6# |
35786-0C010 |
US $10.19 |
||
|
35786G
|
35786G
90374-A0001 Bearing,thrust Needle RollerTHRUST NEEDLE ROLLER [11.2008 - 09.2016] USK6# |
90374-A0001 |
US $17.47 |
||
|
35787D
|
35787D
90374-A0020
Bearing, Thrust Needle Roller
[11.2008 - 09.2016] USK6# |
90374-A0020 |
— | ||
|
35787E
|
35787E
90374-A0013
Bearing, Thrust Needle Roller
[11.2008 - 09.2016] USK6# |
90374-A0013 |
— | ||
|
35789T
|
35789T
35789-0C150
Race, Thrust Bearing (Input Shaft Rear)
[11.2008 - 09.2016] USK6# NO.1 |
35789-0C150 |
— | ||
|
35789T
|
35789T
35789-0C160
Race, Thrust Bearing (Input Shaft Rear)
[11.2008 - 09.2016] USK6# NO.2 |
35789-0C160 |
— | ||
|
35789Z
|
35789Z
90374-A0014
Bearing, Thrust Needle Roller
[11.2008 - 09.2016] USK6# |
90374-A0014 |
— | ||
|
35790H
|
35790H
34360-0C020 Clutch Assy, 1Way No.41WAY NO.4 [11.2008 - 09.2012] USK6# |
34360-0C020 |
US $457.80 |
||
|
35790H
|
35790H
34360-0C040
Clutch Assy, 1Way No.4
[09.2012 - 09.2016] USK6# |
34360-0C040 |
— | ||
