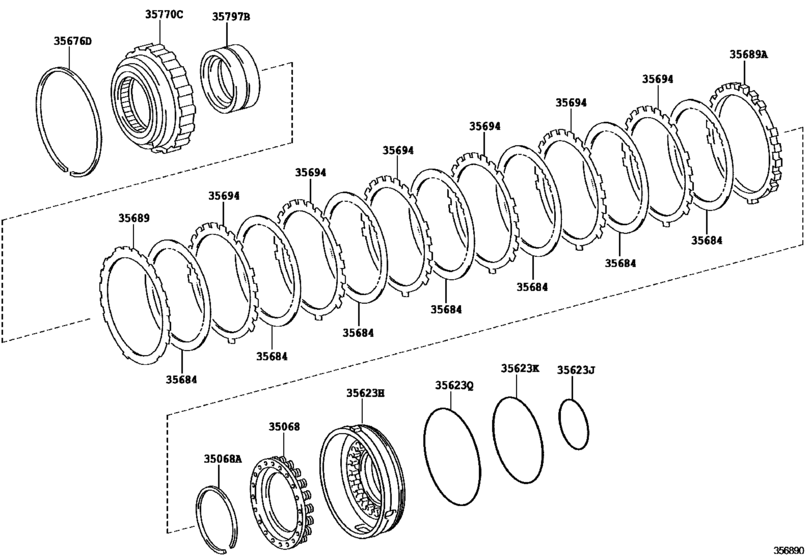

Brake No.3, 1St & Reverse Brake (Atm) ([11.2008 - ] AB60E,AB60F (0811- )) Diagram Toyota SEQUOIA
- Year
- 2009 - 2016
- Sales region
- General
- Frame
- USK65
- grade
- SR5
- ENGINE
- 3URFE
- TRANSMISSION
- ATM
- From
- 11.2009
- To
- 09.2016
- Gear Shift Type
- 6FC
- Vehicle Model
- SEQUOIA
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35068
|
35068
35068-0C020
Spring Sub-Assy, 1St & Reverse Brake Return
[11.2008 - 09.2016] USK6# |
35068-0C020 |
— | ||
|
35068A
|
35068A
90520-61001 Ring, Shaft Snap (For 1St & Reverse Brake Return Spring)[11.2008 - 07.2013] USK6# |
90520-61001 |
from US $0.96 |
||
|
35068A
|
35068A
90520-A0025
Ring, Shaft Snap (For 1St & Reverse Brake Return Spring)
[07.2013 - 09.2016] USK6# |
90520-A0025 |
— | ||
|
35623H
|
35623H
35623-34010
Piston, 1St & Reverse Brake
[11.2008 - 09.2016] USK6# |
35623-34010 |
— | ||
|
35623J
|
35623J
90301-67006 Ring, O (For Brake Piston No.2)[11.2008 - 09.2016] USK6# |
90301-67006 |
US $1.31 |
||
|
35623K
|
35623K
90301-99118 Ring, O (For Brake Piston No.2)[11.2008 - 09.2016] USK6# |
90301-99118 |
US $2.80 |
||
|
35623Q
|
35623Q
90301-99090 Ring, O (For Overdrive Brake Piston)[11.2008 - 09.2016] USK6# |
90301-99090 |
US $2.80 |
||
|
35676D
|
35676D
90521-99130 Ring, Hole Snap (For 2Nd Brake Piston)[11.2008 - 09.2016] USK6# |
90521-99130 |
US $4.08 |
||
|
35684
|
35684
35684-0C030
Disc, Brake, No.4
[11.2008 - 09.2016] USK6# |
35684-0C030 |
— | ||
|
35689
|
35689
35689-0C110
Flange, Brake, No.4
[11.2008 - 09.2016] USK6# T=1.8,MARK 0 |
35689-0C110 |
— | ||
|
35689
|
35689
35689-0C120
Flange, Brake, No.4
[11.2008 - 09.2016] USK6# T=2.0,MARK 2 |
35689-0C120 |
— | ||
|
35689
|
35689
35689-0C130
Flange, Brake, No.4
[11.2008 - 09.2016] USK6# T=2.2,MARK 4 |
35689-0C130 |
— | ||
|
35689
|
35689
35689-0C140
Flange, Brake, No.4
[11.2008 - 09.2016] USK6# T=2.4,MARK 6 |
35689-0C140 |
— | ||
|
35689
|
35689
35689-0C150
Flange, Brake, No.4
[11.2008 - 09.2016] USK6# T=2.6,MARK 8 |
35689-0C150 |
— | ||
|
35689
|
35689
35689-0C160
Flange, Brake, No.4
[11.2008 - 09.2016] USK6# T=2.8,MARK 10 |
35689-0C160 |
— | ||
|
35689A
|
35689A
35689-0C100 Flange, Brake, No.4BRAKE, NO.4 [11.2008 - 09.2016] USK6# |
35689-0C100 |
US $42.94 |
||
|
35694
|
35694
35694-0C020
Plate, Brake, No.4
[11.2008 - 09.2016] USK6# |
35694-0C020 |
— | ||
|
35770C
|
35770C
35770-0C030
Clutch Assy, 1Way No.3
[11.2008 - 09.2016] USK6# |
35770-0C030 |
— | ||
|
35797B
|
35797B
35797-34030
Race, 1 Way Clutch, Inner
[11.2008 - 09.2016] USK6# |
35797-34030 |
— |
