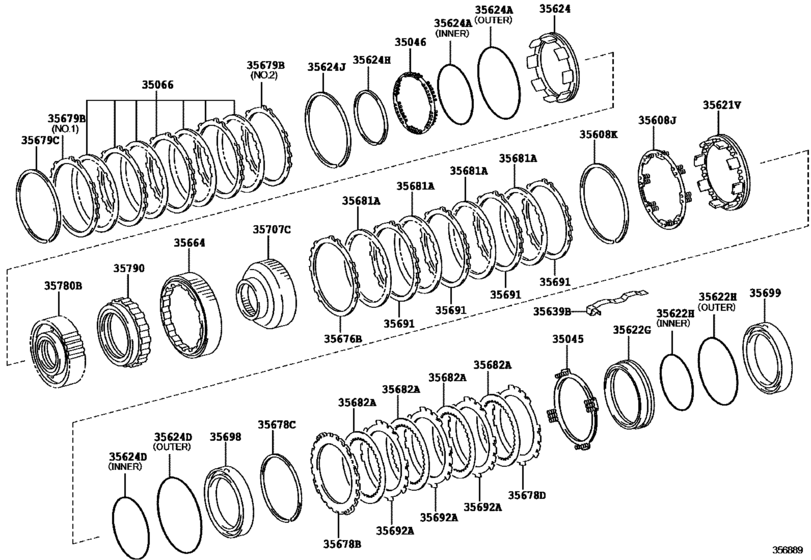

Center Support & Planetary Sun Gear (Atm) ([11.2008 - ] AB60E,AB60F (0811- )) Diagram Toyota SEQUOIA
- Year
- 2009 - 2016
- Sales region
- General
- Frame
- USK65
- grade
- SR5
- ENGINE
- 3URFE
- TRANSMISSION
- ATM
- From
- 11.2009
- To
- 09.2016
- Gear Shift Type
- 6FC
- Vehicle Model
- SEQUOIA
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35045
|
35045
35045-0C020
Spring Sub-Assy, Brake Piston Return,no.2
[11.2008 - 09.2016] USK6# |
35045-0C020 |
— | ||
|
35046
|
35046
35046-0C030
Spring Sub-Assy, Brake Piston Return, No.3
[11.2008 - 09.2016] USK6# |
35046-0C030 |
— | ||
|
35066
|
35066
35066-0C020
Disc Set, 2Nd Brake
[11.2008 - 09.2016] USK6# |
35066-0C020 |
— | ||
|
35608J
|
35608J
35608-0C020
Spring Sub-Assy, Brake Piston Return
[11.2008 - 09.2016] USK6# |
35608-0C020 |
— | ||
|
35608K
|
35608K
90520-99133
Ring, Snap (For Brake Piston Return Spring)
[11.2008 - 07.2013] USK6# |
90520-99133 |
— | ||
|
35608K
|
35608K
90520-A0037
Ring, Snap (For Brake Piston Return Spring)
[07.2013 - 09.2016] USK6# |
90520-A0037 |
— | ||
|
35621V
|
35621V
35621-34020
Piston, Brake, No.1
[11.2008 - 09.2016] USK6# |
35621-34020 |
— | ||
|
35622G
|
35622G
35622-34010
Piston, Brake, No.2
[11.2008 - 09.2016] USK6# |
35622-34010 |
— | ||
|
35622H
|
35622H
90301-99116 Ring, O (For Brake Piston No.2)[11.2008 - 09.2016] USK6# OUTER |
90301-99116 |
US $2.62 |
||
|
35622H
|
35622H
90301-99131 Ring, O (For Brake Piston No.2)[11.2008 - 09.2016] USK6# INNER |
90301-99131 |
US $2.62 |
||
|
35624
|
35624
35624-34010
Piston, 2Nd Brake
[11.2008 - 09.2016] USK6# |
35624-34010 |
— | ||
|
35624A
|
35624A
90301-99116 Ring, O (For Brake Piston No.2)[11.2008 - 09.2016] USK6# INNER |
90301-99116 |
US $2.62 |
||
|
35624A
|
35624A
90301-99177
Ring, O (For 2Nd Brake Piston)
[11.2008 - 09.2016] USK6# OUTER |
90301-99177 |
— | ||
|
35624D
|
35624D
90301-99093 Ring, O (For Front Oil Pump Body)[11.2008 - 09.2016] USK6# INNER |
90301-99093 |
from US $2.62 |
||
|
35624D
|
35624D
90301-99179 Ring, O (For Front Oil Pump Body)O (FOR BRAKE PISTON NO.4) [11.2008 - 09.2016] USK6# OUTER |
90301-99179 |
US $2.80 |
||
|
35624H
|
35624H
90520-99131
Ring, Snap (For 2Nd Brake Piston)
[11.2008 - 07.2013] USK6# |
90520-99131 |
— | ||
|
35624H
|
35624H
90520-A0035
Ring, Snap (For 2Nd Brake Piston)
[07.2013 - 09.2016] USK6# |
90520-A0035 |
— | ||
|
35624J
|
35624J
90521-99138
Ring, Hole Snap (For 2Nd Brake Piston)
[11.2008 - 09.2016] USK6# |
90521-99138 |
— | ||
|
35639B
|
35639B
35639-60010 Spring, Brake Plate Stopper[11.2008 - 09.2016] USK6# |
35639-60010 |
US $28.10 |
||
|
35664
|
35664
35664-34020 Cylinder, 2Nd Brake2ND BRAKE [11.2008 - 09.2016] USK6# |
35664-34020 |
US $113.63 |
||
|
35676B
|
35676B
35676-0C090
Flange, Brake, No.1
[11.2008 - 09.2016] USK6# T=2.0,MARK 0 |
35676-0C090 |
— | ||
|
35676B
|
35676B
35676-0C100
Flange, Brake, No.1
[11.2008 - 09.2016] USK6# T=2.2,MARK 1 |
35676-0C100 |
— | ||
|
35676B
|
35676B
35676-0C110
Flange, Brake, No.1
[11.2008 - 09.2016] USK6# T=2.4,MARK 2 |
35676-0C110 |
— | ||
|
35676B
|
35676B
35676-0C120
Flange, Brake, No.1
[11.2008 - 09.2016] USK6# T=2.6,MARK 3 |
35676-0C120 |
— | ||
|
35678B
|
35678B
35678-0C020
Flange, Brake, No.2
[11.2008 - 09.2016] USK6# T=4.6 |
35678-0C020 |
— | ||
|
35678C
|
35678C
90520-99132 Ring, Snap (For Brake No.2)SNAP (FOR BRAKE NO.2) [11.2008 - 03.2014] USK6# |
90520-99132 |
US $6.94 |
||
|
35678C
|
35678C
90520-A0054
Ring, Snap (For Brake No.2)
[03.2014 - 09.2016] USK6# |
90520-A0054 |
— | ||
|
35678D
|
35678D
35678-0C030
Flange, Brake, No.2
[11.2008 - 09.2016] USK6# T=2.0,MARK 0 |
35678-0C030 |
— | ||
|
35678D
|
35678D
35678-0C040
Flange, Brake, No.2
[11.2008 - 09.2016] USK6# T=2.1,MARK 1 |
35678-0C040 |
— | ||
|
35678D
|
35678D
35678-0C050
Flange, Brake, No.2
[11.2008 - 09.2016] USK6# T=2.2,MARK 2 |
35678-0C050 |
— | ||
|
35678D
|
35678D
35678-0C060
Flange, Brake, No.2
[11.2008 - 09.2016] USK6# T=2.3,MARK 3 |
35678-0C060 |
— | ||
|
35678D
|
35678D
35678-0C070
Flange, Brake, No.2
[11.2008 - 09.2016] USK6# T=2.4,MARK 4 |
35678-0C070 |
— | ||
|
35678D
|
35678D
35678-0C080
Flange, Brake, No.2
[11.2008 - 09.2016] USK6# T=2.5,MARK 5 |
35678-0C080 |
— | ||
|
35678D
|
35678D
35678-0C090
Flange, Brake, No.2
[11.2008 - 09.2016] USK6# T=2.6,MARK 6 |
35678-0C090 |
— | ||
|
35678D
|
35678D
35678-0C100
Flange, Brake, No.2
[11.2008 - 09.2016] USK6# T=2.7,MARK 7 |
35678-0C100 |
— | ||
|
35679B
|
35679B
35679-0C020
Flange, Brake, No.3
[11.2008 - 09.2016] USK6# NO.1 |
35679-0C020 |
— | ||
|
35679B
|
35679B
35679-0C030
Flange, Brake, No.3
[11.2008 - 09.2016] USK6# NO.2 |
35679-0C030 |
— | ||
|
35679C
|
35679C
90520-99130
Ring, Snap (For Brake No.3)
[11.2008 - 03.2014] USK6# |
90520-99130 |
— | ||
|
35679C
|
35679C
90520-A0058
Ring, Snap (For Brake No.3)
[03.2014 - 09.2016] USK6# |
90520-A0058 |
— | ||
|
35681A
|
35681A
35681-0C030
Disc, Brake, No.1
[11.2008 - 09.2016] USK6# |
35681-0C030 |
— | ||
|
35682A
|
35682A
35682-0C030
Disc, Brake, No.2
[11.2008 - 09.2016] USK6# |
35682-0C030 |
— | ||
|
35691
|
35691
35691-0C030 Plate, Brake, No.1BRAKE, NO.1 [11.2008 - 09.2016] USK6# |
35691-0C030 |
US $38.53 |
||
|
35692A
|
35692A
35692-0C020
Plate, Brake, No.2
[11.2008 - 09.2016] USK6# |
35692-0C020 |
— | ||
|
35698
|
35698
35698-34020
Cylinder, Brake, No.1
[11.2008 - 09.2016] USK6# |
35698-34020 |
— | ||
|
35699
|
35699
35699-34010
Cylinder, Brake, No.2
[11.2008 - 09.2016] USK6# |
35699-34010 |
— | ||
|
35707C
|
35707C
35707-0C030 Race Sub-Assy, 1 Way Clutch, Inner1 WAY CLUTCH, INNER [11.2008 - 09.2016] USK6# |
35707-0C030 |
US $200.93 |
||
|
35780B
|
35780B
35780-0C030 Clutch Assy, 1 Way N0.21 WAY N0.2 [11.2008 - 09.2012] USK6# |
35780-0C030 |
from US $243.15 |
||
|
35780B
|
35780B
35780-0C050
Clutch Assy, 1 Way N0.2
[09.2012 - 09.2016] USK6# |
35780-0C050 |
— | ||
|
35790
|
35790
35790-0C030
Clutch Assy, 1 Way
[11.2008 - 09.2016] USK6# |
35790-0C030 |
— |
