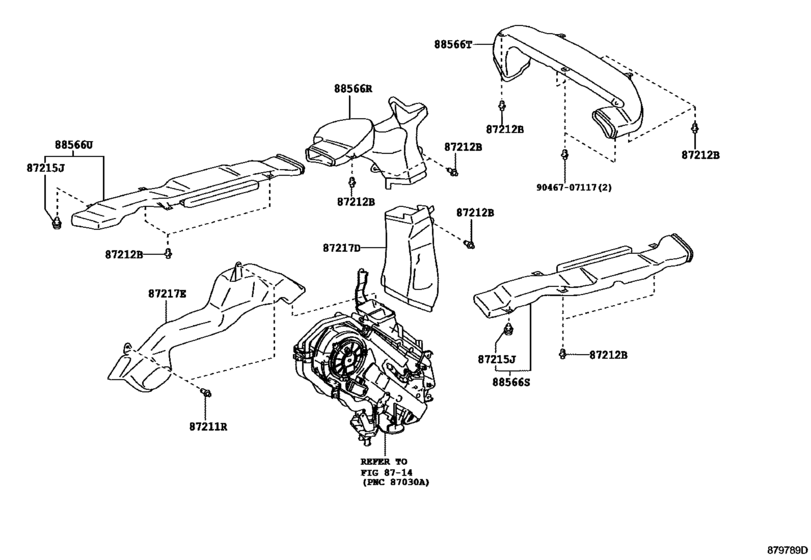

Heating & Air Conditioning - Control & Air Duct ([11.2008 - ] REAR AIR DUCT (0811- )) Diagram Toyota SEQUOIA
- Year
- 2009 - 2016
- Sales region
- General
- Frame
- USK65
- grade
- SR5
- ENGINE
- 3URFE
- TRANSMISSION
- ATM
- From
- 11.2009
- To
- 09.2016
- Gear Shift Type
- 6FC
- Vehicle Model
- SEQUOIA
- Fuel Induction
- HTWC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87211R
|
87211R
90467-A0016-C0
Clip, Radiator Grille
[11.2009 - 09.2016] USK6# BLACK |
90467-A0016-C0 |
— | ||
|
87212B
|
87212B
90467-A0016-C0
Clip, Radiator Grille
[11.2009 - 09.2016] USK6# BLACK |
90467-A0016-C0 |
— | ||
|
87215J
|
87215J
90467-A0006 Clip(For Front Fender Seal)[11.2008 - 09.2016] USK6# |
90467-A0006 |
US $1.28 |
||
|
87217D
|
87217D
87218-0C030
Duct, Air, Rear Side No.1
[11.2008 - 09.2016] USK6# |
87218-0C030 |
— | ||
|
87217E
|
87217E
87214-0C030
Duct, Air, Rear Side No.2
[12.2008 - 09.2016] USK6# |
87214-0C030 |
— | ||
|
88566R
|
88566R
87218-0C020
Duct, Air, Rear Roof No.1
[11.2008 - 08.2014] USK6# |
87218-0C020 |
— | ||
|
88566R
|
88566R
87218-0C040
Duct, Air, Rear Roof No.1
[08.2014 - 09.2016] USK6# |
87218-0C040 |
— | ||
|
88566S
|
88566S
87216-0C080
Duct, Air, Rear Roof No.2
[11.2008 - 09.2016] USK6# |
87216-0C080 |
— | ||
|
88566T
|
88566T
87217-0C050
Duct, Air, Rear Roof No.3
[04.2009 - 09.2016] USK6# |
87217-0C050 |
— | ||
|
88566U
|
88566U
87215-0C070
Duct, Air, Rear Roof No.4
[11.2008 - 09.2016] USK6# |
87215-0C070 |
— | ||
|
9046707117
|
9046707117
90467-07117 Clip, Radiator Support To Frame |
90467-07117 |
from US $0.92 |
