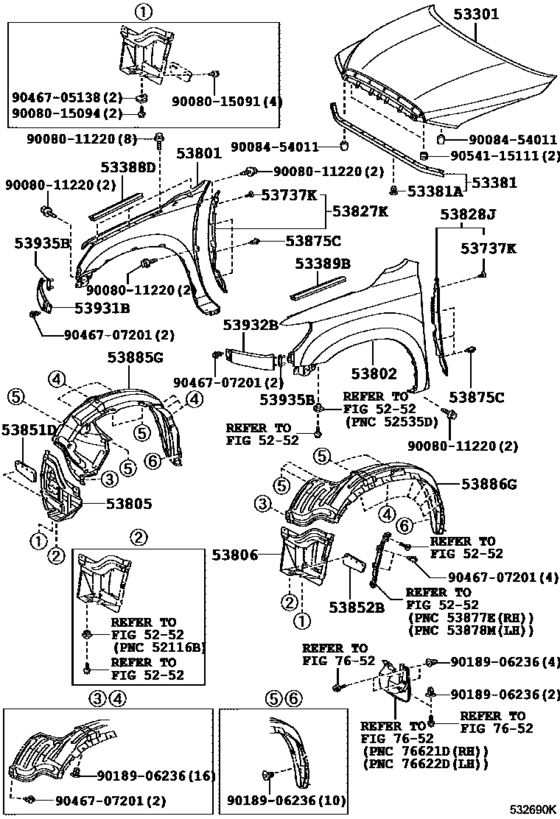

Hood & Front Fender ([11.2008 - ] (0811- )) Diagram Toyota SEQUOIA
- Year
- 2009 - 2016
- Sales region
- General
- Frame
- USK65
- grade
- SR5
- ENGINE
- 3URFE
- TRANSMISSION
- ATM
- From
- 11.2009
- To
- 09.2016
- Gear Shift Type
- 6FC
- Vehicle Model
- SEQUOIA
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53301
|
53301
53301-0C030 Hood Sub-Assy[02.2010 - 09.2016] USK6# |
53301-0C030 |
US $588.22 |
||
|
53301
|
53301
53301-0C040
Hood Sub-Assy
[11.2008 - 02.2010] USK6# |
53301-0C040 |
— | ||
| replacement | |||||
|
53301
|
53301
53301-0C030 Hood Sub-Assy[11.2008 - 02.2010] USK6# |
53301-0C030 |
US $588.22 |
||
|
53381
|
53381
53381-0C020 Seal, Hood To Radiator SupportHOOD TO RADIATOR SUPPORT [11.2008 - 09.2016] USK6# |
53381-0C020 |
US $21.11 |
||
|
53381A
|
53381A
90467-08011 Clip(For Headlamp Cover Seal)[11.2008 - 09.2016] USK6# |
90467-08011 |
from US $0.36 |
||
| replacements | |||||
|
53381A
|
53381A
90467-08011-TH CLIP[11.2008 - 09.2016] USK6# |
90467-08011-TH |
US $0.33 |
||
|
53381A
|
53381A
90467-08011-83 Clip(For Headlamp Cover Seal)Clip(For Headlamp Cover Seal) [11.2008 - 09.2016] USK6# |
90467-08011-83 |
US $3.60 |
||
|
53388D
|
53388D
53388-0C020 Seal, Hood To Front Fender, RhHOOD TO FRONT FENDER, RH [11.2008 - 09.2016] USK6# |
53388-0C020 |
US $33.20 |
||
|
53389B
|
53389B
53389-0C010 Seal, Hood To Front Fender, LhHOOD TO FRONT FENDER, LH [11.2008 - 09.2016] USK6# |
53389-0C010 |
US $36.69 |
||
|
53737K
|
53737K
90467-08186-C0 Clip(For Front Bumper), No.1[11.2008 - 09.2016] USK6# BLACK |
90467-08186-C0 |
from US $0.92 |
||
|
53801
|
53801
53801-0C230 Fender Sub-Assy, Front Rh[02.2010 - 09.2016] USK6# |
53801-0C230 |
US $535.40 |
||
|
53801
|
53801
53801-0C240
Fender Sub-Assy, Front Rh
[11.2008 - 02.2010] USK6# |
53801-0C240 |
— | ||
|
53802
|
53802
53802-0C170 Fender Sub-Assy, Front LhFRONT LH [02.2010 - 09.2016] USK6# |
53802-0C170 |
US $575.94 |
||
|
53802
|
53802
53802-0C200
Fender Sub-Assy, Front Lh
[11.2008 - 02.2010] USK6# |
53802-0C200 |
— | ||
| replacement | |||||
|
53802
|
53802
53802-0C170 Fender Sub-Assy, Front LhFRONT LH [11.2008 - 02.2010] USK6# |
53802-0C170 |
US $575.94 |
||
|
53805
|
53805
53805-0C030 Shield Sub-Assy, Front Fender Splash, RhFRONT FENDER SPLASH, RH [11.2008 - 09.2016] USK6# |
53805-0C030 |
US $102.21 |
||
|
53806
|
53806
53806-0C030 Shield Sub-Assy, Front Fender Splash, LhFRONT FENDER SPLASH, LH [11.2008 - 09.2016] USK6# |
53806-0C030 |
US $79.05 |
||
|
53827K
|
53827K
53827-0C010 Protector, Front Fender Side Panel, RhFRONT FENDER SIDE PANEL, RH [11.2008 - 09.2016] USK6# |
53827-0C010 |
US $29.12 |
||
|
53828J
|
53828J
53828-0C010 Protector, Front Fender Side Panel, LhFRONT FENDER SIDE PANEL, LH [11.2008 - 09.2016] USK6# |
53828-0C010 |
US $29.12 |
||
|
53851D
|
53851D
53851-0C050 Pad, Front Wheel Opening Extension, RhFRONT WHEEL OPENING EXTENSION, RH [11.2008 - 09.2016] USK6# |
53851-0C050 |
from US $31.16 |
||
|
53852B
|
53852B
53852-0C020 Pad, Front Wheel Opening Extension, LhFRONT WHEEL OPENING EXTENSION, LH [11.2008 - 09.2016] USK6# |
53852-0C020 |
from US $33.74 |
||
|
53875C
|
53875C
90467-A0016-C0
Clip, Radiator Grille
[11.2008 - 09.2016] USK6# BLACK |
90467-A0016-C0 |
— | ||
|
53885G
|
53885G
53807-0C020 Seal Sub-Assy, Fender Apron Mudguard, Rh[11.2009 - 09.2016] USK6# |
53807-0C020 |
from US $70.03 |
||
|
53886G
|
53886G
53808-0C011 Seal, Fender Apron Mudguard, LhFENDER APRON MUDGUARD, LH [11.2008 - 09.2016] USK6# |
53808-0C011 |
from US $69.67 |
||
|
53931B
|
53931B
53931-0C901 Panel, Front End, Rh[11.2008 - 09.2016] USK6#..LIMD,SR5 |
53931-0C901 |
US $26.51 |
||
|
53932B
|
53932B
53932-0C901 Panel, Front End, Lh[11.2008 - 09.2016] USK6#..LIMD,SR5 |
53932-0C901 |
US $26.51 |
||
|
53935B
|
53935B
53935-0C010 Protector, Front End PanelFRONT END PANEL [11.2008 - 09.2016] USK6# |
53935-0C010 |
US $3.52 |
||
|
9008011220
|
9008011220
90080-11220 BOLT WWASHER |
90080-11220 |
US $0.52 |
||
|
9008015091
|
9008015091
90080-15091 SCREW |
90080-15091 |
US $0.96 |
||
|
9008015094
|
9008015094
90080-15094
New Genuine Part
|
90080-15094 |
— | ||
|
9008454011
|
9008454011
90084-54011
Cushion, Hood, Center
|
90084-54011 |
— | ||
|
9018906236
|
9018906236
90189-06236 GROMMET SCREW |
90189-06236 |
from US $0.59 |
||
|
9046705138
|
9046705138
90467-05138 Clip(For Front Bumper Retainer) |
90467-05138 |
from US $2.30 |
||
|
9046707201
|
9046707201
90467-07201 Clamp(For Cool Air Intake) |
90467-07201 |
from US $1.13 |
||
|
9054115111
|
9054115111
90541-15111 Cushion, Radiator Support |
90541-15111 |
from US $2.15 |
||
