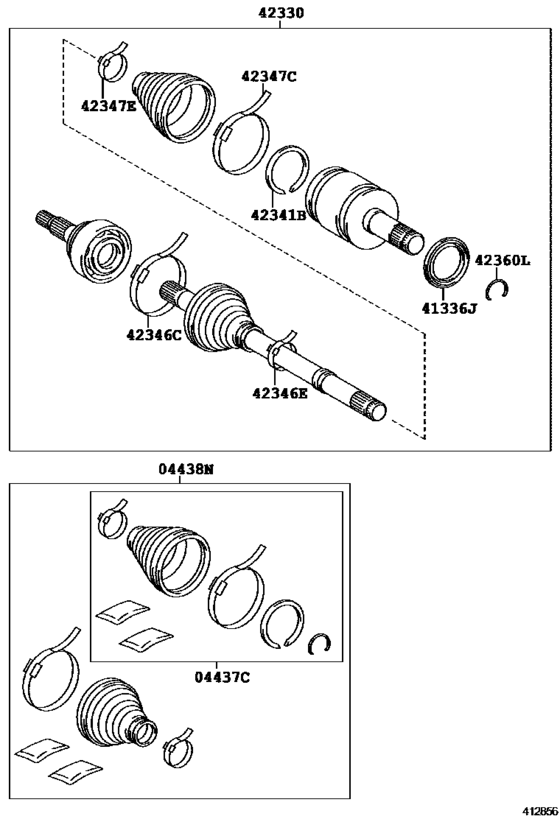

Rear Axle Shaft & Hub ([11.2008 - ] RH (0811- )) Diagram Toyota SEQUOIA
- Year
- 2009 - 2016
- Sales region
- General
- Frame
- USK65
- grade
- SR5
- ENGINE
- 3URFE
- TRANSMISSION
- ATM
- From
- 11.2009
- To
- 09.2016
- Gear Shift Type
- 6FC
- Vehicle Model
- SEQUOIA
- Fuel Induction
- HTWC
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04437C
|
04437C
04439-0C010
Boot Kit, Rear Drive Shaft Inboard Joint, Rh
[11.2008 - 09.2016] USK6# |
04439-0C010 |
— | ||
|
04438N
|
04438N
04429-0C010
Boot Kit, Rear Drive Shaft, In & Outboard Joint, Rh
[11.2008 - 09.2016] USK6# |
04429-0C010 |
— | ||
|
41336J
|
41336J
41336-0C010 Cover, Front Drive Shaft Dust, RhFRONT DRIVE SHAFT DUST, RH [11.2008 - 09.2016] USK6# |
41336-0C010 |
US $4.02 |
||
|
42330
|
42330
42330-0C010
Shaft Assy, Rear Drive, Rh
[11.2008 - 09.2016] USK6# |
42330-0C010 |
— | ||
|
42341B
|
42341B
43425-0C020 Ring, Snap (For Rear Drive Shaft Rh)SNAP (FOR REAR DRIVE SHAFT RH) [11.2008 - 09.2016] USK6# |
43425-0C020 |
US $0.73 |
||
|
42346C
|
42346C
42345-0C070 Clamp (For Rear Drive Shaft Outboard Joint Boot Rh)[11.2008 - 09.2016] USK6# ID=114.3 |
42345-0C070 |
US $6.84 |
||
|
42346E
|
42346E
42345-0C100
Clamp, No.2 (For Rear Drive Shaft Outboard Joint Boot Rh)
[11.2008 - 09.2016] USK6# |
42345-0C100 |
— | ||
|
42347C
|
42347C
42345-0C090
Clamp (For Rear Drive Shaft Inboard Joint Boot Rh)
[11.2008 - 09.2016] USK6# ID=103.8 |
42345-0C090 |
— | ||
|
42347E
|
42347E
42345-0C100
Clamp, No.2 (For Rear Drive Shaft Outboard Joint Boot Rh)
[11.2008 - 09.2016] USK6# |
42345-0C100 |
— | ||
|
42360L
|
42360L
43425-0C050
Ring, Shaft Snap (For Rear Drive Shaft Inboard Joint Rh)
[11.2008 - 09.2016] USK6# |
43425-0C050 |
— |
